Click photos to enlarge.
They make great desktop images.

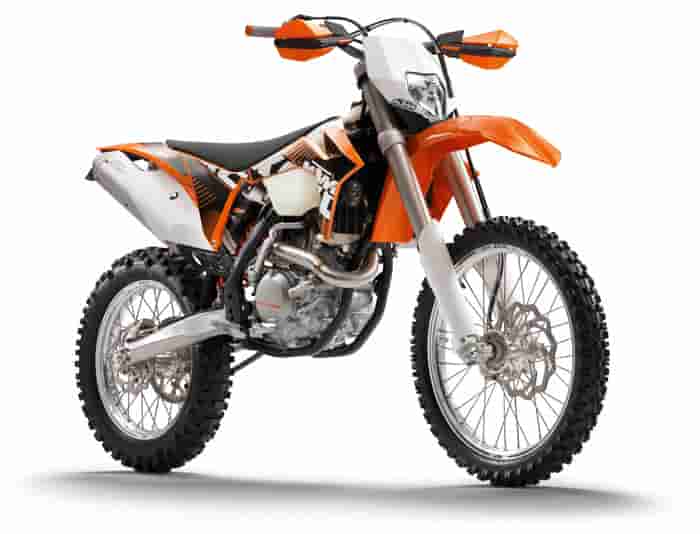

2012 KTM 500 EXC Review
500 EXC: LEGENDARY
The 500 EXC is "ready to race " for the world's largest enduro competition, the "International Six Days Enduro". Six days in succession, over a thousand offroad kilometres, 40 hours in the saddle - a gruelling test, not only for the rider. A whole package of high-quality special options makes the 500 EXC fit for this ruthless contest, in which more than half the starters bank on KTM every year. 500 EXC Six Days - the genuine article with the orange powder-coated frame of the KTM Factory Team.
Enough is never enough For all those who are forever seeking a little bit more, KTM has created the 500 EXC. Perfectly controllable power in extravagant proportions, low weight and an unsurpassed chassis characterize an enduro of remarkable versatility: a sensational fighting machine and absolutely reliable workhorse rolled into one, the indisputable benchmark in terms of weight and rideability. At any rate, there's no way to avoid the 500 EXC on the path to the podium.
2012 KTM 500 EXC Features and Benefits
WITH EXCLUSIVE OPTIONAL EQUIPMENT
SIX DAYS EQUIPMENT
Map select switch on the handlebars for selecting different engine
Camel SXS seat for improved long-distance comfort
Engine guard made of high-strength plastic for protecting engine case and frame down tubes
Radiator fan for optimising temperature control under extreme loads
CNC-machined, orange-anodised triple clamps for high-precision clamping of the fork tubes in favour of optimum sliding of the telescopic fork
Knock-out wheel spindle for easier removal of the front wheel
Full brake disc at the rear for improved heat resistance and therefore reduced pad wear
Rear brake disc protector for protecting the brake disc from mechanical damage
Quick-change brake pad securing bolts at the rear for quicker changing of brake pads without tools
Aluminium rear sprocket with riveted-on steel ring gear for a combination of reduced weight and increased durability
Wheels with black-anodised, extremely robust Giant rims and spokes with a high-quality, black tin-nickel coating.
The same design as the KTM factory bikes thanks to Six Days graphics, orange powder-coated frame, orange anodised triple clamps, orange anodised handlebars and anthracite anodised silencer
NOW EVEN MORE ERGONOMIC
The 450 EXC's new bodywork with the very slim seat and spoiler lines, plus
excellent contact points, perfects the bike's ergonomics, making handling
even simpler and more precise. The longer rear fender protects the rider even
more effectively from swirled up stones.
NOW WITH EVEN MORE PERFORMANCE
With the 450 EXC's newly developed engine, KTM engineers have created a new dimension: The power unit has been redesigned from scratch and is now more compact, lighter and more powerful than before. Reduced reciprocating weight and a balancer shaft minimise vibration.
The newly developed Keihin engine management system with electronic fuel injection ensures spontaneous responsiveness from the engine. Various engine characteristics can be activated with an optional map select switch.
NEW OIL CIRCUIT
The 450 EXC's new engine is equipped with a common oil circuit for engine and transmission, and two oil pumps. A pressure pump lubricates the engine, while a suction pump draws oil from the crankcase, using it to lubricate the transmission and the clutch. At the same time and in conjunction with a steel diaphragm, negative pressure arises in the casing, which boosts the engine power.
NEW BALANCER SHAFT
The 450 EXC's new, more compact balancer shaft not only eliminates vibration, but also serves as the drive for the water pump. This intelligent multi-functionality contributes to the compactness and low weight of the 450 EXC's new engine.
NEW ENGINE CASE
The 450 EXC's new engine case weighs almost 2 kg (4 lb.) less than its predecessor, although it offers better resistance to damage due to stone impact or falls. This has been achieved by using a high-strength, elastic aluminium alloy and changing from sand-casting to die-casting.
When designing the new crankshaft on the 450 EXC, KTM engineers focussed on reducing the reciprocating weight. Thanks to the new, lighter connecting rod and the new, lighter piston, they managed to achieve minimum vibration, while maximising engine-speed strength.
NEW CYLINDER AND PISTON
The 450 EXC's cylinder has been further developed especially for the new engine configuration. The new, 15 % lighter forged piston minimises reciprocating weight and optimises durability at high engine speeds. New, nitrided piston rings ensure highest levels of resistance to wear.
NEW CYLINDER HEAD
All ports and the combustion chamber have been redesigned in the OHC cylinder head of the 450 EXC's new engine. The new camshaft actuates four valves via lightweight rocker arms. High-quality titanium valves are used on the intake side. As before, the cylinder head cover mounted at an angle simplifies service work.
The 450 EXC's new, improved silencer featuring a special Six Days coating not only offers greater volume and a new design, it also reduces noise levels to the stricter standards of the future.
The 450 EXC's newly developed clutch, with a robust steel cage and transmission-friendly
back-damping, makes use of a spring washer for the first time instead of the
customary conical springs, hence substantially reducing the operating force.
The hydraulic actuation mechanism from Brembo® facilitates sensitive modulation
of the clutch.
NOW WITH AN EVEN MORE SUPERIOR CHASSIS
The completely revamped frame made from high-quality chrome-molybdenum steel is characterised by even greater lateral stiffness. Furthermore, it is even better at absorbing jolts introduced by the suspension system, whereby the simple handling and comfort of the 450 EXC have been further optimised.
NEW SWINGARM, NEW PDS, NEW SETTING
The 450 EXC's new, lighter, cast aluminium swingarm accommodates the shock absorber more centrally, in order to load the swing arms more evenly. The new, 7 mm (0.28 in) longer PDS shock absorber with adjustable rebound and high/low-speed compression damping, and a new setting is installed more flatly, so providing even more progression.
TELESCOPIC FORK, NEW SETTING
The 450 EXC is equipped with the latest WP upside-down fork with wider adjustment ranges and a new setting. The sensitive responsiveness and outstanding damping of the open-cartridge fork with 48 mm (1.89 in) outer tubes are a perfect complement for the 450 EXC's simple handling and precision.
Practically unbeatable in terms of weight and stability, the new wheels have
CNC-machined hubs, new black-anodised rims from Giant, black zinc/nickel-coated
spokes and ultra-light aluminium nipples. They reduce the unsprung and gyroscopic
masses, hence bolstering the simple handling of the 450 EXC.
2012 KTM 500 EXC - International Specifications/Technical Details
Europe MSRP Price: 7,495.00 GBP*
Engine type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore/stroke 95/63.4 mm
Compression ratio 11,8:1
Starter/battery Kick- and electric starter / 12V 4Ah
Transmission 6 gears
Carburetor Keihin EFI, flow restrictor 42 mm
Control 4 V / OHC with rocker levers
Lubrication Pressure lubrication with 2 oil pumps
Gear ratios 14:36 17:32 19:28 22:26 24:23 26:21
Primary ratio 32:76
Final drive 14:52 (13:52)
Cooling Liquid cooling
Clutch Wet multi-disc clutch, Brembo hydraulics
Ignition Keihin EMS
Frame Central double-cradle-type 25CrMo4
Handlebar Neken, Aluminium Ø 28/22 mm
Front suspension WP-USD Ø 48 mm
Rear suspension WP-PDS shock absorber
Suspension travel front/rear 300/335 mm
Front/rear brakes Disc brake Ø 260/220 mm
Front/rear rims 1.60 x 21''; 2.15 x 18'' Excel
Front/rear tires 90/90-21''; 140/80-18''
Chain X-Ring 5/8 x 1/4"
Steering head angle 63.5°
Wheel base 1,482±10 mm
Ground clearance 345 mm
Seat height 970 mm
Tank capacity, approx. 9.5 l
Weight, without fuel, approx. 111 kg
* Manufacturer's suggested retail price (MSRP), the actual sale prices can
2012 KTM 500 EXC - American and Canadian Specifications/Technical Details
US MSRP Price: See KTM dealer for pricing.
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 510.4 cm³ (31.147 cu in)
Bore 95 mm (3.74 in)
Stroke 72 mm (2.83 in)
Starter Electric starter/kick starter
Engine lubrication Pressure circulation lubrication with two rotary pumps
Primary transmission 32:76
Final drive 15:45
Cooling Water, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath / hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs - diameter Front 260 mm (10.24 in)
Brake discs - diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4"
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. 8.5 l (2.25 US gal)
Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 113.5 kg (250.2 lb.)
