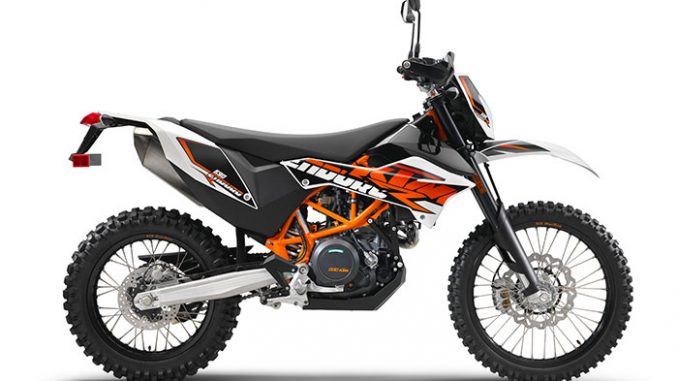

2016 KTM 690 Enduro R

2016 KTM 690 Enduro R

2016 KTM 690 Enduro R Review

2016 KTM 690 Enduro R on www.Totalmotorcycle.com

Dynamic Cornering Fun…

Powerful engine, cool look, fantastic chassis set-up and optimum ergonomics – the KTM 690 Enduro R unites outstanding offroad qualities with unbeatable all-round ability – plus a shape radically optimized. It feels just as at home in the city and on rural roads as it does on gravel and tough terrain. The even more advanced single-cylinder combines the classic Enduro concept with state-of-the-art technology and sporty all-round ability with suitability for everyday use. Perfect workmanship and impressive details reflect the typical KTM philosophy.

2016 KTM 690 Enduro R www.Totalmotorcycle.com Key Features

See Below



2016 KTM 690 Enduro R www.Totalmotorcycle.com Features and Benefits


FRAME AND SWINGARM

FRAME AND SWINGARM
Despite its thoroughbred offroad chassis, the 690 Enduro R also numbers among the curve-bandits on the road. Two major contributors to its excellent tracking stability are the lightweight tubular trellis frame made from chrome-molybdenum steel and the high-quality die-cast swingarm – both of them extremely torsion-resistant.

SUSPENSION COMPONENTS
By professionals for everyone: The KTM 690 Enduro R’s WP upside-down fork, with a whole 250 mm of suspension travel and 48 mm outer tubes, is adjustable in many ways and masters the balancing act between everyday, road and offroad use with the greatest of ease. It is designed as a split fork with separate damping circuits (compression damping on the left fork tube, rebound damping on the right) that can be adjusted independently from each other. This means that they cannot interact as they do in conventional open bleed systems – thus guaranteeing even sportier, more purposeful and rider-optimized ride characteristics. The pivot-arm articulated WP pressurised-gas monoshock with 250 mm of travel even features high-speed and low-speed compression adjustment.

BRAKES
The KTM 690 Enduro R’s extremely powerful and easily applied Brembo® brakes are equipped with lightweight wave brake discs. They defy every hardcore use, no matter whether hitting the gas through a labyrinth of curves or coming down a mountain in heavy terrain.

ABS
The 690 Enduro R enters the fray with Bosch 9M+ABS – highly effective, disengageable and optionally with offroad ABS (by means of PowerParts dongle) for real offroad riding: Freely lockable rear wheel with a sharp ABS function up front.



---



2016 KTM 690 Enduro R – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See dealer for pricing in USD

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
690 cm³
” Bore
102 mm
” Stroke
84.5 mm
” Power in KW
49 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 2 oil pumps
” Transmission
6-speed
” Primary drive
36:79
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
APTC(TM) slipper clutch, hydraulically actuated
” EMS
Keihin EMS with RBW, twin ignition
Chassis
” Frame design
Chrome-moly tubular space frame, powder-coated
” Front suspension
WP USD Ø 48 mm
” Rear suspension
WP shock absorber with Pro-Lever linkage
” Suspension travel (front)
250 mm
” Suspension travel (rear)
250 mm
” Front brake
Brembo twin-piston floating calliper, brake disc
” Rear brake
Brembo single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
240 mm
” Steering head angle
63 °
” Wheelbase
1504 ± 15 mm
” Ground clearance
280 mm
” Seat height
910 mm
” Tank capacity (approx.)
12 l
” Weight READY TO RACE (without fuel)
143 kg



---



2016 KTM 690 Enduro R – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer for pricing in CDN

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
690 cm³
” Bore
102 mm
” Stroke
84.5 mm
” Power in KW
49 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 2 oil pumps
” Transmission
6-speed
” Primary drive
36:79
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
APTC(TM) slipper clutch, hydraulically actuated
” EMS
Keihin EMS with RBW, twin ignition
Chassis
” Frame design
Chrome-moly tubular space frame, powder-coated
” Front suspension
WP USD Ø 48 mm
” Rear suspension
WP shock absorber with Pro-Lever linkage
” Suspension travel (front)
250 mm
” Suspension travel (rear)
250 mm
” Front brake
Brembo twin-piston floating calliper, brake disc
” Rear brake
Brembo single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
240 mm
” Steering head angle
63 °
” Wheelbase
1504 ± 15 mm
” Ground clearance
280 mm
” Seat height
910 mm
” Tank capacity (approx.)
12 l
” Weight READY TO RACE (without fuel)
143 kg

---



2016 KTM 690 Enduro R – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £7799 GBP (On The Road inc 20% Vat)

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
690 cm³
” Bore
102 mm
” Stroke
84.5 mm
” Power in KW
49 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 2 oil pumps
” Transmission
6-speed
” Primary drive
36:79
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
APTC(TM) slipper clutch, hydraulically actuated
” EMS
Keihin EMS with RBW, twin ignition
Chassis
” Frame design
Chrome-moly tubular space frame, powder-coated
” Front suspension
WP USD Ø 48 mm
” Rear suspension
WP shock absorber with Pro-Lever linkage
” Suspension travel (front)
250 mm
” Suspension travel (rear)
250 mm
” Front brake
Brembo twin-piston floating calliper, brake disc
” Rear brake
Brembo single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
240 mm
” Steering head angle
63 °
” Wheelbase
1504 ± 15 mm
” Ground clearance
280 mm
” Seat height
910 mm
” Tank capacity (approx.)
12 l
” Weight READY TO RACE (without fuel)
143 kg

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
