COME TO THE DARK SIDE.

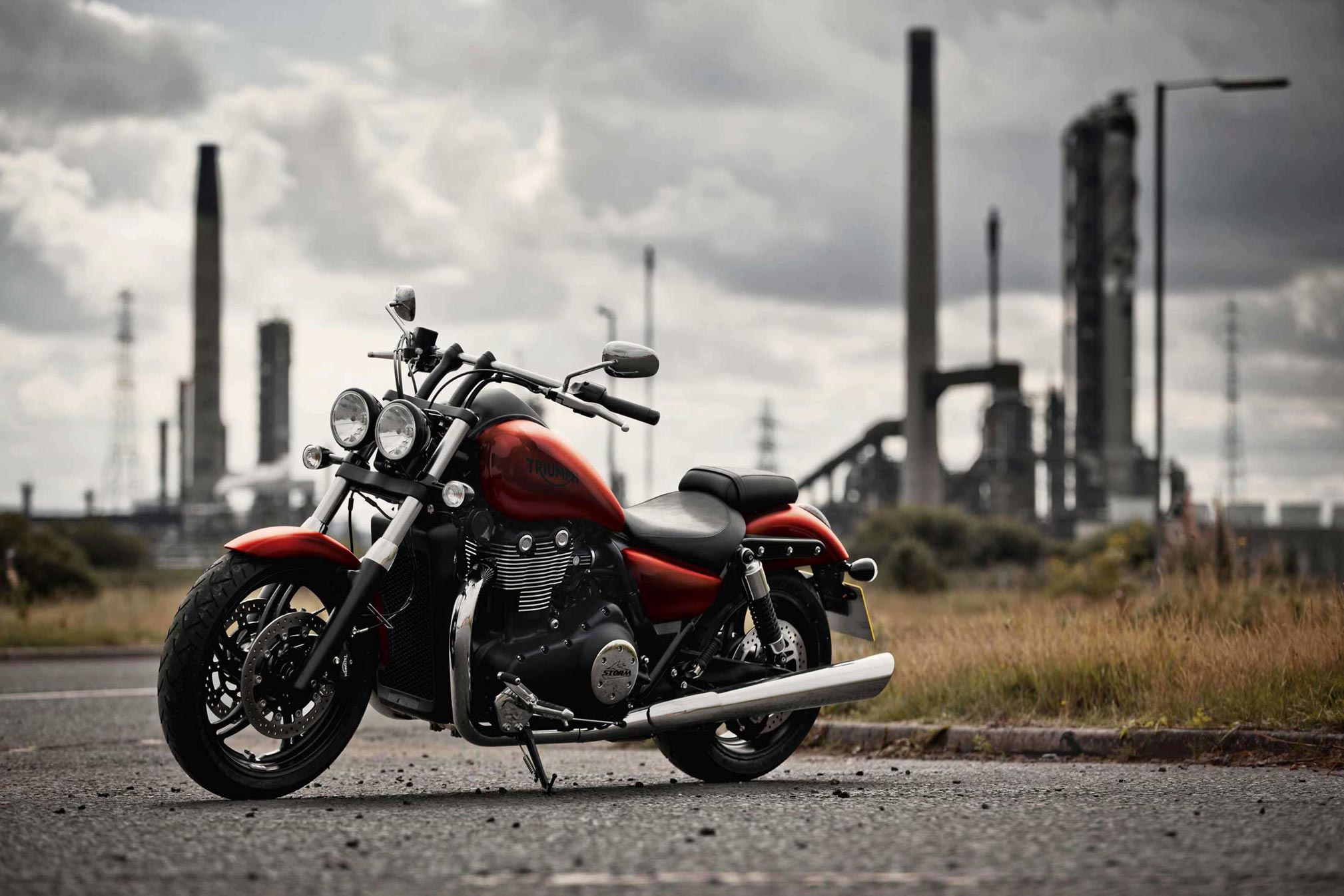

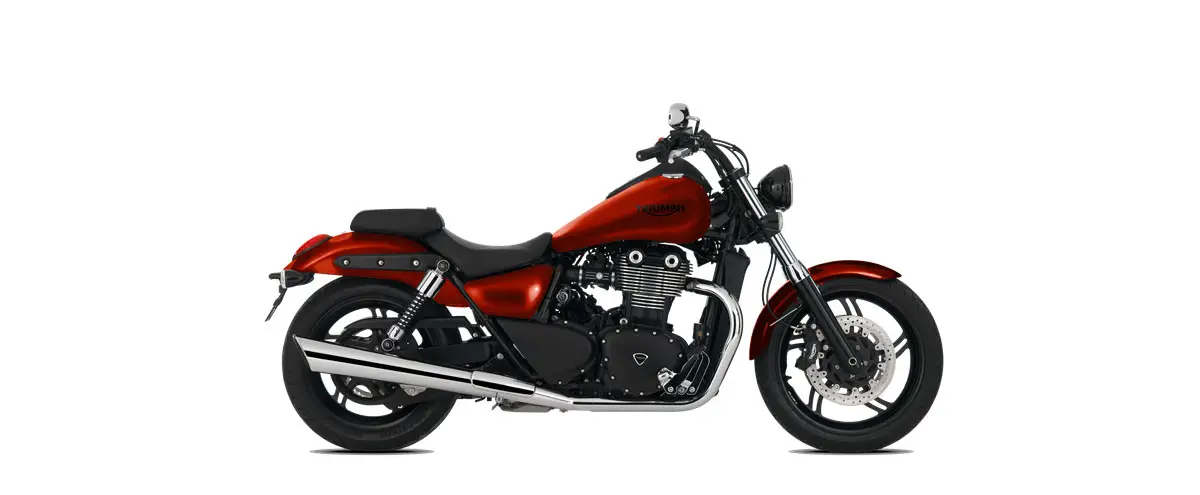

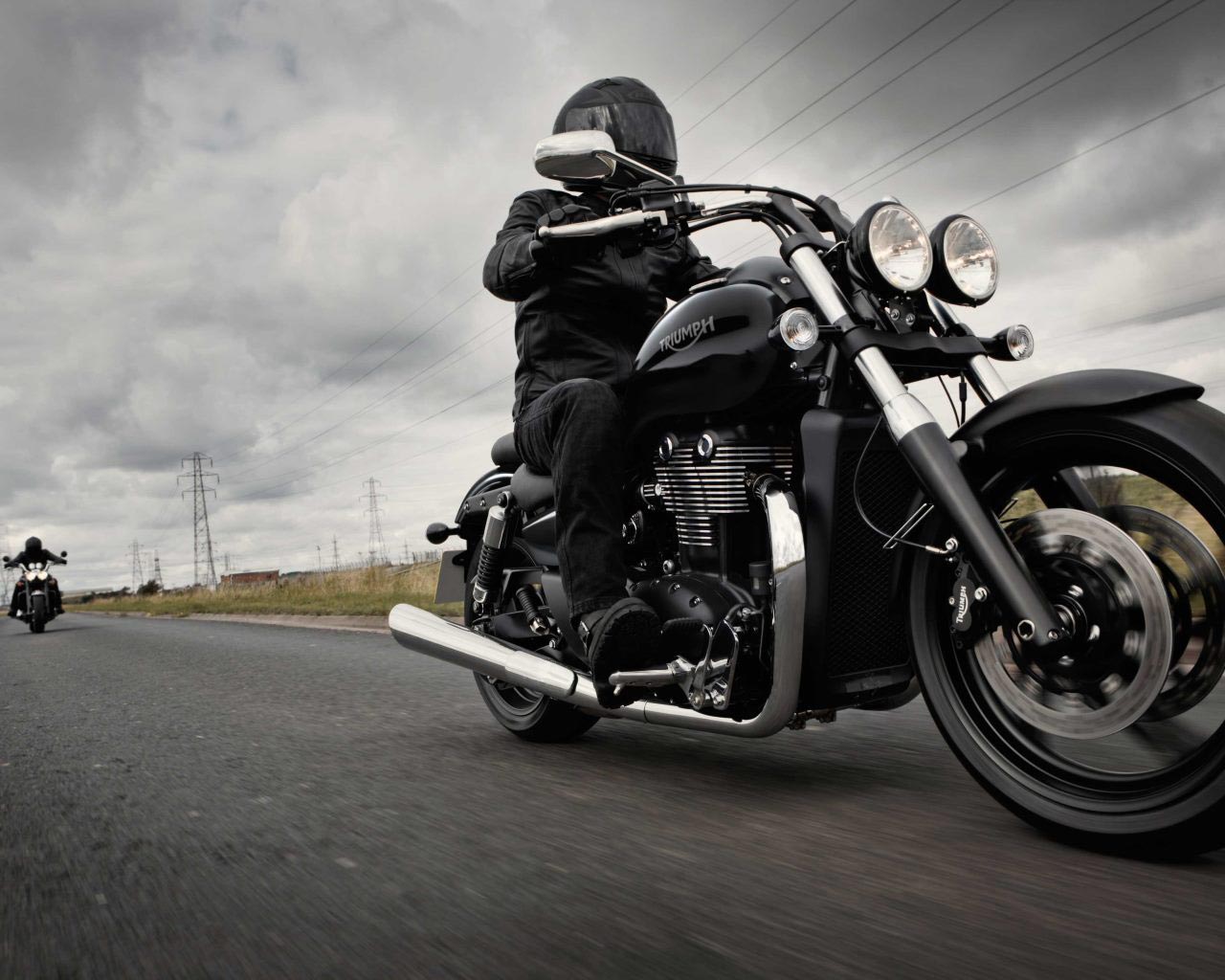

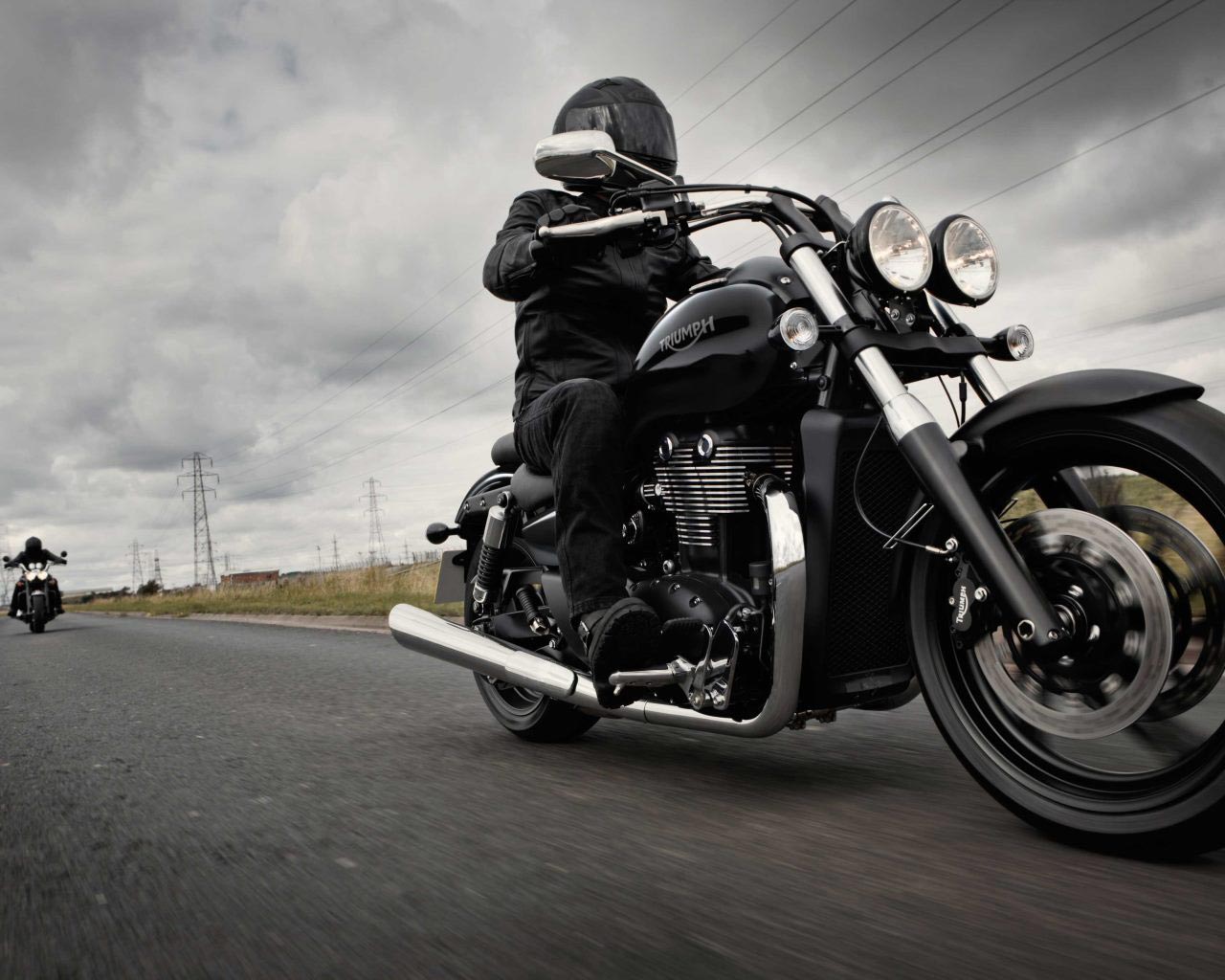

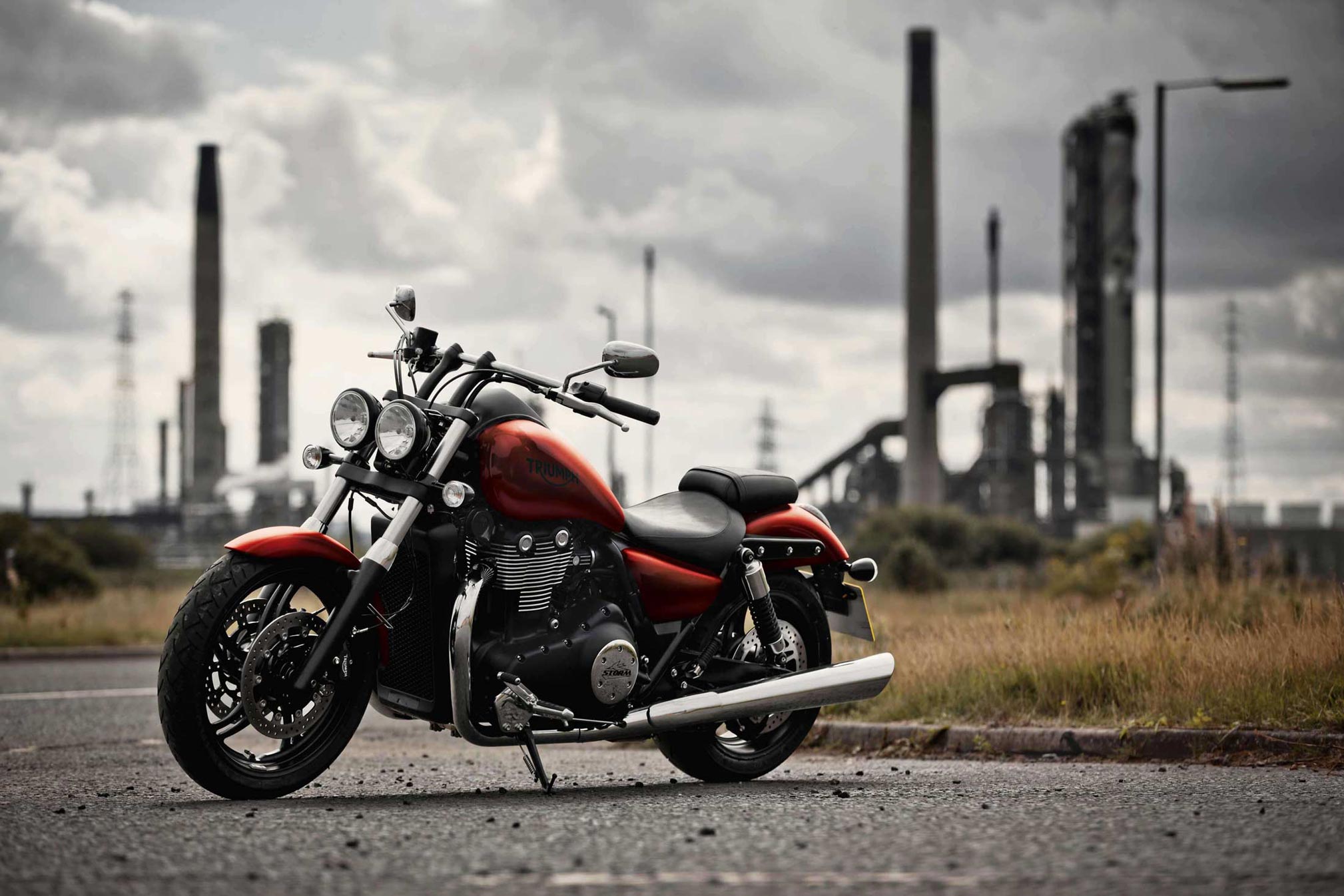

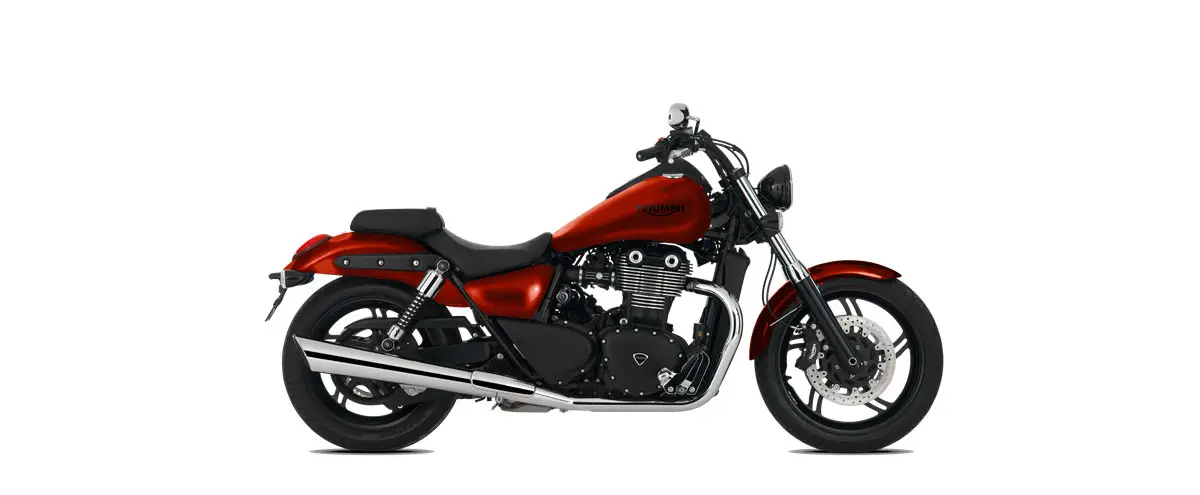

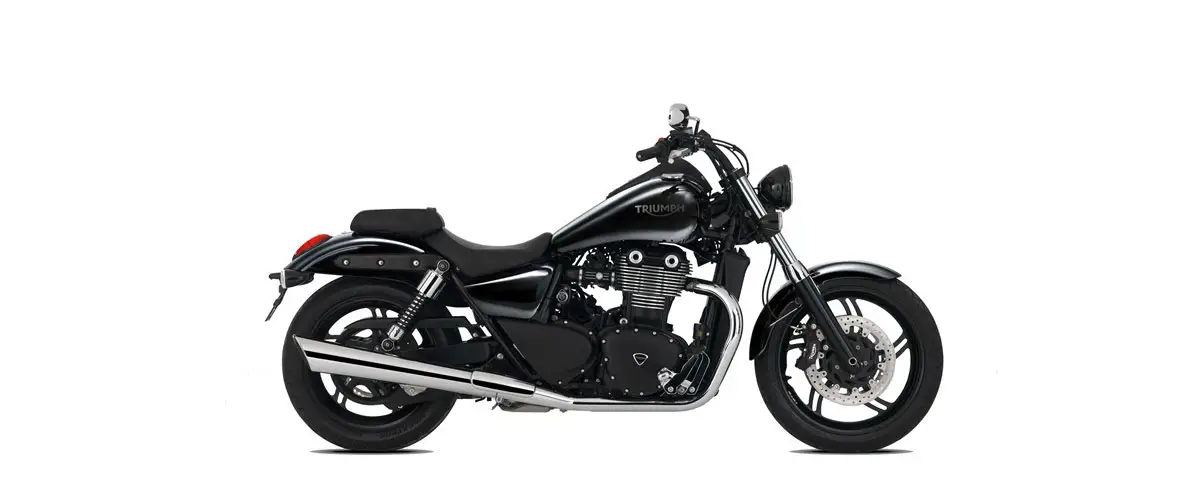

2018 Triumph Thunderbird Storm:

We squeezed 102cc more from the muscle-bound parallel twin engine so that it packs an even bigger punch. Still laid-back but underpinned by serious power and the best handling in the class. This is a cruiser with a dark side.

2018 Triumph Thunderbird Storm Totalmotorcycle.com Key Features

•ABS
•Adjustable suspension
•Belt Drive
•Liquid-cooled
•Self cancelling indicators

To the onlooker, Triumph Cruisers could be mistaken for being just about pure classic cruiser style. But one ride tells you that our cruiser motorcycles are about surprising levels of agility and performance in a bike that can deliver an engaging ride every day. They just happen to do it with that pure classic cruiser style.

2018 Triumph Thunderbird Storm Totalmotorcycle.com Features and Benefits

Thunderbird Range

Style, performance and control. It’s a classy combination, but it only takes one look at the Triumph Thunderbird Range to instantly know they’ve got the lot. From making big miles disappear to dominating the urban landscape; whichever you choose, the world’s largest parallel twin engine has every answer.

Thunderbird and Thunderbird Storm

Be different, Be bold, Be in control

The Triumph Thunderbird and Thunderbird Storm share an underlying chassis, but they’re two very different breeds of muscle cruiser. The Triumph Thunderbird is the original, laid-back, relaxed, chromed-up cruiser bike using a torque-rich parallel twin engine to sweep you off your feet and get you where you want to be in life, every time. The Triumph Thunderbird Storm, on the other hand, is blacked-out, mean-streets cruiser that uses its enlarged motor to hammer out even more gut-wrenching bottom-end performance.

Thunderbird Commander and Thunderbird LT

The Triumph Thunderbird Commander and Thunderbird LT share an underlying chassis and are powered by the same massively torquey 1699cc parallel twin engine, but they’re two very different breeds of muscle cruiser. The Thunderbird Commander has the essential power-cruiser style and broad, dynamic riding stance to utterly dominate any road and ride. Meanwhile the Triumph Thunderbird LT is loaded with the easy-going, laid-back vibe of a premium classic touring cruiser, as well as a host of long-distance accessories.

Engine

The Triumph Thunderbird engines look every cubic inch a classic cruiser motor, designed with Triumph’s unique, big-bore parallel twin twist. But don’t be fooled by the air-cooling fins. Because inside is a modern, high-performance, water-cooled power plant with sophisticated electronic fuel injection and engine management, built with Triumph’s cutting-edge quality and durability.

Configuration

With forged pistons the size of saucers, the Thunderbird’s 1597cc, Thunderbird Storm, Commander and Thunderbird LT’s 1699cc, eight-valve, water-cooled parallel twin is engineered with a 270° firing interval for a chunky, charismatic power delivery. Twin balance shafts soothe low frequency vibes, allowing the Thunderbird’s pulsating torque to be felt across the rev range.

Performance

At a colossal 1699cc, the world’s largest parallel twin engine powering the Triumph Thunderbird Commander and Thunderbird LT packs a mighty big punch, pounding out a remarkable 94PS and truly staggering 151Nm at 3550rpm. This barn-storming low down performance makes it the perfect engine for anything from effortlessly relaxed cruising across entire continents on the Thunderbird LT to cutting a domineering dash along today’s roads on the Thunderbird Commander. But with phenomenal overtaking power always on tap whichever gear you’re in, your Thunderbird is never found wanting.

The 1597cc Triumph Thunderbird motor thumps out a fulsome 86PS, but the real story is a whopping 146Nm of peak torque at a mere 2750rpm. Meanwhile the 1699cc Thunderbird Storm engine raises the bar even higher to 98PS and a simply colossal 156Nm of torque. It means both Thunderbird and Thunderbird Storm’s low down power deliveries are specifically engineered to suit their chilled-out cruising vibe, but both bikes also come fully armed with serious performance under the tank to lay down the law when action is called for.

Gearbox-Transmission

The Triumph Thunderbird’s smooth, six-speed gear ratios deliver every ounce of the engine’s torque-rich performance, from the intense thrust of first gear right the way to an overdrive top gear for relaxed cruising and exceptional fuel efficiency. But with phenomenal overtaking power always on tap whichever gear you’re in, the Thunderbird is never found wanting.

Belt Drive

The Triumph Thunderbird belt drive, with carbon fibre in the belt and a tungsten carbide treatment on the rear pulley, has a higher tensile strength than steel and ensures snatch-free transmission with high durability and almost no maintenance compared to chain-drive. And it doesn’t need oiling.

Riding Position

The Thunderbird Commander instantly lives up to its name as soon as you get on. Wide, swept-back bars brace you against the world, forward-placed running boards and a low, deeply padded seat with double-layer, triple-density seat foam, settle you into a tough, yet laid-back, groove. If feels like you’re ready to take on the world – and win. The Thunderbird LT has the same footboards and deeply padded seat, but its high, pulled-back cow horn bars give a more steady, touring feel to its riding position. It feels like you’re ready to ride round the world – and win.

Being in control and being seen to be in control are what counts on the Triumph Thunderbird and Thunderbird Storm. With forward footrests, double-foam low seat, and wide, pulled-back bars for a spacious riding position, they’re perfect for a quick Sunday spin, or comfortable on long trips, even two-up.

Chassis

Overview

The Triumph Thunderbird’s dynamic engine demands an equally dynamic chassis with handling developed as a priority, not an afterthought. As a result, all Thunderbirds can supply relatively high levels of agility, control and precision usually unheard of in a cruiser, with plenty of ground clearance for when the ride gets interesting.

Suspension

Stylish on the outside, modern on the inside. The Triumph Thunderbirds feature chunky 47mm Showa forks with 120mm of travel. set-up and carefully matched to a pair of five-way preload adjustable shocks at the rear, with 109mm (LT & Commander) and 95mm (Thunderbird & Thunderbird Storm) of travel giving the right dynamic for everything from spirited solo riding to two up touring.

Wheels and Tyres

To match the Triumph Thunderbird Commander’s dominant presence on the road, yet retain its agile, user-friendly handling characteristics, a dramatic, fat-section 140/75 17in front tyre is fitted with a 200/50 17in at the rear, running on lightweight diamond-turned cast wheels. Meanwhile the Thunderbird LT features the world’s first white-walled radial tyres, developed exclusively for Triumph by British tyre manufacturer Avon. With a fat-section 150/80 16in front and 180/70 16in rear on stunning 56-spoke wire rims, they’re the ultimate in laid-back cruiser cool.

Handling

The Triumph Thunderbird delivers awesome engine performance. That’s why outstanding handling, in all situations and for all riders, is called for. The bikes are carefully developed to bring Triumph’s trademark light, neutral steering, easy low speed agility, and high stability and user-friendliness to the big cruiser class. High performance braking is also of prime importance, using twin Nissin four-piston calipers on 310mm discs at the front and a Brembo caliper and 310mm disc at the rear, backed up by sophisticated ABS.

Styling

Style matters, which is why the Triumph Thunderbirds stir emotions visually as well as on the road. From mechanical highlights like machined cooling fins, chrome covers and careful exhaust routing, to the aesthetics of diamond-turned cast wheels or wire spokes, deep fenders, hand-painted coach lines and lustrous body-colours, each Thunderbird is built with the quality and detailing you’d expect of a prestige Triumph cruiser. So whether you prefer the LT’s classic touring cruiser stance or the clean, elegant style of the Thunderbird Commander, you know your bike looks as good to everyone else as it does to you.

Accessories

Leather Panniers

Longer trips on the Triumph Thunderbird Commander will benefit from a pair of sumptuous, genuine leather, top-loading panniers with ample 52-litre capacity. Includes chrome plated, Triumph-branded buckles and hidden snap clips for ease of use.

Rider Comfort Seat

Covered with premium luxury Sky Renna fabric and with distinctive stitching detail, the long-haul rider seat delivers exceptional comfort over any distance. Designed to be installed together with the pillion comfort seat. (Image shows Thunderbird Commander Seat)

Silencer Kit

Available in long or short design, the High Flow silencer kit includes slash cut, tapered, triple-plated chrome silencers with improved gas flow for enhanced engine performance and a deeper exhaust note. Supplied with gaskets and replacement heat shield covers. Requires specific calibration to guarantee optimum performance. Off-road use only. (Image shows Thunderbird LT Silencer kit)

Foot Board Kit

Make your riding position fit you with a pair of Triumph accessory footboards. The chromed tear drop rider footboards come with either plain rubber mats or with chrome line detailing, and are available for either rider and/or passenger comfort.(Image shows Thunderbird Commander foot board)

Luggage Rack

For added day-to-day convenience or solo longer trips, a high gloss, hand polished, multi-layer chrome plated luggage rack, fabricated from steel tubing, fits to the rear of the Triumph Thunderbird and Thunderbird Storm (when the pillion seat is removed).

Dresser bars

Made from high quality, hand polished, triple-layer chrome plated tubular steel, engine dresser bars are available for the Thunderbird family both to enhance and offer maximum protection for your engine or the rear of your Thunderbird. Supplied complete with all mounting hardware.

2018 Triumph Thunderbird Storm – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

2018 Triumph Thunderbird Storm – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

2018 Triumph Thunderbird Storm – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £13100 GBP (On The Road inc 20% Vat)

Type      Liquid-cooled, DOHC, Parallel-twin, 270º firing interval

Capacity               1699cc

Bore Stroke        107.1mm / 94.3 mm

Compression      9.7:1

Max Power EC   98 PS/97 BHP (72 kW) @ 5,200 rpm

Max Torque EC 156 Nm @ 2,950 rpm

System Multipoint sequential electronic fuel injection, progressive linkage on throttle

Exhaust                Chromed twin-skin stainless steel 2 into 1 into 2 exhaust system with chrome plated silencers

Final drive           Toothed Belt

Clutch   Wet, multi-plate

Gearbox               6-speed

Frame   Tubular Steel, twin spine

Swingarm            Twin-sided, steel

Front Wheels     Cast aluminium alloy 5-spoke 19 x 3.5 in

Rear Wheels       Cast aluminium alloy 5-spoke 17 x 6.0 in

Front Tyres         120/70 R19

Rear Tyres           200/50 R17 75W

Front Suspension             Showa 47 mm forks. 120 mm travel

Rear Suspension               Showa black spring twin shocks with 5 position adjustable preload, 95 mm rear wheel travel

Brakes Front       Twin 310 mm floating discs. Nissin 4-piston fixed calipers, ABS

Brakes Rear        Single 310 mm fixed disc. Brembo 2-piston floating caliper, ABS

Instrument Display and Functions             Analogue speedometer featuring integrated rev counter, scroll button on handlebars, LCD trip computer, fuel gauge and clock

Width Handlebars            880 mm

Height Without Mirror   1120 mm

Seat Height         700 mm

Wheelbase         1615 mm

Rake      32 º

Trail       151 mm

Dry Weight         308 Kg

Tank Capacity    22 L

Constant Speed 56mph 90kph    66.8 MPG

Constant Speed 75mph 120kph 48.9 MPG

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
