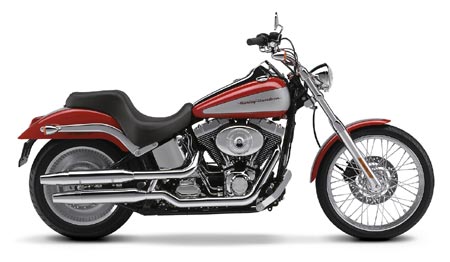

Click photo to enlarge.
It makes a great desktop image.

2002 Harley-Davidson FXSTD/FXSTDI Softail Deuce



– 2002 Harley-Davidson FXSTD/FXSTDI Softail Deuce

The Deuce™ is the most radically new Harley-Davidson® motorcycle since the Hydra-Glide. Every part has been touched. The sleek chrome front end could hang in an art gallery. The tank is a new stretched design. There’s a new rear fender as original as it is clean. Same with the reflector-optic bullet turn signals. Then there’s the 17-inch rear wheel and wide tire. The Twin Cam 88B™ engine sends it all down the road in one fluid motion.

Key FXSTD™ SOFTAIL® DEUCE™ Characteristics

-Rigid mount, 1450cc Twin Cam 88B™ balanced engine
-Black powdercoated engine with chrome covers
-Stretched tank
-Chrome front forks
-Chrome risers with low-rise flat track style handlebars
-Chrome fender supports with hidden hardware
-Chrome, bullet turnsignals
-Full-length chrome tank console
-Laced front wheel, 17 in. disc rear wheel
-160 wide rear tire
-MSRP US $16,555

Vehicle specifications and features may vary from country to country depending on local laws, and some models are not available in certain countries.

Specifications:

DIMENSIONS
Length 95.4 in. (2422.0 mm)
Seat Height (measure laden w/ 180 lb. rider) 26.0 in. (658.9 mm)
Seat Height TUV (measure unladen; int’l measure) (719 mm)
Ground Clearance 5.6 in. (140.9 mm)
Rake (degrees) 34.0 degrees
Trail 5.0 in. (126.9 mm)
Wheelbase 66.6 in. (1690.3 mm)
Tires: Dunlop Harley-Davidson Series II D402
Front MH90-21 54H
Rear K591 160/70B17 73V
Fuel Capacity (includes 0.5 gal. reserve) 4.9 gal. (18.5 L)
Reserve Fuel Capacity 0.5 gal. (1.9 L)
Oil Capacity 3.5 qts. (3.3 L)
Dry Weight 644.6 lbs. (292.7 kg)
Vehicle Weight In Running Order (int’l measure) (309.6 kg)
Gross Vehicle Weight Rating 1125.0 lbs. (510.8 kg)

ENGINE
Engine OHV Twin Cam 88B (balanced)
Valves Pushrod-operated overhead valves;with hydraulic
self-adjusting lifters; two valves per cylinder
Bore and Stroke 3.75 x 4.0 in. (95.25 x 101.6 mm)
Displacement 88 cu. in. (1450 cc)
Compression Ratio 8.9:1
Fuel System Carburetion (40 mm constant velocity with enrichener and accelerator pump);
Electronic Sequential Port Fuel Injection (Single runner, 45 mm throttle bore ESPFI)
Air Cleaner/Filter Elliptical style chrome with spun aluminum insert;
high-efficiency, pleated paper filtration
Ignition Single-fire, non-waste, map-controlled spark ignition system;
electronic breakerless with multiple advance curve matrix
Lubrication System Dry sump, internally mounted, crank driven gerotor pressure and
dual scavenge pump with spin on 10ì pressurized oil filter

DRIVETRAIN
Primary Drive Double-row chain; oil bath; mechanical tensioner;
25/36-tooth sprockets (1.44:1)
Final Drive Gates aramid fiber reinforced Poly Chain belt;
32/70-tooth sprockets; 2.188:1
Clutch Multi-plate with diaphragm spring in oil bath
Transmission Five-speed,constant mesh
Gear Ratio:
1st 10.11
2nd 6.958
3rd 4.953
4th 3.862
5th 3.15

CHASSIS
Frame Mild steel, rectangular section backbone w/ twin downtubes
Swing Arm Tubular mild steel
Front Fork Wide 41.3 mm custom fork
Wheels 21 in. (53.34 cm) disc rear wheel, 17 in. (43.18 cm)
deep-dish diamond cut disc rear wheel
Wheel Bearings Dual-sealed, automotive-style, ball-type
Brakes:
Caliper type Four-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.82 mm)
Suspension travel:
Front Wheel 5.61 in. (142.5 mm)
Rear Wheel 4.34 in. (110.24 mm)

PERFORMANCE
Engine Torque 85 ft. lbs. @ 3000 rpm (106.9 NM @ 3000 rpm)
Braking at 60 mph (97 kph):
Maximum load 173 ft. (52.7 m)
Lean Angle (per SAEJ1168):
Right 36.7 degrees
Left 33.2 degrees

ELECTRIC
Battery Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging 38-amp permanent magnet alternator with solid-state regulator
(481 watts @ 3,000 rpm, 494 watts peak)
Starting 1.2 kW electric with Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w, (5w/21w)
Turn signal lights (self-canceling) 28w, (21w)
Running lights Front turn signals (except where prohibited by law)
Indicator lamps High beam, neutral, oil, turn signals, engine diagnostics,
and security system (optional)

STYLING/CONVENIENCE
Engine Trim Black and chrome
Exhaust System Over/under shotgun duals
Oil Tank Chrome “Horseshoe” with chrome external oil lines
Ignition Barrel keyed
Handlebars Low-rise custom “flat track” style
Seat Low slung custom style seat
Passenger Backrest Available Genuine Motor Accessories
Brake and Shift Lever Forward foot controls
Rear Fender Supports Chrome full coverage
Fork Lock Common with ignition key
Instruments Electronic speedometer with odometer and resettable
tripmeter w/diagnostic capabilities and solid state tell-tale indicator module
Flasher Hazard warning integrated into turn signal controls

COLORS
Vivid Black, Luxury Blue Pearl, Real Teal Pearl, Luxury Rich Red
Concord Purple,Two-Tone Luxury Blue/Diamond Ice
Two-Tone Luxury Rich Red/Vivid Black,Two-Tone Real Red/Diamond Ice

WARRANTY
Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km); every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals –
