2003 Suzuki SV650S
Back to 2003 Suzuki Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

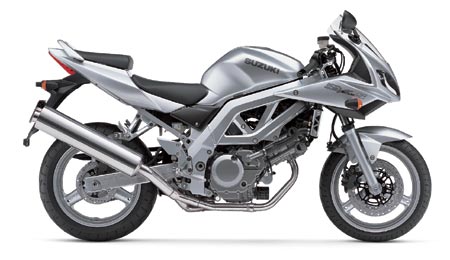

2003 Suzuki SV650S

2003 Suzuki SV650S

• 2003 Suzuki SV650S

Sportbike SV650S - 2003 SV650SK3

NEW FEATURES:

• New generation SV650S with all-new frame, electronic fuel injection and an exciting new look.

• Electronic fuel injection system featuring the Suzuki Dual Throttle Valve System (SDTV)- maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output. Includes Auto Fast Idle System (AFIS).

• New 16-bit ECM provides precise control of ignition timing and injector operation for each cylinder.

• Large throttle bodies fed by an 8.5 liter airbox with a flat-panel air filter for easy maintenance.

• Pulsed-air injection system (PAIR) reduces emissions.

• Sleek half fairing features dual 60/55W headlights with running lights and folding mirrors.

• Compact instrument cluster includes analog tach, LCD speedometer, odometer/tripmeters, and temperature gauge, plus LCD clock and low fuel warning light.

• Steeply-angled tail section houses unique vertically-styled, high visibility LED taillight.

• Narrow, lightweight aluminum truss-style frame is constructed using high-vacuum die-cast process for more consistent strength and fewer individual welded sections.

• Large under-seat storage area, passenger grab-bar and tie-down hooks.

• New-style 4.7 gallon fuel tank with low fuel warning light.

KEY FEATURES:

• Compact 645 cc, 90 degree liquid-cooled V-twin, DOHC 8-valve engine tuned for strong low to mid rpm power.

• 90 degree V-twin cylinder layout eliminates primary vibration without a counterbalancer, keeping the engine simple and compact.

• Lightweight chain-driven DOHC, shim-under-bucket valve system with 31 mm intake valves and 25.5 mm exhaust valves.

• High capacity liquid-cooling system enhances engine performance and durability. Coolant routing is integrated with the clutch cover and engine case for a cleaner look and reduced weight.

• Smooth-shifting 6-speed transmission with vertically staggered transmission shafts for a shorter, more compact crankcase.

• Plastic outer clutch cover and engine sprocket cover for reduced weight and noise.

• Lightweight 2-into-1 exhaust system tuned for strong low and mid-range torque.

• 41 mm front forks with 130 mm of wheel travel provide a smooth, compliant ride.

• Link-type single-shock rear suspension with 7-way adjustable preload.

• Box-section aluminum swingarm is lightweight with high torsional rigidity.

• Powerful dual hydraulic disc front brakes with 290 mm floating rotors and adjustable brake lever position.

• Single disc rear brake with 240 mm rotor.

• Wide radial tires mounted on lightweight, 3-spoke cast aluminum wheels.

• Hinged fuel tank swings up for easy access to the airbox and carburetors.

SPECIFICATIONS
MSRP: $6,299.00
Engine: 645 cc, four-stroke, liquid cooled, 90° V-twin, DOHC, 8-valves, TSCC. 70 hp (51.5 kW)/ 9,000 rpm, 61.7 Nm/ 7.400 rpm.
Warranty: 12 month unlimited mileage limited warranty
Bore & Stroke: 81.0 x 62.6 mm
Compression ratio: 11.5:1
Fuel System: Fuel Injection
Lubrication: Wet Sump
Ignition: Digital/Transistorized
Starter: Electric
Transmission: 6-speed
Final Drive: #525 chain
Overall Length: 2045 mm (80.5 in.)
Overall Width: 740 mm (29.5 in.)
Overall Height: 1130 mm (44.5 in.)
Seat Height: 805 mm (31.7 in.)
Ground Clearance: 140 mm (5.5 in.)
Wheelbase: 1420 mm (55.9 in.)
Dry Weight: 169 kg (372 lbs.)

Suspension:
FRONT: Telescopic, coil spring, oil damped, fully adjustable preload
REAR: Link-type, 7-way adjustable spring preload
Brakes:
FRONT: Dual hydraulic disc
REAR: Single hydraulic disc
Tires:
FRONT: 120/60-ZR17
REAR: 160/60-ZR17
Fuel Tank Capacity: 16 liter (4.2 gal.) 15 liter (4.0 gal.) CA model
Color: Silver, Orange

Specifications are subject to change without notice, in accordance with national regulation and legislations.
