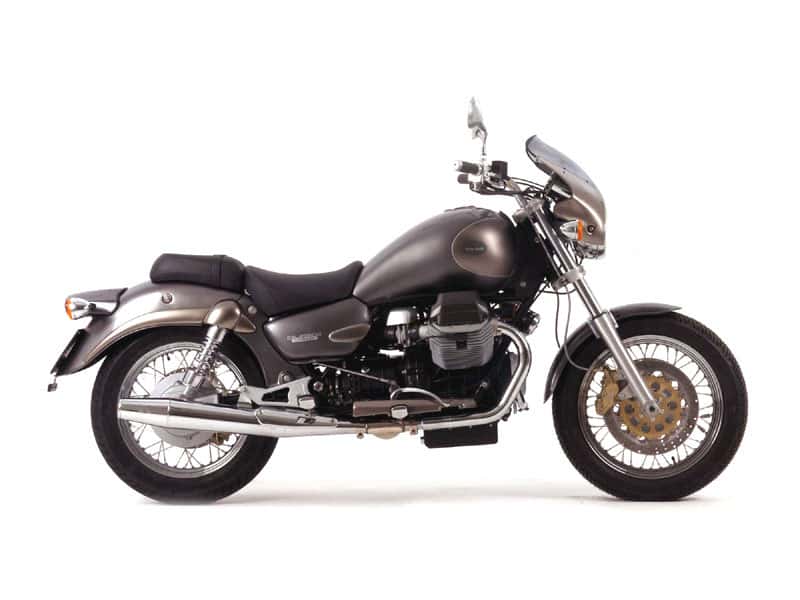

2005 Moto Guzzi California Titanium
Back to 2005 Moto Guzzi Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

2005 Moto Guzzi California Titanium
2005 Moto Guzzi California Titanium

2005 Moto Guzzi California Titanium
2005 Moto Guzzi California Titanium

2005 Moto Guzzi California Titanium
2005 Moto Guzzi California Titanium



– 2005 Moto Guzzi California Titanium

California Titanium — Custom powercruiser with the legendary, updated 90º V-Twin with hydraulic self-adjusting valves. Brembo Gold Series brakes. Integral braking system. Aerodynamic sport fairing. An easy-riding, dynamite performance cruiser in the ultimate high-tech titanium metallic finish.



The conquest of distance



Titanium is light and exceptionally strong. It is commonly used in alloys for the aerospace industry and in advanced technical applications where a combination of strength and light weight is essential.

Titanium is the symbol of advanced technology. For 2003 it is also the high-tech inspiration for a very different motorcycle.




The California Titanium defies definitions. As a motorcycle, it is in a class of its own.

With its breathtaking top speed and precision cornering it rides like a supersport.

With its upright riding position and forward mounted footrests it has the comfort of a cruiser.

With its unmistakable styling, colour and graphics, it fears no rivals as a Café Racer.

And its 90° V-Twin engine, with hydraulic tappets and catalyzed exhaust, give it all the character of a Moto Guzzi.




The California Titanium is all of these things, because it establishes a uniquely personal feeling with its rider, based on equally personal sensations. The gear change for example inspires confidence instantly, thanks to its precise action, easy engagement, and quick-to-find neutral. The comfortable seat makes two up travelling a pleasure. And the sports windshield affords an impressive amount of protection.

Naturally, the chassis, shared with the Aluminium, is an exceptional piece of engineering too. It is designed to keep the bike stuck to the road, whatever the surface, while the powerful Brembo disc brakes ensure totally safe braking.



Specifications:

Engine: 90º V-Twin, 4 stroke
Cylinders: Aluminum alloy with Gilnisil treatment
Pistons: Forged, 2 compression & 1 oil control ring
Cooling system: Air cooled
Displacement: 1064 cc
Bore and stroke: 92 mm x 80 mm
Compression ratio: 9.8:1
Valves & operation: 2 overhead valves moved by light
alloy push-rods and rocker arms with hydraulic valves
Maximum power: 74 hp @ 6400 rpm
Maximum torque: 70 ft/lbs @ 5000 rpm
Fuel system: Magneti Marelli IAW Multipoint phased sequential fuel injection
Starting system: Electric
Ignition: Magneti Marelli IAW electronic digital ignition
with inductive spark
Exhaust system: Steel, 2 tubes connected to an
expansion chamber, connected to 2 steel mufflers catalyzed with Lambda probe
Gear box: 5 speed, constant mesh gears with built-in
cush drive
Lubrication: Wet sump, forced oil, cartridge filter
Transmission: Primary: helical gears
Secondary: shaft drive
Clutch: Single disc, dry
Electrical system: 12 V; 12 V alternator; 16 Ah battery
Instruments: Speedometer with tripmeter, tachometer
and warning lights
Frame: Detachable tubular duplex cradle
Trail: 4.258″ (116.4 mm)
Rake: 29.5º Front suspension: Marzocchi 45 mm hydraulic
telescopic fork
Front wheel travel: 5.51″ (140 mm)
Rear suspension: Swing arm with 2 hydraulic shock absorbers with preload adjustment
Rear wheel travel: 3.50″ (89 mm)
Braking System: Integral braking system with proportioning and delay valve
Front brakes: Two Brembo ORO Series stainless steel 320 mm floating discs with 4 piston caliper
Rear brakes: Single stainless steel 282 mm fixed disc with Brembo 2 piston caliper
Wheels: Steel spoke rims, Front: 2.50″ x 18″
Rear: 3.5″ x 17″
Tires: Front: 110/90 VB18″ Rear: 140/80 VB17″
Overall length: 93.7″ (2380mm)
Width: 29.92″(760 mm)
Height: 45.27″ (1150 mm)
Seat Height: 29.52″ (750 mm)
Ground clearance: 7.48″ (190 mm)
Wheelbase: 61.41″ (1560 mm)
Dry weight: 553.36 lbs (251 Kg)
Fuel capacity: 5.01 gallons (19 liters)
Reserve: 1.05 gallons (4 liters)
Available Colors: Metallic Titanium
MSRP: $11,690 USD
Technical specifications and colors are subject to change without notice.
