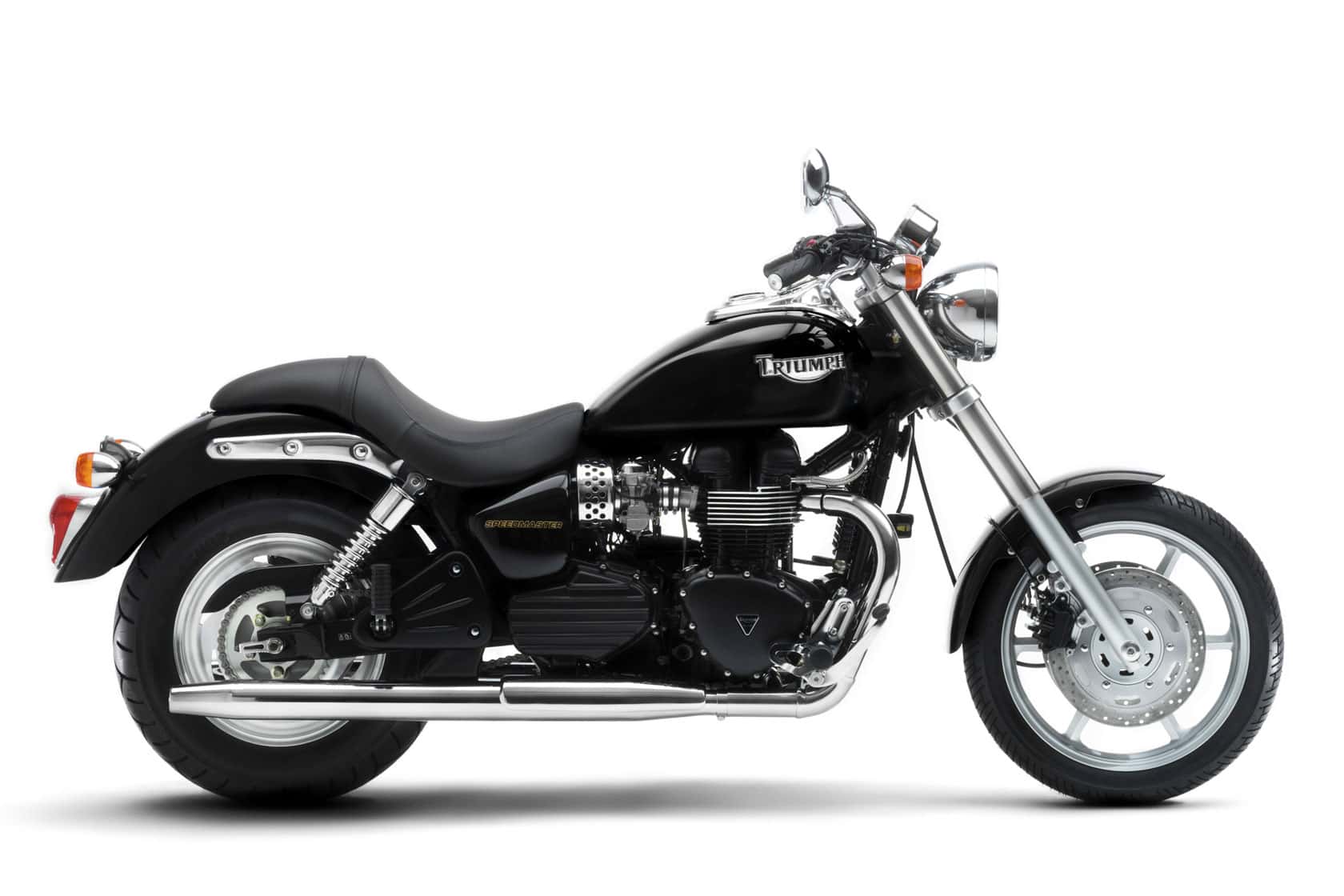

2005 Triumph Speedmaster
Back to 2005 Triumph Motorcycle Index Page

• 2005 Triumph Speedmaster

Dark, brooding lines and a stripped-down hot-rod essence make the Speedmaster a standout middleweight cruiser.

But more can sometimes be more. And while the lean Speedmaster retains its low-slung and nimble street prowler chassis it now has more low-down torque thanks to its new 865cc, air-cooled, twin cylinder engine. And due to the 270 degree firing-interval each power pulse from each piston is delivered in a seamless, languid flow that hooks the fat 170-section rear tyre to the road. The flat 'drag' style handlebars, double front discs and wide-set telescopic forks ensure a sporty and controlled ride. As well as flawless function the Speedmaster has an elegant form all its own. A satin-black engine finish and near-solid 15-inch rear wheel add to the show and whether on the move or at a standstill the Speedmaster turns heads, hard.
The Speedmaster has the edge. It's built for city streets and twisitng roads with an engine that inspires and a chassis that excels.

Above all else it's been built to perform.

Triumph Cruisers

Eat up the miles with Triumph's stunning range of Cruisers.

Each a perfect balance of power and performance and including the amazing Rocket III. The most impressive production motorcycle in the world it's already a modern legend.

Specifications

Engine Type Air-cooled, DOHC, parallel-twin, 270 degree firing interval
Capacity 865cc
Bore/Stroke 90 x 68mm
Compression Ratio 9.2:1
Fuel System Twin carburettors with throttle position sensor and electric carburettor heaters
Ignition Digital - inductive type
Transmission Primary Drive Gear
Final Drive X ring chain
Clutch Wet, multi-plate
Gearbox 5-speed
Cycle Parts Frame Tubular steel cradle
Swingarm Twin-sided, tubular steel
Front Wheel Alloy 6-spoke, 18 x 2.5in
Rear Wheel Alloy 15 x 3.5in
Front Tyre 110/80 18
Rear Tyre 170/80 R 15
Front Suspension 41mm forks
Front Brakes Twin 310mm discs, 2 piston calipers
Rear Brakes Single 285mm disc, 2 piston caliper
Dimensions Length 2420mm (95.3in)
Width (Handlebars) 830mm (32.7in)
Height 1160mm (45.7in)
Seat Height 720mm (28.3in)
Wheelbase 1655mm (65.2in)
Rake/Trail 33.3 degree/153mm
Weight (Dry) 229kg (504lbs)
Performance (Measured at crankshaft to DIN 70020) Maximum Power 55PS (54bhp) at 6,500 rpm
Maximum Torque 68Nm (50ft.lbf) at 3,500 rpm
Colours Jet Black, Jet Black/Tornado Red, Jet Black/Neon Blue
