2010 Harley-Davidson Electra Glide Classic FLHTC

Back to 2010 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

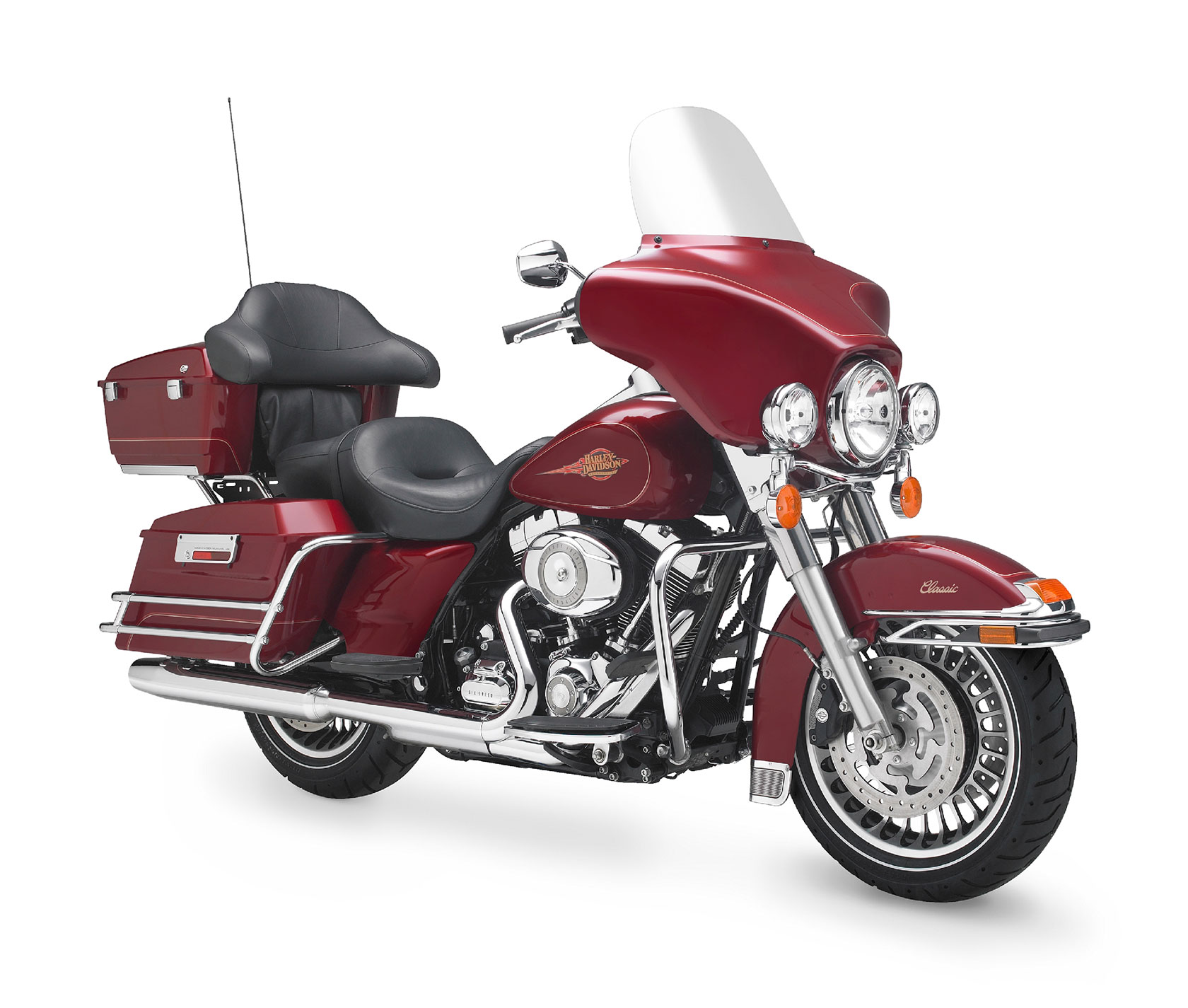

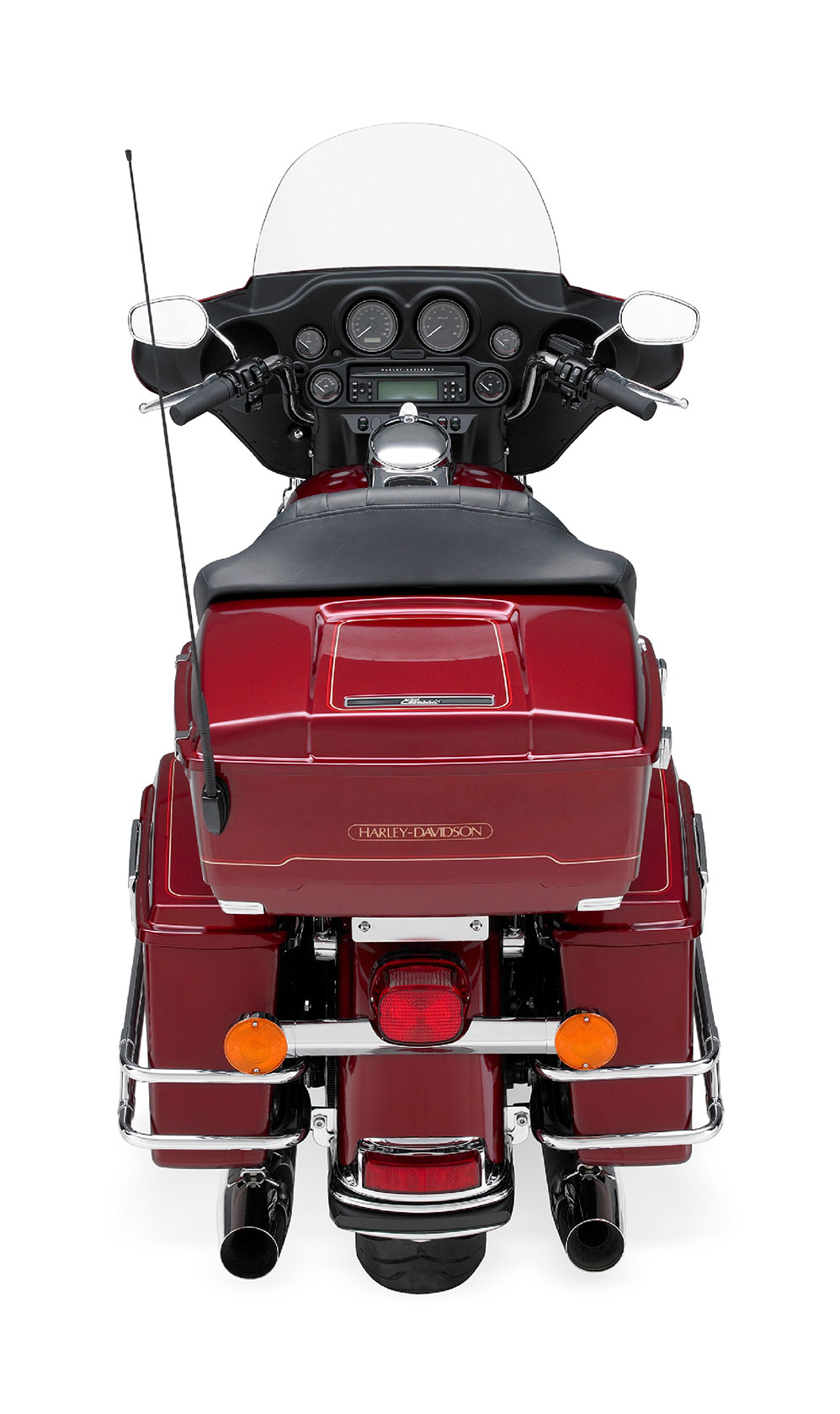

2010 Harley-Davidson Electra Glide Classic FLHTC

2010 Harley-Davidson Electra Glide Classic FLHTC

2010 Harley-Davidson Electra Glide Classic FLHTC

– 2010 Harley-Davidson Electra Glide Classic FLHTC

2010 Harley-Davidson Electra Glide Classic FLHTC

The Electra Glide® Classic offers all the touring basics, plus a Tour-Pak and 40-watt Advanced Audio System, to a rider and passenger over the horizon in comfort.

The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.



Model Highlights

New Paint color options and graphics
New Helical cut 5th gear for improved transmission sound
– Black powder-coated powertrain with chrome covers
– Chrome 2-1-2 dual exhaust with tapered mufflers
– Black, 28-spoke Cast Aluminum wheels with whitewall tires
– Bat-wing, fork-mounted fairing with clear, Lexan® windshield
– Chrome, low-profile fuel tank console
– Deep FL front fender with trim
– Stainless steel, easy-reach touring handlebar
– One-piece, two-up Electra Glide® classic comfort stitch seat
– Passenger backrest with wrap-around armrests
– Injection-molded hard saddlebags; 2.26 cu. ft. volume
– Injection Molded Tour-Pak®; 2.26 cu. ft. volume
– Fairing-mounted electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauges
– 40-watt, two-speaker Advanced Audio System by Harman/Kardon
– LED rear fender tip light
– Auxiliary passing lights



Key Features

The Electra Glide® Classic offers all the touring basics, plus a Tour-Pak and 40-watt Advanced Audio System, to a rider and passenger over the horizon in comfort.

The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s
more-powerful engines.

– Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
– 6-Speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
– Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
– Brembo® 4-piston front and rear caliper with dual front rotor brake system
– Air-adjustable rear shocks
– Full-length rider footboards
– Height-adjustable passenger footboards
– Six-gallon fuel tank
– Optional Anti-lock Braking System (ABS)
– Optional electronic cruise control
– Optional Harley-Davidson® Smart Security System with hands-free security fob





2010 Harley-Davidson Electra Glide Classic FLHTC – Specifications
USA MSRP: Vivid Black $18,999, Solids $19,539, Two-Tones $19,959
Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine3 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump
drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.593
o 2nd 6.650
o 3rd 4.938
o 4th 4.000
o 5th 3.407
o 6th 2.875

Chassis
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple circuit damping
Rear Shocks Air-adjustable
Wheels5 (Chrome, Profile Laced Aluminum option): Black, 28-spoke Cast Aluminum
o Front 17 in. x 3 in. (431.80 mm x 76.20 mm)
o Rear 16 in. x 5 in. (406.40 mm x 127.0 mm)
Brakes:
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, fixed rotors
o Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm)
o Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm)
o Anti-Lock Braking System (option) Available
Suspension Travel:
o Front Wheel 4.60 in. (116.84 mm)
o Rear Wheel 3 in. (76.20 mm)

Engineered for Sidecar Use Available

Performance
Engine Torque6 (per SAE J1349):
o North America 92.60 ft. lbs. @ 3500 rpm (125.55 Nm @ 3500 rpm)
Lean Angle (per SAE J1168):
o Right 33°
o Left 31°

Fuel Economy7
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system8 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Dimensions
Length 98.30 in. (2496.82 mm)
Overall Width 38.0 in. (965.20 mm)
Overall Height 61.0 in. (1549.40 mm)
Seat Height:
o Laden2 27.30 in. (693.42 mm)
o Unladen 30.70 in. (779.78 mm)
Ground Clearance 5.10 in. (129.54 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (169.93 mm)
Wheelbase 63.50 in. (1612.90 mm)
Tires (Dunlop® Harley-Davidson Series, bias narrow whitewall):
o Front – D408F NW 130/80B17 65H
o Rear – D407 NW 180/65B16 81H
Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 4 qts. (3.78 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity 1.40 qts. (1.32 L)

Weight:
o As Shipped 827 lbs. (375.13 kg)
o In Running Order 864 lbs. (391.91 kg)
o Gross Vehicle Weight Rating 1360 lbs. (616.90 kg)
o Gross Axle Weight Rating
o Front 500 lbs. (226.80 kg)
o Rear 927 lbs. (420.49 kg)

Color Options
Solids
– Vivid Black
– Brilliant Silver Pearl
– Flame Blue Pearl
– Red Hot Sunglo

Two-Tones
– Flame Blue Pearl/Brilliant Silver Pearl

U.S. MSRP
Vivid Black $18,999
Solids $19,539
Two-Tones $19,959

Warranty
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional fuel systems may vary by country and region.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.





2010 Harley-Davidson Electra Glide Classic FLHTC – Media/Press Releases

HARLEY-DAVIDSON ROLLS OUT NINE NEW MODELS FOR 2010

More Performance, Features and Value Across Six Motorcycle Platforms

MILWAUKEE (July 25, 2009) – Harley-Davidson roars into 2010 with nine new motorcycle models, the most expansive new-product introduction in the history of the Motor Company. Across six model platforms, Harley-Davidson achieves a fusion of tradition and technology in a motorcycle product line that offers more power, luxury, and style, and more value.

“This ambitious new motorcycle launch reaches to our riders with the incredible passion that Harley-Davidson has inspired for more than a century,” said Bill Davidson, Harley-Davidson Vice President of Core Customer Marketing. “We are thrilled to offer our customers nine new models and a full selection of products for 2010 that lets their enthusiasm for enjoying great motorcycles continue at full throttle.”

Highlights of the 2010 Harley-Davidson® line include:

As the new king of the Harley-Davidson Touring line, the Electra Glide® Ultra Limited model delivers the performance upgrade of a Twin Cam 103™ engine, and features standard equipment items previously offered only as accessories on regular-production Harley-Davidson Touring models.

The new Road Glide® Custom model looks lean and mean, with a slammed suspension, 18-inch front wheel and a new 2-into-1 exhaust system.

The Wide Glide® returns as an all-new Dyna® model done in old-school chopper style, with black laced wheels, a chopped rear fender, black “wire” sissy bar, 2-1-2 Tommy Gun exhaust and an optional flame paint scheme. Priced starting at $14,499, the Wide Glide is also a great new value.

The new Street Glide® Trike brings stripped-down, hot-rod styling to the three-wheel category, and joins the Tri Glide™ Ultra Classic® in an all new Trike family for 2010.

Dressed in satin chrome and denim black, the new Fat Boy® Lo presents a darker and lower interpretation of the motorcycle that still defines the fat-custom segment.

The 2010 Street Glide® model gets even more hot-rod soul, with updates that include a larger front wheel, slimmed-down exhaust, and a new tail light assembly. Street Glide takes a classic Harley-Davidson Touring profile to a low, light and lean extreme.

No motorcycle on the road today matches the modern street attitude of the three exciting models in the Harley-Davidson VRSC™ family: V-Rod®, Night Rod® Special and V-Rod Muscle®. The explosive performance of the liquid cooled Revolution® V-Twin engine keeps VRSC at the top of the power cruiser food chain in 2010.

The American motorcycle legend that is Harley-Davidson Sportster® features six models for 2010, including the $7,999 Iron 883™ introduced mid-year 2009 and four others priced less than $10,000.
Harley-Davidson Custom Vehicle Operations™ (CVO™), masters of shimmering chrome and bold paint, offers four new limited-production models for 2010. The CVO Softail® Convertible is a versatile urban touring motorcycle, while the CVO Street Glide is a high-performance hot-rod bagger. The CVO Ultra Classic® Electra Glide® and CVO Fat Bob® models are refreshed for 2010 with new paint schemes and styling details. All CVO models are powered by a Twin Cam 110™ engine, the largest displacement V-Twin offered by Harley-Davidson.
