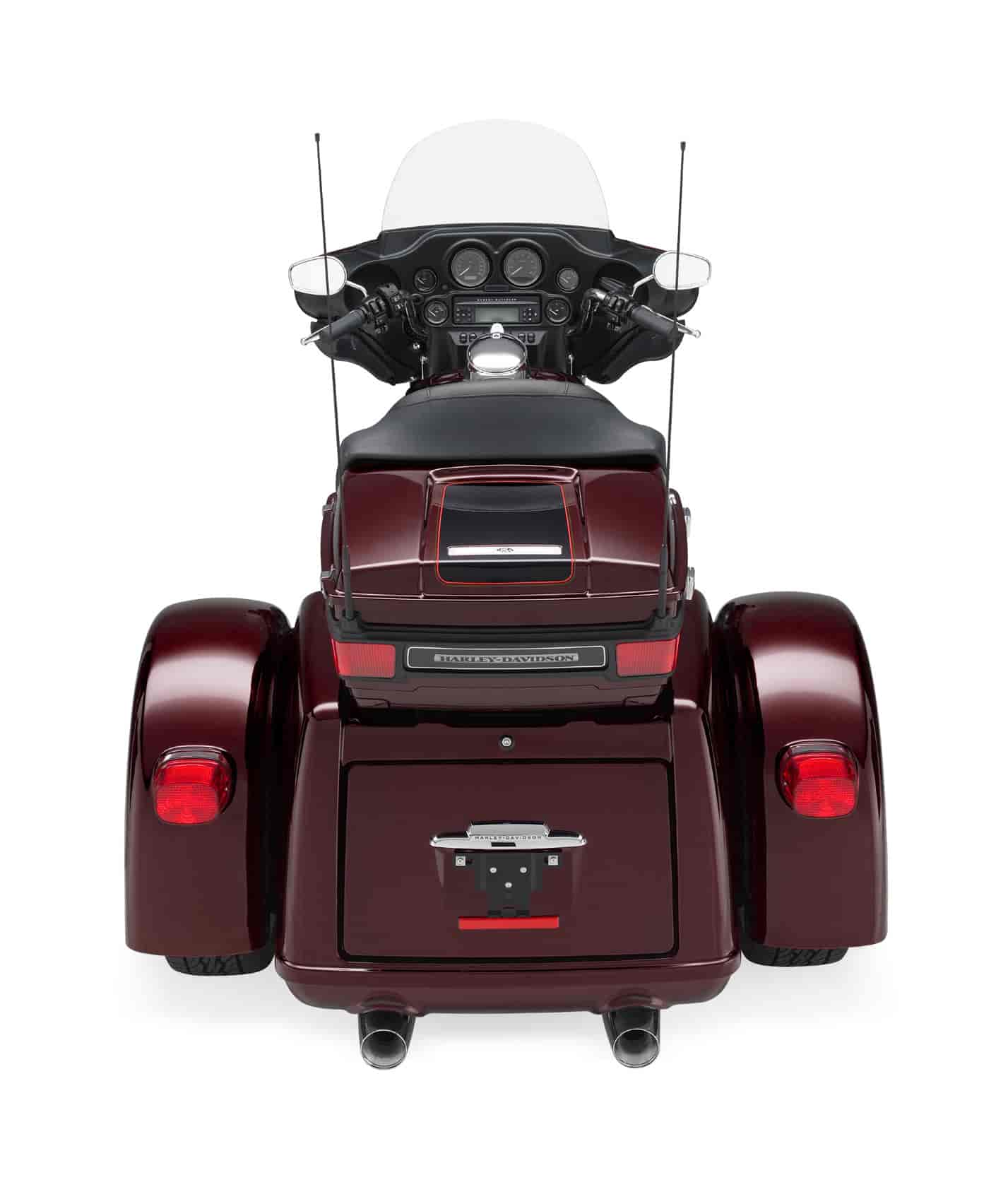

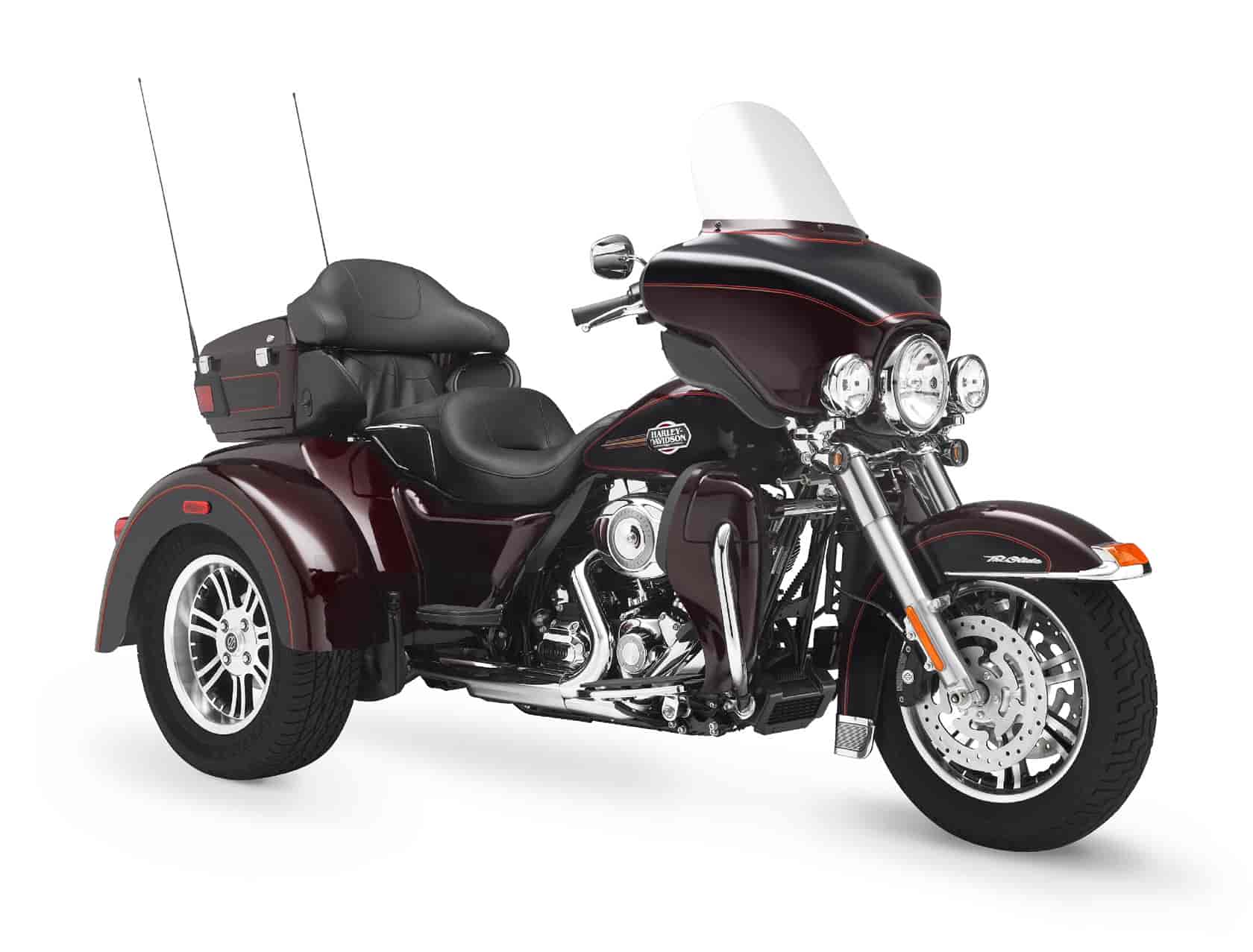

2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

– 2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

The Tri Glide™ Ultra Classic® is a full-feature, factory motorcycle built to confidently chase the horizon with long-haul comfort and freedom on three wheels. The Harley-Davidson® Trike platform brings original-equipment design, quality and service to the three-wheel motorcycle segment. Trike models utilize a frame and associated chassis structure and geometry engineered specifically to handle the loads generated by the steering forces and weight of a three-wheel vehicle.











2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic – USA Specifications
U.S. MSRP – Vivid Black $30,499. Color Option $31,299. Two-Tone Option $31,799

DIMENSIONS
Length 105.8 in. (2687 mm)
Overall Width 54.7 in. (1389 mm)
Overall Height 59.3 in. (1506 mm)
Seat Height:
– Laden2 27.1 in. (688 mm)
– Unladen 28.9 in. (734 mm)
Ground Clearance 4.7 in. (119 mm)
Rake (steering head) 26°
Fork Angle 32°
Trail 3.9 in. (100 mm)
Wheelbase 66.6 in. (1692 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear):
– Front – D402F MT90B16 72H
– Rear – Signature P205/65R15
Fuel Capacity 6.0 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
– As Shipped 1157 lbs. (524.8 kg)
– In Running Order 1191 lbs. (540.2 kg)
– Gross Vehicle Weight Rating 1700 lbs. (771.1 kg)
– Gross Axle Weight Rating:
– Front 500 lbs. (226.8 kg)
– Rear 1200 lbs. (544.3 kg)
– Luggage Capacity:
– Volume (cu. ft.) 6.7 cu. ft. (.2 m)
– Weight (lbs.) 80 lbs. (36.3 kg)



ENGINE
Engine4 Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder
Bore x Stroke 3.875 in. x 4.375 in. (98.425 mm x 111.125 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.7:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump with oil cooler



DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 30/70 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
– 1st 10.537
– 2nd 7.303
– 3rd 5.425
– 4th 4.393
– 5th 3.742
– 6th 3.157



CHASSIS
Frame Mild steel, square-section backbone with twin downtubes
Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded
Front Forks 41.3 mm telescopic, triple-circuit damping
Rear Shocks Air-adjustable
Wheels5: Black, 7-spoke Cast Aluminum
– Front 16 in. x 3 in. (406 mm x 76 mm)
– Rear 15 in. x 5.5 in. (381 mm x 140 mm)
Brakes:
– Caliper Type 32 mm, 4 piston fixed front, 31.75 mm single piston floating rear
– Rotor Type (diameter x width): Patented fixed front rotor, dual fixed rear rotors
– Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
– Rear 9 in. x .24 in. (229 mm x 6 mm)
Suspension Travel:
– Front Wheel 4.61 in. (117 mm)
– Rear Wheel 2.99 in. (76 mm)
Parking Brake Lever actuated dual parking brake



PERFORMANCE
Engine Torque6 (per SAE J1349):
– North America 101 ft. lbs. @ 3500 RPM (137 Nm @ 3500 RPM)
Lean Angle (per SAE J1168):

Fuel Economy7
(EPA urban/highway test)
33/48 mpg (7.10/4.90 L/100 km)



ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Tail/Stop Lights Two 8W/28W (5W/21W)
– Turn Signal Lights 28W (21W) self-canceling.
– Indicator Lamps Rear integrated into TailStop lamps.
– Auxiliary Lamps – High Beam, running lights, front fender running lights, directional light bar, low
oil pressure, engine diagnostics, cruise control, speakers, accessory, security system8 (optional), 6 speed, low fuel warning, reverse enabled
Two @ 35W (except where prohibited by law)
Reverse Gear Electric reverse actuated by handlebar
mounted hand controls



COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Merlot Sunglo / Vivid Black
Cool Blue Pearl / Vivid Black



WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter



1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.







2011 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic – Canada Specifications
Canadian MSRP – See your local retailer for pricing information.

See USA Specifications.



POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™Air-cooled, Twin Cam 103™
Displacement
Bore x Stroke in. / in. mm / mm
Engine Torque
Engine Torque 3 ft. lbs. @ rpm Nm @ rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5
Fuel Economy Hwy 5
Gear Ratio (Overall)
1st
2nd
3rd
4th
5th
6th

WHEELS / TIRES
Wheels
Front 6 Black, 7-spoke Cast AluminumBlack, 7-spoke Cast Aluminum
Wheel Option 6
Rear 6 Black, 7-spoke Cast AluminumBlack, 7-spoke Cast Aluminum
Tire Size
Front
Rear

ELECTRICAL
Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator lightFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light
Indicator Lamps 7 High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabledHigh Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled

CHASSIS
Brakes 32 mm, 4 piston fixed front, 31.75mm single piston floating rear32 mm, 4 piston fixed front, 31.75mm single piston floating rear
Parking Brake Lever actuated dual parking brakeLever actuated dual parking brake
Lean Angle
Exhaust System Chrome, 2-1-2 dual exhaust with tapered mufflersChrome, 2-1-2 dual exhaust with tapered mufflers



COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Merlot Sunglo / Vivid Black
Cool Blue Pearl / Vivid BlackVivid Black
Cool Blue Pearl
Merlot Sunglo / Vivid Black
Cool Blue Pearl / Vivid Black
