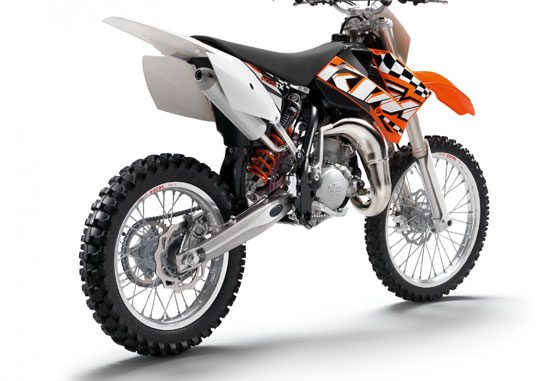

2011 KTM 105 SX

– 2011 KTM 105 SX

2011 KTM 105 SX

With arguable the best power-to-weight ratio in its class, the 105 SX leaves the competition in the dust. And we mean that literally! An optimally balanced chassis sets the standard for the class. Ultra-light, super agile and with two-stroke power that eases the transition from mini’s to full size

NEW
– New decals
– New color for the rear fender, front fork protector, and front number plate



2011 KTM 105 SX – USA Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 2-stroke
Displacement 103.96 cc
Bore x stroke 52 x 48.95 mm (2.05 x 1.93″)
Starter Kickstarter
Transmission 6 gears
Carburetor Keihin PWK 28
Lubrication Mixture oil lubrication 1:40
Transmission oil 15W50
Primary drive 19:66
Final drive 14:49
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Moric digital 2M1


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 43 mm (1.69″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 275 / 300 mm (10.83 / 11.81″)
Brakes, front/rear Disc brakes 220 / 200 mm (8.66 / 7.87″)
Rims, front/rear 1.60 x 19″; 1.85 x 16″
Tires, front/rear 70/100-19″; 90/100-16″
Chain 1/2 x 5/16″
Main silencer Aluminium
Steering head angle 66°
Wheel base 1290±10 mm (50.79±0.39″)
Ground clearance (unloaded) 415 mm (16.34″)
Seat height 900 mm (35.43″)
Tank capacity approx. 5 liters (1.32 gal)
Weight (no fuel) approx. 68 kg (149.91 lbs)



2011 KTM 105 SX – Canada Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 2-stroke
Displacement 103.96 cc
Bore x stroke 52 x 48.95 mm (2.05 x 1.93″)
Starter Kickstarter
Transmission 6 gears
Carburetor Keihin PWK 28
Lubrication Mixture oil lubrication 1:40
Transmission oil 15W50
Primary drive 19:66
Final drive 14:49
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Moric digital 2M1


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 43 mm (1.69″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 275 / 300 mm (10.83 / 11.81″)
Brakes, front rear Disc brakes 220 / 200 mm (8.66 / 7.87″)
Rims, front/rear 1.60 x 19″; 1.85 x 16″
Tires, front/rear 70/100-19″; 90/100-16″
Chain 1/2 x 5/16″
Main silencer Aluminium
Steering head angle 66°
Wheel base 1290±10 mm (50.79±0.39″)
Ground clearance (unloaded) 415 mm (16.34″)
Seat height 900 mm (35.43″)
Tank capacity approx. 5 liters (1.32 gal)
Weight (no fuel) approx. 68 kg (149.91 lbs)





2011 KTM 105 SX – International Specifications
MSRP: See KTM Dealer for prices

NA





KTM PRESS RELEASE

PERFECTLY POSITIONED: THE KTM OFFROAD MODEL YEAR 2011

KTM’s Mattighofen factory in Austria has invested a huge amount of effort in developing the latest Offroad motorcycles for the 2010 season with the clear aim of improving the advantage on loose ground even more. Star of the KTM model range is the revolutionary MX1 innovation, the 350 SX-F.

The current motorsport season is well underway and the KTM factory riders have already claimed a slew of podiums on the latest “Made in Austria“ Offroaders. Now the sports brand from Austria presents the line-up of brand new motorcycles for the Model Year 2011.

With three high quality and competitive Minicycle variants for the youngest offroad enthusiasts, a total of six uncompromising Motocross motorcycles especially designed for winning races as well as eight versions of Sport Enduros, the Austrian manufacturer presents the perfect line-up for the coming season. In doing so, KTM once again underlines its leading role in the world of Offroad sports activity.

The huge amount of depth of development in the new Offroad model range extends all the way from the 50 cc two-stroke (50 SX) right up to the powerful displacement of the Enduro 530 EXC-R. In between there is a whole range of tailor-made sports machines for every type of offroad riding and for every rider profile, all absolutely true to the KTM “Ready to Race” philosophy. KTM has just the right machine, regardless of whether it’s for the ambitious hobby rider or the ruling world champion.

As well as the huge development effort that the KTM technicians have applied to the entire model range, these new motorcycles still include some very special innovations. This especially applies to the 350 SX-F, which was first exhibited last autumn. This, the first ever 350 cc bike deployed in the MX1 World Championship, has already been mastered by factory riders Antonio “Tony” Cairoli and his Red Bull KTM teammate Rui Goncalves. Cairoli not only won the premiere race for the 350 machine; after his GP victories, he is also leading the championship standings.

In addition to the unique engine concept, the MX lineup for the 2011 also includes a newly developed frame and chassis components.

The Enduro models, which have been similarly decorated with world championship titles all also profit from the massive amount of experience gathered by not less than 176 World Championship titles. This can be seen both in the feather light two-stroke versions as well as the highly modern and performance powerful four-stroke models. With significant improvements in a while range of areas as well as the extensive series equipment, these machines are prepared in the best possible way for the new racing season.

The new Motocross, Enduro and Minicycle models will be delivered to KTM dealers from June of this year.
