2012 Polaris Sportsman Big Boss 6×6 800 EFI
Back to 2012 Polaris ATV Quad Models Index Page
Click photos to enlarge. They make great desktop wallpaper.

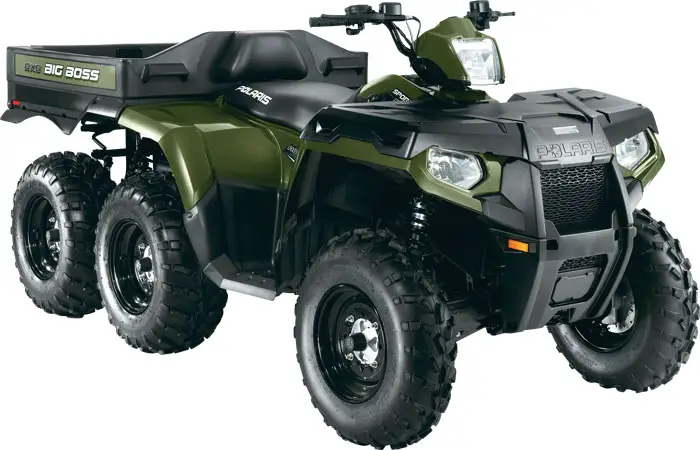

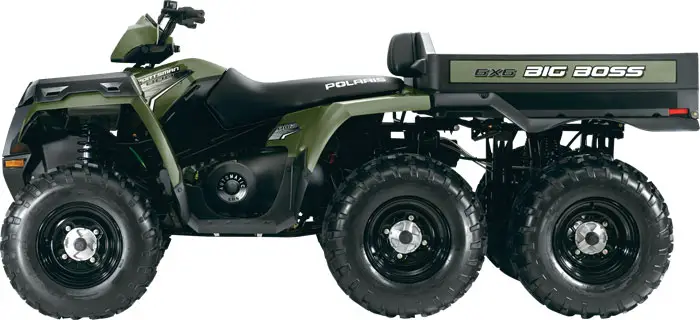

2012 Polaris Sportsman Big Boss 6×6 800 EFI
2012 Polaris Sportsman Big Boss 6×6 800 EFI
2012 Polaris Sportsman Big Boss 6×6 800 EFI
– 2012 Polaris Sportsman Big Boss 6×6 800 EFI
2012 Polaris Sportsman Big Boss 6×6 800 EFI Review
Sportsman® Big Boss® 6×6 800 EFI – Unmatched Traction & Capacity
The 2012 Sportsman® Big Boss® 6×6 800 EFI takes Hardest Working to the next level, delivering unmatched traction and capacity. On-Demand True 6-Wheel Drive and the ability to haul, dump and tow heavy loads makes it one-of-a-kind.
Highlights
– NEW! Integrated front storage box has 6.5 gal. volume.
– Large rear box hauls and dumps up to 800 lbs. of material.
– 6-wheel independent suspension maximizes traction.
– Active Descent Control and Engine Braking System.
– Hydraulic Disc Brakes on Six Wheels
– 50W Halogen – Handlebar mounted high beam light
Key Features:
ON-DEMAND TRUE SIX-WHEEL DRIVE
True AWD keeps you moving, automatically engaging all size wheels when you need more forward traction and reverting back to the rear four wheels when you don’t. Six beefy drive shafts deliver consistent power to all six wheels.

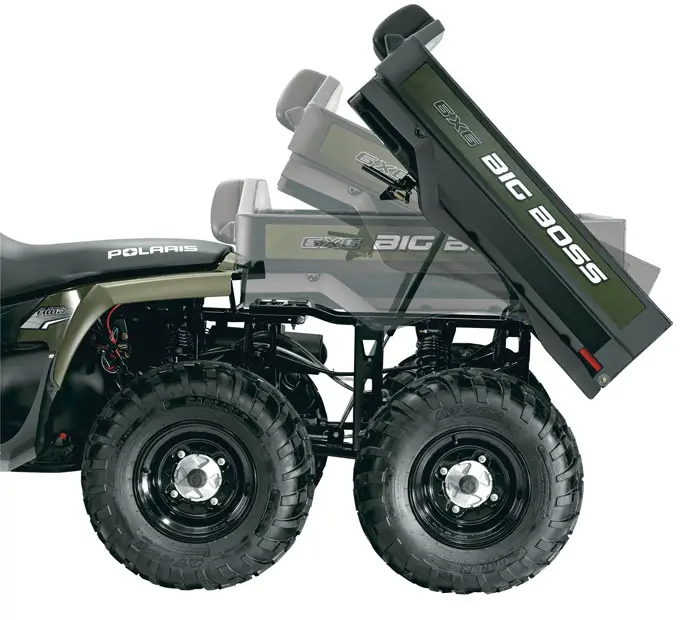

HAUL AND DUMP UP TO 800 LBS.
Large rear box moves and dumps up to 800 lbs. of equipment or material, so you can get big jobs done faster and easier.
IMPRESSIVE TOWING CAPACITY
A big 1,500 lb. towing capacity gives you the power to move all the gear, equipment and material you need out to the job site.
BEEFY 800 EFI POWER
The proven, big-bore 800 twin-cylinder engine gets the job done with 50 HP, and features EFI for fast, reliable starting in any temperature, plus automatic adjustments for altitude.
RAISED RADIATOR PLACEMENT
Radiator is mounted 3″ higher in the chassis an angled rearward to keep it out of mud and you on the trail longer.
NEW! INTEGRATED FRONT STORAGE
The most integrated storage of any ATV. The 6.5 gallon capacity lets you stow-away loads of gear and still have access to it, even with items tied to the deck.
SIX-WHEEL INDEPENDENT SUSPENSION
All wheels articulate independently of one another for maximum traction in changing terrain, with long suspension travel (6.1″).
UNMATCHED LOADED GROUND CLEARANCE
A full 10.5″ of ground clearance helps keep the ride smooth, clearing obstacles and reducing high-centering on rough terrain, even when hauling heavy loads.
ENGINE BRAKING SYSTEM (EBS) AND ACTIVE DESCENT CONTROL (ADC)
Our Engine Braking System (EBS) and Active Descent Control (ADC) work together to monitor and control downhill braking, optimizing control and delivering smooth, even deceleration during descents less than 15 mph.
AGGRESSIVE DESIGN WITH LOCK & RIDE
An aggressive looking body style gives the Sportsman an intimidating look and enhanced sight lines for the driver. The Lock & Ride composite front rack system and matching rear rack make it easy to carry gear.
2012 Polaris Sportsman Big Boss 6×6 800 EFI – USA Specifications
US MSRP: $9,999 USD
ENGINES
Engine Type 4-Stroke Twin Cylinder
Displacement 760cc
Fuel System Electronic Fuel Injection
Cooling Liquid
DRIVETRAIN
Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
Drive System On-Demand True 6WD/Rear 4WD
Engine Braking System/ Active Descent Control Standard/Standard
SUSPENSION
Front Suspension MacPherson Strut With 8.2″ (20.8 cm) Travel
Rear Suspension Dual A-Arm, IRS 6.12″ (15.5 cm) Travel
BRAKES
Front/Rear Brakes Single Lever Hydraulic Disc Brake / Single Lever Hydraulic Rear Brake
Parking Brake Park in Transmission/Lockable Hand Lever
TIRES/WHEELS
Front Tires / Model 25 x 8-12; Kenda
Rear Tires / Model 25 x 11-12; Kenda
Wheels Stamped Steel
DIMENSIONS
Wheelbase 79.5″ (201.9 cm)
Dry Weight 1,060 lb (480.8 kg)
Overall Vehicle Size (LxWxH) 112 x 48 x 48″ (284.5 x 121.9 x 121.9 cm)
Ground Clearance 10.5″ (26.7 cm)
Seat Height 33.75″ (85.7 cm)
CAPACITIES
Fuel Capacity 4.1 gal (15.5 L)
Bed Box Dimensions (LxWxH) 38″L x 39″W x 8″H (96.5L x 99.1W x 20.3H cm)
Front/Rear Rack Capacity 100 lb (45.4 kg)/800 lb (362.8 kg)
Hitch Towing Rating 1,500 lb (680.4 kg)
Hitch/Type Standard/1.25″ Receiver
FEATURES
Cargo System Lock & Ride
Lighting Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Instrumentation Digital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
2012 Polaris Sportsman Big Boss 6×6 800 EFI – Canadian Specifications
Canadian MSRP: $11,399 CDN
ENGINES
Engine Type 4-Stroke Twin Cylinder
Displacement 760cc
Fuel System Electronic Fuel Injection
Cooling Liquid
DRIVETRAIN
Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
Drive System On-Demand True 6WD/Rear 4WD
Engine Braking System/ Active Descent Control Standard/Standard
SUSPENSION
Front Suspension MacPherson Strut With 8.2″ (20.8 cm) Travel
Rear Suspension Dual A-Arm, IRS 6.12″ (15.5 cm) Travel
BRAKES
Front/Rear Brakes Single Lever Hydraulic Disc Brake / Single Lever Hydraulic Rear Brake
Parking Brake Park in Transmission/Lockable Hand Lever
TIRES/WHEELS
Front Tires / Model 25 x 8-12; Kenda
Rear Tires / Model 25 x 11-12; Kenda
Wheels Stamped Steel
DIMENSIONS
Wheelbase 79.5″ (201.9 cm)
Dry Weight 1,060 lb (480.8 kg)
Overall Vehicle Size (LxWxH) 112 x 48 x 48″ (284.5 x 121.9 x 121.9 cm)
Ground Clearance 10.5″ (26.7 cm)
Seat Height 33.75″ (85.7 cm)
CAPACITIES
Fuel Capacity 4.1 gal (15.5 L)
Bed Box Dimensions (LxWxH) 38″L x 39″W x 8″H (96.5L x 99.1W x 20.3H cm)
Front/Rear Rack Capacity 100 lb (45.4 kg)/800 lb (362.8 kg)
Hitch Towing Rating 1,500 lb (680.4 kg)
Hitch/Type Standard/1.25″ Receiver
FEATURES
Cargo System Lock & Ride
Lighting Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Instrumentation Digital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Specifications, appearance, and price of product are subject to change without notice.
