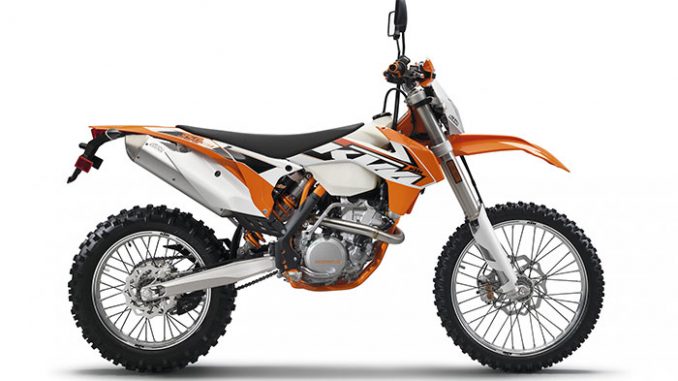

2015 KTM 350 EXC-F

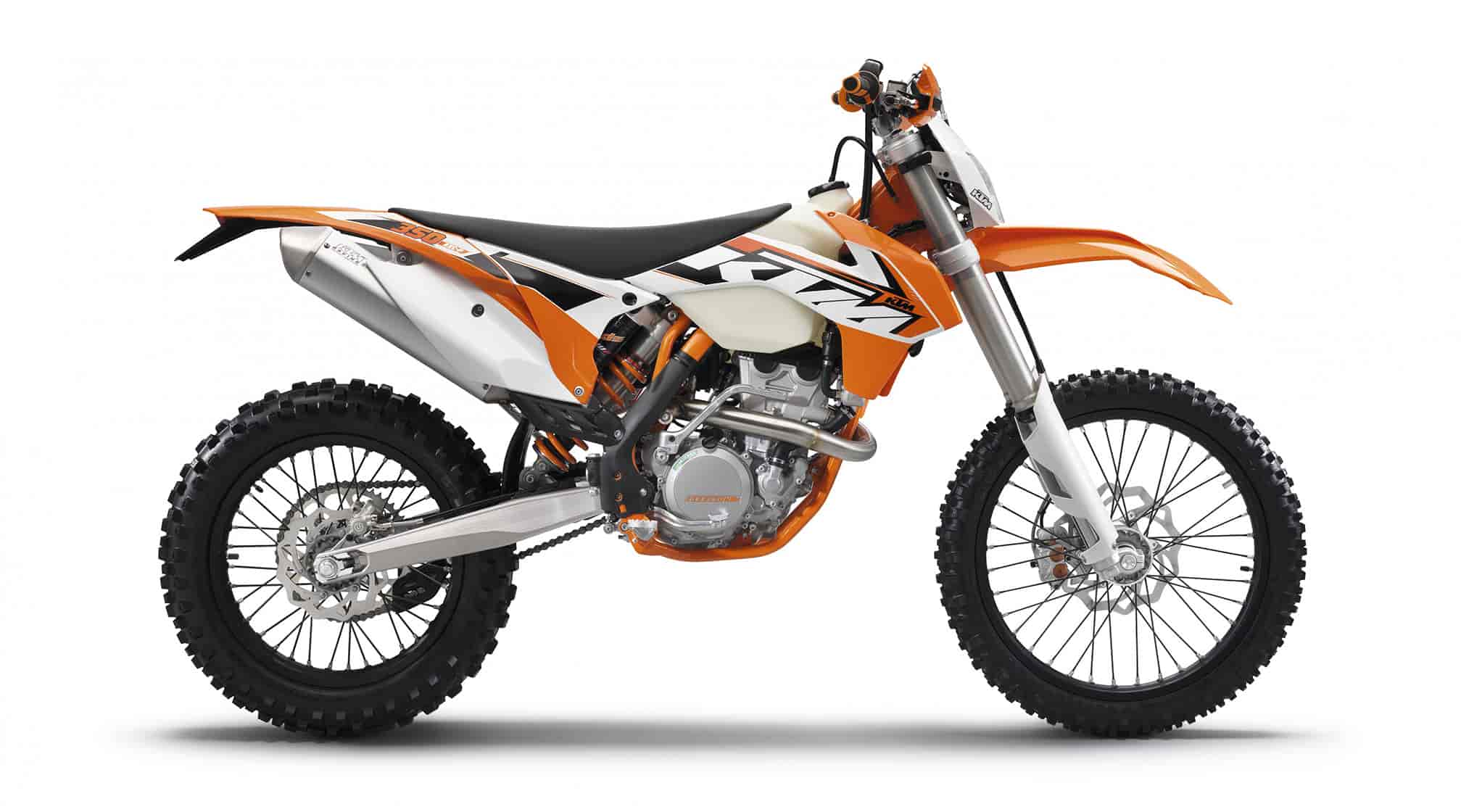

2015 KTM 350 EXC-F

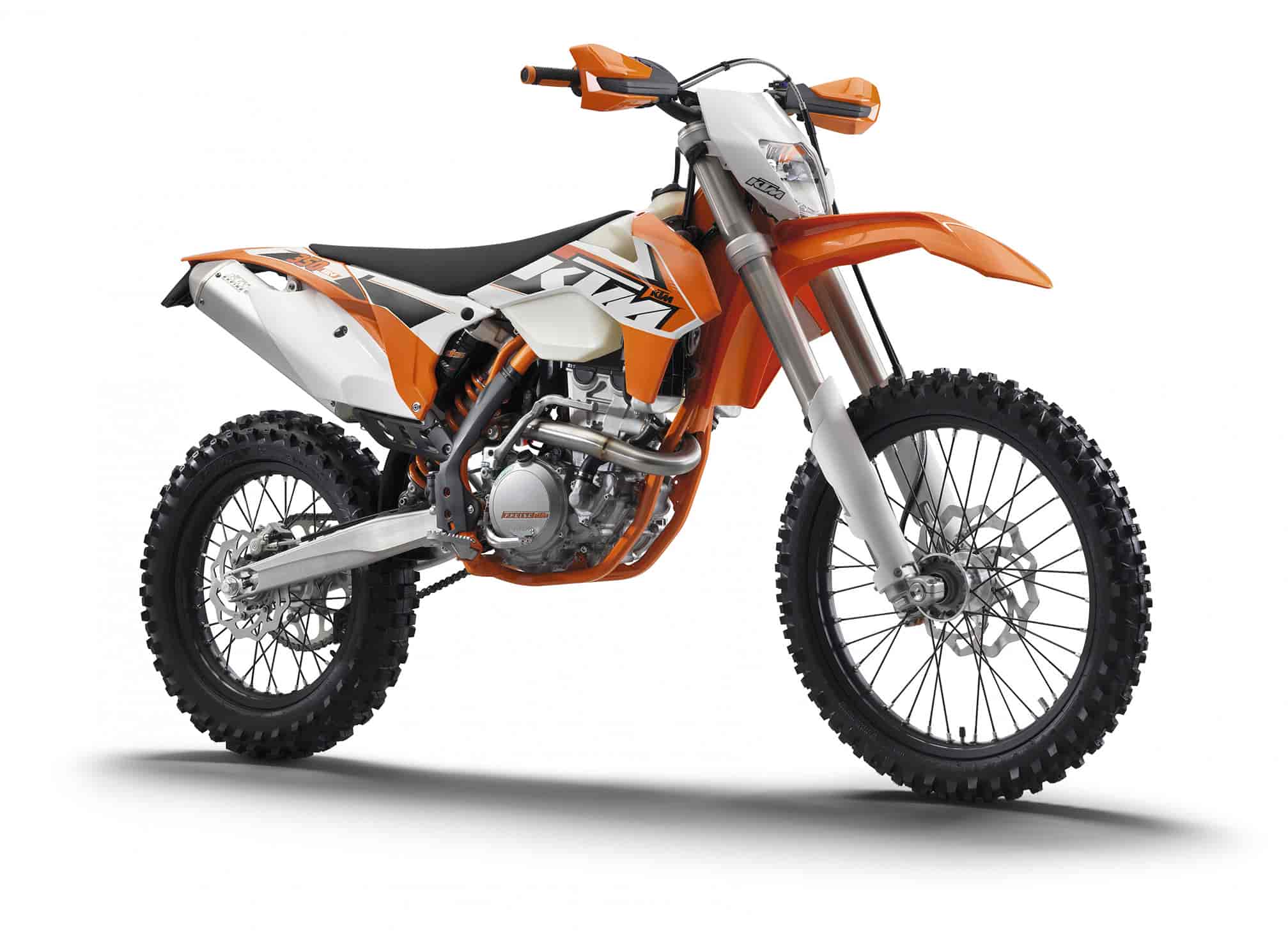

2015 KTM 350 EXC-F
2015 KTM 350 EXC-F

2015 KTM 350 EXC-F
2015 KTM 350 EXC-F

2015 KTM 350 EXC-F
2015 KTM 350 EXC-F



2015 KTM 350 EXC-F Review

2015 KTM 350 EXC-F on www.Totalmotorcycle.com

Best in Class…

The 350 EXC-F is the ultimate enduro when it comes to optimum rideability and maximum enduro performance. Thanks to its compact, powerful DOHC engine, its low weight and perfectly tuned chassis, this machine overcomes all problems presented by the terrain with incredible ease. And thanks to its playful handling, it is always at an advantage when the going gets really tough. Whether professional or beginner, this benefits the rider all the more, the longer the track is. Maximum fun factor guaranteed!


2015 KTM 350 EXC-F www.Totalmotorcycle.com Key Features

Superior chassis



Bodywork



Wheels and brakes



Engine







2015 KTM 350 EXC-F www.Totalmotorcycle.com Features and Benefits

OIL CIRCUIT

The 350 EXC-F engine is equipped with two oil pumps. A pressure pump supplies reliable lubrication to the crankshaft, piston, balancer shaft and valve controls. It also ensures cooling of the ignition and lubrication of the clutch. A suction pump draws oil from the crankcase and uses it to lubricate the transmission. This creates a slight vacuum in the crankcase, which also increases engine performance. Newly developed oil strainer sealing rings are used for MY 2015 to provide better durability in the most extreme conditions and a longer service life.

ENGINE

The 350cc 4-stroke engine, with state-of-the-art electronic fuel injection, provides a very broad useable rev range and distinguishes itself with dynamic yet strength-saving engine characteristics. With peak power of more than 45 hp, the 350 EXC-F is powerful enough to beat every 450 in the E2 class.



DDS CLUTCH

For MY 2015, the DDS clutch (Damped Diaphragm Steel) is equipped with a further refined, lighter, single-piece basket, which together with its integrated primary gear, is machined from a single solid billet of high-strength steel. This process guarantees unbeatable reliability and allows the engine to be extremely narrow thanks to the compact, rivetless design of the outer clutch hub. In addition, this design allows use of thin steel discs, which also contributes to the compact dimensions of the clutch. The diaphragm spring enables implementation of an additional hub damping mechanism – a benefit in terms of traction and gearbox wear. Finally, in conjunction with the diaphragm spring, the hydraulic clutch actuation system from Brembo ensures very smooth and very precise clutch control.



TRANSMISSION

The 6-speed transmission is designed specifically for the engine characteristics of the 350cc engine and for every type of enduro use. It excels with precise and easy shifting.



BALANCER SHAFT

To counterbalance the inertia forces, the 350 EXC-F engine is equipped with a balancer shaft on the right-hand side, which acts simultaneously as a water-pump drive and a drive wheel for the timing chain. This solution makes a major contribution to the extremely compact design of the engine.



ENGINE MANAGEMENT SYSTEM (EMS)

The engine management system (EMS) from Keihin, with electronic fuel injection and 42 mm throttle body, ensures spontaneous responsiveness and maximum engine performance. Various engine characteristics can be selected via the EMS, with a map-select switch available as a PowerPart. Furthermore, a user-setting tool (also available as an option) allows data to be read from the bike by laptop and the mapping, ignition and fuel injection to be modified in a matter of a few mouse clicks.



CRANKSHAFT

Compared with the 350 SX-F, the 350 EXC-F is equipped with a heavier crankshaft to generate more gyrating mass for more uniform power development and better traction. As on all 4-stroke EXC models, it has a plain bearing in the lower conrod eye. This design enhances the durability of the engine, thereby enabling long service intervals for the crankshaft.



CYLINDER HEAD

Together with very small, lightweight (only 8 g) cam followers with DLC coating, the DOHC cylinder head is equipped with four ultra-light titanium valves (intake 36.3 mm, exhaust 29.1 mm), allowing extremely high engine speeds of up to 12,000 rpm. The valve timings of the camshafts are designed perfectly for performance in the enduro-specific lower rev range.



STARTER

The engine is equipped as standard with both kickstarter and electric starter. Positioned behind the cylinder, the electric starter is well protected. Its drive is connected to the optimised freewheel on the ignition rotor.


FRAME

The modern frame design of the 350 EXC-F, comprising lightweight, high strength, chrome-molybdenum steel section tubes, combines maximum longitudinal stiffness with optimum torsional stiffness. It guarantees easy handling and precise steering behaviour, as well as excellent ride stability. So the new frame not only shines with the new colour, it also clearly represents the benchmark in terms of weight and stability. The frame colour shines in MY 2015 in the same orange as the KTM factory racing team, making the styling even more attractive. Moreover, it’s easier to maintain and provides more space for mounting the fuel tank and other components. Thanks to the frame design and in conjunction with the rear PDS damping system, shocks at the rear wheel are absorbed and dissipated optimally.



SWINGARM

The cast aluminium swingarm has been developed with state-of-the-art calculation and simulation software and constructed, in terms of design and wall thickness, for minimum weight with optimum stiffness and precisely defined flexibility.



SUSPENSION/DAMPING

The KTM 350 EXC-F has its own individual suspension setting, optimally tuned to weight and engine. The high-quality WP suspension components have been specially designed for enduro use. They ensure maximum traction and plenty of comfort. At the rear, a PDS shock absorber from WP Suspension works with a direct linkage to the upper side of the swingarm. The wide range of setting options for rebound damping and high- and low-speed compression damping are standard on KTM bikes.



TRIPLE CLAMPS

The triple clamps have been specifically designed for enduro use and ensure precise handling thanks to their supporting of the fork flex. The rider receives precise feedback from the front wheel, even in the toughest terrain, thereby increasing riding safety and speed.


BODYWORK

The bodywork has been designed ergonomically and functionally in such a way that the whole motorcycle is in perfect harmony with the rider down to the very last detail.



AIRBOX

At the same time, the ingenious design of the airbox guarantees optimum protection of the air filter from dirt plus maximum air throughput for the highest performance. The airbox covers are manufactured in a 2-component process with new in-mould graphics. The filter is replaced very quickly, without any tools. Furthermore, two additional tabs on the cover allow it to be secured with bolts if desired.



HANDLEBAR

All EXC models are equipped with an extremely sturdy, tapered Neken handlebar made from high-strength aluminium alloy. In accordance with the proven KTM standard, the black anodised handlebar can be fixed in a choice of four positions. The handguards are made from a new material in MY 2015 in order to achieve even greater impact resistance.



SPEEDO

The new speedo from MAE integrates all control lights, except those for the turn indicators, into a single component. This provides the cockpit with a cleaner and tidier appearance and makes the available information clear and easy to read.



EXHAUST SYSTEM

Light and robust. The aluminium silencers on EXC models are renowned for their outstanding performance, while keeping noise to a level well within FIM rules. For MY 2015, the 350 EXC-F receives a new silencer with a full-length perforated pipe to reduce the noise level and further improve performance.

WHEELS

The wheels are equipped with new, black, 7050 T6 aluminium Giant rims, black coated spokes with lightweight aluminium nipples and lightweight CNC-machined hubs, allowing highest levels of stability to be achieved while keeping weight to a minimum. The fitted Maxxis enduro tyres have been specially developed for KTM and excel with perfect traction and outstanding performance.

BRAKES

High-tech brakes from Brembo have always been standard equipment on KTM offroad bikes and, together with the lightweight wave brake discs, they are the measure of all things in terms of brake technology. As the best brakes in enduro sport, they remain unchanged for MY 2015.








2015 KTM 350 EXC-F – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See dealer for pricing in USD

ENGINE
Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starting aid Kick starter and electric starter
Engine lubrication Forced oil lubrication with 2 Eaton pumps
Primary ratio 24:73
Secondary ratio 14:52 (13:52)
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch DDS / Brembo hydraulics
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm
Suspension travel Rear 335 mm
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm
Brake discs – diameter Rear 220 mm
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm
Ground clearance, unloaded 345 mm
Seat height, unloaded 970 mm
Total fuel tank capacity, approx. 8.5 l
Unleaded premium fuel (95 RON)
Weight without fuel, approx. 107.2 kg








2015 KTM 350 EXC-F – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer for pricing in CDN

ENGINE
Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starting aid Kick starter and electric starter
Engine lubrication Forced oil lubrication with 2 Eaton pumps
Primary ratio 24:73
Secondary ratio 14:52 (13:52)
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch DDS / Brembo hydraulics
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm
Suspension travel Rear 335 mm
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm
Brake discs – diameter Rear 220 mm
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm
Ground clearance, unloaded 345 mm
Seat height, unloaded 970 mm
Total fuel tank capacity, approx. 8.5 l
Unleaded premium fuel (95 RON)
Weight without fuel, approx. 107.2 kg








2015 KTM 350 EXC-F – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)

ENGINE
Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starting aid Kick starter and electric starter
Engine lubrication Forced oil lubrication with 2 Eaton pumps
Primary ratio 24:73
Secondary ratio 14:52 (13:52)
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch DDS / Brembo hydraulics
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm
Suspension travel Rear 335 mm
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm
Brake discs – diameter Rear 220 mm
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm
Ground clearance, unloaded 345 mm
Seat height, unloaded 970 mm
Total fuel tank capacity, approx. 8.5 l
Unleaded premium fuel (95 RON)
Weight without fuel, approx. 107.2 kg

* Manufacturer’s suggested retail price (MSRP), the actual sale prices can vary.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
