2017 Victory Magnum Review

2017 Victory Magnum on www.Totalmotorcycle.com

SPEED AND STYLE…

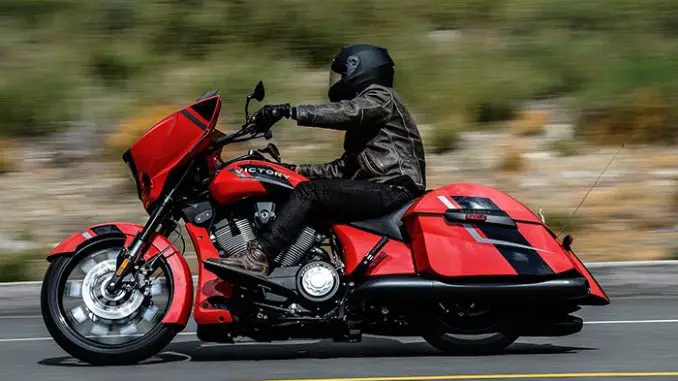

Move boldly through your world on the Magnum® muscle bagger. With a larger-than-life 21-inch front wheel – the biggest wheel ever fit to a production bagger – LED headlight and new muscle colors that demand attention, Magnum makes a mark on anyone who sees it. Turn on the cruise control, crank up the high-performance Bluetooth®-enabled audio system blasting 100 watts from 6 speakers, and enjoy the ride knowing that anti-lock brakes monitor your traction at all times. Want to make some more noise? Add a Victory accessory exhaust and Extreme Saddlebag Audio Speakers. Wherever the Magnum® goes, people stop, they stare, and they listen.

Command Respect.

2017 Victory Magnum www.Totalmotorcycle.com
Key Features

Speed and style that commands respect with a 21-inch wheel, the biggest
wheel ever ?t to a production bagger.

• 21-Inch Custom Front Wheel
• Slammed Rear End
• 6-Speaker, 100-Watt Sound System
• Cruiser Control & ABS Standard

2017 Victory Magnum www.Totalmotorcycle.com
Features and Benefits

21” Custom Front Wheel

With a larger-than-life 21-inch front wheel—the biggest ever fit to
a production bagger—Magnum makes a mark on anyone who sees it.

Slammed Rear End

The one-inch lowered rear seat gives the Magnum® a sleek profile that
is equal parts attitude and performance.

High-Performance Audio

Stop. Stare. And listen to our high-performance audio system blasting 100
watts from 6 speakers.

Cruise Control and ABS Brakes

Turn on the cruise control, crank up the speakers, and enjoy the ride knowing
that antilock brakes monitor your traction at all times.

2017 Victory Magnum – www.Totalmotorcycle.com
USA Specifications/Technical Details
US MSRP Price: Available in Gloss Black with graphics ($22,599), Habanero
Inferno Orange with graphics ($23,099) and Indy Red Pearl with graphics ($23,099).

ABS/Cruise Control Standard
Curb Weight 810 lbs / 367 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 48 amps max output
Compression Ratio 9.4 : 1
Cooling Air / oil
Drive/Driven Clutch Wet, multi-plate
Exhaust Dual-Large Bore Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear drive with torque compensator
Transmission Type 6-speed overdrive constant mesh
Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting
cam chains, hydraulic lifters
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork / 5.1″ (130mm)
Rear Suspension Single monotube air adjustable shock: 4.4″ (113 mm) travel

Brakes

Brake System Type Conventional w/ ABS
Front Brakes Dual 300mm floating rotor with 4-piston calipers
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D418F Elite 3 120/70R21 M/C 62V
Front Wheel 21 x 3.5″ Front
Rear Tires Dunlop D418 Elite 3 180/60R16 M/C 80H
Rear Wheel 16 x 5.0″

DIMENSIONS

Fuel Capacity (Litres) 5.8 gal / 22 ltr
GVWR 1310 lbs / 595 kg
Ground Clearance 5.3 in / 134mm
Rake/Trail 29.0° / 5.6 in / 142 mm
Seat Height 25.7 in / 654mm
Wheelbase 65.7 in / 1670 mm
Overall Length (in./mm.) 104.6 in / 2657 mm

Features

Color Swatch Gloss Black w/Graphics
Colors (Base) Habanero Inferno Orange w/Graphics, Gloss Black w/Graphics,
Indy Red Pearl w/Graphics

2017 Victory Magnum – www.Totalmotorcycle.com
Canadian Specifications/Technical Details
Canada MSRP Price: $25,999 CDN

ABS Standard
Dry Weight 810 lbs / 367 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting
cam chains, hydraulic lifters
Transmission Type 6-speed overdrive constant mesh
Transmission/Primary Drive Gear drive with torque compensator
Transmission/Final Drive Carbon Fiber Reinforced Belt
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Exhaust Dual-Large Bore Slash-Cut with Common Volume
Drive/Driven Clutch Wet, multi-plate
Cooling Air / oil
Compression Ratio 9.4 : 1
Charging System 48 amps max output
Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Rear Suspension Single monotube air adjustable shock: 4.4″ (113 mm)
travel
Front Suspension Telescopic Fork / 5.1″ (130mm)

Brakes

Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper
Front Brakes Dual 300mm floating rotor with 4-piston calipers
Brake System Type Conventional w/ ABS

Tires / Wheels

Rear Wheel 16 x 5.0″
Rear Tires Dunlop D418 Elite 3 180/60R16 M/C 80H
Front Wheel 21 x 3.5″ Front
Front Tires Dunlop D418F Elite 3 120/70R21 M/C 62V

DIMENSIONS

Wheelbase 65.7 in / 1670 mm
Seat Height 25.7 in / 654mm
Rake/Trail 29.0° / 5.6 in / 142 mm
Ground Clearance 5.3 in / 134mm
GCWR 1310 lbs / 595 kg
Fuel Capacity (Litres) 5.8 gal / 22 ltr
Overall Length (in./mm.) 104.6 in / 2657 mm

Features

Colors (Base) Habanero Inferno Orange w/Graphics, Gloss Black w/Graphics,
Indy Red Pearl w/Graphics
Color / Graphics Gloss Black w/Graphics

2017 Victory Magnum – www.Totalmotorcycle.com
European Specifications/Technical Details
Europe/UK MSRP Price: £TBA GBP (On The Road inc 20% Vat)

TBA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
