2018 Ducati Scrambler 1100 Special REVIEW BY TOTAL MOTORCYCLE
Taking customisation as its inspiration, the Scrambler® 1100 Special is a contemporary classic that has the elegance and character of black spoke wheels, aluminium mudguards and chrome exhausts. It is a personal statement that gets an update in the dedicated colour “Custom Grey”, enhanced by tank side panels in anodised aluminium. A unique setup for this version topped off by a brushed swinging arm, low handlebars with variable width and the exclusive seat upholstery.
The Scrambler has come of age and the Land of Joy is now bigger and better.
The Ducati Scrambler 1100 aims to meet the needs of even the most demanding, expert motorcyclists – but without compromising the fun, style and freedom that the Scrambler stands for. A beefier bike with a bigger engine and an even better set of standard equipmentthat lets riders upgrade without leaving the Scrambler family.
Just like in the ’60s when the Scrambler was available with three different engines (250, 350 and 450 cm3), today’s Land of Joy bikes offer three different displacements (400, 800 and 1100 cm3), resulting in a complete range with a flair for fun, iconic style, simplicity and self-expression.
Key features include a new 1079 cm3 engine, which delivers generous torque right from the bottom of the rev range, and an agile Scrambler chassis set-up that has been developed in parallel with the engine to put higher performance within reach of all riders.
With excellent pulling power and outstanding chassis geometry, the Ducati Scrambler 1100 maximises freedom and combines it with the excellent safety that comes with Bosch Cornering ABS and Traction Control: two features that go hand-in-hand with the superbly comfortable riding position specially developed for this model. On this Scrambler model the electronics package has evolved in line with Ducati tradition, maximising active safety thanks to the Bosch inertial platform.
Just like every other Ducati Scrambler bike, the 1100 is designed for boundless freedom of expression. The bike has been developed so it can be modified with ease and comes in three different versions: in addition to the Scrambler 1100, in fact, there’s the Scrambler 1100 Special, which draws its inspiration from the custom world, and the Scrambler 1100 Sport equipped with Öhlins suspension for the sportiest Scrambler riders.
With the 1100, the Ducati Scrambler sees the introduction of new, specially designed accessories and a dedicated apparel line that includes a leather jacket, a fabric jacket and an open-face helmet co-produced with Roland Sands.

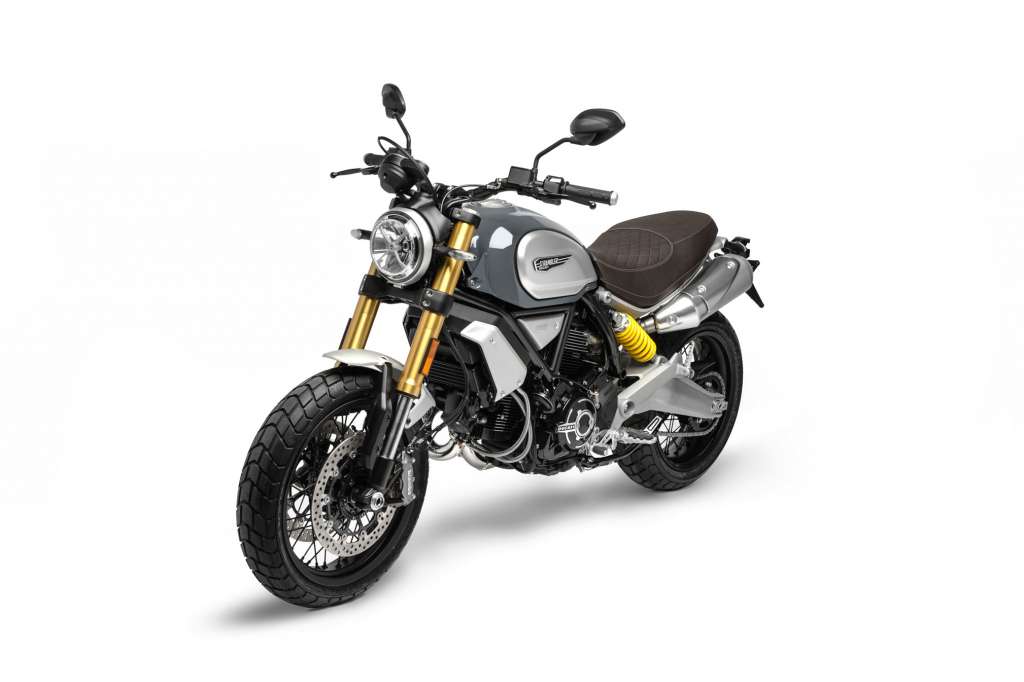

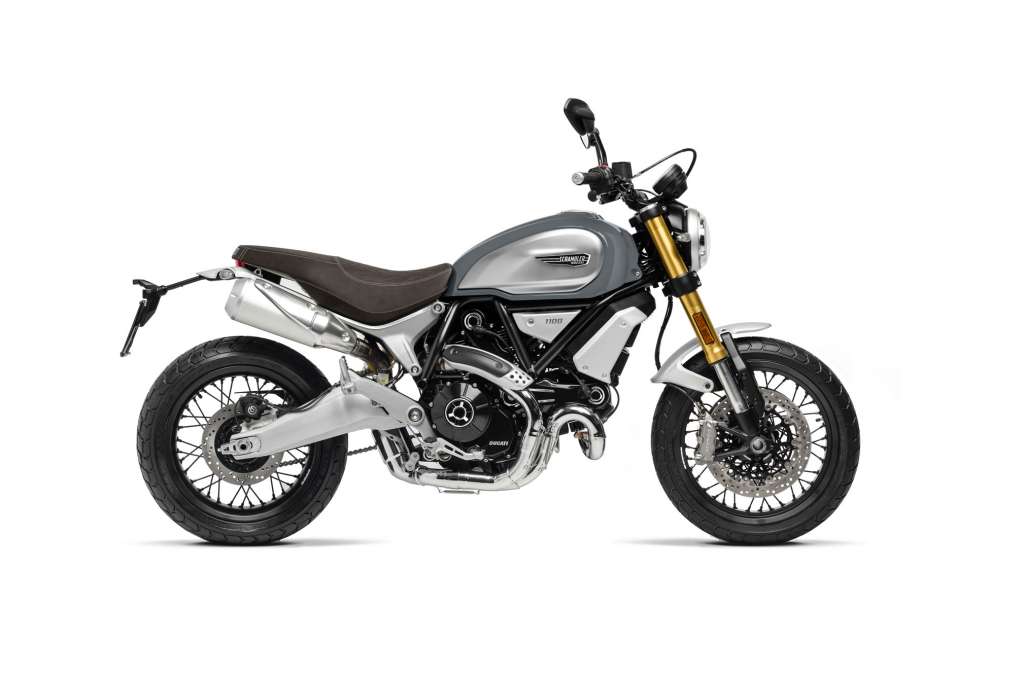

Ducati Scrambler 1100 Special
Taking its cue from customisation, the Scrambler 1100 Special has a decidedly “modern classic” feel thanks to black-spoked wheels, chrome exhausts and aluminium front/rear mudguards. The “Custom Grey” colour is unique to this version, as is the brushed-effect swingarm and the adjustable front fork with gold-coloured anodized sleeves. Other distinctive Scrambler 1100 Special elements include low-slung tapered handlebars and a brown seat with dedicated lining.
Ducati Scrambler 1100 Sport
As the name implies, the Scrambler 1100 Sport takes a sportier angle. Inspired by the numerous “racer” bikes put together by Scrambler owners, this model is easily recognised by its forks and adjustable Öhlins shock. The Scrambler 1100 Sport comes in “Viper Black” with yellow tank sides and dual yellow striping down the middle of the tank and mudguards. It also features aluminium wheels with machine-finished spokes, tapered handlebars and a seat with a dedicated lining.
2018 Ducati Scrambler 1100 Special Totalmotorcycle.com Key Features
The new Scrambler® 1100 glorifies the Land of Joy spirit: a motorbike that amplifies the creative disposition of Scrambler in more mature and sophisticated lines, with a solid balance between muscle and compactness. A version that translates the freedom of expression characteristic of the Scrambler universe into superior comfort and unimaginable mastery. The Scrambler® 1100 comes with advanced outfitting and equipment. 3 Riding Modes and the Ducati Traction Control assure you maximum freedom and easy riding while the ABS Cornering Bosh and 320 mm double disc lets you enjoy the generous torque of the new 1079 cu. cm engine in total safety. Available in two colours: ’62 Yellow and Shining Black.
Main as-standard features
Ducati Scrambler 1100
- Colours
o “’62 Yellow”, with black frame and black seat
o “Shining Black”, with black frame and black seat
- Equipment
o Steel teardrop fuel tank with interchangeable aluminium side panels
o Low seat (810 mm) for perfect at-standstill manoeuvrability
o Wide handlebars for a more relaxed riding position
o Round headlight with glass lens and DRL
o Diffused LED tail light
o Dual-element LCD instrument panel
o 1,079 cm³ air-cooled L-twin engine
o Machine-finished aluminium belt covers
o Twin spar steel Trellis frame and aluminium subframe
o Double sided swingarm
o 10-spoke wheels in light alloy, 18″ at the front and 17″ at the rear
o Enduro-derived Pirelli tyres optimised for the Ducati Scrambler
o Bosch Cornering ABS
o Traction Control
o 3 Riding Modes (Active, Journey and City)
o Under-seat USB socket to recharge mobile devices
Ducati Scrambler Special
- Colours
o “Custom Grey” with black frame and black spoked wheels.
- Equipment
o Steel teardrop fuel tank with interchangeable aluminium side panels
o Low, tapered handlebars
o Round headlight with glass lens and DRL
o Diffused LED tail light
o Dual-element LCD instrument panel
o 1,079 cm³ air-cooled L-twin engine
o Machine-finished aluminium belt covers
o Twin spar steel Trellis frame and aluminium subframe
o Double-sided swingarm with brushed surface finishing
o Adjustable fork and shock
o Spoked wheels, 18″ at the front and 17″ at the rear
o Enduro-derived Pirelli tyres optimised for the Ducati Scrambler
o Bosch Cornering ABS
o Traction Control
o 3 Riding Modes (Active, Journey and City)
o Under-seat USB socket to recharge mobile devices
o Aluminium front/rear mudguard
o Dedicated seat lining
o Chrome exhaust pipes
Ducati Scrambler Sport
- Colours
o “Viper Black” with yellow tank sides and dual yellow striping down the middle of the tank and mudguards, with black frame and wheels
- Equipment
o Steel teardrop fuel tank with interchangeable aluminium side panels
o Low seat (810 mm) for perfect at-standstill manoeuvrability
o Low, tapered aluminium handlebars
o Round headlight with glass lens and DRL
o Diffused LED tail light
o Dual-element LCD instrument panel
o 1,079 cm³ air-cooled L-twin engine
o Machine-finished aluminium belt covers
o Twin spar steel Trellis frame and aluminium subframe
o Double sided swingarm
o 10-spoke wheels in light alloy, 18″ at the front and 17″ at the rear
o Enduro-derived Pirelli tyres optimised for the Ducati Scrambler
o Bosch Cornering ABS
o Traction Control
o 3 Riding Modes (Active, Journey and City)
o Under-seat USB socket to recharge mobile devices
o Dedicated seat lining
o Adjustable Öhlins forks
o Adjustable Öhlins shock
2018 Ducati Scrambler 1100 Special Totalmotorcycle.com Features and Benefits
Design
The Scrambler 1100 is essential, mature and carefully thought out, taking inspiration from the iconic ’70s model while remaining faithful to the “Land of Joy” spirit. Larger than the other Ducati Scrambler brand models, the bike’s balanced proportions make it compact yet beefy and ensure outstanding rider comfort as well as unprecedented handling.
The upgraded fork and rear shock absorber are, like the 320 mm dual front brake discs, indicative of a leap forwards in terms of both performance and mature styling.
An high-performance swingarm merges smoothly with the lines of the footrest plates, enhancing the essential styling of the Scrambler 1100. Moreover, quality-conscious finishing reaches new heights thanks to the use of authentic materials such as steel and aluminium.
Attention to detail and the quest for simplicity have minimised the number of pieces used, leading to fewer covers and plastic components.
A focus on styling has allowed up-sizing without compromising on iconic brand features: a more rugged, beefier teardrop tank and interchangeable aluminium side panels, that are classic yet have a new line, make this Scrambler model immediately recognisable.
The seat – different on each version – is more generously shaped than its Scrambler 800 counterpart and has been designed to provide the utmost comfort for rider and passenger alike. A beautifully stitched cover and an embroidered Ducati logo at the rear make this seat particularly eye-catching.
The two silencers merge smoothly with the rear of the bike and the high plate holder while the dual tail pipes give the Scrambler 1100 a more muscular, instantly recognisable look.
In keeping with the self-expression that is the raison d’etȓe of the Scrambler brand, the rear subframe is separate from the chassis to make personalisation easier. Made of aluminium, the subframe also features a gleaming, machine-finished aluminium trim. The front mudguard is held in place by two die cast aluminium supports while the rear one incorporates LED indicators.
Another distinctive Scrambler 1100 feature is the round headlight. This retains the glass parabola shared by all Ducati Scrambler models and is now enhanced by a new aluminium rim. Its interior mounts an aluminium X-grille with a clearly visible Ducati logo. The grille divides up the DRL (Daytime Running Light) system on the Scrambler 1100 to create the four trademark Land of Joy light segments.
Careful design has produced a two-element instrument panel: a classic round section, as seen on all the Scrambler bikes, and an additional oval element to display a broader info range.
Every single part of the Ducati Scrambler 1100 has been meticulously designed down to the very last detail. A painted aluminium logo adds a stylish finishing touch. Machine-
finished aluminium bar plugs match the headlight assembly, as does the logo on the spark plug caps.
The rear brake lever – made, like the clutch lever, of aluminium – has specifically been designed for easy replacement or personalisation. Aluminium is also used for the airbox covers while machine-finished wheel spokes add a further distinctive touch to the Scrambler 1100.
Components
Evocative headlight assembly
The front headlight on the Ducati Scrambler 1100 takes its cue from those on the other bikes in the range. The LED ring around the headlight rim that acts as a side light is now a DRL (Daytime Running Light), making the Scrambler 1100 clearly visible in daylight too. Also in keeping with the Scrambler heritage is the grey metal “X” mounted inside the headlight (a feature inspired by the tape once applied on offroad bikes back in the ’70s to protect the headlight assembly). This also gives the bike a unique look with the lights off. The dipped headlight beam relies on a “Blue Vision” bulb, which emits a white light like the DRL.
At the rear, instead, a fully LED tail light assembly emits a soft light, making use of a technology unique within the motorcycling world. This ‘softening’ effect is produced by combining a dulled diffuser cover and a 12-LED electrical card (18-LED for the brake light).
LED indicators, positioned to the sides of the headlight assembly and the rear mudguard, complement the Ducati Scrambler 1100 style to perfection. LED lighting is also used to illuminate the number plate. To activate the hazard lights on the Ducati Scrambler 1100 all the rider needs to do is press the dedicated button on the right switchgear.
Instrumentation
The Ducati Scrambler 1100 instrument panel has two main elements. As on the other bikes in the range, the main one has a round design. Positioned above and to the right of the headlight, this unit is fully digital. The scale on the rpm indicator resembles the speedometer on the bikes of the ’70s (i.e. positioned low down in the instrument assembly). As engine revs increase the digits light up clockwise (right to left). The round section also shows the fuel level, selected riding mode and the selected Traction Control level. Further info includes Trip 1, Trip 2, miles remaining and air temperature, plus grip heater operation (available on the Scrambler 1100 as an accessory). The second, oval element, instead, has a speedo, a kickstand warning light and information from the Ducati Multimedia System, available as an accessory when the Bluetooth module is fitted.
Controls
The Ducati Scrambler 1100 features new multi-function switchgears that let riders select Riding Modes and modify them. A Ride By Wire throttle is accompanied by hydraulically operated brake pumps and clutch, making the controls modern yet faithful to the classic Scrambler style. Brake and clutch levers are adjustable. The black painted die cast aluminium footrest plates (grey on the Scrambler 1100 Special) support the gear shift and rear brake levers, both made of forged aluminium.
Standard equipment
Advanced electronics to maximise safety and riding pleasure.
A bigger, higher-performing bike but with a full complement of easy-going Scrambler freedom. Thanks to the electronic Ride by Wire control system and the inertial platform, the Scrambler 1100 puts outstanding safety and performance in the grasp of all riders and, thanks to the three Riding Modes, does so whatever the riding conditions.
Brembo braking system with Bosch 9.1 MP Cornering ABS
Thanks to installation of the inertial platform, the Ducati Scrambler 1100 is equipped with a Brembo braking system with Bosch 9.1 MP Cornering ABS to ensure safety whatever the situation. To maximise stopping performance, the front wheel has a dual 330 mm disc with two 4-piston Brembo M 4.32B monobloc calipers with radial attachment whereas at the rear, a 245 mm disc is gripped by a caliper with a 34 mm piston. The single-setting ABS cannot be deactivated.
Traction Control
The Ducati Scrambler 1100 is the first bike in the family to feature Ducati Traction Control (DTC). This active safety system – specially designed for the Scrambler – can be adjusted to 4 different levels. This solution offers outstanding performance while making adjustment as easy as possible for the rider. Level 1 is the least intrusive while level 4 maximises intervention and, therefore, safety. On the Scrambler 1100, Traction Control can be deactivated.
Three Riding Modes
The Ducati Scrambler 1100 has three Riding Modes: Active, Journey and City. Active Riding Mode provides full engine power (86 hp), a direct throttle connection and a Traction Control level that’s compatible with sport riding. Journey Riding Mode is perfect for everyday use: full L-twin power (86 hp), a more fluid throttle connection than with Active mode and a Traction Control level developed for carefree riding. The third Riding Mode, City, lowers engine power to 75 hp (and 88 Nm of maximum torque), the same as on the Scrambler 800. Throttle control is extremely fluid and Traction Control ensures maximum safety.
A new L-twin
Engine
The Ducati Scrambler 1100 is powered by a Euro 4 compliant oil/air-cooled 1079 cm³ L-twin two-valve engine. A development of the Monster 1100 engine, this power unit has, in perfect Scrambler style, a 98 mm bore and a 71.5 mm stroke. The engine has been redesigned to prioritise fluid acceleration across the rev range and great handling. The Desmodue engine on the Ducati Scrambler 1100 has light machine-finished aluminium covers, including those on the clutch and alternator. Other aluminium items include the two belt covers, machine-finished to provide a further touch of flair.
The twin cylinder Desmodue engine on the Ducati Scrambler 1100 has been equipped with a single 55 mm full Ride by Wire throttle body with two sub-butterfly injectors: this solution, together with a generously sized airbox, ensures fluid power delivery and accurate control of the fuel mix aspirated into the cylinders. For this same reason each cylinder is fitted with twin spark plugs and a secondary air system.
Excellent pulling power is also put within everyone’s reach by the 16° valve overlap angle. Thanks to these solutions the Ducati Scrambler L-twin puts out a maximum power of 86 hp at 7,500 rpm and a maximum torque of 88.4 Nm at 4,750 rpm, with smooth delivery across the rev range. The gearbox is a 6-speed unit while the clutch is the wet multiplate type with hydraulic control. The clutch also has a servo-assisted slipper function that limits rear wheel destabilisation during down-shifting.
The exhaust pipes on the Ducati Scrambler 1100 have a larger diameter than those on the Scrambler 800. The exhaust has a low-slung catalytic converter and dual steel silencers with aluminium sleeves, die cast aluminium end caps and 4 aluminium covers (two per silencer).
Designed to be simple and accessible – just like the Scrambler itself – this twin-cylinder engine also features competitive 12,000 km maintenance intervals (every 7,500 miles).
Desmo delight
The Ducati Scrambler is iconic, as is the celebrated Ducati Desmo, the engine valve closure system that has made Ducati famous all over the world. Thanks to this system, the intake and exhaust valves are closed positively and precisely using a technique analogous to that employed to open the valves. The term desmodromic stems from the
Greek words desmos (link) and dromos (stroke); mechanically speaking, the term refers to control mechanisms enabling operation in both one direction (e.g. opening) and another acting in the opposite direction (closure or return).
However, the desmodromic concept is not a recent one and has been used in the motorcycle and car industries for some time. It first appeared, in a variety of forms, way back at the start of the twentieth century. In 1956 renowned engineer Fabio Taglioni set Ducati off along the desmodromic path: the first bike to feature the solution was the Grand Prix 125, which had three overhead camshafts, driven by a vertical shaft and a bevel gear. From that point on desmodromic history became a Ducati exclusive and in 1968 the company started producing this timing system as standard with the Mark 3 Desmo 350. This milestone of a motorcycle essentially had the same timing system as current 2-valve twin cylinder engines like the one on the Ducati Scrambler, clear evidence of the concept’s soundness. Used on all Ducati models, the system is also employed on Ducati Corse’s Superbikes and Desmosedici MotoGP bikes.
Dedicated chassis set-up
Frame
The Ducati Scrambler 1100 features an all-new twin upper spar steel Trellis frame. As essential as the Ducati Scrambler itself, this engine-hugging frame is completed by a rear aluminium subframe. Thanks to a steering head angle of 24.5° and a 110 mm offset on the fork yokes, manoeuvrability is as outstanding in city traffic as it is on Alpine hairpins. Compared to the Scrambler 800, the aluminium fork yokes boast wider inter-fork clearance. Thanks to the wide handlebars, weaving your way through an urban obstacle course on the Scrambler is child’s play, while the 1,514 mm wheelbase maximises stability at high speeds. Up-sizing of the bike has given the Scrambler 1100 a new riding position: compared to the 800 version, the seat-footpeg gap is wider and the handlebars are further forwards and lower.
The steel fuel tank, with that unmistakeable teardrop silhouette, can hold 15 litres. With an excellent frame and outstanding chassis geometry, the Ducati Scrambler 1100 makes for relaxed riding that is easy yet fun. Despite the beefed-up size and performance with respect to the 800 cm3 versions, the Scrambler 1100 remains user-friendly and agile, a source of endless satisfaction on both city streets and the open road.
Suspension
The Sport version of the Ducati Scrambler 1100 mounts Öhlins suspension (Kayaba on the Scrambler 1100 and Scrambler 1100 Special), with upside-down 45 mm forks and a rear shock with adjustable spring preload and rebound damping. Both provide 150 mm of wheel travel, ensuring the tyres hug the ground on any terrain, from city streets to easy-going off-road routes. It is this mix of comfort and performance that makes the Ducati Scrambler 1100 unique, letting riders express themselves to the max everywhere and anywhere.
Wheels and tyres
The Scrambler 1100 comes with all-new aluminium machine-finished 10-spoke wheels –of evident flat-track origin –as standard. The design is a throwback to the days of thin, criss-crossed spokes inserted in the hub. The 3.5″ x 18″ front wheel and the rear 5.5″ x 17″” one have been designed to be light. They mount an enduro-type Pirelli MT60 RS 120/80 ZR18 tyre at the front and the 180/55 ZR17 at the rear. Pirelli has designed the front tyre specially for the Ducati Scrambler 1100.
2018 Ducati Scrambler 1100 Special – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
| Ducati Scrambler 1100 | Ducati Scrambler 1100 Special | Ducati Scrambler 1100 Sport | ||
| Engine | ||||
| Type | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | |
| Displacement | 1,079 cc | 1,079 cc | 1,079 cc | |
| Bore x stroke | 98 x 71 mm | 98 x 71 mm | 98 x 71 mm | |
| Compression ratio | 11:1 | 11:1 | 11:1 | |
| Power** | 63 kW (86 hp) @ 7,500 rpm | 63 kW (86 hp) @ 7,500 rpm | 63 kW (86 hp) @ 7,500 rpm | |
| Torque | 65 lb-ft (88 Nm) @ 4,750 rpm | 65 lb-ft (88 Nm) @ 4,750 rpm | 65 lb-ft (88 Nm) @ 4,750 rpm | |
| Fuel injection | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | |
| Exhaust | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | |
| Standard | Euro 4 | Euro 4 | Euro 4 | |
| Transmission | ||||
| Gearbox | 6 speed | 6 speed | 6 speed | |
| Ratio | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | |
| Primary drive | Straight cut gears; Ratio 1.85:1 | Straight cut gears; Ratio 1.85:1 | Straight cut gears; Ratio 1.85:1 | |
| Final drive | Chain; Front sprocket 15; Rear sprocket 39 | Chain; Front sprocket 15; Rear sprocket 39 | Chain; Front sprocket 15; Rear sprocket 39 | |
| Clutch | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | |
| Chassis | ||||
| Frame | Tubular steel Trellis frame | Tubular steel Trellis frame | Tubular steel Trellis frame | |
| Front suspension | Marzocchi fully adjustable Ø45 mm usd fork | Marzocchi fully adjustable Ø45 mm usd fork | Öhlins fully adjustable Ø48 mm usd fork | |
| Front wheel travel | 150 mm (5.9 in) | 150 mm (5.9 in) | 150 mm (5.9 in) | |
| Front wheel | 10-spoke in light alloy, 3.50″ x 18″ | Spoked aluminium wheel, 3.50″ x 18″ | 10-spoke in light alloy, 3.50″ x 18″ | |
| Front tyre | Pirelli MT 60 RS 120/80 ZR18 | Pirelli MT 60 RS 120/80 ZR18 | Pirelli MT 60 RS 120/80 ZR18 | |
| Rear suspension | Kayaba monoshock, pre-load and rebound adjustable | Kayaba monoshock, pre-load and rebound adjustable | Öhlins monoshock, pre-load and rebound adjustable | |
| Rear wheel travel | 150 mm (5.9 in) | 150 mm (5.9 in) | 150 mm (5.9 in) | |
| Rear wheel | 10-spoke in light alloy, 5.50″ x 17″ | Spoked aluminium wheel, 5.50″ x 17″ | 10-spoke in light alloy, 5.50″ x 17″ | |
| Front tyre | Pirelli MT 60 RS 180/55 ZR17 | Pirelli MT 60 RS 180/55 ZR17 | Pirelli MT 60 RS 180/55 ZR17 | |
| Front brake | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | |
| Rear brake | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | |
| Dashboard | LCD | LCD | LCD | |
| Dimensions and weight | ||||
| Wheelbase | 1,514 mm (59.6 in) | 1,514 mm (59.6 in) | 1,514 mm (59.6 in) | |
| Rake | 24.5° | 24.5° | 24.5° | |
| Trail | 111 mm (4.4 in) | 111 mm (4.4 in) | 111 mm (4.4 in) | |
| Total steering lock | 34° | 34° | 33° | |
| Fuel tank capacity | 15 l – (3.96 US gal) | 15 l – (3.96 US gal) | 15 l – (3.96 US gal) | |
| Dry weight | 189 kg (417 lb) | 194 kg (428 lb) | 189 kg (417 lb) | |
| Wet weight* | 206 kg (454 lb) | 211 kg (465 lb) | 206 kg (454 lb) | |
| Seat height | 810 mm (31.9 in) | 810 mm (31.9 in) | 810 mm (31.9 in) | |
| Max height | 1,330 mm (52.4 in) | 1,290 mm (50.7 in) | 1,290 mm (50.7 in) | |
| Max width | 895 mm (35.2 in) | 920 mm (36.2 in) | 920 mm (36.2 in) | |
| Max length | 2,190 mm (86.0 in) | 2,190 mm (86.0 in) | 2,190 mm (86.0 in) | |
| Number of seats | Dual seat | Dual seat | Dual seat | |
| Standard equipment | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | |
| Warranty | ||||
| 24 months unlimited mileage | 24 months unlimited mileage | 24 months unlimited mileage | ||
| 12,000 km (7,500 mi) / 12 months | 12,000 km (7,500 mi) / 12 months | 12,000 km (7,500 mi) / 12 months | ||
| 12,000 km (7,500 mi) | 12,000 km (7,500 mi) | 12,000 km (7,500 mi) | ||
| *Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93). | ||||
| **The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments. | ||||
2018 Ducati Scrambler 1100 Special – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN
| Ducati Scrambler 1100 | Ducati Scrambler 1100 Special | Ducati Scrambler 1100 Sport | ||
| Engine | ||||
| Type | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | |
| Displacement | 1,079 cc | 1,079 cc | 1,079 cc | |
| Bore x stroke | 98 x 71 mm | 98 x 71 mm | 98 x 71 mm | |
| Compression ratio | 11:1 | 11:1 | 11:1 | |
| Power** | 63 kW (86 hp) @ 7,500 rpm | 63 kW (86 hp) @ 7,500 rpm | 63 kW (86 hp) @ 7,500 rpm | |
| Torque | 65 lb-ft (88 Nm) @ 4,750 rpm | 65 lb-ft (88 Nm) @ 4,750 rpm | 65 lb-ft (88 Nm) @ 4,750 rpm | |
| Fuel injection | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | |
| Exhaust | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | |
| Standard | Euro 4 | Euro 4 | Euro 4 | |
| Transmission | ||||
| Gearbox | 6 speed | 6 speed | 6 speed | |
| Ratio | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | |
| Primary drive | Straight cut gears; Ratio 1.85:1 | Straight cut gears; Ratio 1.85:1 | Straight cut gears; Ratio 1.85:1 | |
| Final drive | Chain; Front sprocket 15; Rear sprocket 39 | Chain; Front sprocket 15; Rear sprocket 39 | Chain; Front sprocket 15; Rear sprocket 39 | |
| Clutch | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | |
| Chassis | ||||
| Frame | Tubular steel Trellis frame | Tubular steel Trellis frame | Tubular steel Trellis frame | |
| Front suspension | Marzocchi fully adjustable Ø45 mm usd fork | Marzocchi fully adjustable Ø45 mm usd fork | Öhlins fully adjustable Ø48 mm usd fork | |
| Front wheel travel | 150 mm (5.9 in) | 150 mm (5.9 in) | 150 mm (5.9 in) | |
| Front wheel | 10-spoke in light alloy, 3.50″ x 18″ | Spoked aluminium wheel, 3.50″ x 18″ | 10-spoke in light alloy, 3.50″ x 18″ | |
| Front tyre | Pirelli MT 60 RS 120/80 ZR18 | Pirelli MT 60 RS 120/80 ZR18 | Pirelli MT 60 RS 120/80 ZR18 | |
| Rear suspension | Kayaba monoshock, pre-load and rebound adjustable | Kayaba monoshock, pre-load and rebound adjustable | Öhlins monoshock, pre-load and rebound adjustable | |
| Rear wheel travel | 150 mm (5.9 in) | 150 mm (5.9 in) | 150 mm (5.9 in) | |
| Rear wheel | 10-spoke in light alloy, 5.50″ x 17″ | Spoked aluminium wheel, 5.50″ x 17″ | 10-spoke in light alloy, 5.50″ x 17″ | |
| Front tyre | Pirelli MT 60 RS 180/55 ZR17 | Pirelli MT 60 RS 180/55 ZR17 | Pirelli MT 60 RS 180/55 ZR17 | |
| Front brake | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | |
| Rear brake | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | |
| Dashboard | LCD | LCD | LCD | |
| Dimensions and weight | ||||
| Wheelbase | 1,514 mm (59.6 in) | 1,514 mm (59.6 in) | 1,514 mm (59.6 in) | |
| Rake | 24.5° | 24.5° | 24.5° | |
| Trail | 111 mm (4.4 in) | 111 mm (4.4 in) | 111 mm (4.4 in) | |
| Total steering lock | 34° | 34° | 33° | |
| Fuel tank capacity | 15 l – (3.96 US gal) | 15 l – (3.96 US gal) | 15 l – (3.96 US gal) | |
| Dry weight | 189 kg (417 lb) | 194 kg (428 lb) | 189 kg (417 lb) | |
| Wet weight* | 206 kg (454 lb) | 211 kg (465 lb) | 206 kg (454 lb) | |
| Seat height | 810 mm (31.9 in) | 810 mm (31.9 in) | 810 mm (31.9 in) | |
| Max height | 1,330 mm (52.4 in) | 1,290 mm (50.7 in) | 1,290 mm (50.7 in) | |
| Max width | 895 mm (35.2 in) | 920 mm (36.2 in) | 920 mm (36.2 in) | |
| Max length | 2,190 mm (86.0 in) | 2,190 mm (86.0 in) | 2,190 mm (86.0 in) | |
| Number of seats | Dual seat | Dual seat | Dual seat | |
| Standard equipment | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | |
| Warranty | ||||
| 24 months unlimited mileage | 24 months unlimited mileage | 24 months unlimited mileage | ||
| 12,000 km (7,500 mi) / 12 months | 12,000 km (7,500 mi) / 12 months | 12,000 km (7,500 mi) / 12 months | ||
| 12,000 km (7,500 mi) | 12,000 km (7,500 mi) | 12,000 km (7,500 mi) | ||
| *Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93). | ||||
| **The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments. | ||||

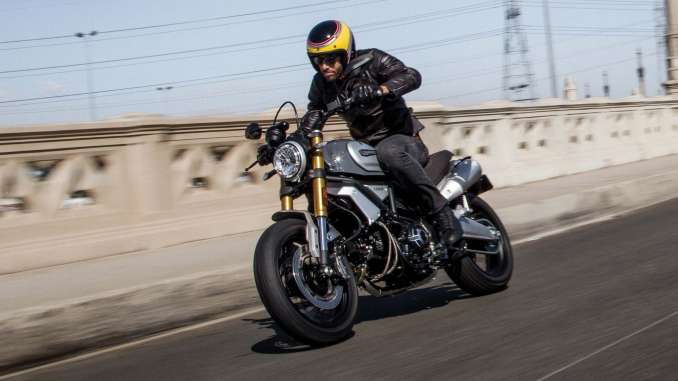

2018 Ducati Scrambler 1100 Special – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
| Ducati Scrambler 1100 | Ducati Scrambler 1100 Special | Ducati Scrambler 1100 Sport | ||
| Engine | ||||
| Type | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled | |
| Displacement | 1,079 cc | 1,079 cc | 1,079 cc | |
| Bore x stroke | 98 x 71 mm | 98 x 71 mm | 98 x 71 mm | |
| Compression ratio | 11:1 | 11:1 | 11:1 | |
| Power** | 63 kW (86 hp) @ 7,500 rpm | 63 kW (86 hp) @ 7,500 rpm | 63 kW (86 hp) @ 7,500 rpm | |
| Torque | 65 lb-ft (88 Nm) @ 4,750 rpm | 65 lb-ft (88 Nm) @ 4,750 rpm | 65 lb-ft (88 Nm) @ 4,750 rpm | |
| Fuel injection | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | Electronic fuel injection, Ø55 mm throttle body with full Ride by Wire (RbW) | |
| Exhaust | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel muffler with aluminium covers and end caps | |
| Standard | Euro 4 | Euro 4 | Euro 4 | |
| Transmission | ||||
| Gearbox | 6 speed | 6 speed | 6 speed | |
| Ratio | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | |
| Primary drive | Straight cut gears; Ratio 1.85:1 | Straight cut gears; Ratio 1.85:1 | Straight cut gears; Ratio 1.85:1 | |
| Final drive | Chain; Front sprocket 15; Rear sprocket 39 | Chain; Front sprocket 15; Rear sprocket 39 | Chain; Front sprocket 15; Rear sprocket 39 | |
| Clutch | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | |
| Chassis | ||||
| Frame | Tubular steel Trellis frame | Tubular steel Trellis frame | Tubular steel Trellis frame | |
| Front suspension | Marzocchi fully adjustable Ø45 mm usd fork | Marzocchi fully adjustable Ø45 mm usd fork | Öhlins fully adjustable Ø48 mm usd fork | |
| Front wheel travel | 150 mm (5.9 in) | 150 mm (5.9 in) | 150 mm (5.9 in) | |
| Front wheel | 10-spoke in light alloy, 3.50″ x 18″ | Spoked aluminium wheel, 3.50″ x 18″ | 10-spoke in light alloy, 3.50″ x 18″ | |
| Front tyre | Pirelli MT 60 RS 120/80 ZR18 | Pirelli MT 60 RS 120/80 ZR18 | Pirelli MT 60 RS 120/80 ZR18 | |
| Rear suspension | Kayaba monoshock, pre-load and rebound adjustable | Kayaba monoshock, pre-load and rebound adjustable | Öhlins monoshock, pre-load and rebound adjustable | |
| Rear wheel travel | 150 mm (5.9 in) | 150 mm (5.9 in) | 150 mm (5.9 in) | |
| Rear wheel | 10-spoke in light alloy, 5.50″ x 17″ | Spoked aluminium wheel, 5.50″ x 17″ | 10-spoke in light alloy, 5.50″ x 17″ | |
| Front tyre | Pirelli MT 60 RS 180/55 ZR17 | Pirelli MT 60 RS 180/55 ZR17 | Pirelli MT 60 RS 180/55 ZR17 | |
| Front brake | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch Cornering ABS as standard equipment | |
| Rear brake | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | 245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment | |
| Dashboard | LCD | LCD | LCD | |
| Dimensions and weight | ||||
| Wheelbase | 1,514 mm (59.6 in) | 1,514 mm (59.6 in) | 1,514 mm (59.6 in) | |
| Rake | 24.5° | 24.5° | 24.5° | |
| Trail | 111 mm (4.4 in) | 111 mm (4.4 in) | 111 mm (4.4 in) | |
| Total steering lock | 34° | 34° | 33° | |
| Fuel tank capacity | 15 l – (3.96 US gal) | 15 l – (3.96 US gal) | 15 l – (3.96 US gal) | |
| Dry weight | 189 kg (417 lb) | 194 kg (428 lb) | 189 kg (417 lb) | |
| Wet weight* | 206 kg (454 lb) | 211 kg (465 lb) | 206 kg (454 lb) | |
| Seat height | 810 mm (31.9 in) | 810 mm (31.9 in) | 810 mm (31.9 in) | |
| Max height | 1,330 mm (52.4 in) | 1,290 mm (50.7 in) | 1,290 mm (50.7 in) | |
| Max width | 895 mm (35.2 in) | 920 mm (36.2 in) | 920 mm (36.2 in) | |
| Max length | 2,190 mm (86.0 in) | 2,190 mm (86.0 in) | 2,190 mm (86.0 in) | |
| Number of seats | Dual seat | Dual seat | Dual seat | |
| Standard equipment | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS + DTC), RbW, LED light-guide, LED rear light with diffusion-light, LCD instruments with gear and fuel level indications, Steel tank with interchangeable aluminium side panels, Machine-finished aluminium belt covers, Under-seat storage compartment with USB socket | |
| Warranty | ||||
| 24 months unlimited mileage | 24 months unlimited mileage | 24 months unlimited mileage | ||
| 12,000 km (7,500 mi) / 12 months | 12,000 km (7,500 mi) / 12 months | 12,000 km (7,500 mi) / 12 months | ||
| 12,000 km (7,500 mi) | 12,000 km (7,500 mi) | 12,000 km (7,500 mi) | ||
| *Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93). | ||||
| **The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments. | ||||
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
Be the first to comment
