2018 KTM 1090 Adventure Review

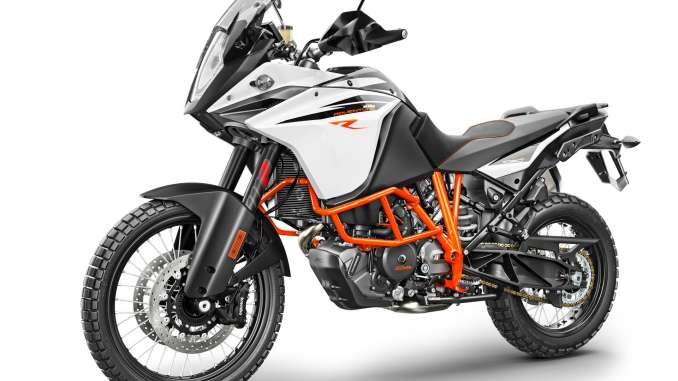

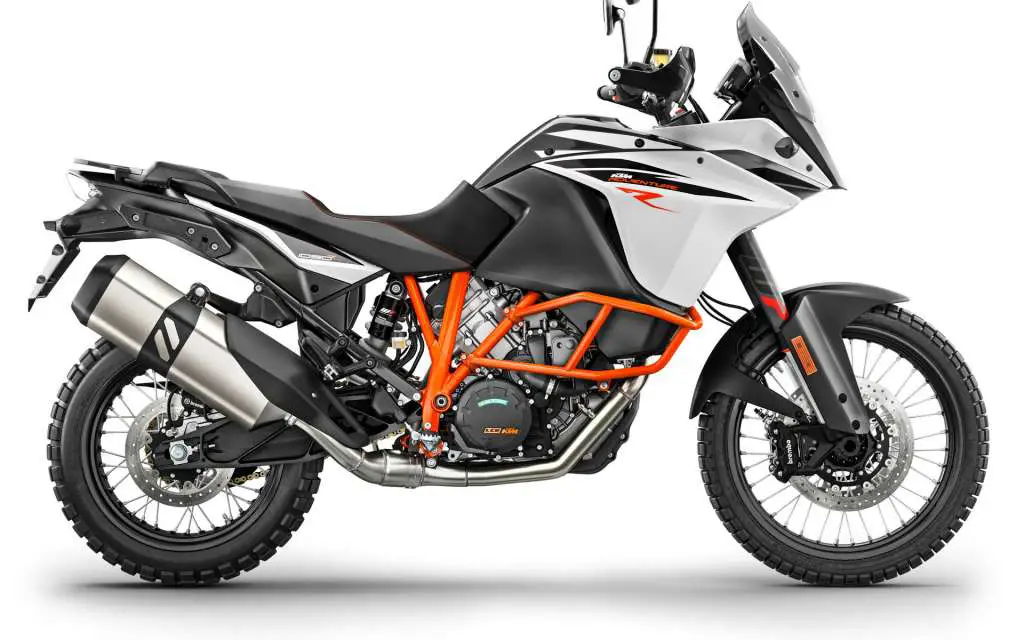

2018 KTM 1090 Adventure

2018 KTM 1090 Adventure 2018 KTM 1090 Adventure 2018 KTM 1090 Adventure 2018 KTM 1090 Adventure

BRING IT ON.

2018 KTM 1090 Adventure Review on Total Motorcycle:

The KTM 1090 ADVENTURE R stares down anything in its path. Bespoke WP suspension, offroad wheels and a tough yet fuel-efficient engine are ready to rumble. Decades of rally raid victories roar within. This bike uses the same state-of-the-art technology as the KTM 1290 ADVENTURE R and even though its engine capacity is smaller, it’s still big on power: 125 hp (92 kW).

The world is yours – Devour it.











2018 KTM 1090 Adventure Totalmotorcycle.com Key Features









2018 KTM 1090 Adventure Totalmotorcycle.com Features and Benefits

Engine & Exhaust

The advanced V2 engine with a 1,050cc displacement supplies everything an adventure bike could ever need: powerful acceleration, real punch for fully loaded touring and 125 hp (92 kW) peak power for when the chips are down. Low fuel consumption and long service intervals of 15,000 km mean the bike is easy on the wallet too.



Chassis

In adding the ‘R’, we add a promise: excellent offroad abilities. So you get a 21 inch wire-spoked wheel at the front, 18 inch at the rear, floating on 220 mm of fully adjustable WP suspension. On top of that, KTM’s signature tubular trellis frame, steel crash bars and a high strength, die-cast, open-lattice swingarm are more eager than ever to earn their stripes. And that’s just the chassis side of things.



Ergonomics & Comfort

At KTM, individualists are welcome. The bike’s ergonomics can be adjusted to suit the preferences and stature of any rider, wherever they may roam: Two handlebar clamping positions: horizontal +/- 10 mm, Two footpeg positions: 10 mm up and back (diagonally), Hand levers with 5 reach settings



Bodywork & Graphics

The 1090 ADVENTURE R’s shape leaves no doubt about its DNA. Pure, Offroad, Agile, Fast.



Accessories & Luggage

KTM know its customers like to modify and to travel, which is why the PowerParts range boasts a huge variety of accessories and luggage options across its Street range of sportmotorcycles – past and present. All PowerParts are developed alongside their chosen machine, meaning that KTM riders only get parts that perfectly complement their ride and provide that important ‘factory fit’ straight from the dealer.







2018 KTM 1090 Adventure – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Dealer for Pricing in USD
  • Frame design

Chromium-Molybdenum steel trellis frame, powder coated

  • Front suspension

WP USD Ø 48 mm

  • Rear suspension

WP-PDS Monoshock

  • Suspension travel (front)

8.66 inch

  • Front brake disc diameter

320 mm

  • Rear brake disc diameter

267 mm

  • ABS

Bosch 9M+ Two-channel ABS (incl. offroad mode, disengageable)

  • Chain

X-Ring 5/8 x 5/16″

  • Steering head angle

64 °

  • Wheelbase

62.2 ± 0.59 inch

  • Seat height

35.04 inch

  • dry weight

456.35

  • Suspension travel (rear)

8.66 inch

  • Tank capacity (approx.)

6.08

  • Design

2-cylinder, 4-stroke, V 75°

  • Displacement

1050 cm³

  • Bore

103 mm

  • Stroke

63 mm

  • Power in KW

92 kW

  • Starter

Electric starter

  • Lubrication

Forced oil lubrication with 3 oil pumps

  • Transmission

6-speed

  • Primary drive

40:76

  • Secondary gear ratio

17:42

  • Cooling

Liquid cooled

  • Clutch

PASC (TM) slipper clutch, hydraulically actuated

  • EMS

Keihin EMS with RBW, twin ignition









2018 KTM 1090 Adventure – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Dealer for Pricing in CDN
  • Frame design

Chromium-Molybdenum steel trellis frame, powder coated

  • Front suspension

WP USD Ø 48 mm

  • Rear suspension

WP-PDS Monoshock

  • Suspension travel (front)

8.66 inch

  • Front brake disc diameter

320 mm

  • Rear brake disc diameter

267 mm

  • ABS

Bosch 9M+ Two-channel ABS (incl. offroad mode, disengageable)

  • Chain

X-Ring 5/8 x 5/16″

  • Steering head angle

64 °

  • Wheelbase

62.2 ± 0.59 inch

  • Seat height

35.04 inch

  • dry weight

456.35

  • Suspension travel (rear)

8.66 inch

  • Tank capacity (approx.)

6.08

  • Design

2-cylinder, 4-stroke, V 75°

  • Displacement

1050 cm³

  • Bore

103 mm

  • Stroke

63 mm

  • Power in KW

92 kW

  • Starter

Electric starter

  • Lubrication

Forced oil lubrication with 3 oil pumps

  • Transmission

6-speed

  • Primary drive

40:76

  • Secondary gear ratio

17:42

  • Cooling

Liquid cooled

  • Clutch

PASC (TM) slipper clutch, hydraulically actuated

  • EMS

Keihin EMS with RBW, twin ignition









2018 KTM 1090 Adventure – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
  • Frame design

Chromium-Molybdenum steel trellis frame, powder coated

  • Front suspension

WP USD Ø 48 mm

  • Rear suspension

WP-PDS Monoshock

  • Suspension travel (front)

220 mm

  • Suspension travel (rear)

220 mm

  • Front brake

2 x Brembo four-piston radial fixed calliper, brake discs, floating

  • Rear brake

Brembo twin-piston fixed calliper, brake disc

  • Front brake disc diameter

320 mm

  • Rear brake disc diameter

267 mm

  • ABS

Bosch 9M+ Two-channel ABS (incl. offroad mode, disengageable)

  • Chain

X-Ring 5/8 x 5/16″

  • Steering head angle

64 °

  • Wheelbase

1580 ± 15 mm

  • Ground clearance

250 mm

  • Seat height

890 mm

  • Tank capacity (approx.)

23 l

  • dry weight

207 kg

  • Design

2-cylinder, 4-stroke, V 75°

  • Displacement

1050 cm³

  • Bore

103 mm

  • Stroke

63 mm

  • Power in KW

92 kW

  • Starter

Electric starter

  • Lubrication

Forced oil lubrication with 3 oil pumps

  • Transmission

6-speed

  • Primary drive

40:76

  • Secondary gear ratio

17:42

  • Cooling

Liquid cooled

  • Clutch

PASC (TM) slipper clutch, hydraulically actuated

  • EMS

Keihin EMS with RBW, twin ignition

  • CO<sub>2</sub> emissions

131

  • Fuel consumption

5.61







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
