PURE FUN FOR THE LITTLE ONE.

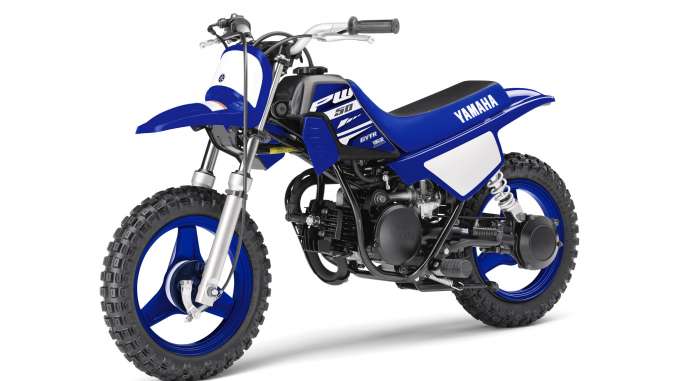

2018 Yamaha PW50 Review on Total Motorcycle:
Featuring nothing but smiles on your child’s face with its no-shift fully automatic transmission, low seat height and adjustable throttle control.
This is where champions get their start.
One of the industry’s best-selling mini-bikes, the PW50 is a fantastic entry-level bike designed to help young riders learn the ropes at an affordable price.
Off-road adventures begin here.
When it comes to kids’ mini-bikes, Yamaha is the clear leader. With the PW50’s rider-friendly design it’s easy to see why this 50cc 2-stroke is a firm favourite with kids and parents. Safety features include an adjustable throttle which allows parents to limit top speed to suit the rider’s skill level – and the enclosed shaft drive reduces maintenance chores. And there’s no gear shifting to worry about, its zippy 50cc 2-stroke engine drives through a fully-automatic gearbox for simple ‘twist-and-go’ performance.
At just 39 kg, this lightweight and compact mini-bike is the ideal way for your child to have hours of fun while developing their riding skills.
///Engine
Air-cooled, 49cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
///Rider Confidence
Class-lowest 485mm (19.1″) seat height creates a handling-enhancing low centre of gravity and allows most riders to put both feet on the ground for added confidence.
2018 Yamaha PW50 Totalmotorcycle.com Key Features
Fully Automatic Transmission
Fully automatic transmission means no shifting required; the PW50 is a twist-and-go package.
Entry-Level Two-Stroke Motor
Gutsy 49cc two-stroke is built to thrill without intimidating beginners.
Ultra-Low Seat Height
A seat only 18.7 inches high makes the PW50 the ideal choice for the littlest rider in the group.
Adjustable Restrictor
An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.
Low Maintenance Requirements
Shaft final drive means no chain maintenance, while Yamaha’s exclusive autolube oil injection system eliminates the need for fuel/oil premixing.
2018 Yamaha PW50 Totalmotorcycle.com Features and Benefits
///Engine
•Air-cooled, 49cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
•Mikuni VM12SC carb
•easy access handlebar / dash mounted choke lever
•good fuel economy
•crisp throttle response
• Reed-valve intake system.
•smooths power delivery
•widens the power band
•Single-speed fully automatic transmission.
•twist the throttle & go operation
•allows young riders to concentrate on the basics of riding without worrying about clutching & shifting
• Shaft drive system.
•virtually maintenance-free
•comes fully enclosed for added protection & durability
•no chain to worry about adjusting or lubricating
•Exclusive Autolube Oil Injection System.
•eliminates the need & hassle of fuel/oil premixing
•system precisely meters the exact amount of oil required by the engine
• Easy access, washable foam air filter reduces tune-up costs.
• Maintenance-free capacitor discharge ignition (CDI).
•produces a strong spark for fast starts
•provides precise ignition timing / mapping for optimum engine performance at all rpms
• Lightweight, exhaust system with heat shields.
•quiet design
•exhaust pipe has been routed away the from the rider to avoid accidental contact burns
•”cleanable” screen-type spark arrestor
•heat shields protect young riders from hot components
///Chassis/Suspension
•Rugged steel backbone-type frame
• Class-lowest 485mm (19.1″) seat height
•creates a handling-enhancing low centre of gravity
•allows most riders to put both feet on the ground for added confidence
• 22mm telescopic front fork with 60mm (2.4″) of travel smooths out the bumps.
•Dual rear shock suspension with 50mm (2″) of wheel travel
• Front and rear drum brakes
•provide strong stopping power
•hand-operated brake levers are similar to those used on bicycles for familiarity
• Durable, mag-style wheels
•no need to tighten or replace damaged spokes
•easy to clean too!
• Knobby tires
•provide good traction in the dirt
• Specially designed one-piece rear fender, side panels & seat.
•easily removed for cleaning or maintenance
• Rugged plastic body components.
•resist damage in the event of a tip-over
•YZ inspired front & side number plates for that big bike look
•Team Yamaha-inspired colour & graphics
///SAFETY FEATURES
• Heat shields on engine & exhaust protect young riders from hot components.
•Adjustable speed limiter screw on throttle housing restricts acceleration & top speed.
•Removable exhaust pipe restrictor allows parents to increase top speed as skills improve.
•Start/Run switch prevents unit from moving while in the start position.
IMPORTANT NOTE: Adult supervision and proper protective riding gear, including a helmet, are a must when a youngster is operating a PW50.
2018 Yamaha PW50 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $1499 USD
Engine Type 49cc air-cooled 2-stroke; reed-valve induction
Bore x Stroke 40.0mm x 39.2mm
Compression Ratio 6.0:1
Fuel Delivery VM12 carburetor
Ignition CDI
Transmission Wet centrifugal automatic
Final Drive Shaft
Suspension / Front 26mm telescopic fork; 2.4-in travel
Suspension / Rear Unit swingarm; 2.0-in travel
Brakes / Front Drum
Brakes / Rear Drum
Tires / Front 2.50-10-4PR
Tires / Rear 2.50-10-4PR
L x W x H 49.0 in x 24.0 in x 27.8 in
Seat Height 18.7 in
Wheelbase 33.7 in
Rake (Caster Angle) 25.5°
Trail 2.0 in
Maximum Ground
Clearance
3.7 in
Fuel Capacity 0.5 gal
Wet Weight 90 lb
Warranty 90 Day (Limited Factory Warranty)
Color Team Yamaha Blue
2018 Yamaha PW50 – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $1599 CDN
///Engine
Engine
2-stroke, air-cooled, reed-valve, single
Displacement
49cc
Bore and Stroke
40 x 39.2mm
Compression Ratio
6.0:1
Maximum Torque
0.36kg-m (2.6 ft-lb)@ 4,500 rpm
Fuel Delivery
Mikuni VM12SC
Ignition / Starting
CDI / Kick
Transmission
Single-speed automatic (no clutch)
Final Drive
Shaft
///Chassis
Suspension (Front)
22 mm fork / 60mm (2.4″) wheel travel
Suspension (Rear)
Unit swingarm / 50 mm (2″) wheel travel
Brakes (Front)
Drum
Brakes (Rear)
Drum
Tires (Front)
2.50-10
Tires (Rear)
2.50-10
///Critical Data
Length
1,245 mm (49″)
Width
610 mm (24″)
Height
705 mm (27.8″)
Wheelbase
855 mm (33.7″)
Ground Clearance
95 mm (3.7″)
Seat Height
475 mm (18.7″)
Fuel Capacity
2 litres (0.4 imp. gallons)
Wet Weight
41 kg (90 lb)
Colour(s)
Yamaha Blue
2018 Yamaha PW50 – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £1399 GBP (On The Road inc 20% Vat)
Engine type
air-cooled, 2-stroke, Forward-inclined single cylinder, reed valve
Displacement
49cc
Bore x stroke
40.0 mm x 39.2 mm
Compression ratio
6.0 : 1
Maximum power
–
Maximum torque
–
Lubrication system
Yamaha Autolube
Clutch type
Wet, centrifugal automatic
Fuel system
Mikuni VM12/1
Ignition system
CDI
Starter system
Kick
Transmission system
Automatic
Final transmission
Shaft
Chassis
Frame
Steel tube backbone
Front suspension system
Telescopic forks
Front travel
60 mm
Caster angle
25º
Trail
50 mm
Rear suspension system
Unit Swing
Rear travel
50 mm
Front brake
Drum mm
Rear brake
Drum mm
Front tyre
2.50-10 4PR
Rear tyre
2.50-10 4PR
Dimensions
Overall length
1,245 mm
Overall width
575 mm
Overall height
715 mm
Seat height
485 mm
Wheel base
855 mm
Minimum ground clearance
105 mm
Wet weight (including full oil and fuel tank)
39 kg
Fuel tank capacity
2.0 litres
Oil tank capacity
0.35 litres
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
