2020 KTM 250 SX Guide

2019 KTM 250 SX

2019 KTM 250 SX 2019 KTM 250 SX 2019 KTM 250 SX

EXHILARATING POWER AND CONTROL.

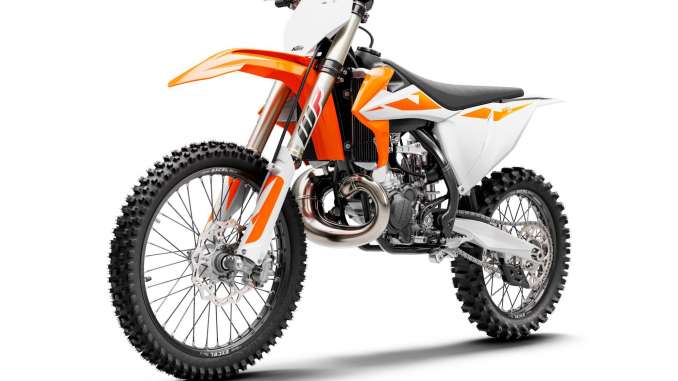

2020 KTM 250 SX:

Whether its power-to-weight or power and control, the KTM 250 SX is the perfect combination of all that counts. Featuring a high-performance 2-stroke engine fitted within a state-of-the-art chassis, this powerhouse is undoubtedly the fastest 250 cc 2-stroke on track. This proven race weapon is the right choice for those who thrive on that glorious 2-stroke sound while smashing out one hot lap after the next.



2020 KTM 250 SX Totalmotorcycle.com Key Features

 NEW graphics for a READY TO RACE appearance.
 NEW WP XACT front fork setting for improved damping, and new fork piston for improved
performance. Features proven, sophisticated air spring design with separate damping
functions.
 NEW WP XACT rear shock setting and new compression adjuster for improved tuning.
 High-tech, lightweight chrome-moly steel frame with optimized stiffness provides a great
blend of comfort and stability.
 Single-piece cast aluminum swingarm features a long rear axle slot for increased
adjustability, offering better straight-line stability.
 Cylinder with twin-valve controlled power valve for smooth power that can be adjusted within
seconds for different track conditions.
 Lateral counter balancer reduces engine vibrations for less rider fatigue at the end of the
moto.
 38 mm flat slide carburetor provides smooth and controllable power delivery and guarantees
optimal performance over the entire range.
 Bodywork features a slim design for optimal comfort, control and freedom of movement.
 Air box and air boot designed to provide maximum protection of the air filter against soiling
and better airflow for optimal performance. Air filter can be accessed without tools for quick
servicing.
 Hydraulic Brembo clutch system offers light operation and highly controllable modulation of
the clutch.
 High-tech Brembo brakes have always been standard equipment on KTM offroad bikes and
are combined with lightweight Wave discs.
 Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more
torsional stiffness.
 KTM’s “No Dirt” foot peg design keeps the peg pivot from becoming clogged, ensuring the
foot peg is always in the correct position.
 Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop
MX 3S tires.
 “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any
condition.



THE NEW KTM SX RANGE IS OUT NOW!

After the race is before the race and when it comes to competing in the most prestigious championships around the world, this mantra is an important one to live by. KTM’s desire to win in AMA Supercross and the FIM Motocross World Championship continues to be demonstrated with outstanding performances in each series thanks to KTM’s focus on creating the sharpest weapons for the toughest battles. This READY TO RACE mindset and development in the most challenging arenas is translated directly into our serial production models.

Following on from last year’s ground-breaking introduction of a new KTM SX generation, for model year 2020 the 2-stroke KTM 125 SX, KTM 150 SX and KTM 250 SX, and the 4-stroke KTM 250 SX-F, KTM 350 SX-F and KTM 450 SX-F have received performance enhancing engine updates to ensure they remain at the fore and as battle-ready as ever. These detailed refinements, that have been developed with KTM´s test riders in Europe and the USA along with factory racers around the globe, complement the high-quality serial components that the KTM SX range already boasts.

New graphics and colors give the range a fresh look for the new season, while an E-starter and a map select switch with integrated traction control and launch control on 4-stroke machines, premium brakes supplied by Brembo, No-Dirt footpegs are fitted as standard to KTM’s class-leading line-up. High quality exhaust systems, plastics and seats join the reworked WP XACT suspension with the proven AER technology, which offers enhanced handling for model year 2020.

Designed by the very same engineers that are responsible for the bikes raced by the likes of Jeffrey Herlings, Antonio Cairoli and Cooper Webb, the KTM sportminicycle line-up continues to set the benchmark in out-of-the-crate performance for junior riders. For MY2020 the KTM 50 SX, KTM 65 SX and KTM 85 SX have a new look and feature the WP XACT suspension for precise handling and stability in the toughest motocross terrain.

All of the junior models boast premium components such as high-quality Formula brakes, a high-strength steel frame, ergonomically designed bodywork and high-performance engines. For model year 2020 the KTM 65 SX has a reworked ignition curve for improved performance, while the carburetor has been optimized for better power delivery. Its bigger brother, the KTM 85 SX, has a new transmission drive shaft fixing for safer sprocket fixation. The KTM 85 SX also has a reworked muffler with improved packing wool, which saves weight.

In addition, the KTM SX-E 5 will join the sportminicycles as another competitive option for junior riders. Based on the KTM 50 SX with its high-end chassis, but powered by an electric motor, the KTM SX-E 5 is easy to ride, has zero emissions, low noise and requires minimal maintenance – giving riders more options for places to ride, whilst being easy to use. The height of the bike is also completely adjustable, and it is aimed at riders aged from 4 to 10 years old, making it an exciting new model in the KTM line-up. The KTM SX-E 5 will be launched this summer.

“To be the consistent performer at any level of racing, you have to continue to progress in development. The work never stops – whether that’s here in Mattighofen, or with our engineers in the USA. The KTM SX range model year 2020 has received a number of updates to complement last year’s groundbreaking new generation models, and we can see that our continued efforts in development are paying off – our athletes both in Supercross and Motocross have enjoyed some fantastic results so far this season. Utilizing the same R&D team as their bigger brothers, the KTM sportminicycle models remain at the very forefront of junior racing competition with detailed refinements for MY2020. In addition, we are excited for the highly anticipated launch of the all-new KTM SX-E 5 electric minicycle, which will arrive this summer,” said KTM´s Senior Product Manager Offroad, Joachim Sauer.



2020 KTM 250 SX Totalmotorcycle.com Features and Benefits

ENGINE & EXHAUST
KTM 2-strokes have been tearing up MX tracks for decades and are undoubtedly the fastest on the track today. Thanks to years of ongoing development, these engines are the benchmark in performance and technology, with the perfect combination of power, weight and control. Through melodic high-RPM screams, KTM 2-strokes continue to deliver thrilling high-performance harmonics.

CHASSIS
The chassis forms an integral part of the feeling a rider has with his bike. The chassis on the KTM 250 SX is designed to provide accurate feedback between the track and the rider, while also reducing the harshness of typical motocross terrain. The high-tech steel frame is made from chrome-moly and features optimized flex characteristics that soak up those big hits while also delivering excellent agility and high-speed stability. In 2019, the engine was raised in the frame by 1° around the swing arm pivot, improving the handling and the grip of the front wheel and remains the same for 2020. For 2020, the suspension features improved damping characteristics. The reworked settings offer a slightly softer, more comfortable feel that, together with the dynamic, performance-oriented chassis, ensure that the KTM 250 SX remains one of the most thrilling rides out there.

ERGONOMICS & COMFORT
A rider’s ability to work in unison with his bike depends on how quickly and effectively he can shift his weight around the motorcycle. KTM focused extensively on creating bodywork and ergonomics that allow for the highest levels of performance. This ensures that the natural riding position offers the best possible control and, through various handlebar positions, can also be adjusted to suit every rider and condition. A rider’s main connection to the motorcycle comes through the seat, footpegs and handlebars and these three touch points play a vital role in maintaining balance and control. A rider is always looking for a fast and competitive motorcycle with a great feeling of controlled agility. The 2020 KTM 250 SX, like the entire SX range, ticks all the right boxes, especially when it comes to race-ready ergonomics.

BODYWORK & GRAPHICS
The KTM 250 SX has become an icon amongst 2-stroke fanatics, but for this bike, the classic sound it produces is where the nostalgia ends. A combined effort between KTM’s factory riders, KTM R&D and Kiska Design has resulted in a highly effective modern-looking motorcycle with bodywork that achieves complete harmony between rider and bike. The main goal of the designers is to provide the perfect contact points for the rider, allowing maximum freedom of movement and improved motorcycle control. Examples of the intelligent design can be seen in the I-beam structure of the front and rear fenders, which guarantee maximum stability and the lowest possible weight.

SOFTWARE & ELECTRONICS
Absolute performance purity is the name of the game when it comes to the KTM 250 SX. Undiluted 2-stroke simplicity, with an hour meter to keep a check on how long you’ve been shredding and an optional rev counter to assist with perfect setup.



2020 KTM 250 SX – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $8,299 USD
Canada MSRP Price: $ See Dealer for Pricing in CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

Engine Type: Single Cylinder, 2-Stroke
Displacement: 249 cc
Bore / Stroke: 66.4 / 72 mm
Starter: Kickstarter
Transmission: 5 Gears
Fuel System: Mikuni TMX 38 Carburetor
Lubrication: Premix 60:1
Primary Ratio: 26:73
Final Drive: 14:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DDS-Clutch, Brembo Hydraulics
Ignition: Kokusan
Frame: Central Double-Cradle Type 25CrMo4 Steel
Sub Frame: Aluminum
Handle bar: Neken, Aluminum Ø 28/22 mm
Front Suspension: WP XACT USD Fork, Ø 48 mm
Rear Suspension: WP XACT Monoshock with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60 x 21” / 2.15 x 19” Excel
Front/Rear Tires: 80/100-21” / 110/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485 mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 375 mm / 14.8 in
Seat Height: 950 mm / 37.4 in
Tank Capacity, Approx: 7.5 L / 1.98 gal
Weight (without fuel), Approx: 95.5 kg / 210.5 lbs



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
