2020 Suzuki DR-Z125L Guide

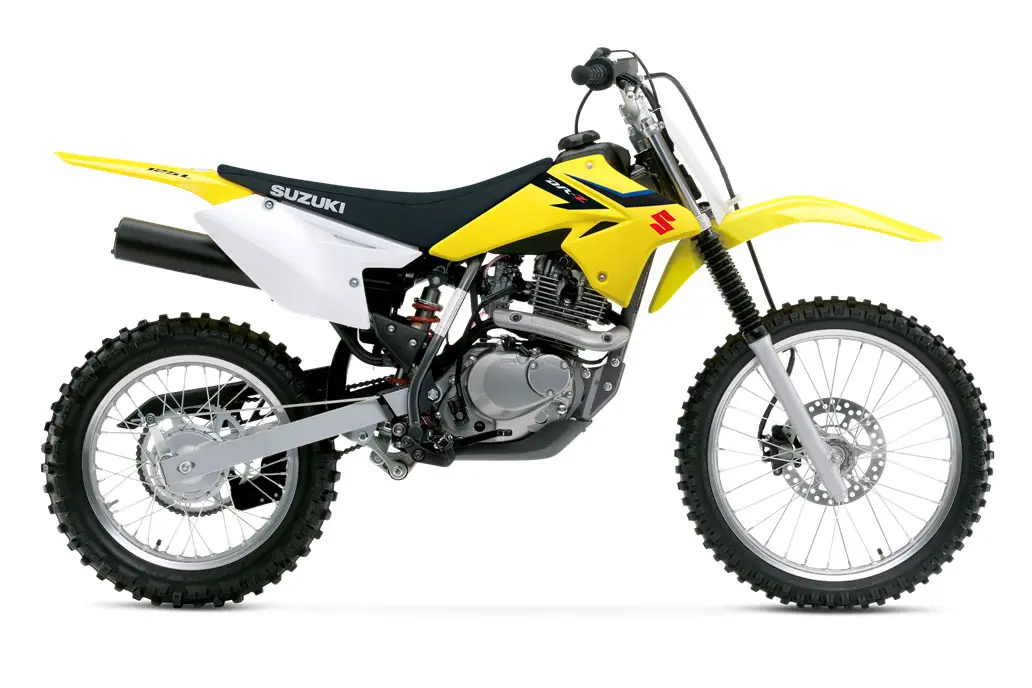

2020 Suzuki DR-Z125L

2020 Suzuki DR-Z125L 2020 Suzuki DR-Z125L

PACKED WITH LOADS OF FUN.

2020 Suzuki DR-Z125L:

Here comes the DR-Z125L to make sure young and smaller stature riders can tackle the dirt. Larger 19-inch front and 16-inch rear tires, as well as a front disc brake, deliver big bike performance to a size-appropriate motorcycle. Styled to mirror Suzuki’s Championship-winning RM-Z and RMX models, this DR-Z promotes a more race-oriented look, while the sharp handling and strong low-end and mid-range power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover, because the DR-Z125L is an unassuming package packed with loads of fun.







2020 Suzuki DR-Z125L Totalmotorcycle.com Key Features

Rev up. When you’ve got a Suzuki off-road motorcycle, the whole world looks a little different. You start seeing trails, desert, and single-track everywhere you look. Even a rainy day just means more mud to play in. Expect loads of torque across a wide powerband with high-rpm muscle to spare.

Six-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).

A variety of Genuine Suzuki Accessories for DR-Z125L owners are available, including a large selection of Suzuki logo apparel.





2020 Suzuki DR-Z125L Totalmotorcycle.com Features and Benefits
Engine Features
Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.
Precise digital CDI ignition system has an ignition-timing map that’s tuned to optimize the engine’s power characteristics.
Mikuni VM20SS carburetor contributes to excellent throttle response.
The DR-Z125L is EPA Emissions and California red sticker compliant.
Suzuki Composite Electrochemical Material (SCEM)-plated cylinder is used for durability, weight reduction, and superior heat transfer.
Transmission Features
Five-speed transmission with link-type gearshift system allows for precise operation and gives a positive feel.
Easy-pull, rack-and-pinion manual clutch lets the rider control takeoffs and power delivery.
Chassis Features
Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.
Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contribute to agile handling and smooth suspension performance.
The seat and bodywork design provides a seamless surface for easy maneuverability.
Appropriate 32-inch seat height lets the bike fit a variety of riders.
Strong braking performance is provided by a lightweight front disc brake and rear drum brake.
Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.
The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions and rider weight.
Bright Suzuki Factory Yellow bodywork includes matching race-inspired graphics.
A lightweight plastic skid plate helps protect the bottom of the engine.









2020 Suzuki DR-Z125L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,299 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Engine
Engine124cc, 4-stroke, air-cooled, single cylinder, SOHC
Bore x Stroke57.0 mm x 48.8 mm (2.244 in. x 1.921 in.)
Compression Ratio9.5:1
Fuel SystemMikuni VM20SS, single carburetor
StarterPrimary kickstarter
LubricationWet sump
Drivetrain
ClutchWet multi-plate
Transmission5-speed constant mesh
Final DriveChain, DID 428HG, 130 links
Chassis
Suspension FrontTelescopic, coil spring, oil damped
Suspension RearLink type, coil spring, oil damped
Brakes FrontDisc brake, single rotor
Brakes RearDrum brake
Tires Front70/100-19 M/C 42M, tube type
Tires Rear90/100-16 M/C 52M, tube type
Fuel Tank Capacity4.8 L (1.3 US gal.)
ColorChampion Yellow No. 2
Electrical
IgnitionElectronic ignition (CDI)
Spark PlugNGK DR8EA or DENSO X24ESU
Dimensions
Overall Length1885 mm (74.2 in.)
Overall Width770 mm (30.3 in.)
Overall Height1110 mm (43.7 in.)
Wheelbase1270 mm (50.0 in.)
Seat Height805 mm (32.0 in.)
Curb Weight89.0 kg (196 lb.)
Warranty
Warranty6-month unlimited mileage limited warranty.*
Extensions*Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).



Manufacturer’s Suggested Retail Price (also referred to as “MSRP”, “Base MSRP” or the “Starting At” price), excludes taxes, title, license and registration fees, destination freight and delivery charges, dealer fees, and optional equipment.







2020 Suzuki DR-Z125L – Totalmotorcycle.com Canada Specifications/Technical Details

TBA







2020 Suzuki DR-Z125L – Totalmotorcycle.com European Specifications/Technical Details

NA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
