2021 Honda CRF110F Guide

2021 Honda CRF110F: PUNCHES ABOVE ITS WEIGHT.

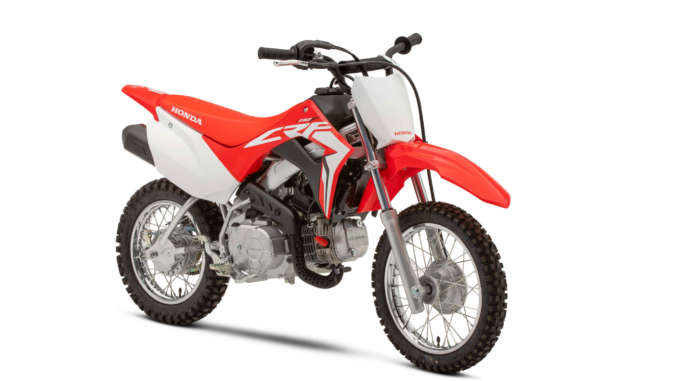

Introducing the 2021 Honda CRF110F…

With its proven durability and new-rider-friendly performance, the CRF110F is the powersports industry’s top-selling off-road motorcycle, and it’s no wonder: This model perfectly encapsulates Honda’s proud heritage—extending back nearly four decades to the legendary XR75—of four-stroke trail bikes that are kid-sized but full-featured. In the modern era, that means clean-running Keihin fuel injection and 50-state year-round off-road legality, as well as a clutch-less four-speed semi-automatic transmission and push-button electric start. The CRF110F is sure to continue delivering smiles long after riding skills develop, so there’s no telling where it could take generations of youngsters.

Don’t even think about underestimating the Honda CRF110F. Sure, it’s one of our smaller off-road bikes, but it’s a giant in terms of features and especially Honda quality. With its competition-inspired styling and a durable, air-cooled single-cylinder engine, this is one machine they won’t be able to get enough of. Fuel injection means easier starts and less pollution. The unique combination of a proven four-speed transmission and automatic clutch means riders can shift when they want, but never have to worry about stalling. A comfortably padded seat, generous suspension travel and a tough steel frame complete the package. It’s a lot of bike that just happens to come in a very small package.



2021 Honda CRF110F Totalmotorcycle.com Key Features

ENGINE / DRIVETRAIN

  • Air-cooled single-cylinder four-stroke 109cc engine tuned for beginning riders.
  • Follows technology developments of CRF Performance Line with Keihin electronically controlled fuel-injection system that delivers linear and hesitation-free power, minimizing intimidation for new riders and providing a friendly power delivery for all levels. Fuel-injection system delivers smooth power at all rpm and all throttle openings.
  • Four-speed gearbox with automatic clutch.
  • Adjustable throttle-limiter screw allows throttle opening to match rider abilities.
  • Convenient electric starter with kick-start backup.

CHASSIS / SUSPENSION

  • Low seat height of only 26.3 inches.
  • Twin-spar steel frame, inspired by the CRF Performance Line frame architecture, provides the right balance of rigidity and comfort.
  • Modern frame and suspension let this small bike handle the bigger bumps with good control and minimal bottoming.
  • 1-gallon steel fuel tank with integrated fuel pump incorporates built-in fuel filter and low-fuel indicator on handlebar (lights up at .2 gallons remaining). Frame design shields tank in the event of a fall.
  • Modern bodywork with CRF Performance Line styling and graphics.
  • Handlebar-mounted multiple-function handlebar switch incorporates starter button, ignition “key on” indicator, fuel-injection system status, and “low fuel” indicator light (replaces reserve setting on petcock).
  • Half-waffle grips have a small circumference for a good fit with small hands.
  • Handlebar pad.
  • Meets current EPA and CARB off-road emissions standards. (Green-sticker-compliant in California.)





2021 Honda CRF110F Totalmotorcycle.com Features and Benefits

PERFORMANCE
FOUR-STROKE ENGINE
The CRF110F’s dependable four-stroke single-cylinder engine offers good performance with a wide powerband—perfect for a wide range of riders including beginners. And because it’s a Honda, you know it’s reliable, too.

HANDLING
AMPLE SUSPENSION TRAVEL
The CRF110F has plenty of rear suspension travel for a smooth ride.

AUTOMATIC CLUTCH
There’s no clutch lever for new riders to master, and that means no stalling. In addition, the smooth transmission offers four gear ratios. All you do is shift with your foot.

CONVENIENCE
ELECTRIC STARTER
Push a button and go—that’s how easy it is to get going on a CRF110F. Starts after a tip-over are a snap, and the push button means no frustration if junior accidentally stops the engine.

KEYED IGNITION
You decide who rides and when because you hold the keys. Got your homework done? Good—let’s ride!

TOUGH BODYWORK
Riders can be tough on equipment, and taking a spill is a natural part of learning. But the CRF110F can handle it. With tough plastic fenders, tank, and other body parts designed to look like our bigger CRF motocross bikes’, the CRF110F is engineered to shrug off the minor dings of the real world.

ENGINEERING
ADJUSTABLE THROTTLE LIMITER
Set the top speed by turning a screw. That helps keep new riders from going too fast, too soon, and lets you match the CRF110F’s power output to the rider’s skill level.

BACKUP KICK STARTER
Even if the bike’s been sitting all winter, you still can get going with the CRF110F’s kick starter. It’s easy for you to use, and it helps insure that your day of fun doesn’t stop.

CLEAN-RUNNING ENGINE
Another benefit of fitting the CRF110F with fuel injection? Now it even meets California’s stringent CARB emissions standards for off-road motorcycles—good news for everyone.

FUEL INJECTION
Fuel injection means the CRF110F starts right up, even in cold weather. Compared to a carbureted bike, it also helps reduce emissions and enhance performance and fuel efficiency. And say goodbye to clogged pilot jets when you put this bike away for storage.

STEEL FRAME & SWINGARM
Less experienced riders are hard on equipment, especially when they’re just starting out. That’s why we gave the CRF110F a strong, twin-spar-type steel frame and swingarm that are built to handle the bumps and dings of off-road riding.

COMFORT
HALF-WAFFLE GRIPS
Just like the pros use, the CRF110F gets upgraded, half-waffle pattern grips. Might as well start them off right!

LOW SEAT HEIGHT
It’s important to have a bike that’s sized right for your rider. The CRF110F’s low seat height helps build confidence right from the start. Its seat height fits nicely between the CRF50F and CRF125F.





2021 Honda CRF110F – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2499 USD
Canada MSRP Price: $3199 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
ENGINE
Type 109.2cc air-cooled 80º single-cylinder four-stroke
Valve Train SOHC; 2 valves
Bore x Stroke 50.0mm x 55.6mm
Compression Ratio 9.0:1
Induction Fuel-injection system; 19mm throttle bore
Ignition Full transistorized
Starter Push-button electric starter / kick
Transmission Constant-mesh 4-speed return; semi-auto
Clutch Automatic centrifugal
Final Drive #420 chain; 14T/38T
SUSPENSION
Front 31mm conventional telescopic coil-spring fork; 3.9 in. travel
Rear Single shock; 3.8 in. travel
BRAKES
Front Mechanical; single 95mm leading trail drum
Rear Mechanical; single 95mm leading trail drum
TIRES
Front 70/100-14 w/ tube
Rear 80/100-12 w/ tube
MEASUREMENTS
Rake (Caster Angle) 25°10’
Trail 53mm
Length 60.7 in.
Width 26.7 in.
Height 36.3 in.
Ground Clearance 6.7 in.
Seat Height 25.9 in.
Wheelbase 41.9 in.
Fuel Capacity 1.0 gal.
Color Red
Curb Weight* 169 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Specifications subject to change





2021 Honda CRF110F – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain
Engine type Air-cooled single-cylinder
Displacement 109 cc
Bore & stroke 50 mm x 55.6 mm
Compression ratio 9.0:1
Valve train SOHC, two valves
Fuel delivery PGM-FI electronic fuel injection with 22 mm throttle body
Transmission Four-speed with automatic clutch
Final drive #420 chain; 14T/38T
Chassis & Suspension
Front suspension 31 mm leading-axle Showa fork; 100 mm (3.9 in.) travel
Rear suspension Pro-Link® Showa single shock; 97 mm (3.8 in.) travel
Dimensions & Additional Information
Tires Front: 70/100-14
Rear: 80/100-12
Brakes Front: drum
Rear: drum
Ground clearance 175 mm (6.9 in.)
Seat height 658 mm (25.9 in.)
Wheelbase 1,065 mm (41.9 in.)
Curb weight 77 kg (170 lb.) including required fluids and full tank of gas—ready to ride
Fuel capacity 3.7 litres, including 0.7 litre reserve
Colour Extreme Red
Warranty 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus





2021 Honda CRF110F – Totalmotorcycle.com European Specifications/Technical Details

TBA





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
