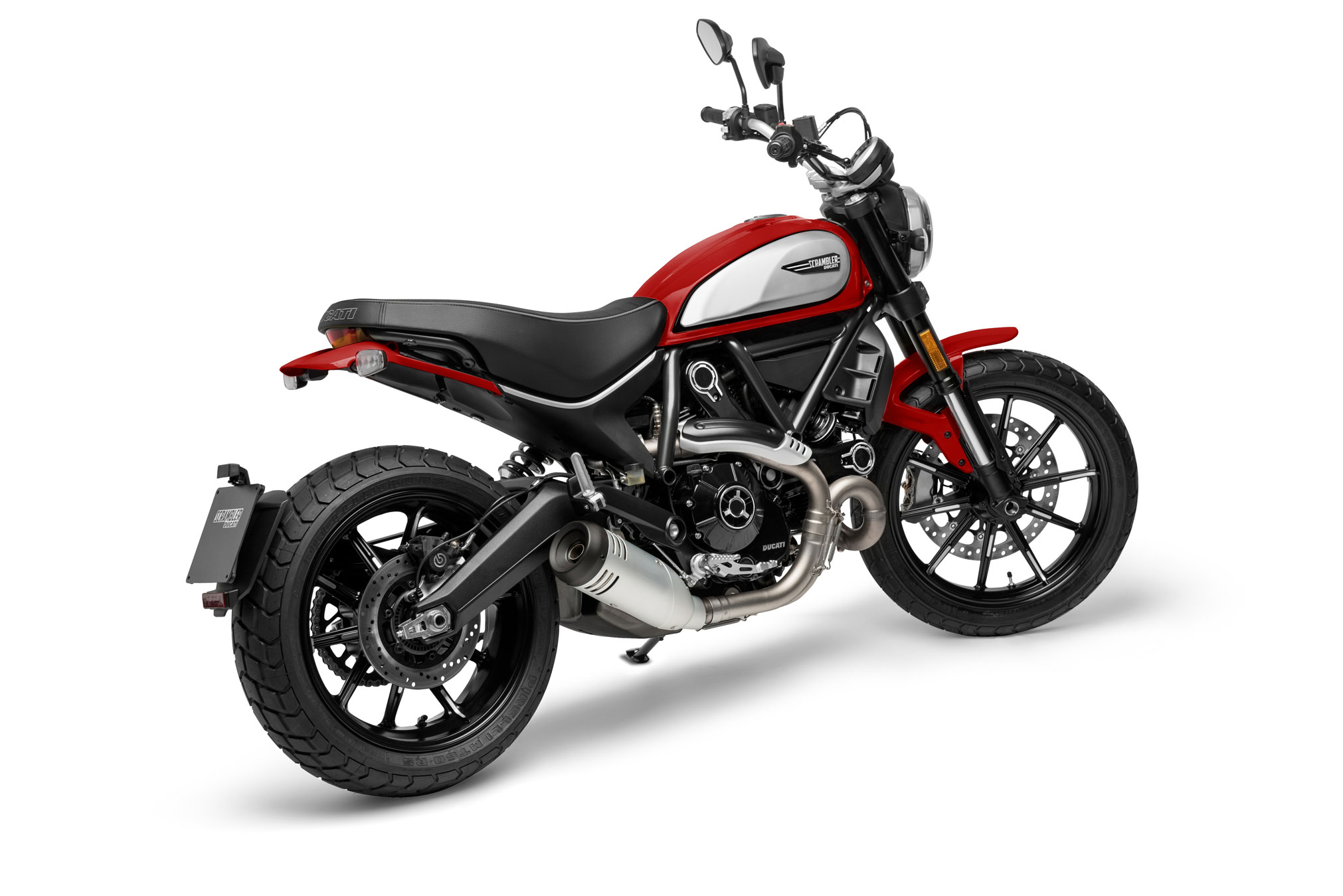

2022 Ducati Scrambler Icon: MORE STYLISH, SPICY & FUN.
Introducing the new 2022 Ducati Scrambler Icon…
The Ducati Scrambler Icon is the most unconventional and essential model of the “Land of Joy” family and is characterized by a refined mix of modern and authentic materials. The aluminium of which the muscular panels are made mates perfectly with the steel of the teardrop tank and the glass of the headlight. The model is also embellished with fine finishes, such as black painted engine casings and brushed cylinder fins.
The front headlight equipped with DRL (Daytime Running Light) allows you to be easily recognizable in traffic, even during the day. Ergonomic handlebar switches allow you to easily scroll through the LCD instrument menu, which also allows you to view the gear engaged and the fuel level.
On the Ducati Scrambler Icon the wide handlebar, flat seat and suspension setup ensure a comfortable, relaxed riding position and excellent ride comfort. ABS Cornering raises active braking safety to the highest levels, allowing you to fully enjoy the bike without any worries. The hydraulic clutch control ensures smooth operation, while the adjustable lever, as well as that of the front brake, allow you to adapt the distance from the handlebar
according to your needs.
Finally, the Ducati Multimedia System allows you to travel while listening to your favourite music and to answer phone calls or talk to the passenger using the integrated intercom.
The new Icon is here.
Nonconformist, affordable and essential, the Ducati Scrambler® is the perfect blend of tradition and innovation. The renewed Ducati Scrambler is more contemporary, more comfortable and safer, ensuring even more carefree ‘Land of Joy’ fun!
2022 Ducati Scrambler Icon Totalmotorcycle.com Key Features
• Colours
o “Yellow ’62” with black frame and black seat
o “Ducati Red” with black frame and black seat
• Equipment
o Teardrop steel tank with interchangeable aluminium panels
o Low seat (798 mm) for perfect manoeuvrability when idle
o Low weight (175 kg dry) and low centre of gravity
o Wide handlebar for a relaxed riding position
o Front headlight with glass lens and LED DRL
o Rear light with diffusion LED technology
o LED indicators that turn off automatically
o LCD instrumentation with gear and fuel level indicator
o Ready for DMS (Ducati Multimedia System)
o 803 cc air-cooled L-twin engine
o Belt cover in machined aluminium
o Hydraulic clutch control with adjustable lever
o Twin-spar steel trellis frame
o Die-cast aluminium swingarm
o Ten-spoke machined alloy wheels 18” at the front and 17” at the rear
o Enduro-derived Pirelli tyres optimized for the Ducati Scrambler
o Two-channel ABS Cornering as standard
o Under-seat compartment with USB socket
Scrambler Ducati extends its 800 range for 2022 with the inclusion of the new Ducati Scrambler Urban Motard, a model with a contemporary look, designed for younger fans of the “Land of Joy” and for all those looking for an easy, fun and sporty motorcycle.
The name chosen for this latest version immediately evokes the urban atmosphere of large cities and the sense of freedom typical of the Ducati Scrambler world. The Centro Stile Ducati has expressed these concepts in the creation of a dedicated livery, which uniquely combines Star White Silk white and Ducati GP ’19 Red in an energetic graphic design inspired by the world of street art and metropolitan graffiti.
The reference to the world of Motard of this version is clear in the choice of elements such as 17″ spoked wheels, a high front mudguard, a flat seat and the side number plates, which integrate perfectly with the design that characterizes the Ducati Scrambler universe.
The Urban Motard is equipped as standard with a front LED DRL headlight, a hallmark of all Ducati Scrambler models, which is combined with a rear light with full diffusion LED technology.
Alongside the new Ducati Scrambler Urban Motard within the 800 range of the “Land of Joy”, remain the models that the community has come to know and appreciate over the years: the nonconformist Ducati Scrambler Icon can be ordered in classic “Yellow 62’” colour and in the sporty “Ducati Red”, both with black frame and black saddle, or in the essential Ducati Scrambler Icon Dark version. The elegant Ducati Scrambler Nightshift is
offered in characteristic “Aviator Grey” livery with a black frame and black dual seat, while the Ducati Scrambler Desert Sled, the model that best lends itself to off-road adventure, is available in “Sparking Blue” livery, enhanced by red and white details on the tank and mudguards, with gold-coloured rims.
The entire 800 range is equipped as standard with ABS Cornering for safe riding in any situation. The models are also designed for the Ducati Multimedia System (DMS), which enables a smartphone to be connected to the bike via Bluetooth, while the USB socket positioned under the seat is standard.
The models that make up the Ducati Scrambler 800 family are also available in 35-kW version for A2 license holders.
To give fans of the “Land of Joy”, the universe that truly represents self-expression in Ducati, the opportunity to express their attitude to customization in the best way, Ducati Scrambler offers a wide choice in terms of clothing and accessories.
2022 Ducati Scrambler Icon Totalmotorcycle.com Features and Benefits
Premium LED lighting
Headlight with glass lens and DRL. LED turn indicators.
Improved riding experience & safety
Ducati Multimedia System ready. New selected gear indicator and fuel level. New handlebar switch controls. Hydraulic clutch control with adjustable lever. Dual-channel Bosch Cornering ABS.
Style details
New Rosso Ducati colour. New interchangeable aluminium muscular side panels. Machine-finished aluminium belt covers. New muffler cover.
Cast Wheels
New aluminium 10-spoke wheels derived from the 1100.
Improved Ergonomics
A brand new seat, flatter and comfortable for the rider and the passenger. Improved suspension set-up.
Engine
New finishing touches to the engine: black cylinder heads and brushed aluminium fins. Euro 5.
2022 Ducati Scrambler Icon – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9995 USD
Canada MSRP Price: $11195 CDN
Europe/UK MSRP Price: £8795 GBP (On The Road inc 20% Vat)
| Ducati Scrambler
Icon |
Ducati Scrambler
Desert Sled |
Ducati Scrambler
Nightshift |
Ducati Scrambler
Urban Motard |
|
| ENGINE | ||||
| TYPE | L-Twin, Desmodromic distribution, 2 valves per
cylinder, air cooled |
L-Twin, Desmodromic distribution, 2 valves per
cylinder, air cooled |
L-Twin, Desmodromic distribution, 2 valves per
cylinder, air cooled |
L-Twin, Desmodromic distribution, 2 valves per
cylinder, air cooled |
| DISPLACEMENT | 803 cc | 803 cc | 803 cc | 803 cc |
| BORE X STROKE | 88 x 66 mm | 88 x 66 mm | 88 x 66 mm | 88 x 66 mm |
| COMPRESSION RATIO | 11:1 | 11:1 | 11:1 | 11:1 |
| POWER | 73 hp (53,6 kW) 8250 rpm/min | 73 hp (53,6 kW) 8250 rpm/min | 73 hp (53,6 kW) 8250 rpm/min | 73 hp (53,6 kW) 8250 rpm/min |
| TORQUE | 48,8 lb-ft (66,2 Nm) @ 5750 rpm | 48,8 lb-ft (66,2 Nm) @ 5750 rpm | 48,8 lb-ft (66,2 Nm) @ 5750 rpm | 48,8 lb-ft (66,2 Nm) @ 5750 rpm |
| FUEL INJECTION | Electronic fuel injection, 50 mm throttle body | Electronic fuel injection, 50 mm throttle body | Electronic fuel injection, 50 mm throttle body | Electronic fuel injection, 50 mm throttle body |
| EXHAUST | Stainless steel muffler with catalytic converter and 2
lambda probes, aluminium tail pipes |
Stainless steel muffler with catalytic converter and 2
lambda probes, aluminium tail pipes |
Stainless steel muffler with catalytic converter and 2
lambda probes, aluminium tail pipes |
Stainless steel muffler with catalytic converter and 2
lambda probes, aluminium tail pipes |
| TRANSMISSION | ||||
| GEARBOX | 6 speed | 6 speed | 6 speed | 6 speed |
| RATIO | 1=32/13 2=30/18 3=28/21 4=26/23 5=22/22
6=24/26 |
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22
6=24/26 |
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22
6=24/26 |
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22
6=24/26 |
| PRIMARY DRIVE | Straight cut gears, Ratio 1,85:1 | Straight cut gears, Ratio 1,85:1 | Straight cut gears, Ratio 1,85:1 | Straight cut gears, Ratio 1,85:1 |
| FINAL DRIVE | Chain, front spocket 15, rear sprocket 46 | Chain, front spocket 15, rear sprocket 46 | Chain, front spocket 15, rear sprocket 46 | Chain, front spocket 15, rear sprocket 46 |
| CLUTCH | Hydraulically controlled slipper and self-servo wet
multiplate clutch |
Hydraulically controlled slipper and self-servo wet
multiplate clutch |
Hydraulically controlled slipper and self-servo wet
multiplate clutch |
Hydraulically controlled slipper and self-servo wet
multiplate clutch |
| CHASSIS | ||||
| FRAME | Tubular steel Trellis frame | Tubular steel Trellis frame | Tubular steel Trellis frame | Tubular steel Trellis frame |
| FRONT SUSPENSION | Upside down Kayaba 41 mm fork | 46mm fully adjustable usd forks | Upside down Kayaba 41 mm fork | Upside down Kayaba 41 mm fork |
| FRONT WHEEL | 10-spoke in light alloy, 3.00″ x 18″ | Spoked aluminium wheel 3,00″ x 19″ | Spoked aluminium wheel 3,00″ x 18″ | Spoked aluminium wheel 3,00″ x 17″ |
| FRONT TYRE | Pirelli MT 60 RS 110/80 R18 | Pirelli SCORPION™ RALLY STR 120/70 R19 | Pirelli MT 60 RS 110/80 R18 | Pirelli Diablo Rosso III – 120/70-ZR17 |
| REAR SUSPENSION | Kayaba rear shock, pre-load adjustable | Kayaba rear shock, pre-load and rebound adjustable.
Aluminium double-sided swingarm |
Kayaba rear shock, pre-load adjustable | Kayaba rear shock, pre-load adjustable |
| WHEEL TRAVEL | 150 mm (5,9 in) | 200 mm (7,8 in) | 150 mm (5,9 in) | 150 mm (5,9 in) |
| REAR WHEEL | 10-spoke in light alloy, 5.50″ x 17″ | Spoked aluminium wheel 4,50″ x 17″ | Spoked aluminium wheel 5,50″ x 17″ | Spoked aluminium wheel 5,50″ x 17″ |
| REAR TYRE | Pirelli MT 60 RS 180/55 R17 | Pirelli SCORPION™ RALLY STR 170/60 R17 | Pirelli MT 60 RS 180/55 R17 | Pirelli Diablo Rosso III – 180/55-ZR17 |
| FRONT BRAKE | Ø330 mm disc, radial 4-piston calliper with Bosch
Cornering ABS as standard equipment |
Ø330 mm disc, radial 4-piston calliper with Bosch
Cornering ABS as standard equipment |
Ø330 mm disc, radial 4-piston calliper with Bosch
Cornering ABS as standard equipment |
Ø330 mm disc, radial 4-piston calliper with Bosch
Cornering ABS as standard equipment |
| REAR BRAKE | Ø245 mm disc, 1-piston floating calliper with Bosch
Cornering ABS as standard equipment |
Ø245 mm disc, 1-piston floating calliper with Bosch
Cornering ABS as standard equipment |
Ø245 mm disc, 1-piston floating calliper with Bosch
Cornering ABS as standard equipment |
Ø245 mm disc, 1-piston floating calliper with Bosch
Cornering ABS as standard equipment |
| INSTRUMENTATION | LCD | LCD | LCD | LCD |
| DIMENSIONS AND WEIGHTS | ||||
| DRY WEIGHT | 173 kg (381 lb) | 193 kg (425,5 lb) | 180 kg (397 lb) | 180 kg (397 lb) |
| KERB WEIGHT* | 189 kg (417 lb) | 209 kg (460,8 lb) | 196 kg (432 lb) | 196 kg (432 lb) |
| SEAT HEIGHT | 798 mm (31,4 in) – low seat 778 mm (30,6 in)
available as accessory |
860 mm (33,9 in) – low seat 840 mm (33,0 in)
available as accessory |
798 mm (31,4 in) – low seat 778 mm (30,6 in)
available as accessory |
805 mm (31,7 in) |
| WHEELBASE | 1.445 mm (56.9 in) | 1.505 mm (59,3 in) | 1.445 mm (56.9 in) | 1.436 mm (56.5 in) |
| RAKE | 24° | 24° | 24° | 24° |
| TRAIL | 112 mm (4,4 in) | 112 mm (4,4 in) | 112 mm (4,4 in) | 94 mm (3,7 in) |
| FUEL TANK CAPACITY | 13,5 l – 3,57 gallon (US) | 13,5 l – 3,57 gallon (US) | 13,5 l – 3,57 gallon (US) | 13,5 l – 3,57 gallon (US) |
| NUMBER OF SEATS | Dual seat | Dual seat | Dual seat | Dual seat |
| EQUIPMENT | ||||
|
STANDARD EQUIPMENT |
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins. | Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins. | Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins. | Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins. |
|
DEDICATED EQUIPMENT |
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover |
Aluminium handlebar with cross-strut, front stem protectors, seat with specific design, high front mudguard, long rear mudguard and high plate support |
Low aluminium handlebars, double passenger seat, sport tail piece with dedicated turn indicator support, sports style front mudguard, dedicated logo, café racer rearview mirrors, spoked wheels, side flat track number plate, LED Ducati Performance turn indicators (EU Homologated) |
Low variable section aluminum handlebar, custom flat seat, high front mudguard, 17″ spoked wheels, Pirelli Diablo Rosso III tires, side number plates, custom graphics on tank and side panels |
| WARRANTY AND MAINTENANCE | ||||
| WARRANTY | 24 months unlimited mileage | 24 months unlimited mileage | 24 months unlimited mileage | 24 months unlimited mileage |
| MAINTENANCE SERVICE INTERVALS | 12,000 km (7.500 m) / 12 months | 12,000 km (7.500 m) / 12 months | 12,000 km (7.500 m) / 12 months | 12,000 km (7.500 m) / 12 months |
| DESMOSERVICE | 12,000 km (7.500 m) | 12,000 km (7.500 m) | 12,000 km (7.500 m) | 12,000 km (7.500 m) |
| EMISSIONS AND CONSUMPTION (Only for
countries where Euro 5 standard applies) |
||||
| STANDARD | Euro 5 | Euro 5 | Euro 5 | Euro 5 |
| CO2 EMISSIONS | CO2 120 g/km | CO2 124 g/km | CO2 120 g/km | CO2 120 g/km |
| CONSUMPTION | 5,2 l/100 km | 5,4 l/100 km | 5,2 l/100 km | 5,2 l/100 km |
*Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EU Regulation 44/2014 Annex XI).
2022 Ducati Scrambler Icon – Totalmotorcycle.com Canada Specifications/Technical Details
Type
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power*
53,6 kW (73 hp) @ 8,250 rpm
Torque*
6,7 Kgm (66,2 Nm) @ 5750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 5 (Only for countries where Euro 5 standard applies)
Consumption – Emissions
5,2 l/100 km – 120 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00″ x 18″
Front tyre
Pirelli MT 60 RS 110/80 R18
Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50″ x 17″
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard
LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l – 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight**
189 kg (417 lb)
Seat height
798 mm (31,4 in) – low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 – 2.165 mm (82.7 – 85.2 in)
Number of seats
Dual seat
Standard equipment
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Details
24 months unlimited mileage
Service
12,000 km (7.500 mi) / 12 months
Checking valve clearance
12,000 km (7.500 mi)
*Power/Torque
The power/torque values indicated are measured using and engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document
**Wet weigth
The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).
2022 Ducati Scrambler Icon – Totalmotorcycle.com European Specifications/Technical Details
Type
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power*
53,6 kW (73 hp) @ 8,250 rpm
Torque*
6,7 Kgm (66,2 Nm) @ 5750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 5 (Only for countries where Euro 5 standard applies)
Consumption – Emissions
5,2 l/100 km – 120 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00″ x 18″
Front tyre
Pirelli MT 60 RS 110/80 R18
Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50″ x 17″
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard
LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l – 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight**
189 kg (417 lb)
Seat height
798 mm (31,4 in) – low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 – 2.165 mm (82.7 – 85.2 in)
Number of seats
Dual seat
Standard equipment
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Details
24 months unlimited mileage
Service
12,000 km (7.500 mi) / 12 months
Checking valve clearance
12,000 km (7.500 mi)
*Power/Torque
The power/torque values indicated are measured using and engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document
**Wet weigth
The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
