2022 Harley-Davidson Low Rider S: HIGH-PERFORMANCE 117 V-TWIN.
Introducing the 2022 Harley-Davidson Low Rider S…
An aggressive performance kingpin designed for the unapologetic power-hungry rider. An everything black overload, paired with a deep solo seat for lone-wolf attitude. Top it off with a high-performance Milwaukee-Eight 117 V-Twin engine with precision oil/air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson® powertrain.
A blacked-out, factory custom performance cruiser.
The Low Rider S model is a cruiser designed for riders seeking unapologetic power and willing to push their bike to the limit. The Milwaukee-Eight 117 powertrain produces five percent more torque than Milwaukee-Eight 114 engine that powers the 2021 Low Rider S model, and gives its owner instant bragging rights. Premium suspension enhances the riding experience. Straight from the factory this bike bundles the big attitude of West Coast style and unrelenting performance previously only attainable with significant investment in accessories.
The 2022 Low Rider S model is equipped with a new handlebar-mounted combination analog tachometer/digital speedometer, which replaces the tank console instruments as seen on previous Low Rider S models. The handlebar location places the gauge closer to the rider’s line of sight. A low-profile textured black tank console with FXLRS badge now tops the fuel tank. Outstanding lighting performance is provided by a signature LED headlamp and LED tail/brake lights.
The same taller rear monoshock featured on the Low Rider ST model raises the rear of the Low Rider S model for improved ride comfort and 1.3 degrees more lean angle than the previous Low Rider S model for enhanced ground clearance and improved rider confidence during aggressive cornering. Under-seat hydraulic pre-load adjustment allows the rider to maintain optimal suspension performance for the prevailing load and road conditions. A 43mm inverted fork with single-cartridge internal technology stiffens the front end for a responsive ride and improved braking and handling performance. Fork rake is 28-degrees. Dual front brakes with 300mm discs deliver the responsive braking demanded by aggressive riders, with standard ABS (antilock braking system) for confident braking performance when conditions are less than ideal. Michelin® Scorcher® 31 tires enhance ride and handling.
Other features include these key West Coast styling elements: A one-inch diameter moto bar on four-inch tall risers, a deep solo seat, mid-mount foot controls, and a color-matched mini speed screen fairing that frames the headlamp and blocks the wind when chasing down the freeway. The powertrain, front end and exhaust are totally blacked out, with Radiate cast-aluminum wheels (19-inch front and 16-inch rear diameter) finished in Matte Dark Bronze to contrast the motorcycle’s dark components.

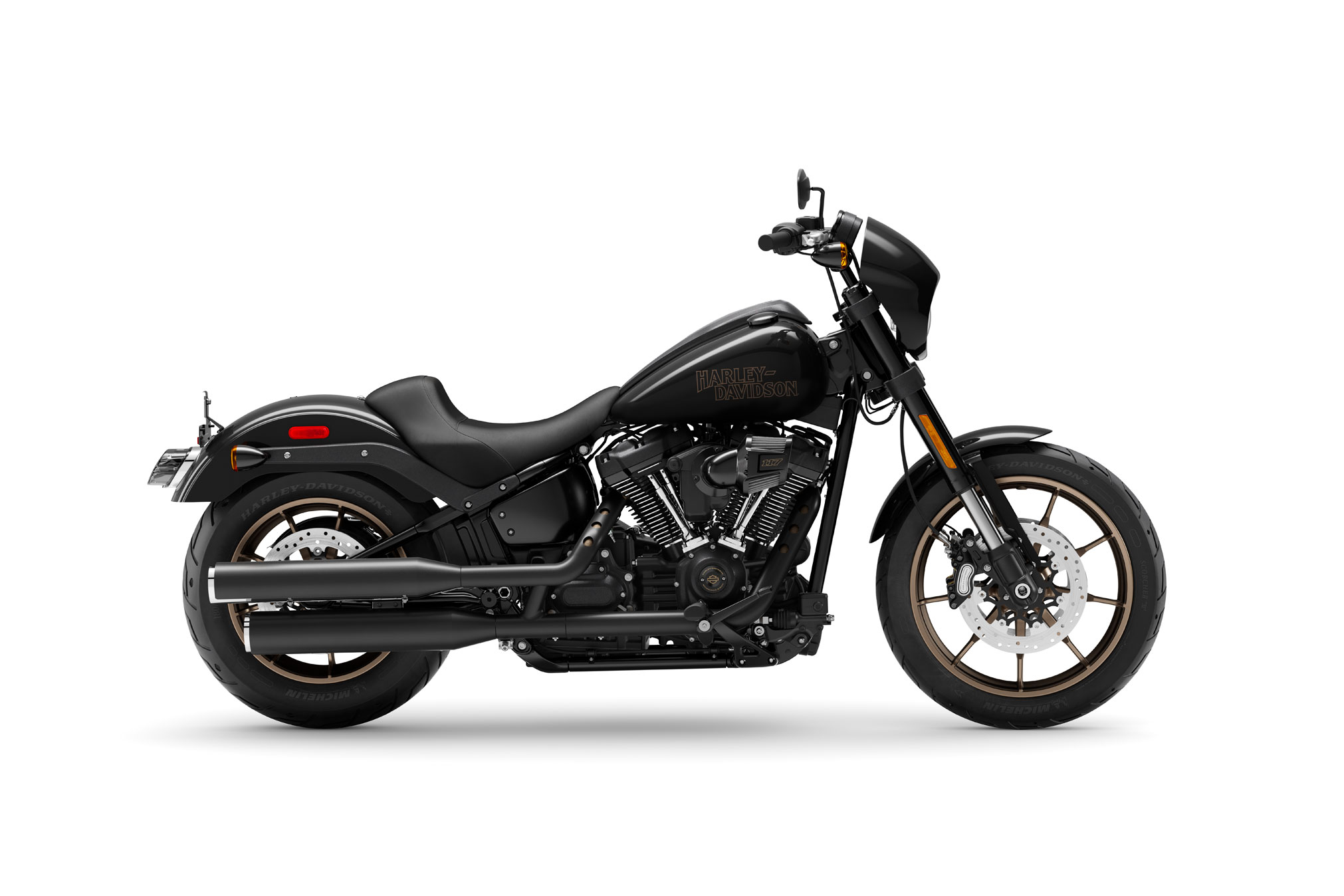

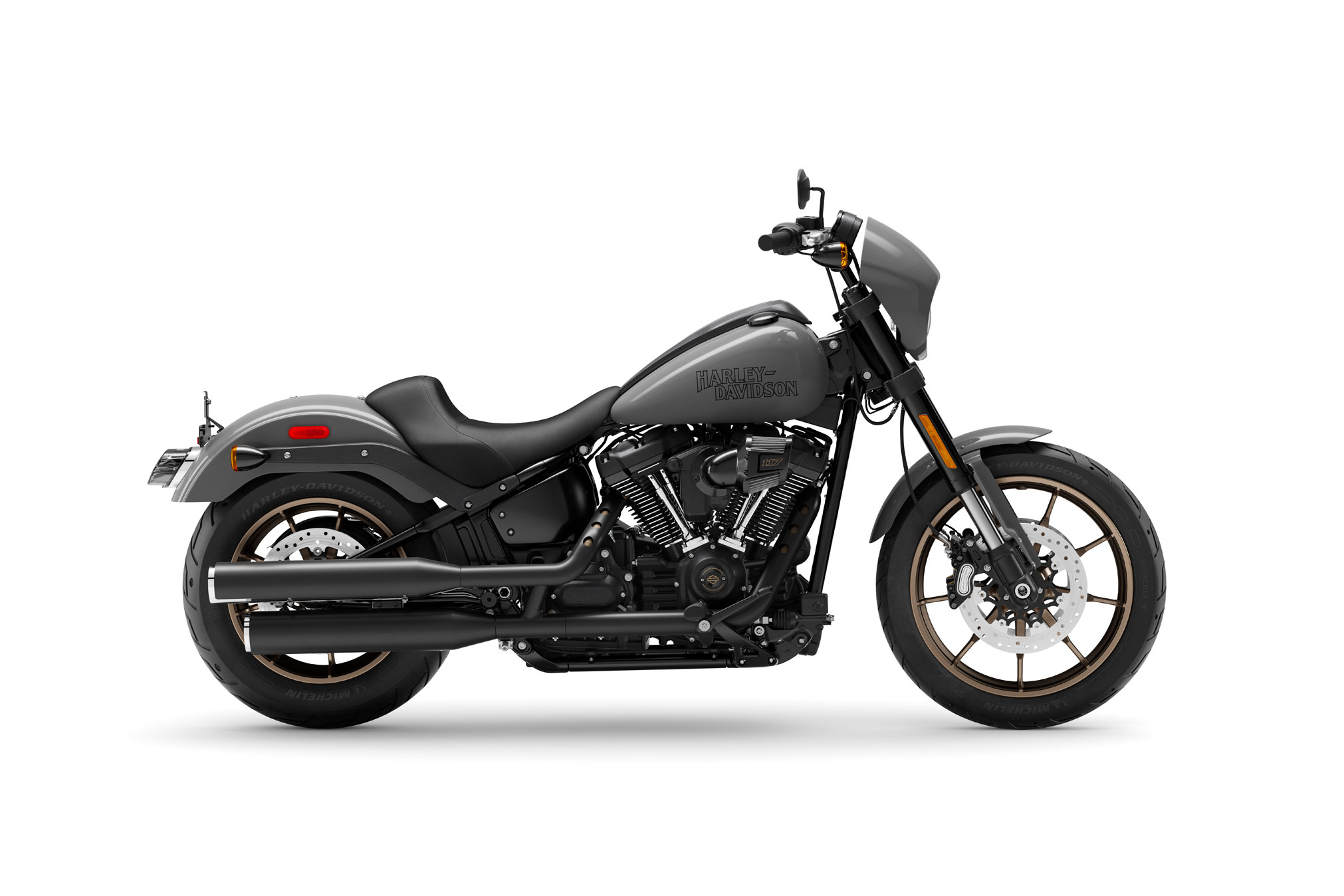

Available Paint Colors: Vivid Black, Gunship Gray
2022 Harley-Davidson Low Rider S Totalmotorcycle.com Key Features
STANDARD FEATURES
- Standard Anti-Lock Braking System (ABS)
- Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
- Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
- LED, low beam, high beam and signature position headlight
- Smart Security System with proximity-based, hands-free security fob.
- Upright riding position
- Mid-mount foot controls
- Saddlebags
- Frame mounted fairing
- Upright riding position
- Mid-mount foot controls
- Screen
THIS IS THE RIGHT BIKE FOR
- Rebels seeking a now classic West Coast style
Aggressive riding with sport bike agility and handling
Milwaukee-Eight® 117 V-Twin engine and moto-style drag bars
Low Rider S and Low Rider ST Models
The Low Rider S and new Low Rider ST models offer the taut handling performance of the Harley-Davidson Softail chassis and the V-Twin muscle of a Milwaukee-Eight 117 powertrain.
“Our customers truly inspire us and the Low Rider ST was born from seeing the incredible builds at motorcycle shows around the world,” said Brad Richards, Harley-Davidson Vice President of Design. “We took the iconic Motor Company design from the Eighties and gave it a new identity with a modern echo. Add the Milwaukee-Eight 117 engine, a taller suspension and raised saddlebags and the Low Rider ST delivers both a dynamic visual package as well as a dramatic performance punch.”
The Low Rider S model is a performance cruiser kingpin designed for the rider seeking unapologetic power. The new Low Rider ST model offers the versatility of hard bags and a new frame-mounted fairing, plus an available Harley-Davidson Audio system powered by Rockford Fosgate.
2022 Harley-Davidson Low Rider S Totalmotorcycle.com Features and Benefits

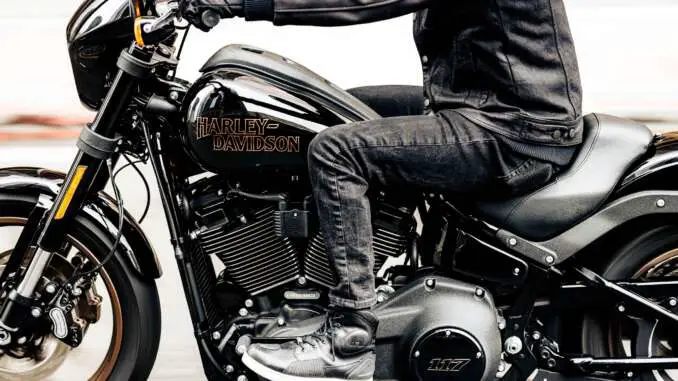

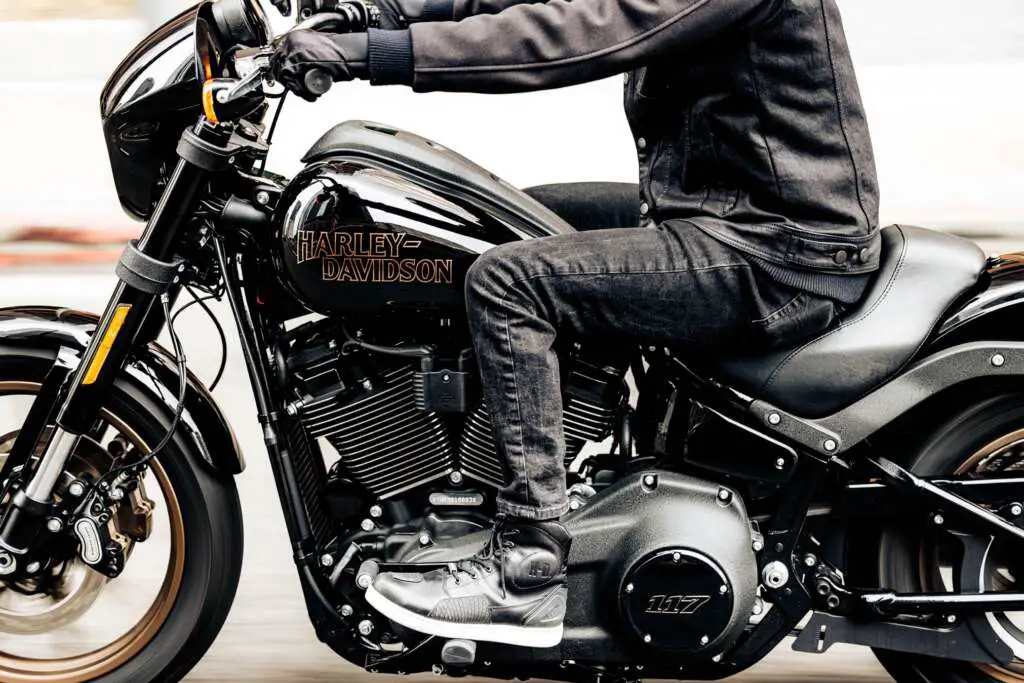

MILWAUKEE-EIGHT 117 V-TWIN
The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 168 Nm of torque at 3500 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.
BLACKED OUT WITH SOLO SEAT
The powertrain, primary cover, triple clamps, top clamp, rear fender supports and tank console are finished in Wrinkle Black; the derby cover, intake, lower rocker covers and handlebar riser are Gloss Black. The handlebar is Satin Black. The forks are anodized black. Mufflers and exhaust shields are Jet Black. An everything black overload, paired with a deep solo seat for lone-wolf attitude.
HANDLEBARS
One-inch moto handlebar mounted on four-inch risers gives the overall look of the bike a Coastal style element that puts the rider in an aggressive posture on the bike.
CONSOLE
Low-profile textured black tank console with FXLRS badge covers the fuel tank weld and replaces the console with gauges used on Low Rider® S 114 model.
2022 Harley-Davidson Low Rider S – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: from $18349 (Black), $18799 (Color) USD
Canada MSRP Price: from $23799 (Black), $24299 (Color) CDN
Europe/UK MSRP Price: from £17795 (Black), £18170 (Color) GBP (On The Road inc 20% Vat)
| Dimensions | FXLRS Low Rider® S | Notes |
| Length | 93.1 in. (2,365 mm) | |
| Overall Width | 34.3 in. (870 mm) | |
| Overall Height | 47 in. (1,195 mm) | |
| Seat Height, Laden | 27 in. (686 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen | 28 in. (710 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance | 5.7 in. (145 mm) | |
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 28 | |
| Fork Angle (deg) | 28 | |
| Trail | 5.7 in. (145 mm) | |
| Wheelbase | 63.6 in. (1,615 mm) | |
| Tires, Type | Michelin® Scorcher® “31” front and rear | |
| Tires, Front Model | Scorcher™ “31” | |
| Tires, Front Specification | 110/90B19,62H,BW | |
| Tires, Rear Model | Scorcher™ “31” | |
| Tires, Rear Specification | 180/70B16,77H,BW | |
| Fuel Capacity | 5 gal. (18.9 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) | |
| Transmission Capacity | 1 qt. (.95 l ) | |
| Primary Chain Case Capacity | 1.25 qt. (1.18 l) | |
| Coolant Capacity | N/A | |
| Weight, As Shipped | 650 lb. (295 kg) | |
| Weight, In Running Order | 679 lb. (308 kg) | |
| Gross Vehicle Weight Rating | 1,160 lb. (526 kg) | |
| Gross Axle Weight Rating, Front | 450 lb. (204 kg) | |
| Gross Axle Weight Rating, Rear | 730 lb. (331 kg) | |
| Luggage Capacity -Volume | N/A |
| Engine | FXLRS Low Rider® S | Notes |
| Engine | Milwaukee-Eight® 117 | |
| Valves | Pushrod-operated, overhead valves | |
| Bore | 4.075 in. (103.5 mm) | |
| Stroke | 4.5 in. (114.3 mm) | |
| Displacement | 117 cu in (1,923 cc) | |
| Compression Ratio | 10.2:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Heavy Breather intake with synthetic media, washable exposed element | |
| Exhaust | 2-into-2 offset shotgun; catalyst in muffler | |
| Lubrication System | Pressurized, dry-sump with oil cooler |
| Drivetrain | FXLRS Low Rider® S | Notes |
| Primary Drive | Chain, 34/46 ratio | |
| Final Drive | Belt, 32/66 ratio | |
| Clutch | Mechanical, 10 plate wet, assist & conventional | |
| Transmission | 6-Speed Cruise Drive® | |
| Gear Ratios (overall) 1st | 9.311 | |
| Gear Ratios (overall) 2nd | 6.454 | |
| Gear Ratios (overall) 3rd | 4.793 | |
| Gear Ratios (overall) 4th | 3.882 | |
| Gear Ratios (overall) 5th | 3.307 | |
| Gear Ratios (overall) 6th | 2.79 |
| Chassis | FXLRS Low Rider® S | Notes |
| Frame | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports | |
| Swingarm | Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer | |
| Front Fork | Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring | |
| Front Fork, Optional | ||
| Rear Shocks | Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Dark bronze, Radiate cast aluminum wheel | 4 |
| Wheels, Front Width | 2.5 in. (64 mm) | |
| Wheels, Front Height | 19 in. (483 mm) | |
| Wheels, Rear Type | Dark bronze, Radiate cast aluminum wheel | 4 |
| Wheels, Rear Width | 5 in. (127 mm) | |
| Wheels, Rear Height | 16 in. (406 mm) | |
| Brakes, Caliper Type | 4-piston fixed front and 2-piston floating rear | |
| Brakes, Rotor Type | Front and rear black, Split 7-spoke floating rotors | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.2 in. (5 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 11.5 in. (292 mm) | |
| Brakes, Rear Thickness | 0.23 in. (5.8 mm) | |
| Front brake lever free travel | N/A | |
| Rear brake pedal free travel | N/A | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 5.1 in. (130 mm) | |
| Suspension Travel, Rear | 4.4 in. (112 mm) |
| Performance | FXLRS Low Rider® S | Notes |
| Engine Torque Testing Method | J1349 | |
| Engine Torque | 125 ft-lb (169 Nm) | 5 |
| Engine Torque (rpm) | 3,500 | |
| Power (Hp/kW) | 103 HP / 77 kW @ 4750 rpm | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 31.3 | |
| Lean Angle, Left (deg.) | 31.3 | |
| Maximum hill-starting ability | N/A | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 47 mpg (5 l/100 km) | 6 |
| CO₂ Emissions Testing Method | N/A | |
| CO₂ Emissions | N/A |
| Electric | FXLRS Low Rider® S | Notes |
| Battery | Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F | |
| Charging | Three-phase, 42 Amp system (390 Watts @13 Volts, 1000 rpm, 546 Watts max power @ 13 Volts, 2000 rpm) | |
| Starting | 1.6 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | All LED, low beam, high beam and signature position lamp | |
| Lights (as per country regulation), Tail/Stop | LED Zeppelin tail lamp | |
| Lights (as per country regulation), Front Signal Lights | Incandescent bullet turn signals | |
| Lights, Rear Turn Signals | Incandescent bullet turn signals | |
| Gauges | 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication | |
| Auxiliary Lamps | N/A | |
| Electric Power Outlet | USB A-type; output 5V at 2.4A | |
| GPS System | N/A | |
| Reverse Gear | N/A |
| Warranty And Service | FXLRS Low Rider® S | Notes |
| Warranty | 24 months (unlimited mileage) | 7 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 8 |
Notes
- Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- Recommended 91 octane or higher fuel (R+M)/2.
- Standard and optional wheels may vary by country and region.
- Values shown are nominal. Performance may vary by country and region.
- The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
- See motorcycle owner’s manual for complete details.
- Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
