2022 Honda Africa Twin Guide

2022 Honda Africa Twin: SMALLER, SLIMMER, LIGHTER & LOWER.

Introducing the 2022 Honda Africa Twin…

It was the balance between power and weight that was at the heart of the original bike’s appeal, just as it was for the new model. With its unique, athletic appearance, an enjoyable, usable engine and capable, comfortable chassis, the CRF1000L Africa Twin proved itself a true modern-day all-rounder and has been hugely popular with round-the-world adventurers, around-town commuters and weekend tourers alike.

The greater the challenge, the greater the reward. We say bring it on. Inspired by the legend of Dakar with hard-hitting performance, blacked-out detailing and sharp new graphics straight from a rally racing stage, the CRF1100L Africa Twin is born to perform when the going gets tough.

Since its 2016 reintroduction, the legendary Africa Twin adventure-touring platform has undergone steady improvements aimed at carrying out its “True Adventure” ethos, and that is once again the case for the 2022 model year. The sporting- and off-road performance-oriented standard version now comes with the same rear carrier as its more distance riding-oriented Adventure Sports ES sibling. Meanwhile, that version gets a shorter windscreen for improved visibility. Both Africa Twin versions are compatible with Apple CarPlay® and Android Auto™, and both are available with either a manual gearbox or Honda’s advanced automatic Dual Clutch Transmission, which has a program change for 2022, delivering smoother shifting in the lower gears.

It’s been over three decades since the Honda XRV650 Africa Twin first rolled into Europe and while the motorcycle that now bears its name – launched in 2016 as the CRF1000L Africa Twin – was a brand-new machine from the wheels up, it fully inherited the essence and spirit of what made the original so popular.

2018 saw the Africa Twin, in both manual transmission and Dual Clutch Transmission (DCT) form, receive Throttle By Wire (TBW) control plus 3 riding modes, expanded Honda Selectable Torque Control (HSTC) options, as well as intake and exhaust development for improved engine response and sound. The platform also expanded: the new Africa Twin Adventure Sports – with the same updates but featuring improved wind protection, greater tank range and longer-travel suspension – extended the machine even further into long-range territory.

For the 2020 year model, the introduction of a bigger capacity, longer stroke 1084cc engine marked another landmark in the evolution of the Africa Twin. The touring comfort, technology and ability of the CRF1100L Africa Twin Adventure Sports* were further enhanced – adding the option of Showa Electronically Equipped Ride Adjustment (SHOWA EERA^™) and the CRF1100L Africa Twin itself was comprehensively redrawn with an aggressive, compact rally style and even sharper off-road focus. Alongside the increase in power and torque from the new engine, it was also significantly lighter – in keeping with the first principles set out all those years ago.

The 20YM CRF1100L Africa Twin came with a sharply-renewed focus on off-road core ability, that brought with it the look – and feel – of a true rally machine.

The 20YM change made it smaller, slimmer, lower and 4kg lighter than the previous 998cc model, and offered stronger performance with changes to the engine that produced 7% more peak power, 6% more peak torque and much greater strength everywhere in the rev-range. It was also Honda’s first EURO5 compliant engine. The frame too was completely revised and featured a new bolt-on aluminium subframe. The aluminium swingarm was based on that of the CRF450R moto-crosser.

At the centre of the Africa Twin Adventure Sports, a six-axis Inertial Measurement Unit (IMU) controls not only the 7-level HSTC but also 3-level Wheelie Control, Cornering ABS (with off-road setting), Rear Lift Control and DCT cornering detection. There are four default riding modes: URBAN, TOUR, GRAVEL and OFF-ROAD.

Tailored for complete control, the riding position features a slim-section seat and high-set handlebars. Dual LED Daytime Running Lights (DRL) give optimum visibility, improving safety. Cruise control is standard-fit.  A full colour Multi Information Display (MID) 6.5-inch TFT touch screen brings immersive engagement with the machine’s systems, plus Apple CarPlay® and Bluetooth connectivity, with Android Auto® functionality introduced in early 2021.

For 2022, the CRF1100L Africa Twin now features refined Dual Clutch Transmission (DCT) settings for even smoother handling in 1^st and second gears, standard fitment for the aluminium rear carrier, and striking ultra-modern ‘Big Logo’ graphics.

2022 Honda Africa Twin Totalmotorcycle.com Key Features

• Compact body style designed for off-road, with slim seat and high handlebars
• Multi Information Display (MID) 6.5-inch TFT touch screen
• Apple CarPlay® and Android Auto® allow use of a smartphone through the MID
• Bluetooth connectivity, Daytime Running Lights (DRL) and cruise control
• New ‘Big Logo’ graphics

• 1,084cc engine gives 75kW peak power and 105Nm peak torque
• In addition to extra capacity, the 20YM updates included a new cylinder head, valve timing and lift, throttle body and exhaust
• The variable Exhaust Control Valve (ECV) offers an engaging low-rpm sound and high-rpm performance

• IMU-managed HSTC intervention levels have focus on off-road use
• Wheelie Control features 3 levels and IMU management
• Four riding modes: TOUR, URBAN, GRAVEL and OFF-ROAD
• Two USER modes allow for complete riding modes customisation

• ‘Easy and direct’ system offers super-fast gear changes in either Manual Transmission (MT) or Automatic D and S modes
• S mode (with 3 levels) revs higher and downshifts sooner than D, for more aggressive riding
• G switch improves rear wheel traction when off-road
• Incline detection adapts shift pattern depending on gradient
• IMU allows corning detection function for improved shift timings
• For 22YM, revised timings allow smoother handling at pull-away and in lower gears

• Light frame, with bolt-on aluminium subframe and light rigid CRF450R-style swingarm for outstanding rear wheel traction and feel
• A six-axis Inertial Measurement Unit is housed in the centre of the machine
• Cornering ABS provides sure-footed feel and features an off-road setting
• Optimised damping and spring rates for the front and rear Showa suspension

Aggressive and compact. Two words that sum up the Africa Twin’s taut rally-style bodywork. And it’s for a reason – to work better off-road. The fixed screen is short to allow for easy scanning of the trail ahead and, with a seat height of 850-870mm, the high handlebars (increased by 22.5mm in height for 20YM) give an upright, high-visibility riding position and comfortable control, whether standing or seated. The tail section is extremely slim and the narrow seat carefully contoured to allow good ground reach and easy back and forth movement.

Dual LED headlights are set high, delivering a penetrating beam and also feature Daytime Running Lights (DRL) that automatically adjust to ambient light intensity, improving safety, no matter the conditions. Knuckle guards are standard.

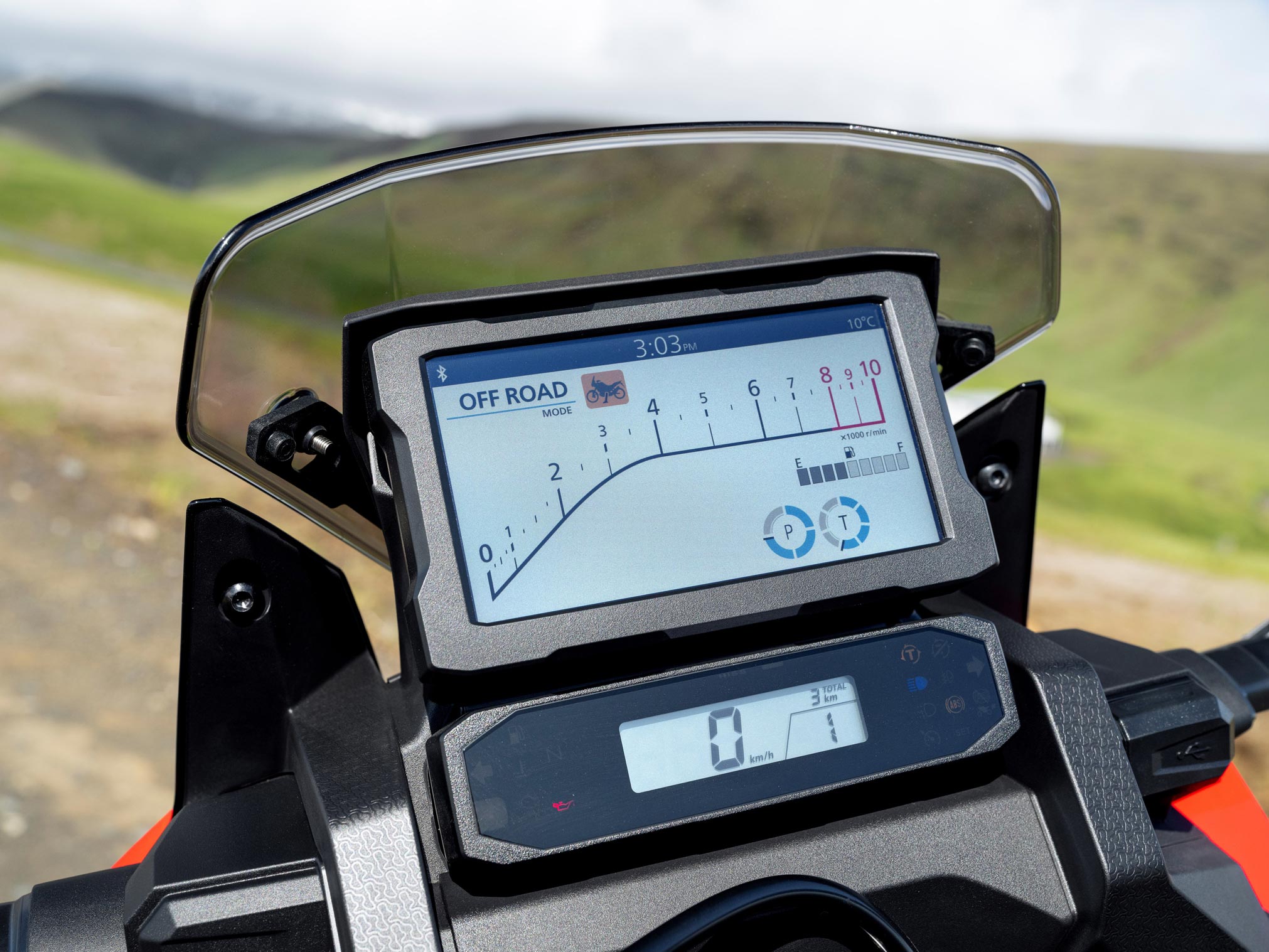

The full colour Multi Information Display (MID) 6.5-inch TFT touch screen keeps the rider in control of all of the Africa Twin’s systems, with each of the riding modes­ selectable through the top left of the screen. The MID can also be customised to show various levels of information relative to the riding mode chosen and is easy to use even when wearing gloves.

It also incorporates Apple CarPlay® and Android Auto®, allowing use of a smartphone through the touchscreen. Navigation apps can also be accessed and displayed and via a Bluetooth helmet headset calls can be made or received. The smartphone itself plugs into a USB charging port on the right of the MID. Hands-free wireless Bluetooth connectivity is also an option and all control inputs are made from the left-hand switchgear.

The front and rear indicators have an Emergency Stop Signal function. When braking suddenly over 50kph the hazard lights flash to warn other road users a hard stop is in process. They also auto-cancel; rather than using a simple timer, the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the situation. The auto-cancel feature can be switched off using the MID. Standard-fit cruise control eases long-distance highway travel.

New for 2022 is the new ‘Big Logo’ design and revised colour schemes which now feature all-black aluminium side covers. An aluminium rear carrier is now also standard fit.

The CRF1100L Africa Twin will be available in the following colours:

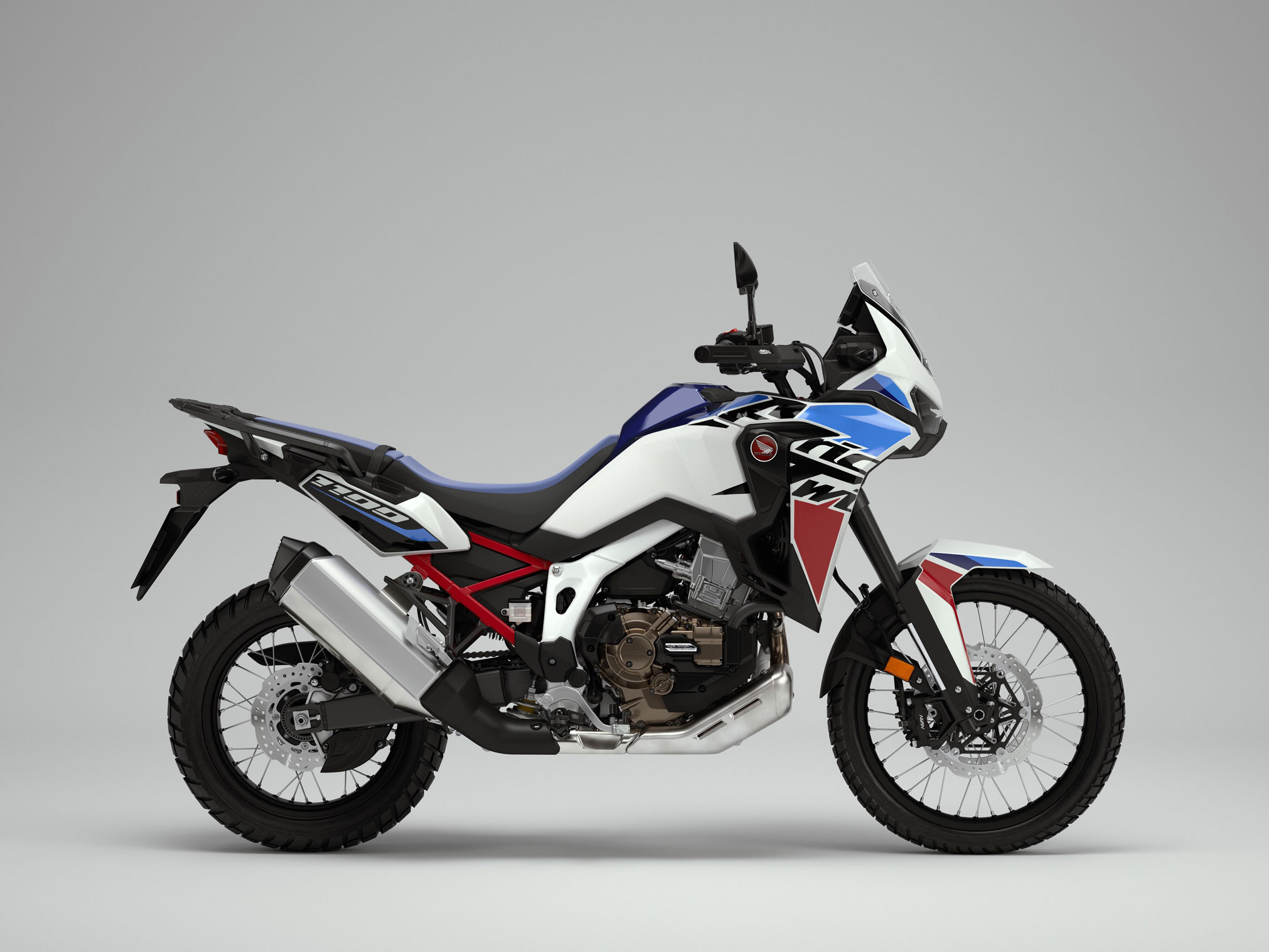

Pearl Glare White Tricolour

Grand Prix Red

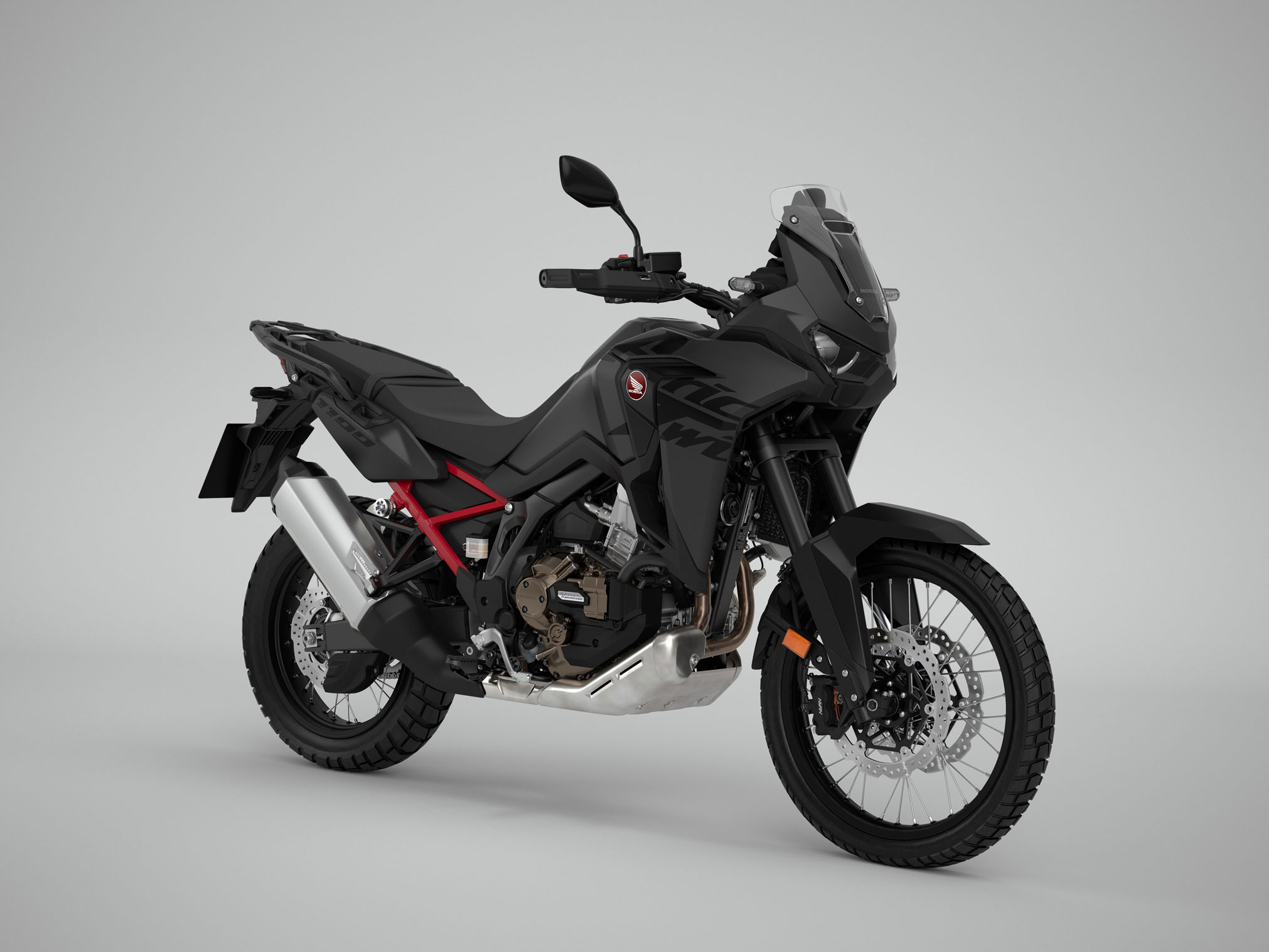

Matte Ballistic Black

Honda’s iconic Africa Twin and Africa Twin Adventure Sport receive striking new looks and updates for 2022.

• CRF1100L Africa Twin features an aluminum rear carrier as standard
• New lower 5-way adjustable screen on the CRF1100L Africa Twin Adventure Sports improves visibility
• Striking new look with new ‘Big Logo’ and new ‘Cracked Terrain’ graphics on the Africa Twin and Africa Twin Adventure Sports respectively

 Over three decades after first rolling into Europe, the Honda Africa Twin is a name that is still synonymous with history and adventure. For 2022 the CRF1100L Africa Twin and its continent- crossing sibling, the CRF1100L Africa Twin Adventure Sports, both feature new practical upgrades, refined Dual Clutch Transmission (DCT) settings and striking new looks.

For 2022 both the Africa Twin and Africa Twin Adventure Sports receive updates to further increase their daily practicality. The CRF1100L Africa Twin now features an aluminum rear carrier as standard, and the CRF1100L Africa Twin Adventure Sports benefits from a new 110mm lower 5-stage adjustable screen that improves visibility and doesn’t compromise on weather protection.

Both DCT versions of the Africa Twin and Africa Twin Adventure Sports are updated for 2022, with new refined settings to deliver even smoother handling in the first two gears from a standing start and at low speeds. Honda have sold over 200,000 DCT equipped motorcycles across Europe since the system was first introduced on the VFR1200F in 2009, a testament to its broad appeal and acceptance in the marketplace.

To complete the 2022 upgrades, both models receive striking new colour and graphic updates. The CRF1100L Africa Twin Adventure Sports features new ‘Cracked Terrain’ graphics and the CRF1100L Africa Twin now features a new ‘Big Logo’ design with revised colour schemes that feature all-new black aluminum side covers and a bold red rear subframe.

2022 Honda Africa Twin Totalmotorcycle.com Features and Benefits

Honda Africa Twin
TFT Touch Screen Display
A colour 6.5-inch screen puts full intuitive management at your fingertips and offers Apple CarPlay®, Android Auto® and Bluetooth® smartphone connectivity.

Honda Africa Twin
Advanced Riding Technology
Our 6-speed DCT is an option, newly optimised for perfect off-road control. A smooth automatic mode, it also offers fast, easy manual shifting. Cornering ABS increases security and has an off-road setting.

Honda Africa Twin
Rear Carrier Standard
Practicalities matter, even on a bike as focused as the Africa Twin. To allow you to fit a top box – or soft luggage – suitable for your next adventure a sleek, black rear carrier comes as standard-fit.

Honda Africa Twin
Aggressive Rally Design
Racing runs through our DNA. Tightly wrapped, aggressive rally-style bodywork wears stunning new paint options drawn from our Dakar-winning CRF450 RALLY.

Honda Africa Twin
Pure Off-Road Performance
Designed to push to the limit, no matter the terrain. Explore sharp, agile handling from a lightweight chassis and supple, long-travel Showa suspension.

Honda Africa Twin
Powerful Twin-Cylinder Engine
1100cc of low-down torque, muscular mid-range and searing top-end power linked by a fine throttle connection that enhances your feel for rear tyre traction.

Honda Africa Twin
TFT Touch Screen Display
A colour 6.5-inch screen puts full intuitive management at your fingertips and offers Apple CarPlay®, Android Auto® and Bluetooth® smartphone connectivity.

Honda Africa Twin
Advanced Riding Technology
Our 6-speed DCT is an option, newly optimised for perfect off-road control. A smooth automatic mode, it also offers fast, easy manual shifting. Cornering ABS increases security and has an off-road setting.

Honda Africa Twin
Rear Carrier Standard
Practicalities matter, even on a bike as focused as the Africa Twin. To allow you to fit a top box – or soft luggage – suitable for your next adventure a sleek, black rear carrier comes as standard-fit.

Honda Africa Twin
Aggressive Rally Design
Racing runs through our DNA. Tightly wrapped, aggressive rally-style bodywork wears stunning new paint options drawn from our Dakar-winning CRF450 RALLY.

Honda Africa Twin
Pure Off-Road Performance
Designed to push to the limit, no matter the terrain. Explore sharp, agile handling from a lightweight chassis and supple, long-travel Showa suspension.

Honda Africa Twin
Powerful Twin-Cylinder Engine
1100cc of low-down torque, muscular mid-range and searing top-end power linked by a fine throttle connection that enhances your feel for rear tyre traction.

OWN THE MOMENT
We know exactly what you need: maximum performance and minimum weight, thanks to the smaller tank, and a lighter, more agile body. Push on where others fail; perfect for a variety of off-road riding conditions. But it is a straightforward proposition – it’s all down to you, and your motorcycle. Be prepared to take on new and more adventurous riding. It’s why we built the Africa Twin. We know what it can do.

A Compact Powerhouse
The SOHC, 8-valve twin-cylinder engine produces 75kW at peak with 105Nm torque. But it’s the way this engine responds that thrills. With a 46mm throttle body fed by optimised ECU settings the connection between your right hand and rear tyre is pinpoint precise. So, whether hunting out grip on gravel or scything a set of switchbacks, you have ultimate performance at any rpm.

TUNED TWIN-CYLINDER SOUNDTRACK
Wind on the gas and unleash the competition-crackle of the Africa Twin’s 2-1 exhaust. Now you’re ready (best heard with headphones).

HONDA MOTORCYCLES EXPERIENCE
Make your favourite Honda your own through the Honda Motorcycles Europe app. It’s easy. Choose the bike you want and select a colour. Then, see how it looks sat in your garage through the AR feature. There’s an Integrated Accessories Catalogue, so you can add the parts you want. And the Honda Motorcycles Europe YouTube channel is now part of the app, with a gallery of videos to enjoy.

HONDA ADVENTURE ROADS 2022
It’s time to head north, to Iceland, to ride some of the most challenging terrain – with the most beautiful scenery – in the whole of Europe. 11 days. 30 riders. The Africa Twin. Honda Adventure Roads 2022… What are you waiting for?

HONDA MOTORCYCLES EXPERIENCE
Make your favourite Honda your own through the Honda Motorcycles Europe app. It’s easy. Choose the bike you want and select a colour. Then, see how it looks sat in your garage through the AR feature. There’s an Integrated Accessories Catalogue, so you can add the parts you want. And the Honda Motorcycles Europe YouTube channel is now part of the app, with a gallery of videos to enjoy.

HONDA ADVENTURE ROADS 2022
It’s time to head north, to Iceland, to ride some of the most challenging terrain – with the most beautiful scenery – in the whole of Europe. 11 days. 30 riders. The Africa Twin. Honda Adventure Roads 2022… What are you waiting for?

Honda Africa Twin low and high seat
Low and High Seat Options
Standard Africa Twin seat height is 850-875mm. Two colour-matched seat options are available separately; a 25mm taller option with a 875-895mm height (High Seat) and a 25mm lower option with a 825-845mm height (Low Seat).

Honda Africa Twin plastic top box
58L Plastic Top Box
Constructed with a highly durable dual-layer shell this top box can store two full-face helmets with a maximum load of 6kg. The Honda one-key system means it can be opened with the ignition key, but an opening/closing knob offers quick access.

Honda Africa Twin aluminium top box

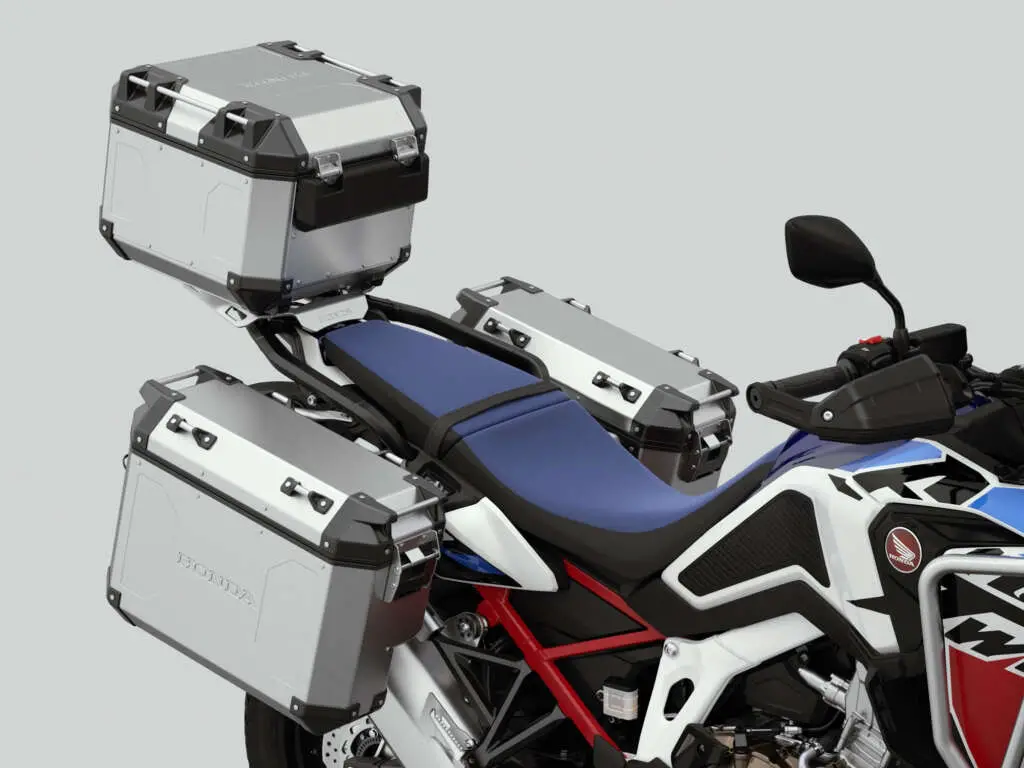

42L Aluminium Top Box
Capable of storing most full-face helmets and features a load capacity of 6kg. Comes complete with a pillion backrest and uses the Honda one-key system. A waterproof inner bag is also available.

Honda Africa Twin radiator protectors
Radiator Protectors
Sporting the CRF logo and constructed from stainless steel, these radiator guards boost the Africa Twin’s tough adventure style and their mesh pattern design protects from stone damage without hindering airflow.

Honda Africa Twin quickshifter
Quickshifter
Designed specifically for the manual six-speed Africa Twin. Allows instant up shifting, reducing fatigue on longer rides and features an auto-blip function for smooth and rapid downshifts.

Honda Africa Twin rally footpegs
Rally Footpegs
With aggressively spiked shaping and 57% larger surface area than the standard footpegs, the rally footpegs increase boot grip and leverage, perfect for improving control and feel in an off-road environment.

Engine

The SOHC 8-valve parallel-twin engine’s essential architecture remained unchanged for the  2020 update, but displacement increased to 1,084cc, up from 998cc. As a result, peak power increased from 70kW to 75kW @ 7,500rpm and peak torque from 99Nm to 105Nm @ 6,250rpm. Significantly, the obvious increase in both power and torque made itself felt from 2,500rpm all the way through to the redline.

To create the larger capacity, bore remained at 92mm but stroke was lengthened to 81.5mm (from 75.1mm) with a compression ratio of 10.1:1. Aluminium cylinder sleeves saved weight. Thanks to other detailed weight savings in the transmission and elsewhere, the manual transmission version of the 1084cc engine shaved 2.5kg from the previous 998cc power unit, and the DCT version 2.2kg. The cylinder head was also completely revised, and new 46mm throttle bodies introduced. The bore and cylinder pitches were aligned to create a smooth air intake profile, the ECU setting updated and injector angle modified to deliver a more direct spray into re-shaped twin-spark combustion chambers.

Other changes included optimised valve timing and increased inlet (from 9.2 to 10.1mm) and exhaust (from 8.6 to 9.3mm). To match and deal with the uprated intake efficiency and gas flow, the exhaust end-can of featured a new variable Exhaust Control Valve (ECV) very similar to the unit fitted to the Fireblade. It offers enhanced engine performance and efficiency as it opens at higher rpm and gives a pleasing exhaust note ‘pulse’ at lower rpm.

The engine’s fundamentals remained unchanged. Honda’s SOHC Unicam valve train is a feature of the MX competition-specification CRF450R and the low-set position of the cast camshaft contributes to the compact nature of the cylinder head and entire engine package.

The 270° phased crankshaft and uneven firing interval create its distinctive ‘throb’.

The crankcases are split vertically; the water pump is housed efficiently within the clutch casing with a thermostat integrated into the cylinder head. Manual and DCT versions of the engine share common crankcases with only minor external differences; the water and oil pumps are both driven by the engine’s balancer shafts.

It’s a semi-dry sump design with in-tank lower crankcase oil storage. This allows a lower pan depth that keeps overall engine height low. As the pressure-fed pump is located within the tank where it delivers its oil from, there is no need for a pressure-feed passage. Secondary vibrations are neutralised by the mutually reciprocating motion of the pistons, while primary inertial and coupling vibrations are cancelled by the use of biaxial balance shafts.

The aluminium clutch centre and pressure plate use ‘assist’ cams to ease upshifts and ‘slipper’ cams for deceleration and downshifting; the clutch diameter was reduced in size compared to the previous design, with reduced spring tension for lighter lever feel. The six-speed manual gearbox uses the same shift-cam design as found on the CRF450R to ensure positive changes. A quickshifter remains available as an optional extra.

Engine & Chassis Management Electronics

The Africa Twin’s engine received the benefits of Throttle By Wire (TBW) control in 2018, allowing much finer management of engine output and character as well as expanded Honda Selectable Torque Control (HSTC) for rear tyre grip; for 2020 the system evolved to work in conjunction with a six-axis IMU*.

The electronics system offers 4 levels of power and 3 levels of engine braking. There are seven levels of HSTC with each level’s amount of intervention being optimised to work with real-time input (yaw/roll angle and rate) from the IMU. The spacing of the levels has been optimised to allowing the rider a finer choice of the amount of rear tyre slide for off-road riding. HSTC can also be turned off completely.

Wheelie Control is another feature that was introduced in 2020. Again, with the IMU measuring pitch angle and rate, and controlling engine torque via TBW, the rider can choose between 3 levels of input. Level 1 allows for intended wheel lift but suppresses any sudden movement. Level 3 stops any front wheel elevation and level 2 is mid-way between the two. Wheelie Control can also be turned off completely.

There are four default riding mode settings: TOUR, URBAN, GRAVEL and OFF-ROAD to cover most riding conditions and situations plus two customisable USER settings. Even within the default riding modes, it’s possible to change some parameters – HSTC between levels 1-7 (plus off), Wheelie Control between levels 1-3 (plus off) and DCT S mode shift pattern levels 1-3.

TOUR employs the highest level of Power (1), for touring loaded with pillion and luggage plus mid-range Engine Braking (2) with active on-road Cornering ABS.

URBAN suits wide-ranging riding requirements and uses mid-level Power (2) and Engine Braking (2) with active on-road Cornering ABS.

GRAVEL delivers the lowest level of Power (4) and Engine Braking (3). Cornering ABS is active with an off-road setting; in this setting, the rear brake ABS cannot be switched off.

OFF-ROAD uses lower-mid level Power (3) and the lowest amount of Engine Braking (3). Cornering ABS is active with an off-road setting; the rear brake ABS can be switched off.

USER 1 & 2 modes offer the rider a choice of two distinct personalized setups – choosing between Power levels 1-4 and Engine Braking 1-3, plus HSTC, Wheelie Control and ABS (on-road/off-road) parameters. USER 1 starts out with level 2 Power and Engine Braking, USER 2 uses level 4 Power and 3 Engine Braking.

Dual Clutch Transmission

Honda has sold over 200,000 DCT-equipped motorcycles across Europe since the system first appeared as an option on the VFR1200F in 2009. Testament to its acceptance in the marketplace, in 2020 DCT versions of Africa Twin (including Adventure Sports version) accounted for 47% of the model’s sales.

The unique DCT system delivers consistent, super-fast seamless gear changes, and very quickly becomes second nature in use. It uses two clutches: one for start-up and 1^st, 3^rd and 5^th gears: the other for 2^nd, 4^th and 6^th, with the mainshaft for each clutch located inside the other for compact packaging.

Each clutch is independently controlled by its own electro-hydraulic circuit. When a gear change occurs, the system pre-selects the target gear using the clutch not currently in use. The first clutch is then electronically disengaged as, simultaneously, the second clutch engages.

The result is a consistent, fast and seamless gear change. Furthermore, as the twin clutches transfer drive from one gear to the next with minimal interruption of the drive to the rear wheel, any gear change shock and pitching of the machine is minimised, making the change feel direct as well as smooth.

The extra benefits of durability (as the gears cannot be damaged by missing a gear), impossibility of stalling, low stress urban riding, reduced rider fatigue and greater ability to focus on cornering lines and braking points add to DCT’s appeal.

Three modes of operation are available. MT mode gives full manual control, allowing the rider to shift with the handlebar trigger control buttons. Automatic D mode is ideal for city and highway riding, and achieves optimum fuel efficiency. Automatic S mode offers three levels of sportier riding, as the ECU lets the engine rev a little higher before shifting up, and shifts down sooner when decelerating for extra engine braking.

In either D or S mode, DCT offers immediate manual intervention if required – the rider simply selects the required gear using the up and down shift triggers on the left handlebar. At an appropriate time, DCT seamlessly reverts back to automatic mode, depending on throttle angle, vehicle speed and gear position.

DCT for the Africa Twin is also fully equipped to operate in an adventure environment, with off-road functionality enhanced by the G switch accessed via the TFT touch screen display. Activating the G switch in any riding mode improves the feel for available traction and machine control by reducing the amount of clutch slip during gear changes.

Further functionality for the DCT system comes in the form of incline detection, by means of which the gear shift pattern is adapted depending on the grade of an incline to provide optimum control.

A new feature for the CRF1100L Africa Twin’s DCT system for the change to the 1100cc model for 2020 was cornering detection. When the IMU recognises the bike is cornering, the system subtly adjusts the shifting programme for the most natural gear changes.

For 2022, the DCT settings have been further optimised in first and second gears to allow smoother handling from a standing start and at very low speeds.

Chassis

At the very heart of the Africa Twin’s elevated on- and off-road performance is a Bosch MM7.10 six-axis Inertial Measurement Unit (IMU) tucked away at the centre of the machine, that measures – in real-time – roll angle/rate, pitch angle/rate and yaw angle/rate. It manages rear wheel traction via TBW and HSTC, front braking grip through Cornering ABS, front wheel lift through Wheelie Control and also adds Rear Lift Control.

In conjunction with the addition of IMU control, for its 2020 evolution the strength and rigidity balance of the steel semi-double cradle frame was completely re-examined by Honda’s development engineers to boost off-road ability – at the same time reinforcing its all-round on-road manners. Rigidity around the steering head was optimised to enhance feel for front end grip; the main spars were made slimmer and straighter and did away with the front cross pipe. A bolt-on aluminium subframe (finished in red) replaced the integral steel structure of the previous design to reduce width by 40mm to 195mm – crucial for easier ground reach. The lighter aluminium swingarm – taking its direction from the design used by the CRF450R – improved rigidity improves rear wheel traction and rider feel.

With stroke length of 230mm the 45mm Showa cartridge-type inverted front fork offers long-travel bump absorption and features revised internal settings to improve both on- and off-road performance. Rebound and compression damping are fully adjustable. A cast aluminium top yoke and forged bottom yoke – joined by hollow aluminium stem shaft – clamp the fork legs with two bolts each top and bottom.

Matching the front suspension, the Showa rear shock delivers 220mm axle travel and features a 46mm cylinder and remote reservoir for stable damping control under extreme off-road riding conditions. Spring preload can be adjusted via a dial on the shock body; rebound and compression damping are also fully adjustable.

The swingarm pivot points’ inner plates use 600MPa high-strength steel and the upper cross tube that connects them acts as the rear shock upper mount (through a pillow-ball joint) improving feel for rear wheel traction.

The IMU takes in lean angle, deceleration (from front/rear wheel speed sensors) and incorporates the slip rate of the front and rear wheels to manage braking pressure through the ABS; likewise if it detects sudden rear wheel lift, it finely controls brake force to maintain stability. When stationary the rear ABS can be cancelled for off-road riding.

Compact two-piece radial-mount four-piston calipers work dual 310mm ‘wave’ floating discs through sintered pads. The rear 256mm ‘wave’ disc features hole punching and shaping. 21/18-inch front rear (stainless steel) spoked wheels wear 90/90-21 and 150/70-18 tyres. Block pattern tyres (Continental 90/90-21M/C 54S and 150/70B 18M/C 70Q, rated at 180km/h and 160km/h respectively) are approved for fitment.

Ground clearance is 250mm, with wheelbase of 1574mm and rake and trail of 27° 30’/113mm. Wet weight is 226kg.

Accessories

The range of Honda Genuine Accessories for the Africa Twin includes premium (42L) aluminium top box and panniers plus large (58L) plastic top box and panniers, two seat heights (a lower 825-845mm and taller 870-895mm option), touring screen, radiator guards, engine guards and side pipes, knuckle guard extensions, heated grips and an ACC charging socket.

2022 Honda Africa Twin – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $16999 USD
Canada MSRP Price: $14499 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

2022 Honda Africa Twin – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain
Engine Type Liquid-cooled parallel twin with 270° phased crankshaft
Displacement 1,084 cc
Bore & Stroke 92 mm x 81.5 mm
Compression Ratio 10.1:1
Valve Train SOHC, Unicam, four valves per cylinder
Fuel Delivery PGM-FI electronic fuel injection with 46 mm throttle bodies
Transmission Standard model: Six-speed manual
DCT model: Six-speed Dual Clutch Transmission with four automatic shift modes and a manual mode
Final Drive #525 O-ring-sealed chain (16/42T)
Chasis & Suspension
Front Suspension Showa 45 mm cartridge-type inverted telescopic fork with dial-style preload adjuster and damping force adjustments, 230 mm (9.1 in.) travel
Rear Suspension Monoblock aluminum swing arm with Pro-Link® with Showa gascharged damper, hydraulic dial-style preload adjuster and rebound damping adjustments, 220 mm (8.7 in.) rear wheel travel
Dimensions & Additional Information
Tires Front: 90/90-R21 tube type
Rear: 150/70-R18 tube type
Brakes Front: 310 mm dual wave floating discs with aluminum hub and radial mount four-piston calipers and sintered metal pads

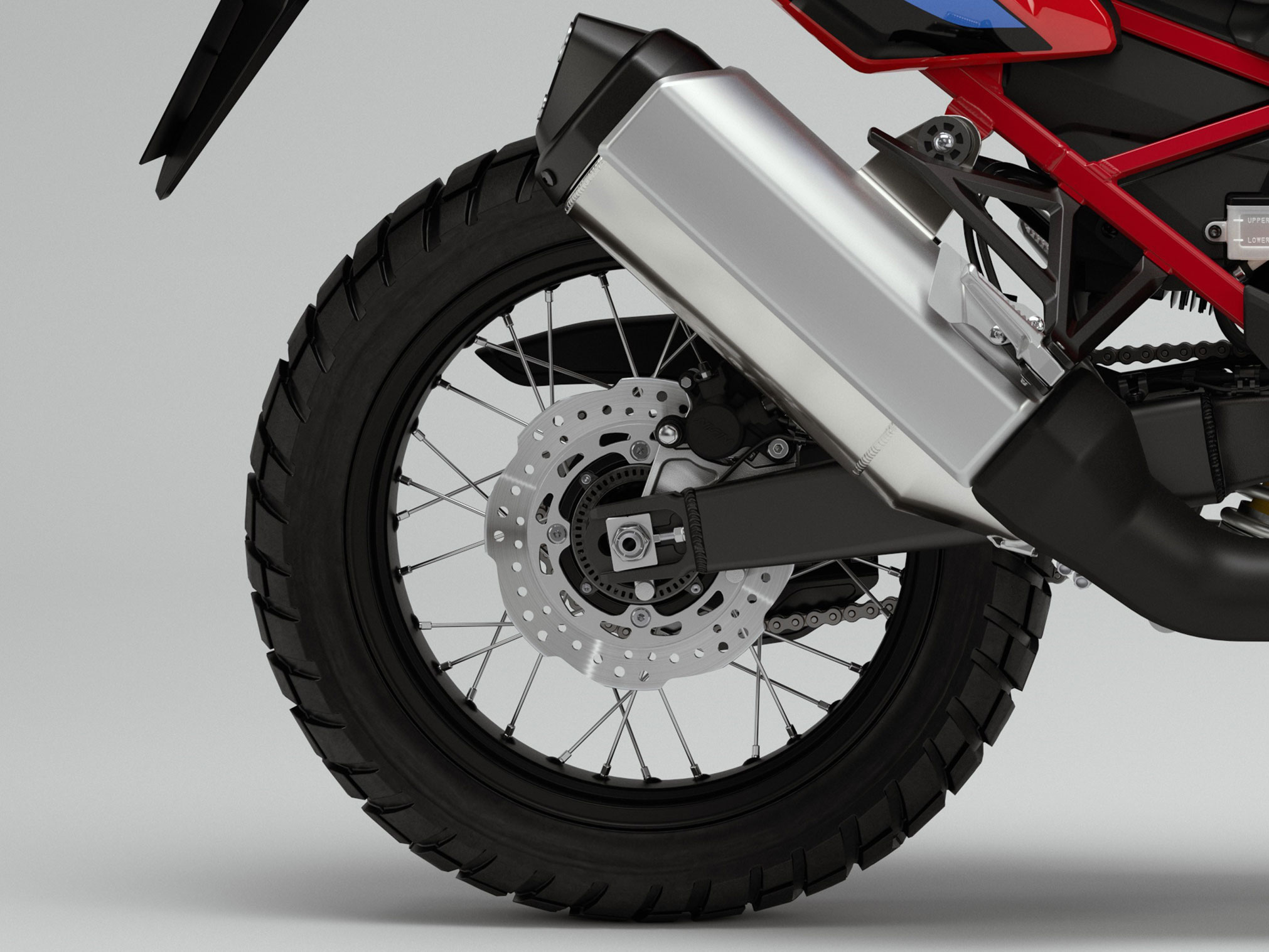

Rear: 256 mm wave disc with single-piston caliper and sintered metal pads. Lever-Lock Type Parking Brake System on DCT model with additional slide type single-piston caliper
ABS 2 channel with IMU. Selectable ABS MODE with on-road and off-road setting. Rear ABS on/off switch
Ground Clearance 250 mm (9.8 in.)
Seat Height 850 mm (33.5 in.) / 870 mm (34.3 in.)
Wheelbase 1,575 mm (62 in.)
Curb Weight 229 kg (505 lb.)
including required fluids and full tank of gas—ready to ride
Fuel Capacity 18.8 litres
Colour White / Tricolour
Warranty 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

2022 Honda Africa Twin – Totalmotorcycle.com European Specifications/Technical Details

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
