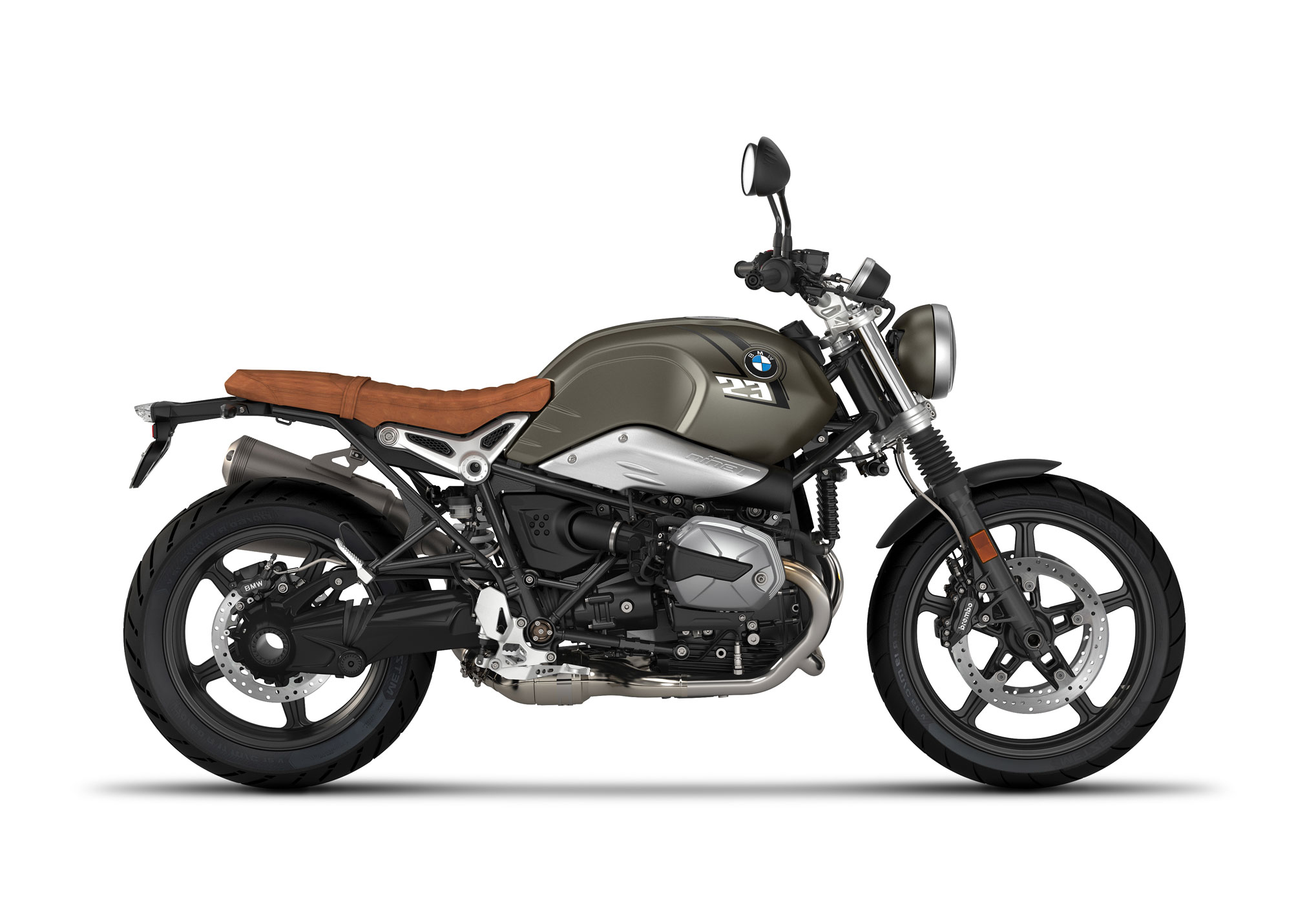

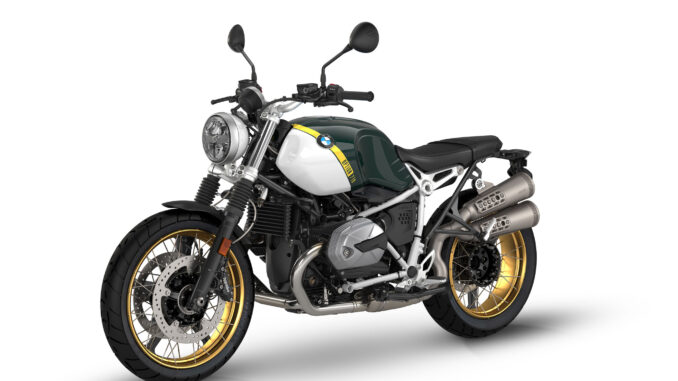

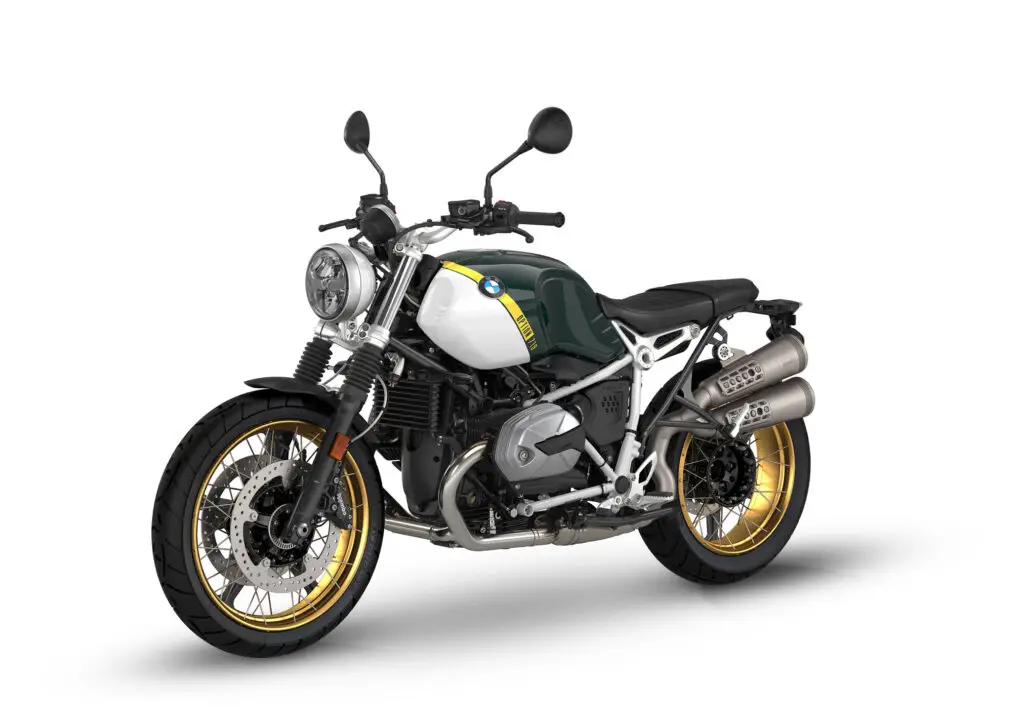

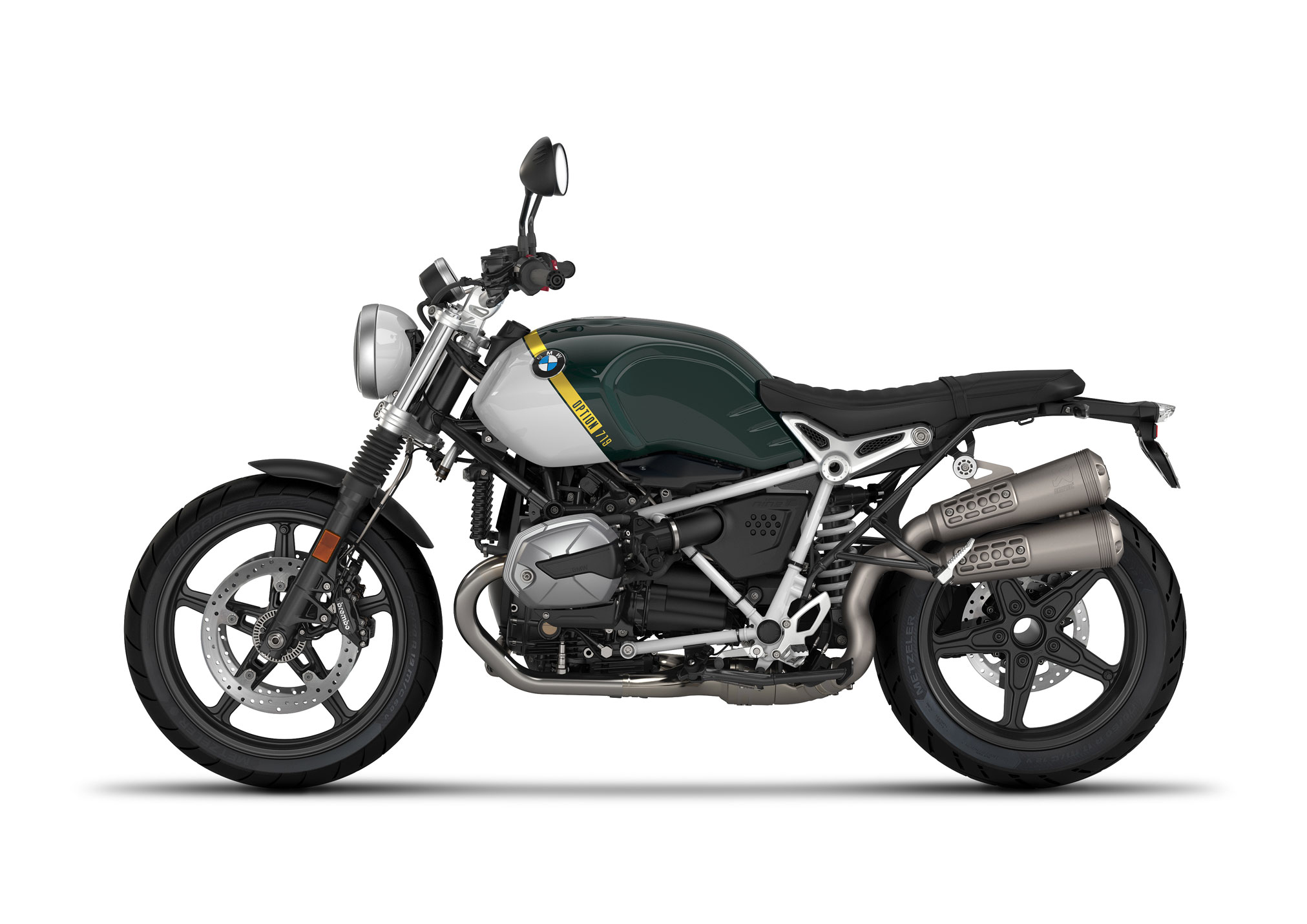

2023 BMW R nineT Scrambler: SCRAMBLED EGGS TASTE BETTER.
Introducing the 2023 BMW R nineT Scrambler…
POWERFUL, ROBUST, CREATIVE
The R nineT Scrambler knows no conventions: rough, unadapted, individual. Its handling is balanced and unique. With the boxer, you can ride around with your head held high, it is available for every spontaneity. And the typical Scrambler look together with the relaxed seating position makes a lot of difference – and above all is a lot of fun. Design your R nineT Scrambler so that it fits perfectly into your life. No matter what the others say. Just typical #Soulfuel.
Relaxed, unconventional and incredibly dynamic. The R nineT Scrambler promises lots of freedom and pleasure. And it is just waiting for what you have to offer.
“The design makes you want more. Robust, rough, rebellious – only your own rules count.” – Ulf Musekamp (Automotive engineer R nineT)
2023 BMW R nineT Scrambler Totalmotorcycle.com Key Features
Standard equipment:
- LED headlights
- Speedometer with on-board computer
- Automatic Stability Control (ASC)
- Ride Modes: Rain & Road
- Drivetrain and final drive in black
- USB charging socket
Optional equipment:
- Ride Modes Pro with Dirt mode
- Heated grips and cruise control
- New paintwork
- Cross-spoked wheels I & II
- Option 719 billet packs I & II
- Off-road tires
Optional accessories:
- Rev counter with on-board computer
- Short rear
- Rear tracker
- Functionally-integrated turn indicators
- Cylinder head covers in 2V style
2023 BMW R nineT Scrambler Totalmotorcycle.com Features and Benefits
WILD BEAUTY – THE DESIGN
Let yourself be swept away
Each of the four paint variants emphasizes the character of the R nineT Scrambler in its own unique way.
- Telescopic forks with gaiters
- Rough-toothed footrests
- Boxer engine
- Tank shape and air box cover

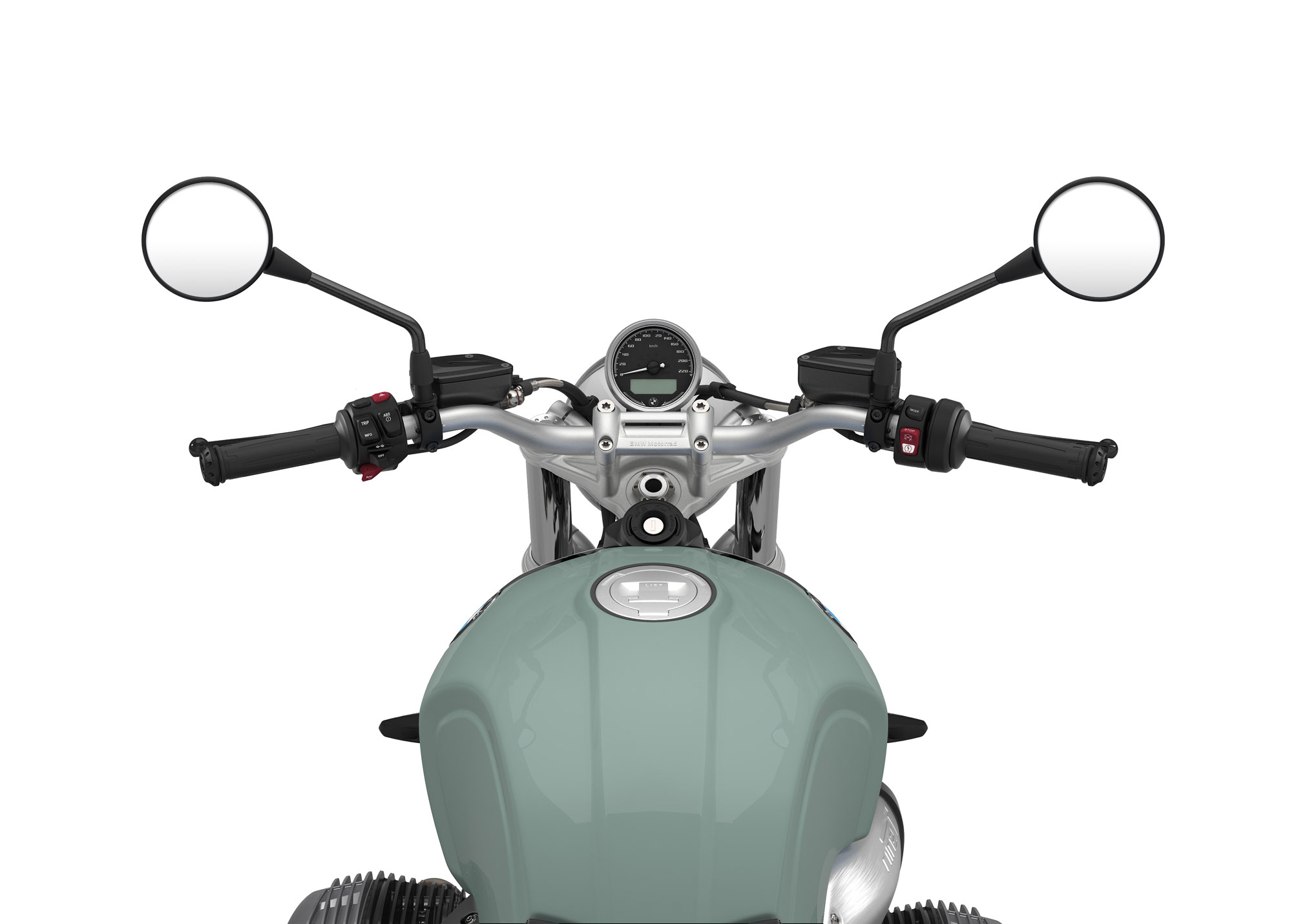

- Classic round instrument speedometer
- Elevated exhaust system
- Seat in patented leather style
- LED headlights and turn signal indicators
Do what you want
What the others do has never been your thing. So probably you want to do your own thing? The R nineT Scrambler is ideal for individualization. The Option 719 Shadow II billet pack is manufactured to our highest standards of craftsmanship and quality. The short rear end integrates rear light, brake light and indicator. It may be the end of your bike … but it is only the beginning of your possibilities.
LET’S GO SCRAMBLING
Turn on the power: With the air/oil-cooled boxer of the Scrambler, you can do this in a playful way. We have optimized its power and torque curve and noticeably increased it in the 4,000 to 6,000 rpm range. This way, you have the power exactly where you need it and can remain powerful out on the road. The peak torque remains at 85 lbs-ft. at 6,000 rpm.
- 85lbs-ft. torque at 6,000 rpm
- 492lbs. unladen weight, road ready, fully fuelled
- 1,170cc capacity
- 32.3in. seat height
- Air/oil-cooled twin-cylinder four-stroke boxer engine
MORE FUN
Relaxed control doesn’t need to be a contradiction
In the Dirt Mode of the available Ride Mode Pro, you can take it easy: On loose ground, the ASC and DTC control systems take effect much later – for dynamic maneuvers providing even more fun on the bike. At the same time, the available adaptive headlight improves illumination within the bend between a lean angle of 7° and 25°: Wherever you head, your light is already there.
3 year warranty
Ride on & on & on.
Get up to 3-years or 36,000 miles warranty on all new motorcycles.
- Version Basic: New color Manhattan metallic matt. Kalamata metallic matt no longer available.
- Option 719: New color Underground uni/Lightwhite uni. Blackstorm metallic/Racing red no longer available.
- Option 719: New color Pollux metallic/Lightwhite uni. Cosmic blue metallic/Lightwhite no longer available.
- Colors
- Manhattan Metallic Matte replaces Kalamata Metallic Matte.
- Option 719 Underground / Light White replaces Blackstorm Metallic / Racing Red.
- Option 719 Pollux Metallic / Light White replaces Cosmic Blue Metallic / Light White.
- Granite Gray Metallic remains unchanged.
Equipment
- No equipment changes.
All US R nineT Scrambler models automatically add Select Package.
ZSL Select Package – Ride Modes Pro, Heated Grips, Cruise Control, Adaptive Headlight, MSR Dynamic Engine Brake Control, Dynamic Traction Control.
Individual Options – Spoked Wheels (only with Low Suspension), Design Option Gold Wheels (not with Low Suspension), Black Cross Spoked Wheels (not with Low Suspension), Low Suspension, Off Road Tires, High Brown Seat and Billet Packs.
2023 BMW R nineT Scrambler – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $12,995 USD
Canada MSRP Price: $15,045 CDN
Europe/UK MSRP Price: from £12,350 GBP (total selling price)
Engine
Type
Air/oil-cooled two-cylinder, four-stroke boxer engine with two camshafts and four radially arranged valves per cylinder as well as central counterbalance shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Rated output
109 hp at 7,250 rpm
Max. torque
85 lbs-ft. at 6,000 rpm
Compression ratio
12.0 : 1
Mixture control
Electronic port fuel injection
Emission Control
Closed-loop 3-way catalytic converter
Performance / fuel consumption
Maximum speed
over 124 mph
Fuel type
Unleaded super(premium)
Electrical system
Alternator
Three-phase alternator with 720 Watt nominal power
Battery
12 V / 12 Ah
Power transmission
Clutch
Single dry plate clutch, hydraulically operated
Gearbox
Constant mesh 6-speed gearbox with helical gear teeth
Drive
Shaft drive
Chassis / brakes
Frame
Three-section frame consisting of one front and two rear sections, load-bearing engine-gearbox unit, removeable pillion frame for single ride use
Front wheel location / suspension
Telescopic forks with 43 mm fixed-tube diameter
Rear wheel location / suspension
Cast aluminum single-sided swing arm with BMW Motorrad paralever, central spring strut, spring preload continuously adjustable by handwheel, rebound damping continuously adjustable
Suspension travel, front / rear
4.9″ / 5.5″
Wheelbase
60.1”
Caster
4.4″
Steering head angle
61.5°
Wheels
Cast wheels
Rim, front
3.00 x 19″
Rim, rear
4.50 x 17″
Tire, front
120/70 R 19
Tire, rear
170/60 R 17
Brake, front
Twin-disc brakes, diameter 12.6″, 4-piston calipers
Brake, rear
Single disc brake, diameter 10.4″, double-piston floating caliper
ABS
BMW Motorrad ABS Pro
Dimensions / weights
Seat height
32.3”
Inner leg curve
72.0”
Usable tank volume
4.5 gal.
Reserve
app. 0.9 gal.
Length
85.6”
Height (incl. mirrors)
52.4”
Width (incl. hand levers)
34.1”
Unladen weight, road ready, fully fueled
492 lbs.
1)
Permitted total weight
948 lbs.
Payload (with standard equipment)
456 lbs.
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.
2023 BMW R nineT Scrambler – Totalmotorcycle.com Canada Specifications/Technical Details
Engine
Type
Air/oil-cooled two-cylinder, four-stroke boxer engine with two camshafts and four radially arranged valves per cylinder as well as central counterbalance shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Ratet output
80 kW (109 hp) at 7,250 rpm
Max. torque
116 Nm at 6,000 rpm
Compression ratio
12.0 : 1
Mixture control
Electronic intake pipe injection
Emission Control
Closed-loop 3-way catalytic converter, emission standard EU-5
Performance / fuel consumption
Maximum speed
over 200 km/h
Fuel consumption per 100 km based on WMTC
5.1 l
CO2 emission based on WMTC
119 g/km
Fuel type
Unleaded super(premium), octane number 95-98 (RON) (rated output at 98 RON)
Electrical system
Alternator
Three-phase alternator with 720 Watt nominal power
Battery
12 V / 12 Ah, maintenance-free
Power transmission
Clutch
Single dry plate clutch, hydraulically operated
Gearbox
Constant mesh 6-speed gearbox with helical gear teeth
Drive
Shaft drive
Chassis / brakes
Frame
Three-section frame consisting of one front and two rear sections, load-bearing engine-gearbox unit, removeable pillion frame for single ride use
Front wheel location / suspension
Telescopic forks with 43 mm fixed-tube diameter
Rear wheel location / suspension
Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut, spring preload adjustable by hook wrench, rebound-stage damping adjustable
Suspension travel, front / rear
125 mm / 140 mm
Wheelbase
1,527 mm
Castor
110.60 mm
Steering head angle
61.5°
Wheels
Cast wheels
Rim, front
3.00 x 19″
Rim, rear
4.50 x 17″
Tire, front
120/70 R 19
Tire, rear
170/60 R 17
Brake, front
Twin-disc brakes, diameter 320 mm, 4-piston callipers
Brake, rear
Single disc brake, diameter 265 mm, double-piston floating calliper
ABS
BMW Motorrad ABS Pro
Dimensions / weights
Seat height
820 mm
Inner leg curve
1,830 mm
Usable tank volume
17 l
Reserve
app. 3.5 l
Length
2,175 mm
Height (incl. mirrors)
1,330 mm
Width (incl. hand levers)
865 mm
Unladen weight, road ready, fully fuelled
223 kg
1)
Permitted total weight
430 kg
Payload (with standard equipment)
207 kg
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.
2023 BMW R nineT Scrambler – Totalmotorcycle.com European Specifications/Technical Details
Engine
Type
Air/oil-cooled two-cylinder, four-stroke boxer engine with two camshafts and four radially arranged valves per cylinder as well as central counterbalance shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Ratet output
80 kW (109 hp) at 7,250 rpm
Max. torque
116 Nm at 6,000 rpm
Compression ratio
12.0 : 1
Mixture control
Electronic intake pipe injection
Emission Control
Closed-loop 3-way catalytic converter, emission standard EU-5
Performance / fuel consumption
Maximum speed
over 200 km/h
Fuel consumption per 100 km based on WMTC
5.1 l
CO2 emission based on WMTC
119 g/km
Fuel type
Unleaded super(premium), octane number 95-98 (RON) (rated output at 98 RON)
Electrical system
Alternator
Three-phase alternator with 720 Watt nominal power
Battery
12 V / 12 Ah, maintenance-free
Power transmission
Clutch
Single dry plate clutch, hydraulically operated
Gearbox
Constant mesh 6-speed gearbox with helical gear teeth
Drive
Shaft drive
Chassis / brakes
Frame
Three-section frame consisting of one front and two rear sections, load-bearing engine-gearbox unit, removeable pillion frame for single ride use
Front wheel location / suspension
Telescopic forks with 43 mm fixed-tube diameter
Rear wheel location / suspension
Cast aluminum single-sided swingarm with BMW Motorrad paralever, central spring strut, spring preload continuously adjustable by handwheel, rebound damping continuously adjustable
Suspension travel, front / rear
125 mm / 140 mm
Wheelbase
1,527 mm
Castor
110.60 mm
Steering head angle
61.5°
Wheels
Cast wheels
Rim, front
3.00 x 19″
Rim, rear
4.50 x 17″
Tyre, front
120/70 R 19
Tyre, rear
170/60 R 17
Brake, front
Twin-disc brakes, diameter 320 mm, 4-piston callipers
Brake, rear
Single disc brake, diameter 265 mm, double-piston floating calliper
ABS
BMW Motorrad ABS Pro
Dimensions / weights
Seat height
820 mm
Inner leg curve
1,830 mm
Usable tank volume
17 l
Reserve
app. 3.5 l
Length
2,175 mm
Height (incl. mirrors)
1,330 mm
Width (incl. hand levers)
865 mm
Unladen weight, road ready, fully fuelled
223 kg
1)
Permitted total weight
430 kg
Payload (with standard equipment)
207 kg
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
