2023 MV Agusta F3R: MUSCLE AT ANY ANGLE.
Introducing the 2023 MV Agusta F3R…
DEEP ROSSO
The essential, uncompromising F3, with enhanced electronics and safety. The aristocracy of speed.
2023 MV Agusta F3R Totalmotorcycle.com Key Features
- 3 Cylinders
- 147HP Engine max Power @ 13.000 R.P.M
- 240KM/H Max speed
- 798CC Engine displacement
- 173KG Dry weight
- 13.3:1 Compression ratio
- NEW FULL LED FRONT HEADLAMP
- NEW REAR-VIEW MIRRORS WITH INTEGRATED LED TURN SIGNALS
- LED REAR TURN SIGNALS
- NEW FRONT BRAKING SYSTEM WITH BREMBO M4.30 STYLEMA CALIPERS
- NEW BREMBO PR 16/19 RADIAL MASTER CYLINDER
- NEW FULL LED HEADLIGHT
- NEW REAR-VIEW MIRRORS WITH FULL LED TURN SIGNALS
- NEW FULL LED REAR TURN SIGNALS
- NEW ELECTRONIC RIDE-BY-WIRE THROTTLE ASSEMBLY WITH THE INTEGRATION OF CONTROLLED NEGATIVE ROTATION
- CONTINENTAL ABS WITH UPDATED CORNERING FUNCTION
- PIRELLI DIABLO ROSSO IV CORSA TYRES
- MOBISAT ANTI-THEFT SYSTEM WITH GEOLOCATION
- 5.5” TFT DISPLAY WITH CONNECTIVITY
- REINFORCED WIRING HARNESS
- OPTIMISED REAR BRAKING SYSTEM
- CONTINENTAL MK100 ABS MODULE WITH NEW CALIBRATION
- NEW LED TURN SIGNALS
- MOBISAT ANTI-THEFT SYSTEM WITH GEOLOCATION
- NEW ELECTRONIC RIDE-BY-WIRE THROTTLE ASSEMBLY WITH THE INTEGRATION OF CONTROLLED NEGATIVE ROTATION
- NEW BREMBO PR 16/19 RADIAL MASTER CYLINDER
- NEW REAR-VIEW MIRRORS WITH INTEGRATED LED TURN SIGNALS
- 5.5” COLOUR TFT INSTRUMENTATION
- NEW FULL LED HEADLIGHT
- BREMBO M4.30 STYLEMA FRONT CALIPERS
- PIRELLI DIABLO ROSSO IV CORSA TYRES
2023 MV Agusta F3R Totalmotorcycle.com Features and Benefits
ENGINE
- COUNTER-ROTATING CRANKSHAFT
- CAM FOLLOWERS WITH DLC COATING TO REDUCE INTERNAL FRICTION AND IMPROVE PERFORMANCE
- TITANIUM VALVES
- OPTIMISED CRANKSHAFT MAIN BEARINGS, CONNECTING ROD BEARINGS AND COUNTERSHAFT BEARINGS TO REDUCE FRICTION AND INCREASE RELIABILITY
- OPTIMISED CLUTCH BEASKET FOR SMOOTHER ENGAGEMENT
DESIGN. ROSSO EMOTIONS
The F3 Rosso takes F3 characteristic features to the extreme. Lines designed for performance but projected into the future. Style and performance that find their maximum expression in the contrast between the red superstructure and the completely black components.
EVOLUTION ELECTRONICS
The electronics have undergone a radical evolution, thanks to the new Made in Italy inertial platform and Continental ABS with cornering function. Traction control is even more sensitive and precise, as well as the wheelie control, which allows you to easily and efficiently manage the exuberance of the bike.
CONNECTED POWER

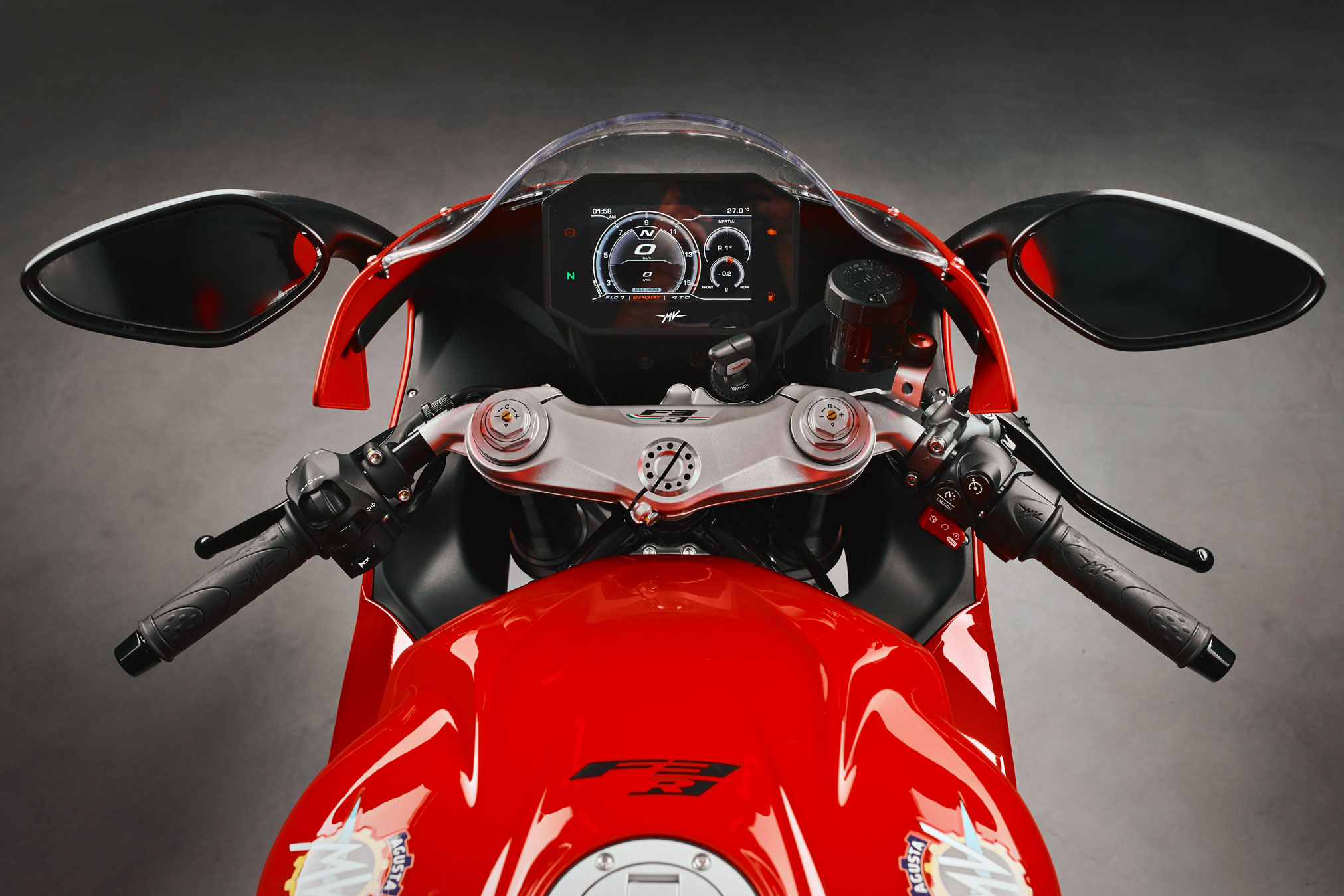

The instrumentation is rich, with a 5.5″ TFT dashboard as the interface between the electronics and the rider. The wide range of information available, the ease of selection and the possibility of managing numerous parameters directly from the smartphone via the MV Ride App contribute to making both riding and choosing engine maps and adjustments even more fun.
SAFETY
The ability to avoid locking even in corners makes the Continental ABS with cornering function a valuable ally on the road and on the track, gives the F3 Rosso all the safety possible, accompanied by braking performance on par with the best supersport bikes.
2023 MV Agusta F3R – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ See Dealer for Pricing in USD
Canada MSRP Price: $ See Dealer for Pricing in CDN
Europe/UK MSRP Price: £14,840 Dealer GBP
ENGINE
Type Three cylinders, 4 stroke, 12 valves
Timing system “D.O.H.C” with mechanical chain tensioner
and DLC tappet
Total displacement 798 cm3 (48.7 cu. in.)
Compression ratio 13.3:1
Starting Electric
Bore x stroke 79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Max. power – r.p.m. (at the crankshaft) 108 kW (147 hp) at 13.000 r.p.m.
Max. torque – r.p.m. 88 Nm (8.98 kgm) at 10.100 r.p.m.
Cooling system Cooling with separated liquid and oil radiators
Engine management system Integrated ignition – injection system MVICS 2.1
(Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor
Nemo 2.1, throttle body bore 50 mm diameters full ride by wire Mikuni, pencil-coil with ion-
sensing technology, control of detonation and
misfire. Torque control with four maps.
Traction Control with eight levels of intervention
Electronic quick shift MV EAS 3.0 (Electronically Assisted Shift
Up & Down)
Clutch Wet, multi-disc slipper clutch
Transmission Cassette style; six speed, constant mesh
Primary drive 22/41
Gear ratio
First gear 13/37
Second gear 16/34
Third gear 18/32
Fourth gear 19/30
Fifth gear 21/30
Sixth gear 22/29
Final drive ratio 17/43
ELECTRICAL EQUIPMENT
Voltage 12 V
Alternator 350 W at 5.000 r.p.m.
Battery 12 V – 8.6 Ah
DIMENSIONS AND WEIGHT
Wheelbase 1.380 mm (54.33 in.)
Overall length 2.030 mm (79.92 in.)
Overall width 730 mm (28.74 in.)
Saddle height 830 mm (32.68 in.)
Min. ground clearance 120 mm (4.72 in.)
Trail 99 mm (3.89 in.)
Dry weight 173 kg (381.4 lbs.)
Fuel tank capacity 16,5 l (4.36 U.S. gal.)
PERFORMANCE
Maximum speed* 240.0 km/h (149.1 mph)
Acceleration* 0-100 km/h in 3.05 s 0-200 km/h in 9.00 s
FRAME
Type ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminium alloy
FRONT SUSPENSION
Type Marzocchi “UPSIDE DOWN” telescopic
hydraulic fork, with rebound-compression
damping and spring preload external and
separate adjustment
Fork dia. 43 mm (1.69 in.)
Wheel travel 125 mm (4.92 in.)
REAR SUSPENSION
Type Progressive, Sachs single shock absorber with rebound and compression damping and spring preload adjustment
Single sided swing arm material Aluminium alloy
Wheel travel 130 mm (5.12 in.)
BRAKES
Front brake Double floating disc with Ø 320 mm (Ø 12.6 in.)
diameter, with steel braking disc and flange
Front brake caliper Brembo Stylema radial-type, with 4 pistons Ø 34 mm (Ø 1.34 in.)
Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia. Rear brake caliper Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)
ABS System Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
WHEELS
Front: Material/size Alluminium alloy 3.50” x 17”
Rear: Material/size Alluminium alloy 5.50” x 17”
TYRES
Front 120/70 – ZR 17 M/C (58 W)
Rear 180/55 – ZR 17 M/C (73 W)
FAIRING
Material Thermoplastic – Aluminium belly-pan
CONTENTS
Titanium components Intake and exhaust valves
Exclusive content Dashboard TFT 5.5”color display – Cruise control Launch control – Bluetooth – GPS – MV Ride App for navigation mirroring, app-controlled
engine, rider aids setup – Mobisat anti-theft
system with geolocation
OPTIONAL
The full Special Parts range is available on the MV Agusta website
EMISSIONS
Environmental Standard Euro 5
Combined fuel consumption 6.1 l/100 km
CO2 Emissions 139 g/km
* Speed attained on closed course. Every country could have a price variation due to local import duties and taxes.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
