2024 Ducati Multistrada V4RS: A SPORTY STYLE DOESN’T COME CHEAP.
Introducing the new 2024 Ducati Multistrada V4RS…
The new 2024 Ducati Multistrada V4 RS is the sportiest, most sophisticated, and exclusive Multistrada ever created by the Bologna based manufacturer.
Produced in a numbered series, the Multistrada V4 RS is the latest addition to the family and is equipped with the Desmosedici Stradale engine, derived from the Panigale V4. The Multistrada V4 RS offers incredible performance and power delivery with the unmistakable sound of the Desmosedici Stradale engine with dry clutch and Akrapovič silencer. Dynamic handling and responsiveness are assured by the chassis of the sportiest Multistrada in the family, fitted with Öhlins suspension, single-sided aluminum swingarm, and forged rims.
The most demanding of riders will appreciate the technical and stylistic details that make it a unique motorcycle in personality and substance. The prominent RS logo is expressed in the livery, the key, and the dashboard graphics. The slim and streamlined tail, designed exclusively for this bike further enhances its sportier character.
The Multistrada V4 RS is a model in which every component, every detail – from the electronic suite equipped with radar technology to the very light titanium subframe – was chosen with a single objective: to create the sportiest touring motorcycle ever. The most exciting Multistrada ever created by Ducati.
2024 Ducati Multistrada V4RS Totalmotorcycle.com Key Features
- Ducati Multistrada V4 RS, when Superbike meets touring
- An uncompromising Multistrada V4, powered by the Panigale V4-derived Desmosedici Stradale engine, with a dry clutch and performance orientated electronics suite
- Weight reduction is achieved through the application of exotic materials such as carbon fiber body parts, forged aluminum wheels, and titanium subframe
- A distinctive bold livery, designed by the Centro Stile with color references from MotoGP
- The Ducati Multistrada V4 RS is produced in a badged numbered series, proudly displayed on the triple clamp.
Colors
- Dedicated Iceberg White livery
Main standard equipment
- 1,103 cc Ducati Desmosedici Stradale engine with a valve clearance check every 18,000 miles (30,000 km)
- Aluminum monocoque frame and aluminum single-sided swingarm
- Titanium rear subframe*
- Carbon fiber details
- Öhlins Smart EC 2.0 semi-active electronic suspension with “event-based” system
- Wheel travel 170-170 mm
- 17″ Marchesini forged aluminum wheels with Pirelli Diablo Rosso IV Corsa tires sizes 120/70 ZR17 front and 190/55 ZR17 rear
- Bosch-Brembo ABS 10.3ME Cornering braking system
- 330 mm diameter front discs with Brembo Stylema 4-piston radial calipers
- Full LED headlight with DRL and Ducati Cornering Lights (DCL)
- TFT dashboard with 6.5” color screen with dedicated graphics and display*
- Bosch Inertial Measurement Unit (IMU)
- 4 Power Modes (Full, High, Medium, Low)
- 4 Riding Modes (Race, Sport, Touring, Urban)
- Front and rear radar technology (Adaptive Cruise Control and Blind Spot Detection)
- Ducati Wheelie Control (DWC)
- Ducati Traction Control (DTC)
- Engine Brake Control (EBC)
- Hands-Free Starting
- Ducati Connect with phone, music, and map navigator applications
- Ducati Quick Shift (DQS) Up&Down
- Vehicle Hold Control (VHC)
*Exclusive equipment for Multistrada V4 RS
Sports tail section
The narrow and lightweight technopolymer tail integrates the passenger grab handles. With no top case fixing systems, the side view is lighter, accentuating the bike’s sports attitude.
Direct handlebar attachment and new grips
The grips flaunt a sportier new design and a softer material. With no silent block, the handlebar is rigidly attached to the steering head for more direct riding feeling.
Low, tinted plexiglass and carbon beak
The refinement and elegance of Multistrada V4 RS is further enhanced with quality details such as the tinted plexiglass and carbon beak.
Titanium sub-frame
The titanium rear sub-frame makes for a 2.5 kg weight saving. Combined with the dedicated technopolymer tail section that integrates the passenger grab handles, this gives the bike a sportier line.
Numbering and dedicated livery
The Multistrada V4 RS presents a dedicated Iceberg White livery, finished with details from the MotoGP livery and enhanced with the serial number engraved on the steering head with a black anodized aluminium plate.
Engine
The 1103 cc Desmosedici Stradale. Complete with desmodromic timing control, the V4 has been revised to combine the fluidity and uniformity typical of Multistrada with the personality and sports attitude that have won the hearts of Ducatisti on the Panigale and Streetfighter.

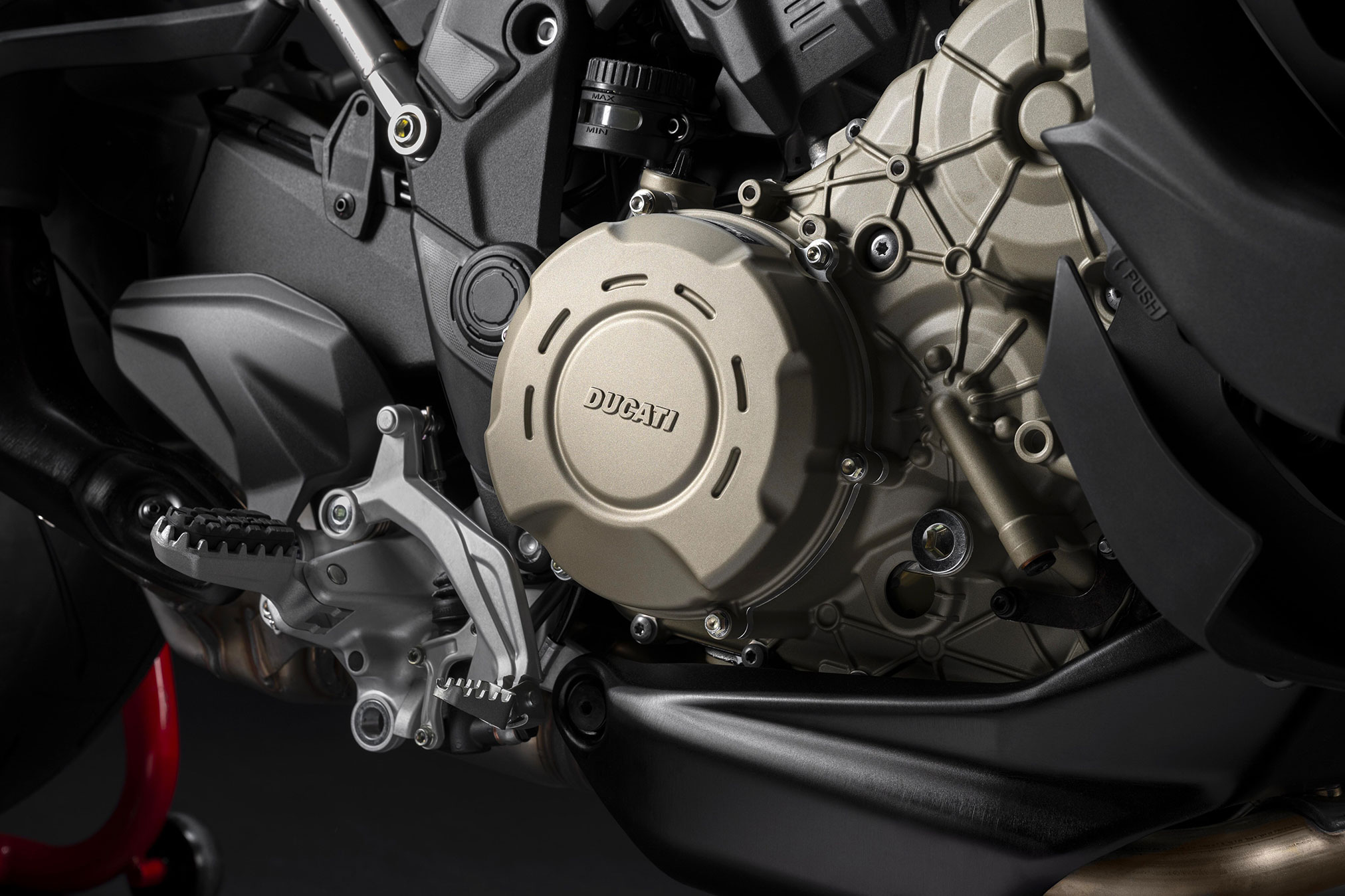

Dry clutch
Multistrada V4 RS mounts the STM EVO-SBK dry clutch in billet aluminium. This component ensures a smoother ride when braking and shifting and heightens the excitement with its distinctive sound.
Forged wheels
The Marchesini forged aluminium wheels offer total precision over mixed sections and speed in reaching the apex, as well as a 2.7 kg weight reduction with respect to standard cast wheels.
Superbike braking system
Deriving from that of the Panigale V4, the braking system adopts red Brembo Stylema calipers that act on a pair of 330 mm discs. The lever, with regressive kinematics, has a smaller pump, to offer greater power and modularity.
2024 Ducati Multistrada V4RS Totalmotorcycle.com Features and Benefits
Sporty style
The Ducati Multistrada V4 RS combines the unmistakable elegant Multistrada silhouette with technical features and technologies used in racing, and typical of Borgo Panigale’s sports bikes. The name RS recalls another motorcycle in Ducati history – the Monster S4 RS – created under the same inspiring principles.
The various carbon fiber components such as the front mudguard, the hand guards (designed specifically for this model), the heat shields, and the front “beak” are complemented by the contrasting Iceberg White livery, enriched by color references from the Desmosedici MotoGP.
The slender and lightweight techno-polymer tail integrates the passenger handles and defines an unmistakably sporty side view. The titanium subframe is an exotic component that accentuates its sportiness and allows a weight saving of 5.5 lb (2.5 kg) compared to the standard one. The Ducati Multistrada V4 RS is produced in a numbered series. The number is shown on a black anodized aluminum plate, embellished with the Italian flag and applied to the triple clamp.
Superbike engine
The Multistrada V4 RS is the only one in the family to adopt the 1,103 cc Desmosedici Stradale engine. To combine the smoothness typical of the Multistrada with the personality and sporty characteristics of the Panigale and the Streetfighter, configuring the V4 engine to deliver fluid power delivery curve at low rpm and at the same, due to the benefits of the desmodromic valve system, is exciting near the limiter. A motorcycle with a distinct personality, expressed in the exhaust tone, which is deep at low levels and exhilarating like all Ducati Superbikes during acceleration at high rpm.
These objectives were achieved by adopting the air filter from the Panigale V4 R, which is more breathable and sportier, and an exhaust system complemented with an Akrapovič silencer specifically developed for the Multistrada V4 RS.
In this configuration, the Desmosedici Stradale engine develops a maximum power of 180 hp, revving out to 13,500 rpm. This value was chosen to guarantee sporting performance while maintaining the usability that has always distinguished the Multistrada V4 since its first version.
To make the most of the performance of the road Desmosedici, characterized by greater acceleration, the final ratio has been shortened while keeping the gear ratios unchanged.
Finally, as on the Panigale V4 SP2 and Streetfighter V4 SP2, the Multistrada V4 RS also features an STM-EVO SBK dry clutch made from billet aluminum, with a specific configuration of springs and slipper ramps. This performance component, which smooths out riding during braking and gear-shifting phases, also complements the distinctive exhaust note with the metallic timbre that is synonymous with a dry-clutch Ducati. Among the dynamic benefits of the dry clutch, performance can be further enhanced by using Ducati Corse Performance Powered by Shell Advance oil, the result of the collaboration between Ducati Corse and Shell in Superbike and MotoGP.
To improve the thermal comfort of the engine, the Desmosedici Stradale has been designed to deactivate the rear cylinder bank when the bike is stationary, in neutral gear. Again to offer greater comfort, on the coldest days the ducts that channel fresh air to the rider’s legs, can be closed.
The maintenance interval for checking valve clearance on the Multistrada V4 RS is every 18,000 miles (30,000 km.)
Electronics
The Multistrada V4 RS is equipped with the advanced and sophisticated electronic package of the Multistrada V4 S, which includes, among other standard features, radar technology on both the front and rear, which enables the Adaptive Cruise Control (ACC) functionality and Blind Spot Detection (BSD).
The electronic systems of the Multistrada V4 RS, built around the Bosch inertial platform, are made up of 4 Power Modes (Full, High, Medium, Low), Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC) and Ducati Quick Shift (DQS) Up&Down.
All these systems have been calibrated for the characteristics and intended use of the model and integrated into four Riding Modes, namely Race, Sport, Touring, and Urban.
On the V4 RS, the Full Power Mode (associated by default with the Race Riding Mode, characterized by a chequered flag above the name) is introduced in the Multistrada family; this delivers maximum power in all gears, with a prompt response from the throttle. The other Power Modes have been calibrated for use on the Multistrada V4. In particular:
- High (“Sport” Mode) offers maximum power in 4th, 5th, and 6th gear with a slight reduction in torque in 1st, 2nd, and 3rd, with prompt throttle response.
- Medium (“Touring” Mode) also offers maximum power in 4th, 5th, and 6th gear, with a slight reduction in 1st, 2nd, and 3rd, but with a sweeter throttle response.
- Low (“Urban” Mode) with power reduced to 114 hp and a smooth throttle response.
The Multistrada V4 RS is also equipped with EBC (Engine Brake Control) adjustable on three levels, which allows the rider to customize the engine braking depending on riding style and context.
The greater sportiness of the electronic package of the V4 RS is highlighted by the main screen with functionality similar to the Infomode Track of the Panigale V4 and Streetfighter V4. This drop-down menu displays the levels set for DTC, ABS, and DWC in the selected riding mode. Furthermore, the intervention of Ducati Traction Control and Ducati Wheelie Control is highlighted by a flashing of the corresponding drop-down element and the lighting of the upper right corner of the dashboard.
The TFT dashboard with a 6.5″ screen, characterized on the Multistrada V4 RS by dedicated graphics, enables you to view the map navigator function through “Ducati Connect”, which allows you to mirror your mobile device. To support this functionality, the smartphone compartment has forced air ventilation, to cool the phone during intensive use of the navigation functions and while charging.
Chassis and ergonomics
The chassis of the Multistrada V4 RS is centered around the 17″ front wheel, which ensures greater riding precision and responsiveness. The monocoque aluminum frame differs from the Multistrada V4 S and Rally in obtaining a specific steering head angle (25.75° compared to 24.5°) delivering the trail and wheelbase that complements the sporty focus of the bike, similar to Multistrada V4 Pikes Peak.
The Marchesini forged aluminum wheels, 6 lb (2.7 kg) lighter than those of the V4 S, enhance the dynamic handling behavior. Diablo Rosso IV Corsa tires, (120/70 front and 190/55 rear), offer excellent grip during acceleration and maximum cornering.
The choice of Öhlins Smart EC 2.0 suspension provides the best performance in sporting use with “event-based” strategies, as used on the Panigale V4 S and Streetfighter V4 S, which self-adjusts according to the rider’s actions and riding style. The system, already in use on the Multistrada V4 Pikes Peak, has been recalibrated to obtain the best balance between comfort during relaxed riding and support during sporty riding. In particular, in the Touring and Sport Riding Modes, the calibration of the dynamic suspension system has been modified to improve comfort during relaxed riding and at the same time provide optimal performance when on more sporty riding terrain. Furthermore, to improve riding dynamics when at full load, hydraulic braking performance has been increased when the rider selects higher damping levels in the various Riding Modes, in the various Load Modes with luggage and passenger.
The braking system is taken directly from the Panigale V4. At the front, 330 mm diameter discs and Brembo Stylema monobloc calipers, are complemented by the braking pad material of the Panigale V4. At the rear is a single 265 mm diameter disc with a Brembo floating caliper and master cylinder with a smaller diameter piston to improve power and modulation. The braking safety system is managed by Bosch-Brembo 10.3ME Cornering ABS technology.
In addition to the carbon fiber and titanium elements, a compact battery is fitted to reduce weight by 6.6 lb (3 kg) compared to the Multistrada V4 Pikes Peak.
The new V4 RS offers sportier ergonomics than the Multistrada V4, with a footrest position that is higher and further back to increase the maximum lean angle. The handlebar is directly fixed to the triple clamp, is lower, narrower, and has a less accentuated curvature. The new, softer grips have a sportier design.
This ergonomic combination translates into a better feeling in sporty riding while maintaining a good level of comfort at the same time. Comfort has been the subject of great attention, to maintain the best mix between sport and touring applications.
Accessories
The Ducati Performance catalog offers various accessories to enhance the characteristics of the motorbike and make it unique from an aesthetic point of view. Riders who want to increase the versatility of the Multistrada V4 RS will find various luggage options, from plastic or aluminum side cases to tank and passenger seat bags and various oversized windshields.
To emphasize its sporting personality, the catalog also offers billet aluminum parts such as levers, footrests, brake and clutch reservoirs, or fuel tank and oil filler caps. There are also many carbon fiber details to lighten and make the image of the Multistrada V4 RS even more aggressive.
Introducing the Multistrada V4 RS: Where superbike meets touring
The most exclusive Multistrada yet.
Step into a world of immersive customization as our new configurator transports your motorcycle into breathtakingly realistic landscapes. Explore the night mode and a plethora of other enticing features for a captivating and unique configuration experience.
Choose It All
Featuring a desmodromic engine, dry clutch, and meticulously crafted details, the Multistrada V4 RS flaunts a no-compromise design. It stands alone as the sole Multistrada powered by the MotoGP-derived Desmosedici Stradale engine also shared with the Streetfighter and Panigale families.
Endless exclusivity
The Multistrada V4 RS was designed with Ducati’s racing DNA to create the most exclusive Multistrada yet.
RACING DNA
The Desmosedici Stradale engine delivers exhilarating performance with a lightweight build, a dry clutch, and advanced race-inspired technology.
EXCLUSIVE AND SOPHISTICATED
From its titanium subframe to the sporty tail design, every detail exudes unique style and performance.
EXTREME, EVEN IN COMFORT
Combining the thrill of Desmo with the comfort of Multistrada, it’s a motorcycle that leaves no room for compromise. Plus, enjoy radar tech and optional side cases for the ultimate riding experience.
Superbike engine.
At the heart of the Multistrada V4 RS, the MotoGP-derived Desmosedici Stradale, complete with dry clutch and desmodromic timing, guarantees high-octane performance.
Designed to be noticed.
An exclusive design with a dedicated Iceberg White livery and inserts enhanced with MotoGP-inspired graphic elements ensures the Multistrada V4 RS is a real showstopper.
No Comprimises
Whether you’re chasing thrills on the track or embarking on unforgettable journeys, the Multistrada V4 RS takes your Multistrada experience to new heights.
Maximum comfort, pure sports attitude.
Live every moment to the max. The Multistrada V4 RS offers everything you have ever dreamed of with room for even more.
Ready to travel
The Multistrada V4 RS seamlessly blends its sporty character with the versatility of the Multistrada family. It can accommodate different types of luggage, from plastic side cases to tank and passenger seat bags, and also features a larger windshield for an enhanced touring experience.
Desmosedici Stradale: racing DNA
Having won the hearts of the Ducatisti on the Panigale and Streetfighter, the 1103 cc Desmosedici Stradale has been specifically adapted to the Multistrada with revised calibration and 180 hp. This merges sports performance with the balanced excellence for which the Multistrada family has always been renowned.
Dry clutch: an unmistakable signature
As in the Panigale V4 R and V4 SP, the Multistrada V4 RS also features the STM EVO-SBK dry clutch in billet aluminum. A component that does not just ensure a smoother ride when braking and shifting but also produces a sound that is unmistakably Ducati.
State of the Art Electronics
The Multistrada V4 RS is equipped with a state-of-the-art electronics package with front and rear radar technology as standard, which activates the Adaptive Cruise Control and Blind Spot Detection functions. It also incorporates Full Power Mode and Race Riding Mode, for maximum power in all gears and a prompt throttle response.
Multistrada aesthetic: form follows function.
The Multistrada V4 RS blends characteristics found in Ducati sport bikes with the elegant and dynamic Multistrada aesthetic. Carbon fiber components such as the front fender, hand guards, heat shield, and front “beak” create contrasts with the Iceberg White livery, enhanced with references to the color scheme of the Desmosedici MotoGP. The technopolymer tail section and titanium subframe accentuate the sportiness of the Multistrada V4 RS. The choice of titanium for the subframe allows for a 5.5 lb. weight saving with respect to the standard component.
Sports attitude and comfort, no compromise.
No compromise. Multistrada V4 RS is the result of meticulous work to create the ideal balance between sports performance and riding comfort. The diameter of the throttle bodies and the length of the ducts ensure heightened rideability at road-going speeds.
2024 Ducati Multistrada V4RS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $37,995 USD
Canada MSRP Price: $41,995 CDN
Europe/UK MSRP Price: from £31,995 GBP (On The Road inc 20% Vat)
Type
Ducati V4 Desmosedici stradale, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled
Displacement
1,103 cc (67 cu in)
Bore x Stroke
81 x 53.5 mm
Compression Ratio
14:1
Power
180 hp (132 kW) @ 12,250 rpm
Torque
87 ft lb (118 Nm) @ 9,500 rpm
Fuel Injection
Continental electronic fuel injection system, Øeq 50mm equivalent elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel pre-silencer, double catalytic converter and 4 lambda probes. Akrapovic titanium muffler
Gearbox
6 speed with Ducati Quick Shift up/down
Primary drive
Straight cut gears; Ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, Front sprocket Z15; Rear sprocket Z43
Clutch
Multiplate dry clutch with slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel
Marchesini light alloy forged, 3.5″ x 17″
Front Tire
Pirelli Diablo Rosso IV Corsa 120/70 ZR17
Rear suspension
Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminum single-sided swingarm
Rear Wheel
Marchesini light alloy forged, 6″ x 17″
Rear Tire
Pirelli Diablo Rosso IV Corsa 190/55 ZR17
Wheel Travel (Front/Rear)
6.7 in / 6.7 in (170 mm / 170 mm)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
6.5″ TFT color display with Ducati Connect and full-map navigation system
Seat Height
Adjustable, 33.1 in – 33.9 in (840 mm – 860 mm)
31.9 in – 32.7 in (810 mm – 830 mm) with low seat accessory
Wheelbase
1,592 mm (62.7 in)
Rake
25,75°
Trail
120 mm (4.7 in)
Fuel Tank Capacity
5.8 US gal (22 l)
Number of Seats
2
Safety Equipment
Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light*, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control, Radar system (Adaptive Cruise Control + Blind Spot Detection)
Standard Equipment
Öhlins Smart EC 2.0 electronic suspension, Ducati Quick Shift, Hands-free, Backlit handlebar switches, 6.5″ TFT color display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fiber front mudguard and beak, Carbon fiber handguards, Type-approved Akrapovic muffler
Warranty
24 months, unlimited mileage
Maintenance service intervals
9,000 miles (15,000 km) / 12 months
Valve Clearance Check
18,000 miles (30,000 km)
Notes
* Please check with your dealer product availability
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
2024 Ducati Multistrada V4RS – Totalmotorcycle.com Canada Specifications/Technical Details
Type
Ducati V4 Desmosedici stradale, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled
Displacement
1,103 cc (67 cu in)
Bore x Stroke
81 x 53.5 mm
Compression Ratio
14:1
Power
180 hp (132 kW) @ 12,250 rpm
Torque
87 ft lb (118 Nm) @ 9,500 rpm
Fuel Injection
Continental electronic fuel injection system, Øeq 50mm equivalent elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel pre-silencer, double catalytic converter and 4 lambda probes. Akrapovic titanium muffler
Gearbox
6 speed with Ducati Quick Shift up/down
Primary drive
Straight cut gears; Ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, Front sprocket Z15; Rear sprocket Z43
Clutch
Multiplate dry clutch with slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel
Marchesini light alloy forged, 3.5″ x 17″
Front Tire
Pirelli Diablo Rosso IV Corsa 120/70 ZR17
Rear suspension
Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminum single-sided swingarm
Rear Wheel
Marchesini light alloy forged, 6″ x 17″
Rear Tire
Pirelli Diablo Rosso IV Corsa 190/55 ZR17
Wheel Travel (Front/Rear)
6.7 in / 6.7 in (170 mm / 170 mm)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
6.5″ TFT color display with Ducati Connect and full-map navigation system
Seat Height
Adjustable, 33.1 in – 33.9 in (840 mm – 860 mm)
31.9 in – 32.7 in (810 mm – 830 mm) with low seat accessory
Wheelbase
1,592 mm (62.7 in)
Rake
25,75°
Trail
120 mm (4.7 in)
Fuel Tank Capacity
5.8 US gal (22 l)
Number of Seats
2
Safety Equipment
Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light*, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control, Radar system (Adaptive Cruise Control + Blind Spot Detection)
Standard Equipment
Öhlins Smart EC 2.0 electronic suspension, Ducati Quick Shift, Hands-free, Backlit handlebar switches, 6.5″ TFT color display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fiber front mudguard and beak, Carbon fiber handguards, Type-approved Akrapovic muffler
Warranty
24 months, unlimited mileage
Maintenance service intervals
9,000 miles (15,000 km) / 12 months
Valve Clearance Check
18,000 miles (30,000 km)
Notes
* Please check with your dealer product availability
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information

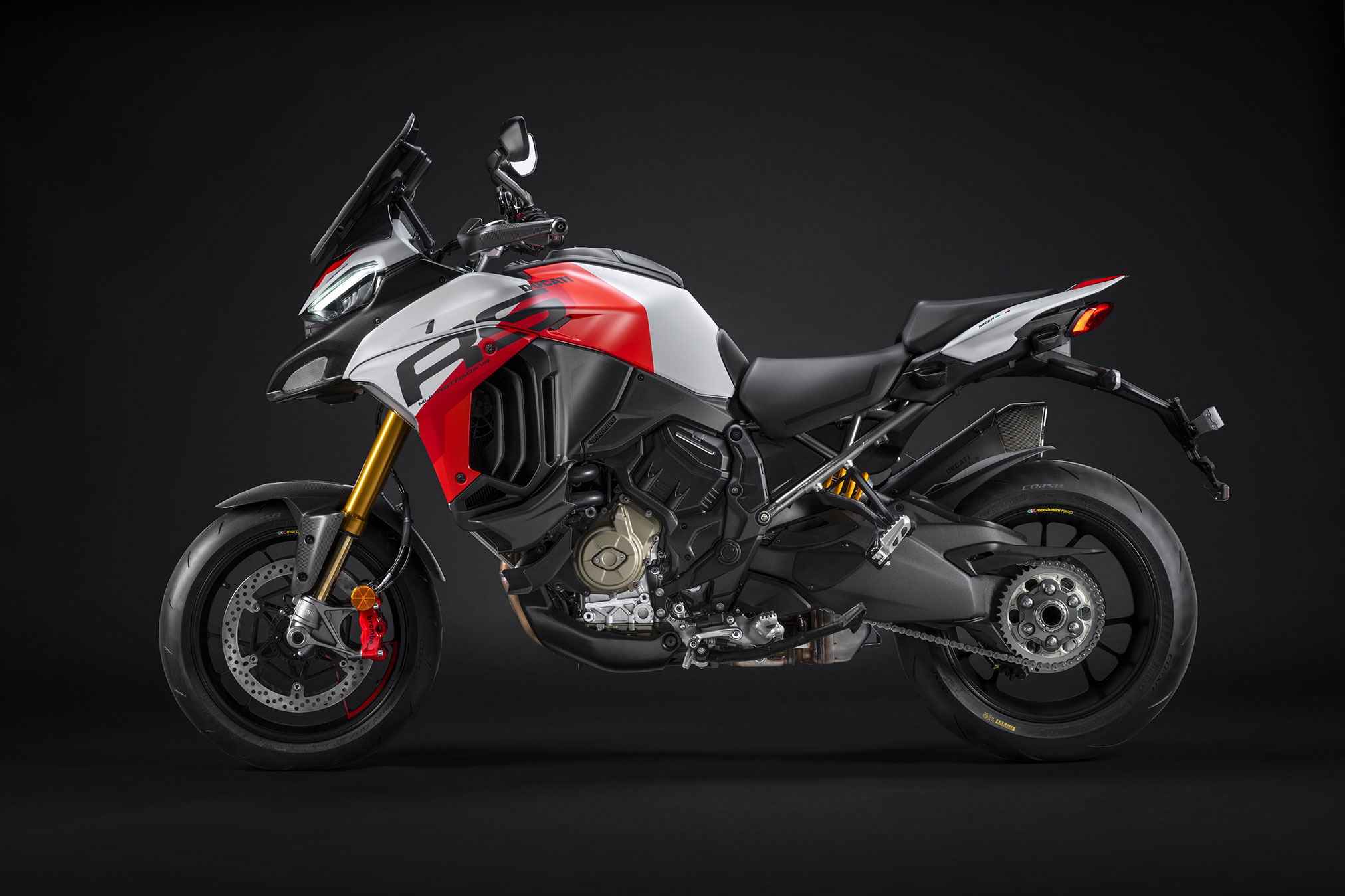

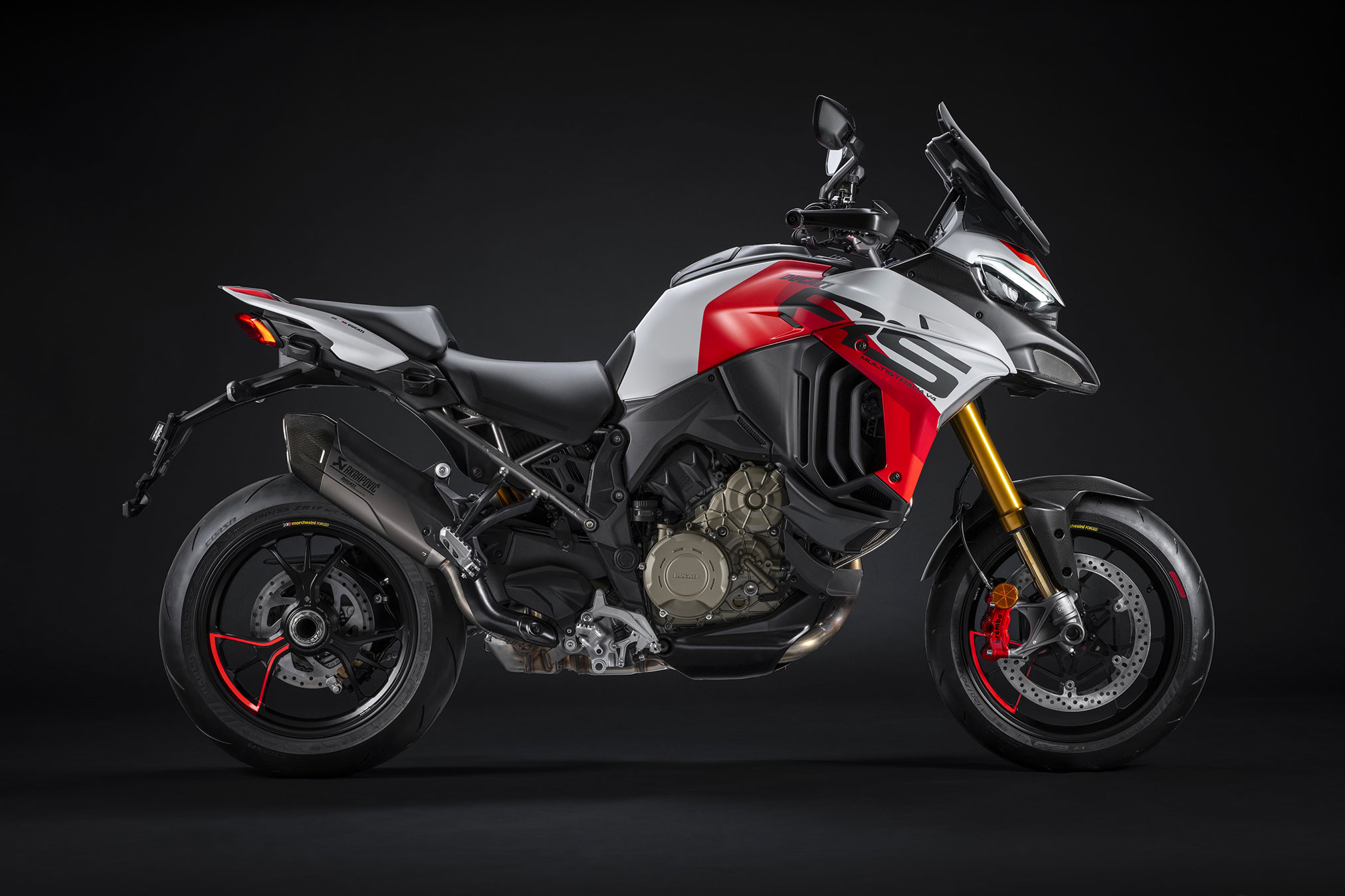

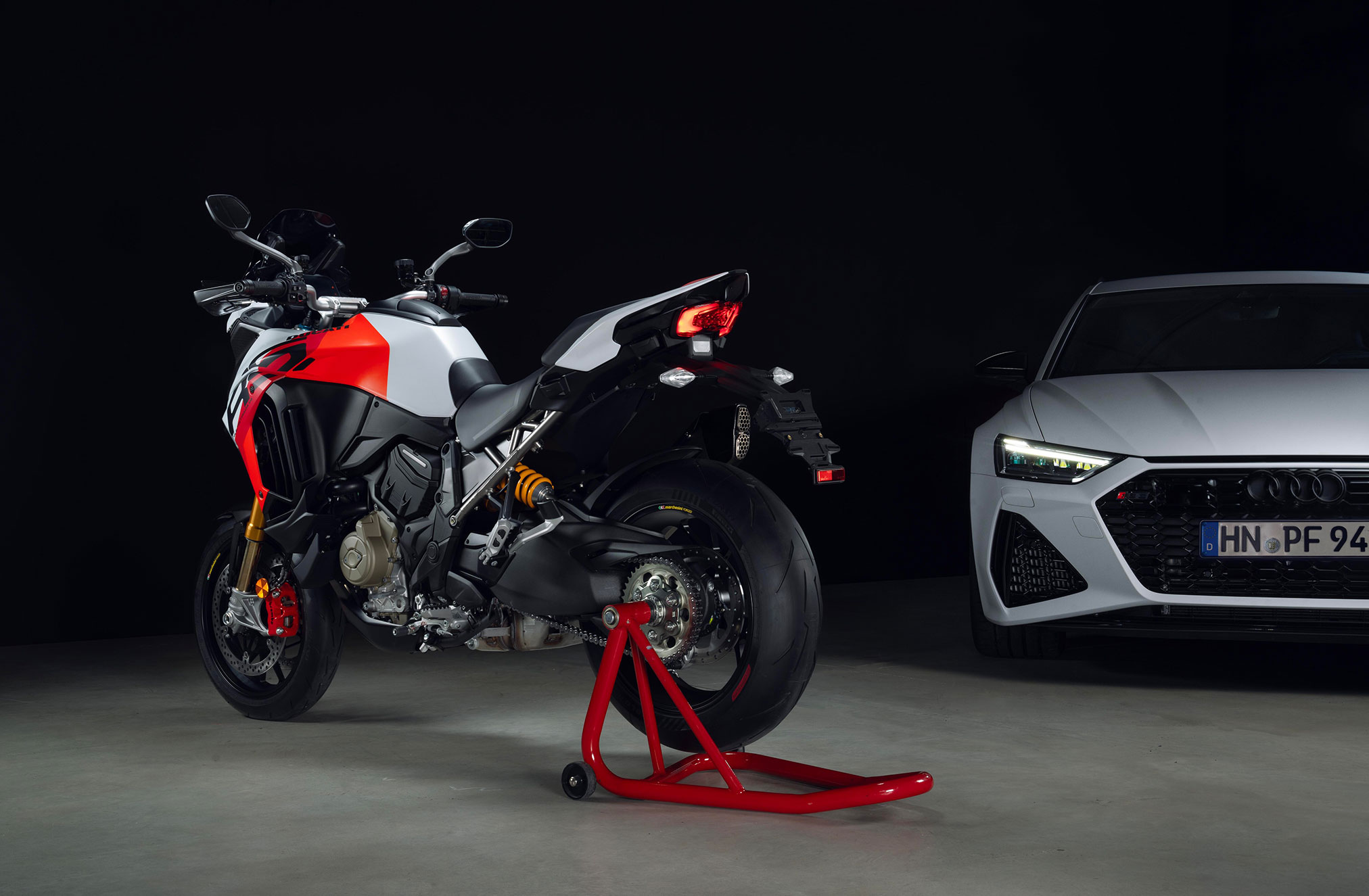

2024 Ducati Multistrada V4RS – Totalmotorcycle.com European Specifications/Technical Details
Type
Ducati V4 Desmosedici stradale, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled
Displacement
1,103 cc (67 cu in)
Bore x Stroke
81 x 53.5 mm
Compression Ratio
14:1
Power
132 kW (180 hp) @ 12,250 rpm
Torque
118 Nm (12.0 kgm) @ 9,500 rpm
Fuel Injection
Continental electronic fuel injection system, Øeq 50mm equivalent elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel pre-silencer, double catalytic converter and 6 lambda probes. EU 5+ compliant. Akrapovic titanium muffler
Gearbox
6 speed with Ducati Quick Shift up/down
Primary drive
Straight cut gears; Ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, Front sprocket Z15; Rear sprocket Z43
Clutch
Multiplate dry clutch with slipper action on over-run
Frame
Aluminium monocoque frame
Front suspension
Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel
Marchesini light alloy forged, 3.5″ x 17″
Front Tyre
Pirelli Diablo Rosso IV Corsa 120/70 ZR17
Rear suspension
Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminium single-sided swingarm
Rear Wheel
Marchesini light alloy forged, 6″ x 17″
Rear Tyre
Pirelli Diablo Rosso IV Corsa 190/55 ZR17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
6.5″ TFT colour display with Ducati Connect and full-map navigation system
Seat Height
Adjustable, 840 mm – 860 mm (33.1 in – 33.9 in)
810 mm – 830 mm (31.9 in – 32.7 in) with low seat accessory
Wheelbase
1,592 mm (62.7 in)
Rake
25,75°
Trail
120 mm (4.7 in)
Fuel Tank Capacity
22 l (5.8 US gal)
Number of Seats
2
Safety Equipment
Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control, Radar system (Adaptive Cruise Control + Blind Spot Detection)
Standard Equipment
Öhlins Smart EC 2.0 electronic suspension, Ducati Quick Shift, Hands-free, Backlit handlebar switches, 6.5″ TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fibre front mudguard and beak, Carbon fibre handguards, Type-approved Akrapovic muffler
Warranty
48 months, unlimited mileage
Maintenance service intervals
15,000 km (9,000 miles) / 12 months
Valve Clearance Check
30,000 km (18,000 miles)
Standard
Euro 5+
CO2 Emissions
170 g/km
Consumption
7.3 l/100km
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
