2025 KTM 1290 Super Adventure S: SET YOUR COURSE – AND SLAY IT.
Introducing the 2025 KTM 1290 Super Adventure S…
The KTM 1390 SUPER ADVENTURE S is for thrill-seekers who live for fast-paced adventure and demand the control of a manual transmission. Boasting fresh new tech, muscular looks, and a 173 hp punch, the S is aimed at riders who want to explore the world on the tarmac – but with the option to hit the dirt if it calls – this street-eating Adventure machine is engineered to cover ground. Fast. This motorcycle is designed, developed, and produced in Austria.
The 2025 KTM 1390 SUPER ADVENTURE S is the most insane Adventure Sports bike available and is made for riders who want more speed, more tech, and more punch than ever before.
2025 KTM 1290 Super Adventure S Totalmotorcycle.com Key Features
THE 2025 KTM 1390 SUPER ADVENTURE S BRINGS MORE ADVENTURE TO THE STREET
The ‘S’ has always denoted a street orientation on KTM’s ADVENTURE range. For 2025, this is no different, with the KTM 1390 SUPER ADVENTURE S providing Adventure motorcyclists with a flurry of all-new technological and mechanical advancements.
Compared to the range-topping KTM 1390 SUPER ADVENTURE S EVO, the S proudly boasts a traditional clutch and manual gearbox aimed at riders looking for a more “hands-on” approach, with the 5th-generation Front Radar available as an optional extra.
For 2025, styling and ergonomics are updated with all-new bodywork design, all-new LED headlight, windshield, and more storage compartment. The 2025 KTM 1390 SUPER ADVENTURE S frame sees an increase in stiffness, improving handling and track stability, with 8 mm lower and 10 mm wider footpeg positioning which improves rider comfort.
Like the KTM 1390 SUPER ADVENTURE S EVO, the KTM 1390 SUPER ADVENTURE S is fitted with WP’s latest Semi-Active Technology. Tuned to be more precise with consistent damping behavior at higher frequencies, the SAT uses new PWM (Pulse Width Modulation) sensors and a new through-rod fork construction to achieve refined handling dynamics.
Engine displacement is increased from 1,300 to 1,350 cc, producing 173 PS @ 9,500 rpm and 145 Nm @ 8,000 rpm, with reworked engine components, and all-new CAMSHIFT technology providing improved rideability in low rpm range, higher peak performance, low emissions, and fuel consumption.
The innovative CAMSHIFT technology provides variable-valve timing with two individual cam profiles. At higher revs, the inlet cams shift sideways, opening the valves longer and higher for more gas flow into the cylinder for higher performance, while in the lower rev range, the inlet cams have a reduced valve timing and lift. This results in a noticeable increase in rideability in both normal road conditions around town and high-performance use on fast roads.
The KTM 1390 SUPER ADVENTURE S also receives KTM’s new premium electronics package, with an all-new V80 portrait-mount touchscreen, TFT dashboard leading the way. The V80 Touchscreen features inductive technology, allowing easy operation even when wearing thick winter gloves, while an innovative Anti-reflex, anti-fingerprint and anti-glare coating improves overall readability. To learn more about the all-new V80 TFT Dashboard, click HERE to read the digital press kit.
Here, riders have access to all new RIDE MODES, Connectivity features, and KTM’s optional Adaptive Cruise Control upgrade, which adds Brake Assistance, Collision Warning, and Distance Warning to its arsenal.
The 2025 KTM 1390 SUPER ADVENTURE S is engineered for the street, with exceptional offroad capability should the road end, providing riders with all the technology, power, and handling dynamics for any cross-border Adventure.
2025 KTM 1290 Super Adventure S Totalmotorcycle.com Features and Benefits
TFT
8.8″ TFT DISPLAY
Unlike anything you’ve seen before, this all-new portrait-mount touchscreen 8.8″ TFT display is a masterclass in intelligent UI design. Featuring an Optically Bonded, anti-glare, anti-fingerprint, and anti-reflex screen, it is a gateway to all the functions and settings within the KTM 1390 SUPER ADVENTURE S. To learn more, go to our KTM Tech Guide.
COVER GROUND
Advanced Front Radar
Welcome to the world of advanced Front Radar. Available as an optional extra on the KTM 1390 SUPER ADVENTURE S, Front Radar showcases the latest in technology, allowing you to cover ground quickly and safely when on-route to your ultimate destination. To learn more, go to our KTM Tech Guide.
RIDE WITH CONFIDENCE
Ride Modes
The real adventure begins when you pull out the gate. With a variety of Ride Modes and Engine Map selections, you can confidently handle any condition. Once activated, the ride-by-wire system adjusts the throttle response and peak power output to suit various conditions. The standard ride modes include RAIN, STREET, SPORT, OFFROAD, and CUSTOM. With the optional RALLY mode, you can conquer any terrain confidently. For more information, visit our KTM Tech Guide.
ANTI-THEFT
KTM RACE ON
The KTM 1390 SUPER ADVENTURE S is fitted with a state-of-the-art keyless-go system with a unique Anti Relay Attack (ARA) system. Not only does this reduce the risk of misuse of the keyless system by preventing ignition, but it also provides the power to unlock the fuel cap and even the Keyless Luggage Lock for the optional KTM TOURING LUGGAGE set. For more information, visit our KTM Tech Guide.
TUNED TO TRAVEL
Semi-Active Suspension Technology
There’s no modest way to say this, but – the KTM 1390 SUPER ADVENTURE S is fitted with the most advanced suspension system on the market. Featuring the latest version of WP’s Semi-Active Suspension Technology (SAT) with through-rod technology to reduce friction and improve sensitivity, this ride is unlike anything else. It works like this: Electronically controlled magnetic valves provide variable damping based on the road surface and rider inputs. It also offers riders a wide range of adjustability for maximum comfort and safety. But wait, there’s more. Not only can riders manage their suspension settings via the TFT screen with four diffrent damping modes COMFORT, STREET, SPORT and RAIN, and with the optional Suspension PRO package riders have even more setup options. For more information on Suspension Pro, visit our KTM Tech Guide.
PURE POWER
Engine

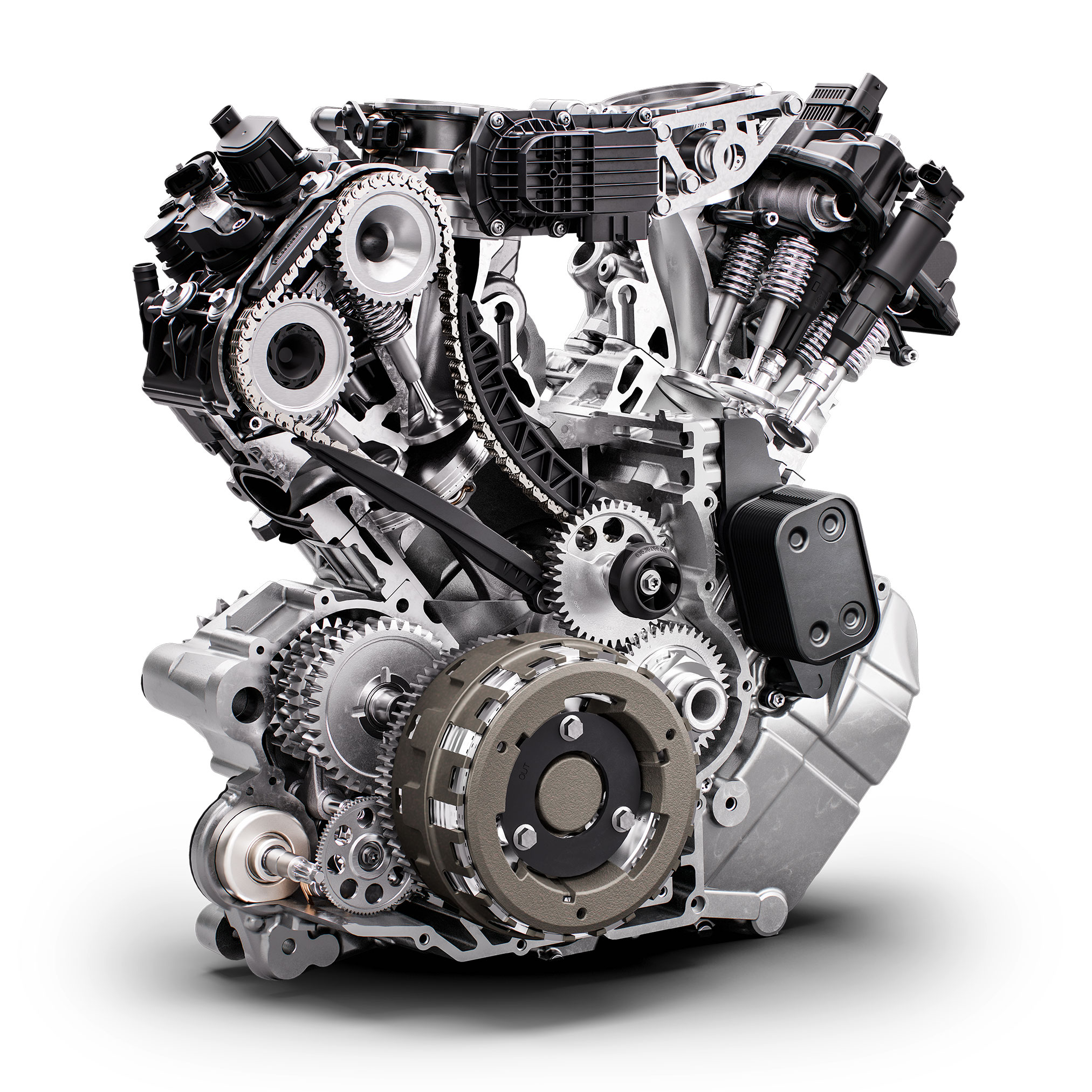

The 1390 SUPER ADVENTURE range showcases a significantly reworked engine with a displacement increase from 1301 to 1350cc and cutting-edge Camshift technology. This results in a power output of 173 hp and 145 Nm of torque, all while meeting the latest EURO 5+ homologation standards, with valve clearance checks only necessary after 60,000 km.
POWERBAND
Camshift Technology
A big part of the KTM 1390 SUPER ADVENTURE range punch comes from all-new Camshift technology. This provides variable-valve timing with 2 different cam profiles, making for an optimized power band with higher torque and peak performance. In short, it works like this – in the lower rev range, the inlet cams have a reduced valve timing and lift, meaning the inlet valves are open for a shorter time. At higher revs, the inlet cams shift sideways, with longer valve openings and a higher valve lift for more gas flow – and of course, more go!
GRIP AND GO
Wheels & Tires
The KTM 1390 SUPER ADVENTURE S is fitted with new DUNLOP MERIDIAN tires. These tires feature an innovative ‘ice-ax’ tread pattern, which increases traction on unpaved roads and provides optimum water drainage. They also offer superb handling and stability on the tarmac, making them perfect for touring or tearing up mountain passes. Dimensions: 120/70 R 19 in the front and 170/60 R 17 on the rear.
STOPPING POWER
Brakes
The KTM 1390 SUPER ADVENTURE S has added more stopping power to its arsenal, with new Brembo front master cylinders and new front brake pads. This makes for improved brake performance and a sharper ‘bite’.
CUT THE WIND
Windshield
A new adjustable windshield finds its way onto the KTM 1390 SUPER ADVENTURE S, allowing for up to 70 mm of adjustment. Designed in a wind tunnel, this new windshield is quieter, offers more wind protection, and is ready to take on the longest of journeys.
LIGHT THE WAY
LED Headlight
Turning night to day, an all-new LED headlight unit takes center position on the KTM 1390 SUPER ADVENTURE range. Not only does this provide the KTM 1390 SUPER ADVENTURE with a fresh signature stare, but it also illuminates the road ahead with new cornering lights lighting up the bends with a broader illumination.
MAXIMUM COMFORT
Adjustability
The KTM 1390 SUPER ADVENTURE S features multi-adjustable touchpoints, like the brake and clutch levers, shift lever, handlebar position, seat, and windshield, making finding the perfect position for hours in the saddle a breeze.
KEEPING COOL
Cooling
Thanks to new, more efficient radiator fans with wings, cooling is dramatically improved on this latest generation KTM 1390 SUPER ADVENTURE range. A new, more robust valve seat material and new alloy materials help increase thermal conductivity, while lateral air outlets guide hot air away from the rider’s knees.
SOLID FOOTING
Footpegs
The footrest mounting position is lowered by 8 mm to improve the rider’s comfort thanks to a wider knee angle, while being moved 10 mm outwards for better contact and feel when standing on the pegs.
GET A GRIP
Handlebar
Wider, adjustable, and made of high-strength tapered aluminum, these new handlebars are perfectly suited to a reworked upper triple clamp made of lightweight forged aluminum. Beside improved cable guides, the rubber-dampened handlebar mount improves rider comfort over all terrain types, with newly designed handguards providing imprioved stiffness for improved protection.
Technology
Standard Technology
Equipped with a comprehensive suite of cutting-edge technology as standard, including Motorcycle Traction Control, Cornering ABS, customizable ABS modes, KTM Connect, multiple Ride Modes, Tire Pressure Monitoring System, Keyless System, and Cruise Control.
Customize as needed
Optional Technology
For those craving even more freedom and flexibility, the KTM 1390 SUPER ADVENTURE range offers optional advanced technology, including Rally Mode, Front Radar, Quickshifter Plus, Suspension Pro and Hill Hold Control.
2025 KTM 1290 Super Adventure S – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer for Pricing in USD
Canada MSRP Price: $ See Dealer for Pricing in CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Engine
Primary drive 40:76
Torque 145Nm
Transmission 6-speed
Cooling Liquid cooled with water/oil heat exchanger
Secondary gear ratio 17:42
Power in KW 127kW
Starter Electric starter
Stroke 71mm
Bore 110mm
CO2 emissions 139.5g/km
Compression ratio 13
Displacement 1350cm³
EMS Keihin EMS with RBW, twin ignition
Design 2-cylinder, 4-stroke, V 75°
Fuel consumption 6.7l/100 km
Fuel-mixture generation Keihin EFI (throttle body Ø 54 mm)
Lubrication Forced oil lubrication with 3 oil pumps
Power in hp 170hp
Chassis
Weight (without fuel) 227kg
Tank capacity (approx.) 23l
Wheelbase 1558mm
Front brake 2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm
Rear brake Brembo 2-piston, fixed caliper, brake disc Ø 267 mm
Chain 525 X-Ring
Frame design Chromium-Molybdenum-Steel trellis frame, powder coated
Front suspension WP SAT (semi-active technology) Upside-Down Ø 48 mm
Ground clearance 223mm
Handlebar Tapered aluminum Ø 28/22 mm
Rear suspension WP SAT (semi-active technology) shock absorber
Seat height 847/867 mm
Steering head angle 65.2°
Rear subframe design Aluminium, powder-coated
Suspension travel (front) 200mm
Suspension travel (rear) 200mm
Tyre dimensions (front/rear) 120/70; 170/60
Wheels 3.50 x 19″; 5 x 17″
Wheels Cast aluminium wheels
Wheelbase 1558 ± 15 mm
