2009 Moto Guzzi V7 Cafe Classic

You are here: Home2009 Models — 2009 Moto Guzzi Motorcycle Models

2009 Moto Guzzi V7 Cafe Classic
Back to 2009 Moto Guzzi Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

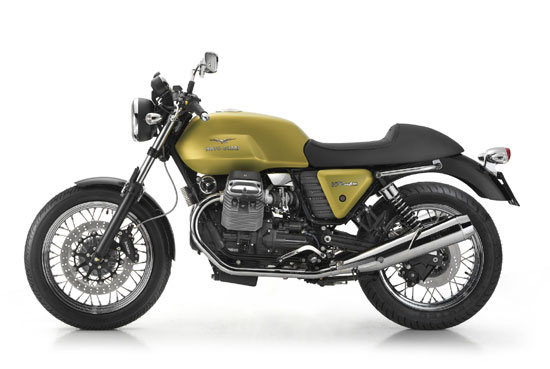

2009 Moto Guzzi V7 Cafe Classic
2009 Moto Guzzi V7 Cafe Classic

2009 Moto Guzzi V7 Cafe Classic
2009 Moto Guzzi V7 Cafe Classic

2009 Moto Guzzi V7 Cafe Classic
2009 Moto Guzzi V7 Cafe Classic

2009 Moto Guzzi V7 Cafe Classic
2009 Moto Guzzi V7 Cafe Classic


– 2009 Moto Guzzi V7 Cafe Classic

2009 Moto Guzzi V7 Cafe Classic





2009 Moto Guzzi V7 Cafe Classic – USA Specifications
MSRP: $TBD USD


Model not available in North America.



2009 Moto Guzzi V7 Cafe Classic – Canada Specifications
MSRP $0 CDN

Model not available in North America.




2009 Moto Guzzi V7 Cafe Classic – European Specifications
MSRP: £TBD

ENGINE
Type Four-stroke V 90 twin
Capacity 744cc
Bore and stroke 80×74 mm
Compression ratio 9.6:1
Timing 2 valves per head operated by light alloy pushrods
Timing diagram
Intake valve opening 18° before TDC
Intake valve closure 50° after LDC.
exhaust valve opening 53° before LDC
exhaust valve closure 15° after TDC.
(with 1 mm of play between rocker gear and valves)
Maximum power output 35.5 kW at 6,800 rpm (48.8 CV)
Max Torque 54.7 Nm at 3,600 rpm
Fuel supply Weber-Marelli electronic fuel injection.
Exhaust system Three-way catalyser with lambda probe

TRANSMISSION
Gearbox 5-speed
Gear ratios
1st 11/26 = 1 : 2.3636
2nd 14/23 = 1 : 1.6429
3rd 18/23 = 1 : 1.2778
4th 18/19 = 1 : 1.0556
5th 20/18 = 1 : 0.9
Lubrication Forced lubrication with lobe pump – capacity 1.78 kg
Primary drive Helicoidal gears, ratio 16/21=1 : 1.3125
Final drive Shaft drive, ratio 4.825
Clutch Dry single plate with flexible couplings

FRAME
Frame ALS steel tubular dismountable twin cradle
Wheelbase 1,449 mm
Trail 109
Steering rake 27°50′
Front suspension Marzocchi Ø 40 mm telescopic front forks
Front wheel travel 130 mm
Rear suspension Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers.
Rear wheel travel 118 mm
Brakes Brembo 2
Front brake: Floating 320 mm stainless steel disc
4 opposed calipers of differing diameters
Rear brake: 260 mm stainless steel disc
Brake pump cylinder diameter
Front pump 13 mm
Rear pump 13 mm
Caliper diameter
Front caliper 30/34 mm
Rear caliper 32 mm
Brake surface area Front 21.3 cm², rear. 16.1 cm²
Brake pad material Front Frendo 222, rear Ferodo ID 450
Wheels spoken steel rims
Front wheel 2.50″ X 18″
Rear wheel 3.50″X17″
Tyres
Front Metzeler Lasertec 100/90- 18 56H TL
Rear Metzeler Lasertec 130/80 -17 65H TL

ELECTRICS
Voltage 12 V
Battery 12 V – 14 Amp/h
Alternator 12 V – 330 Watt
Headlight 12 V – 55/60 W
Rear light 12V – 5/21 W
Indicators 12V – 10 W

DIMENSIONS
Length 2,185 mm
Width 800 mm
Height 1,115 mm
Saddle height 805 mm
Minimum ground clearance 182 mm
Steering angle. 32°
Dry weight 182 kg
On the road weight 198 kg
Type of tank Plastic
Fuel tank capacity 17 litres
Reserve 2.5 litres
