2012 Yamaha Grizzly 350 Auto 4×4
Back to 2012 Yamaha ATV Quad Models Index Page

Click photos to enlarge.
They make great desktop images.

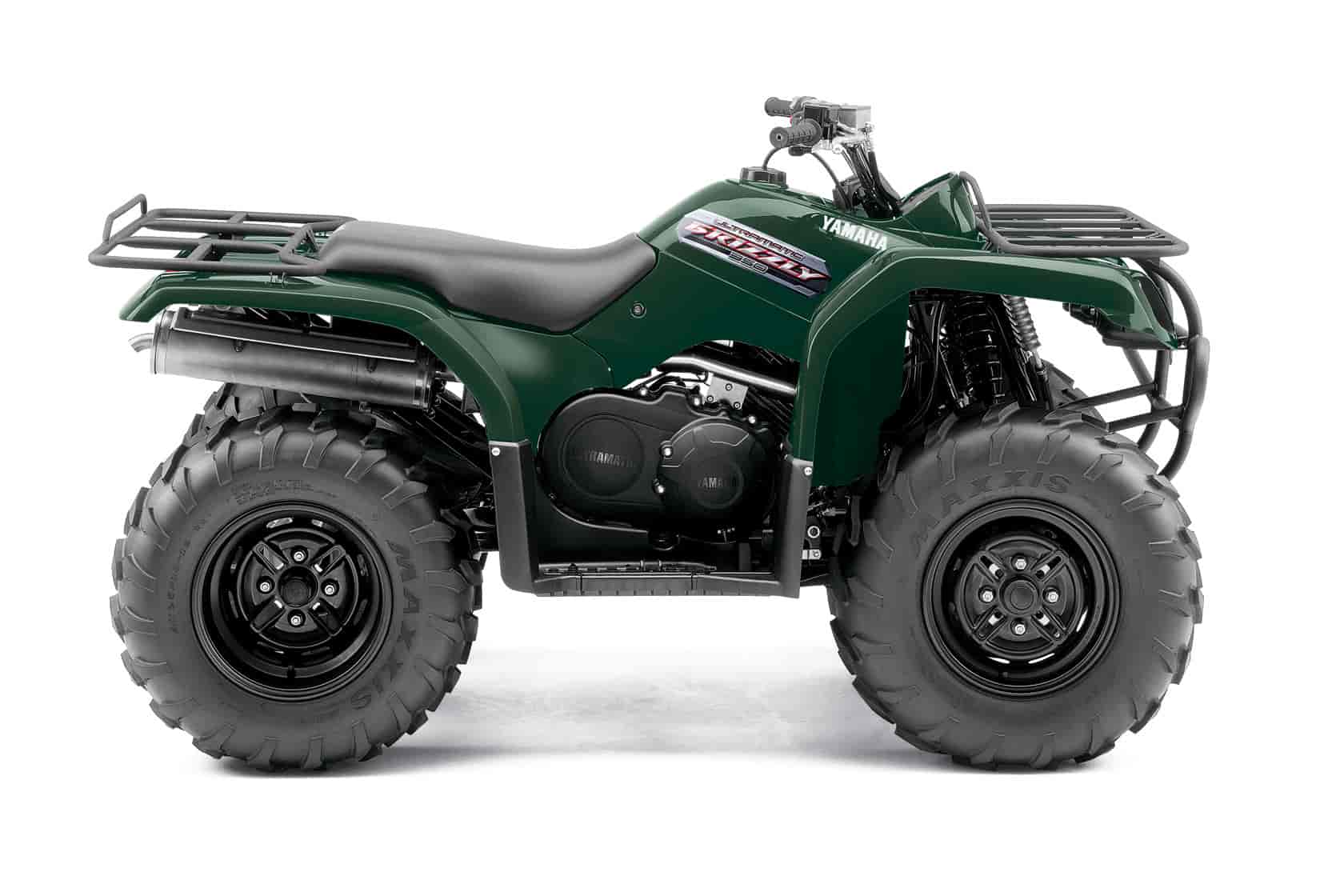

2012 Yamaha Grizzly 350 Auto 4x4
2012 Yamaha Grizzly 350 Auto 4×4

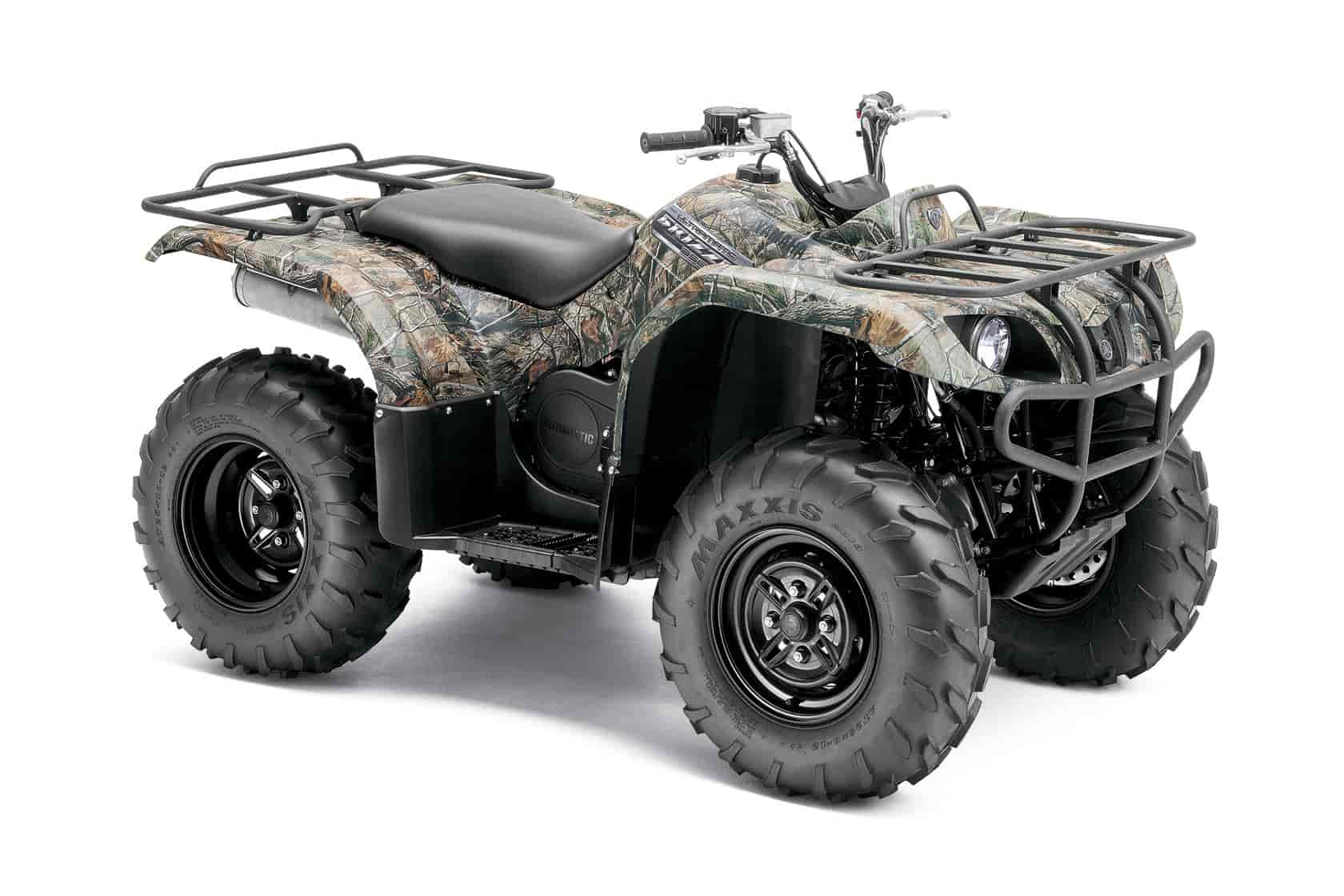

2012 Yamaha Grizzly 350 Auto 4x4
2012 Yamaha Grizzly 350 Auto 4×4

2012 Yamaha Grizzly 350 Auto 4x4
2012 Yamaha Grizzly 350 Auto 4×4

2012 Yamaha Grizzly 350 Auto 4x4
2012 Yamaha Grizzly 350 Auto 4×4

– 2012 Yamaha Grizzly 350 Auto 4×4

2012 Yamaha Grizzly 350 Auto 4×4 Review

Only its size is midsize…

Reliability and terrainability are core values for the price sensitive Grizzly 350, which features On Command 4WD and more.

348cc of air cooled, highly reliable power. Four wheel independent suspension. Ultramatic transmission and diff lock. All fortified with Yamaha’s Real World Toughness.





2012 Yamaha Grizzly 350 Auto 4×4 Highlights:

The power-packed, full-featured Grizzly 350
Automatic 4×4 solid axle carries a lot of advanced
Yamaha ATV technology in an affordable package.

Industry-exclusive, fully automatic Ultramatic®
transmission is the most advanced drive system in
ATV-ing. An automatic centrifugal clutch maintains
constant belt tension for reduced belt wear and
sprag clutch for all-wheel downhill engine braking
in 4WD mode.

Class-exclusive On-Command® 4WD means
switching from 2WD to 4WD is as simple as pushing
a handlebar-mounted button.

Light weight and advanced design produce an ATV
with light steering and a class-leading turning
radius, for excellent maneuverability and nimble
handling—even in 4WD.

Left-side-mounted F/N/R shift lever keeps throttle
hand free while shifting.

Wide, fully integrated floorboards help keep feet
dry, and serrated footpegs provide extra grip in wet

Class-exclusive large-diameter ventilated
hydraulic dual front disc and single rear drum
brakes deliver tremendous stopping power in a
variety of conditions.

Aggressive 25×8-12 front and 25×10-12 rear tires
further boost ground clearance while providing
plenty of traction and responsive handling.

Steel Blue model includes cast aluminum wheels.


2012 Yamaha Grizzly 350 Auto 4×4 Key Features:

o Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke
single produces stump-pulling bottom-end power and
loves to rev.
o Semi-oval slide 33mm Mikuni® carburetor and high-output
DC-CDI ignition deliver excellent throttle response and engine
performance at all rpm.
o Pushbutton electric starting.
o Stainless steel muffler and header design provides superior
power characteristics, exhaust sound and unmatched durability.
o Sealed drive case keeps out water and debris to minimize belt
slippage, and a no-tools side cover drain makes it a snap to get
rid of what little does sneak in.
o Automatic cam chain tensioner reduces engine maintenance.

o Lightweight CAD-designed chassis features outstanding
durability with superior rigidity for class-leading agility
and handling.
o 9.7 inches of ground clearance and high-impact plastic skidplate
improve maneuverability and undercarriage protection.
o Direct front shaft drive eliminates U-joint for greater durability
and more efficient power transfer when engaged in 4WD.
o 32.6-inch seat height for great handling.
o Independent double-wishbone front suspension features five-way
preload-adjustable shocks and 6.3 inches of travel.
o Sturdy steel swingarm and single rear shock feature five-way
adjustable preload and 7.1 inches of travel.
o Heavy-duty front carry bar and CV joint guards help prevent
damage to boot covers.

Additional Features:
o Steel cargo racks with special, extra-durable wrinkle paint
finish feature a combined cargo capacity of 264 pounds
(88 front, 176 rear).
o Standard, center-mounted trailer hitch can hook up more than
1100 pounds of payload.
o Large front and rear fenders with inner guards offer excellent
mud/splash protection.
o Water-resistant, large-capacity underseat storage box provides
added convenience.
o Plush, specially designed seat is widely contoured for
incomparable rider comfort.
o Large-capacity, 3.8-gallon fuel tank has an easy-to-reach
petcock valve.
o Specially designed drive system air intake vent prevents overheating
and keeps water and mud from entering drive case.
o Easy-access, tool-free air filter box allows for quick maintenance.
o Rear brake/taillight.
o Maintenance-free 12-amp-hour battery provides reliable
cold-weather starting power.
o Easy-access underseat marine-spec electrical components
ensure maximum protection from the elements.
o Dual, bright, multireflector 30-watt Krypton bulb headlights with
high and low beams.
o Easy, handlebar-mounted choke lever.
o Assembled in Newnan, GA, U.S.A.

Available Accessories:
Please refer to the 2011 Spring Big Book

* Wet weight includes the vehicle with all standard equipment and all
fluids, including oil, coolant (as applicable) and a full tank of fuel.
It does not include the weight of options or accessories. Wet weight
is useful in making real-world comparisons with other models.
ATVs with engine sizes over 90cc are recommended for use only by riders age
16 years and older.



2012 Yamaha Grizzly 350 Auto 4×4 – USA Specifications
US MSRP* $5,599 (Hunter Green) Available from August, 2011
$5,599 (Steel Blue) Available from August, 2011
$5,949 (Realtree® AP™ Camouflage) Available from August, 2011

Type 348cc, 4-stroke, air/oil-cooled single; SOHC
Bore x Stroke 83.0mm x 64.5mm
Compression Ratio 9.2:1
Fuel Delivery Mikuni® 33mm BSR
Ignition DC – CDI
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R
Drive Train Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive

Suspension / Front Independent double wishbone; 5-way preload adjustment, 6.3-in travel
Suspension / Rear Swingarm; 5-way preload adjustment, 7.1-in travel
Brakes / Front Dual hydraulic discs
Brakes / Rear Fully sealed drum
Tires / Front AT25x8-12
Tires / Rear AT25x10-12

L x W x H 78.1 x 42.7 x 44.1 in
Seat Height 32.6 in
Wheelbase 48.5 in
Turning Radius 118 in
Ground Clearance 9.7 in
Fuel Capacity 3.8 gal
Wet Weight 568 lb
Rack Capacity 88 lb Fr./176 lb Rr.
Towing Capacity 1102 lb

Instrumentation None
Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)


2012 Yamaha Grizzly 350 Auto 4×4 – Canadian Specifications
Canadian MSRP* $NA CDN

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
