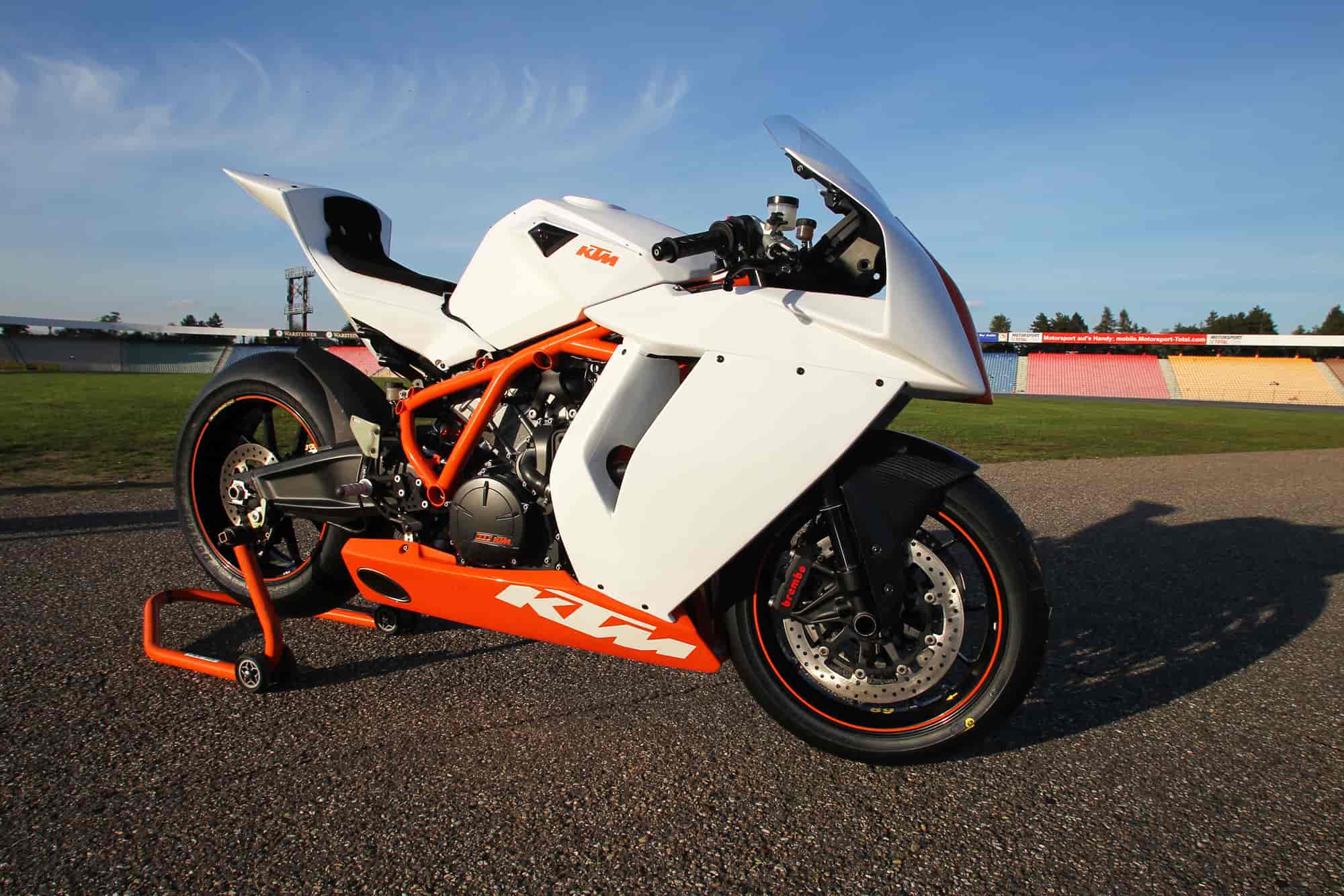

2012 KTM 1190 RC8R Track

2012 KTM 1190 RC8R Track

2012 KTM 1190 RC8R Track

2012 KTM 1190 RC8R Track

2012 KTM 1190 RC8R Track

– 2012 KTM 1190 RC8R Track Review

2012 KTM 1190 RC8R Track

FOR TRACK USE ONLY

Due to the great demand, KTM will once again offer the RC8 R production racer, “race use only” version in MY 2012. Top IDM riders like Bauer, Nebel and Smrz have proven the merits of the concept with countless race wins. The offer is directed at championship racers on a national level as well as committed amateurs who intend to use their sport bike exclusively on racetracks. The bike has a Superstock homologation and is assembled “ready to race” by the KTM factory racing department, using lots of
goodies from the KTM PowerParts range essential for serious racing. 180 hp make for acceptable propulsion, and a mechanical anti-hopping clutch minimizes rear wheel hop under massive trail braking. Leave the shop and lay down the fastest lap of the trackday without any conversions, with the possible exception of a stop-over at the painter’s for your sponsor’s colour scheme.



2012 KTM 1190 RC8R Track Features and Benefits

– Highly developed LC8 V-Twin with optimised crankshaft, carefully balanced flywheel masses and dual-plug ignition, max. output 180 hp

– Anti-hopping clutch

– Light 7.5 kg trellis frame welded from high-tensile chrome-molybdenum steel

– WP Racing USD front forks, closed cartridge

– WP Racing monoshock type 4618

– Optimised suspension set-up

– Akrapovic EVO exhaust system

– Quickshifter

– Longer final gearing

– OE M slicks

– Plain white racing fairing with orange number panels

– KTM PowerParts footpeg kit

– Hinged brake and clutch levers

– Trimmed-down electrical harness

– Sports seat

– Racing chain

– Racing brake pads

– Front and rear stands included

ENGINE 2-CYLINDER, 4-STROKE ENGINE V 75° · DISPLACEMENT 1195 CC · STARTER ELECTRIC STARTER
TRANSMISSION 6 GEARS · TANK CAPACITY APPROX. 16.5L · WEIGHT (READY TO RACE) APPROX. 182 KG (WITHOUT FUEL)

---



2012 KTM 1190 RC8R Track – International Specifications/Technical Details
MSRP Price: See KTM dealer for pricing.

ENGINE Engine type Displacement Bore/stroke Power Torque Compression ratio Starter/battery Transmission Fuel system Control Lubrication Engine oil Primary drive Final drive Cooling Clutch Engine management/ignition CHASSIS Frame Subframe Handlebar Front suspension Rear suspension Suspension travel front/rear Front brake Rear brake Wheels front/rear Tires front/rear Chain Silencer Steering head angle Trail Wheel base Ground clearance Seat height Tank capacity Weight (ready to race)

2-cylinder, 4-stroke, V 75° 1,195 cc 105/69 mm 132 kW (180 hp) @ 10250 rpm 138 Nm @ 8000 rpm 13.5:1 Electric starter/12V 11.2Ah 6 gears Keihin EFI (throttle body 52 mm) 4 V/DOHC Pressure lubrication with 3 Eaton pumps Motorex, SAE 10W-50 40:76 17:37 Liquid cooling Wet multi-disc slipperclutch, hydraulically operated Keihin EMS   Chromium-Molybdenum trellis frame, powder-coated Aluminium Aluminium stump handlebar WP-USD Ø 43 mm WP-Race-Monoshock 120/120 mm 2 x Brembo Monobloc four piston, radially bolted caliper, Ø 320 mm Brembo two piston, fixed caliper, brake disc Ø 220 mm Forged aluminium wheels 3.50 x 17”; 6.00 x 17” 120/70 ZR 17; 190/55 ZR 17 X-Ring 5/8 x 5/16″ Stainless steel underfloor silencer with reg. catalytic converter 66.7° 97 mm 1,425 mm 110 mm 825/845 mm approx. 16.5 litres/3.5 litres reserve approx. 173 kg (without fuel)





---



2012 KTM 1190 RC8R Track – American Specifications/Technical Details
US MSRP Price: See KTM dealer for pricing and availability

To be annouced. See International Specifications.



---



2012 KTM 1190 RC8R Track – Canada Specifications/Technical Details
Canadian MSRP Price: See KTM dealer for pricing and availability

To be annouced. See International Specifications.
