2013 Harley-Davidson FLHR Road King Firefighter Review

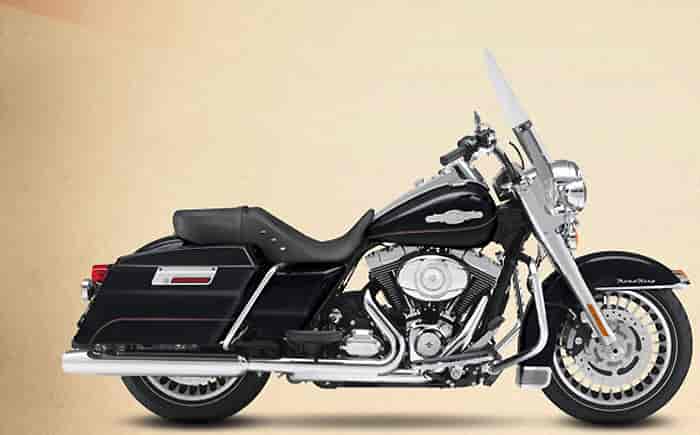

2013 Harley-Davidson FLHR Road King Firefighter
Honoring our nations heros, everyday!

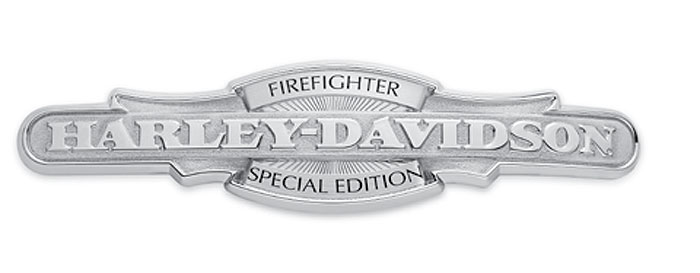

As a tribute to all law enforcement officers and firefighters who unselfishly give of themselves day in and day out, Harley-Davidson is proud to offer Peace officer and firefighter Special edition motorcycles for off-duty use. Made available only to active or retired law enforcement and fire officials, these specialty models feature distinctive designs and detailing that allows riders to display their civic pride, even when not in uniform.
Vivid Black with Red/Gold Pinstripes
Fire Engine Red with Double Gold Pinstripes
When the original Harley-Davidson® Road King® motorcycle was introduced in 1994, it didn’t take long for it to obtain iconic status with heritage going back to the original 1965 Electra Glide® model. It may look like a timeless boulevard cruiser, but it is also a fully equipped, long-distance tourer. The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s powerful engines.
2013 Harley-Davidson FLHR Road King Firefighter Key Features
• Rubber-mounted Twin Cam 103™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
• Security Package Option including factory-installed Harley-Davidson® Smart Security System with hands-free fob and Anti-lock Braking System (ABS)
• Black powder-coated powertrain with chrome covers
• Chrome 2-1-2 dual exhaust with tapered mufflers
• Black, 28-spoke Cast Aluminum wheels with narrow whitewall tires
• Tubeless Chrome Aluminum Profile Laced wheel option
• Chrome, low profile fuel tank console with electronic speedometer
• Clean rear fender and low-mounted license plate module with LED illumination
• Deep FL front fender with trim
• Stainless steel, ergonomic handlebar
• One-piece, two-up Road King® seat, sculpted for added comfort and easier straddling
• Clear, large quick-release detachable windshield
• Injection-molded hard saddlebags, 2.26 cu. ft. volume
• Large Hiawatha headlight and chrome nacelle
• Auxiliary passing lights
2013 Harley-Davidson FLHR Road King Firefighter Features and Benefits
When the original Harley-Davidson® Road King® motorcycle was introduced in 1994, it didn’t take long for it to obtain iconic status. Its heritage goes all the way back to the original 1965 Electra Glide® model. It may look like a timeless boulevard cruiser, but it is also a fully equipped, long-distance tourer.
The Road King® model features a detachable windshield, an air-adjustable touring rear suspension, and a comfortable seating position – just what rider and passenger demand for long-distance comfort. Spacious, injectionmolded saddlebags are standard, making it easy to pack for whatever lies ahead. The standard 1690 cc Twin Cam 103™ engine and 6-speed Cruise Drive® transmission provide power and smoothness, and features an integrated oil cooler. The Security Package Option bundles an anti-lock braking system and Harley-Davidson® Smart Security system for greater value, making it easier to upgrade your ride straight from the factory.
• 6-speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
• Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
• Brembo® 4-piston front and rear caliper with dual front rotor brake system
• Air-adjustable rear shocks
• Full-length rider footboards
• Height-adjustable passenger footboards
• Six-gallon fuel tank
• Optional Anti-lock Braking System (ABS)
• Optional electronic cruise control
Classic Fuel Tank
Part of the unmistakable style of the Harley-Davidson® Road King® motorcycle is plenty of room for showing off your paint. This classically styled, bold six-gallon fuel tank doesn’t just give you a bigger canvas for premium or custom paint; it holds six gallons of go so you can eat up a lot more road between pit stops. A dual-color paint scheme and unique Harley-Davidson waterslide graphics give this bike a truly one-of-a-kind look.
Classic Hiawatha Headlamp
Big and commanding, this headlamp hearkens back to the Big Twins of the 60s. You get nothing less than the latest in materials and technology. Clear-lens reflector optics provide a longer distance high beam and wider low beam. It’s a bright, striking daytime lamp that blasts a little further into the night. There’s just no beating the classic lines of that sweeping headlight nacelle.
These injection-molded hard bags have room for 2.26 cu. ft. volume of long-haul luxuries and a perfect surface for showing off some premium paint. Even better, these saddlebags open from the top, so your gear won’t end up spilled all over the highway. They keep your fancy unmentionables dry, and the chrome latches won’t corrode in bad weather. And when you’re off the road, one common key starts the bike and gives you access to your saddlebags, keeping your pockets as uncluttered as your bike’s classic design.
Tank Mounted Gauges
Tank-mounted fuel gauges boast traditional styling while offering you a clean, unobstructed view of the electric speedometer and odometer. A little chrome never hurts either. You’ll only find these unique gauges on the Road King® and Road King® Classic models.
Large 17-Inch Front Wheel
If you crave long-haul agility on rides of all distances, then you’re going to love this big, mighty wheel. Its low aspect ratio helps the Road King® model maintain its legendary tight turning radius, balanced feel and superior low-speed maneuverability. The 110th Anniversary Edition comes sporting the classy but just-slightly-sinister looking Contrast Chrome wheels front and back, for a touch of dark that sets off the spokes’ shine.
Low Mounted License Plate
We keep the back end clean and classy with a low mounted license plate that features little visible hardware. As an extra touch, we throw some LED lighting around the tag for crisp visibility and style—just enough to give your tail end a glow when you’re riding through the night. This completes the classic, uncluttered look of the Road King® model.
Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects in the sunglo and pearl colors. Skimping simply is not in our vocabulary.
Hand Finished Fuel Tank
All Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.
Twin Cam 103™ Engine Heritage
The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™; engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88®; and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.
Twin Cam 103™ Engine Innovation
Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.
Pure Harley-Davidson Styling
Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by machined cooling fin tips and chrome rocker covers. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 103™ engine makes an ironclad statement about holding on to what’s right and staying true to what satisfies.
Six-Speed Cruise Drive®
You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. And the Isolated Drive System makes acceleration flow in a smooth, steady stream from your wrist right down to the pavement. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.
Four-Point Engine Isolation System
Just get that Big Twin idling and feel the difference—there’s almost nothing to feel. Our four-point rubber engine isolation system perfects the delicate balance of shake, rattle and ride, keeping the powerful engine’s vibrations from getting to you, for a smooth, comfortable ride mile after mile.
Twin Cam 103™ Engine Power
Live your ride to the power of Twin Cam 103™. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch that you’ll appreciate when passing, climbing hills, or rolling with luggage packed or a passenger in back—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.
Cruise Control (Optional – Standard on 110th Anniversary Edition)
If you’re ready to take touring to the next level, the optional cruise feature will help you settle in for the long haul. Get the comfort of the cruise without the cables cluttering up your handlebar. Our electronic throttle control technology makes it possible to have the best of both worlds. Offered standard for the 110th Anniversary Edition.
Anti-Lock Brakes (Optional – Standard on 110th Anniversary Edition)
When it comes to the Road King® model with optional ABS, “stopping power” has a double meaning. The components of our ABS are tastefully hidden within the wheel hub, so you’ll still turn heads with clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to behave when you need it. Offered standard for the 110th Anniversary Edition, or as part of the optional “Security Package” (which includes the H-D® Smart Security System).
H-D® Smart Security System (Optional – Standard on 110th Anniversary Edition)
The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique. Offered standard for the 110th Anniversary Edition, or as part of the optional “Security Package” (which includes Anti-Lock Brakes).
Artfully Hidden Technology
Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.
Dunlop® Multi-Tread™ Tires
The 180mm back tire is engineered to do more than fill out the rear fender and put a bigger patch of rubber on the road. Dunlop® Multi-Tread™ technology uses harder compounds at the center and softer on the sides for a tire that still knows how to knuckle-down on corners. Perfect for making this bike agile on every curvy stretch of road. And the way it feels going through an abrupt off-camber turn will put a grin on your face that’ll last to the next state line.
Confidence. Control. High-performance dual disc Brembo® brakes offer consistent stopping power at all speeds. The 4-piston front and rear caliper with dual front rotor brake system is state of the art and top of the line. It’s just another way The Motor Company puts a high level of detail into their bikes to give you peace of mind throughout your journey.
With air-adjustable suspension that comes standard, you can dial in your ride to accommodate heavier or lighter payloads, battle unexpected road conditions or simply set it to how you like to roll. The lighter the load, the softer you can go by decreasing the air pressure a bit, or increase the air pressure for a more firm ride. A convenient air valve is located between the saddlebag and rear fender for quick adjusting. It’s all about rider and passenger comfort and setting your bike to fit your taste—the easy way.
Frame and Swingarm
Change everything. Lose nothing. Our complete redesign of the frame and swingarm has only been around since 2009, and it’s already changing the game entirely. Stamped and welded parts and bent tubing were ditched for strong castings and forgings—just like the legendary Harley-Davidson frames of years past. The result is a frame that rides rigid and owns the corners. The acceleration is strong. The ride is tight and responsive. And the feel on the road is confidence inspiring.
Legendary Low Speed Maneuverability
At The Motor Company, we believe you don’t make innovative, next-generation Touring motorcycles without shedding a little blood, sweat and tears. And when you get it right—like with the low speed maneuverability on our Touring models—all the other upgrades in the ride combine to create a big-boned bike that is light and nimble while carving up tight turns or if you find yourself riding in a parade or group ride.
Tuned to Be Ridden
Harley-Davidson® motorcycles are different than any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.
Two-Up Road King® Seat
A classic feature revamped for contemporary looks and performance—without sacrificing an ounce of nostalgic style. Sculpted with a deep bucket and narrow neck this ultimate Touring saddle relieves pressure on your thighs, while providing more back support and comfort for a wide variety of rider sizes. And the lower seat height—26.5 inches to be exact—puts your feet closer to the road to enhance your confidence. Additionally, the leather trim and premium stitching accentuate the advanced ergonomics while giving the seat that sharp detail you only find on a Harley-Davidson® motorcycle. It’s science in service of comfort, and your way to beat fatigue over the long haul.
Full-Length Footboards & Toe/Heel Gear Shifts
Your boots were made for riding—any way you see fit. Our full-length footboards boast a time-tested, tried-and-true design and rubber isolation for a comfortable ride, while the height-adjustable passenger boards add another level of customizable comfort for your riding partner. And for shifting gears, you can use either the traditional toe-shift or the even easier, more convenient heel-shift. It might take a few rides, but once you’ve gotten used to the smooth shifting rhythm, you’ll never give it up.
Wide Set Handlebar
Classic style and maximum comfort. That’s the perfect balance of the wide set handlebars that come standard on the Road King® Classic model. They’re designed to keep you comfortably propped in a commanding position while making sure your neck muscles stay calm and relaxed mile after mile, state after state. Durable stainless steel insures the structural rigidity you expect from a Harley-Davidson® motorcycle with the deep, lustrous finish you desire.
Go from touring to cruising in a heartbeat. Detach the screen for a clean, cool cruising style, or re-attach it in seconds for a clean envelope of air over the long haul. The windshield is as tough as they come—durable, scratch resistant, low maintenance. And whether you choose to have it on off, your Road King® Classic motorcycle rules with a nostalgic style and versatility you can make your own.
Welcome to the crossroads of pure Harley-Davidson style and smart engineering. The 2-1-2 exhaust helps direct heat away from the rider and passenger, while providing ample performance, and signature Harley-Davidson rumble, and big style.
Engine Idle Temperature Management Strategy
Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from the rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. Best part, you can easily turn this feature on or off yourself whenever the bike is stopped.
2013 Harley-Davidson FLHR Road King Firefighter – USA Specifications/Technical Details
US MSRP Price: See dealer for special pricing
Length 97 in. (2465 mm)
Overall Width 37.6 in. (955 mm)
Overall Height 55.1 in. (1400 mm)
o Laden2 26.7 in. (678 mm)
o Unladen 28 in. (714 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson® Series, bias narrow whitewall):
o Front – D408F NW 130/80B17 65H
o Rear – D407 NW 180/65B16 81H
Fuel Capacity 6 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4 qts. (3.8 L)
Transmission Capacity 1 qt. (1 L)
Primary Chain Case Capacity 1.4 qts. (1.3 L)
o As Shipped 783 lbs. (355 kg)
o In Running Order 811 lbs. (368 kg)
o Gross Vehicle Weight Rating 1360 lbs. (617 kg)
o Gross Axle Weight Rating
o Front 500 lbs. (227 kg)
o Rear 927 lbs. (420 kg)
o Volume 2.26 cu. ft. (0.0633 m3)
Engine Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-speed Cruise Drive®
Gear Ratios (overall): U.S.
o 1st 9.593
o 2nd 6.65
o 3rd 4.938
o 4th 4
o 5th 3.407
o 6th 2.875
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels4 (Tubeless Chrome Aluminum Profile Laced option): Black, 28-spoke Cast Aluminum
o Front 17 in. x 3 in. (432 mm x 76 mm)
o Rear 16 in. x 5 in. (406 mm x 127 mm)
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, fixed rotors
o Front (dual) 11.81 in. x .2 in. (300 mm x 5.1 mm)
o Rear 11.81 in. x .28 in. (300 mm x 7.1 mm)
o Anti-lock Braking System Optional
o Front Wheel 4.6 in. (117 mm)
o Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available
Engine Torque5 (per J1349):
o North America 100 ft. lbs. @ 3250 RPM (135 Nm @ 3250 RPM)
Lean Angle (per J1168):
o Right 33°
o Left 31°
(EPA urban/highway test) 42 mpg (5.6 L/100 km)
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps: High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system7 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
o Indicator Lamps (except where prohibited by law): Two @ 35W each
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
2013 Harley-Davidson FLHR Road King Firefighter – Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for special pricing
See dealer for special pricing
Length 2,465 mm
Seat Height, Unladen 740 mm
Ground Clearance 145 mm
Rake (steering head) (deg) 26
Trail 170 mm
Wheelbase 1,625 mm
Tires, Front Specification 130/80B17 65H
Tires, Rear Specification NW 180/65B16 81H
Fuel Capacity 22.7 l
Oil Capacity (w/filter) 3.8 l
Weight, As Shipped 355 kg
Weight, In Running Order g 368 kg
Luggage Capacity -Volume 0.063 m3
Engine 1 rAir-cooled Twin Cam 103™ with Integrated Oil-Cooler
Bore 98.4 mm
Stroke 111.3 mm
Displacement 1,690 cc
Compression Ratio 9.6:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 4.938
Gear Ratios (overall) 4th 4.0
Gear Ratios (overall) 5th 3.407
Gear Ratios (overall) 6th 2.875
Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
Wheels, Optional Style Type 8 Chrome Aluminum Profile Laced
Wheels, Front Type Black, 28-spoke Cast Aluminum
Wheels, Rear Type Black, 28-spoke Cast Aluminum
Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
Engine Torque Testing Method EEC/95/1J1349
Engine Torque 135 Nm
Engine Torque (rpm) 3,250
Lean Angle, Right (deg.) 33
Lean Angle, Left (deg.) 31
Fuel Economy: Combined City/Hwy 5.6 l/100 km
Lights (as per country regulation), Indicator Lamps 7High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
GaugesTank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
1Recommended 91 octane or higher fuel (R+M)/2.
2Values shown are nominal. Performance may vary by country and region.
3Standard and optional fuel systems may vary by country.
4See motorcycle owner’s manual for complete details.
5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6Measurement reflects 180 lb. (81.7 kg) operator weight.
7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8Standard and optional wheels may vary by country and region.
2013 Harley-Davidson FLHR Road King Firefighter – UK/Europe Specifications/Technical Details
UK/European MSRP Price: See dealer for special pricing
See dealer for special pricing
Length 2,465 mm
Seat Height, Unladen 740 mm
Ground Clearance 145 mm
Rake (steering head) (deg)26
Tires, Front SpecificationNW 130/80B17 65H
Tires, Rear SpecificationNW 180/65B16 81H
Fuel Capacity22.7 l
Oil Capacity (w/filter)3.8 l
Weight, As Shipped355 kg
Weight, In Running Order368 kg
Engine 2Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1st9.593
Gear Ratios (overall) 2nd6.65
Gear Ratios (overall) 3rd4.938
Gear Ratios (overall) 4th4.0
Gear Ratios (overall) 5th3.407
Gear Ratios (overall) 6th2.875
ExhaustSolid bronze single wing gas tank medallion with relieved black nickel plating and a Bar & Shield cloissone insert
Wheels, Optional Style Type 7N/A
Wheels, Front Type 7Black and Chrome, 28-spoke Cast Aluminum
Wheels, Rear Type 7Black and Chrome, 28-spoke Cast Aluminum
Brakes, Caliper Type32 mm, 4-piston fixed front and rear
Engine Torque Testing MethodEEC/95/1
Engine Torque 3130 Nm
Engine Torque (rpm)3,500
Lean Angle, Right (deg.)33
Lean Angle, Left (deg.)31
Fuel Economy: Combined City/Hwy5.6 l/100 km
Lights (as per country regulation), Indicator Lamps 6High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
GaugesTank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
1Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2Recommended 95 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4See motorcycle owner’s manual for complete details.
5Measurement reflects 81.7 kg operator weight.
6Security system includes immobiliser and siren.
7Standard and optional wheels may vary by country and region.

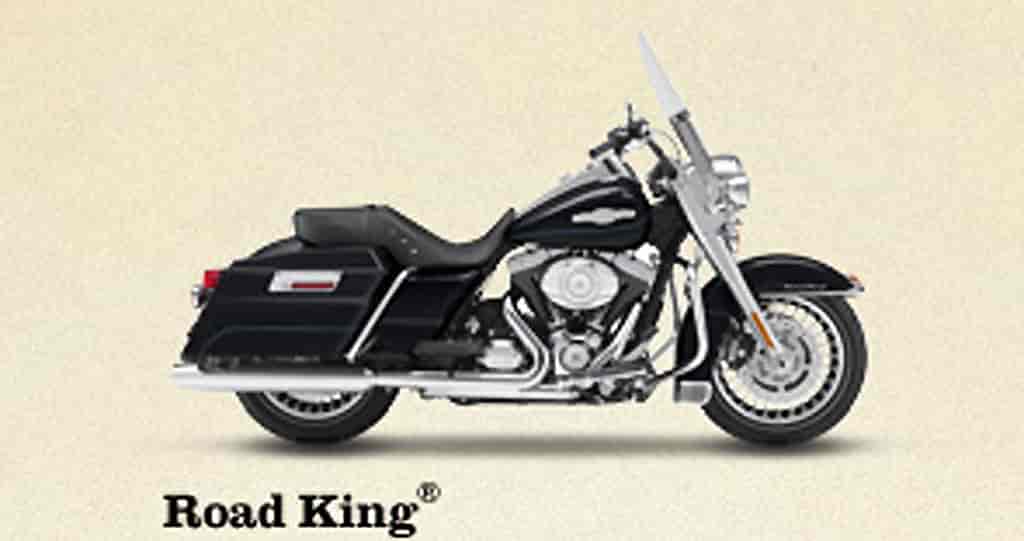

2013 Harley-Davidson FLHR Road King Firefighter – Australia Specifications/Technical Details
Australian MSRP Price: See dealer for special pricing
See above specs
Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
