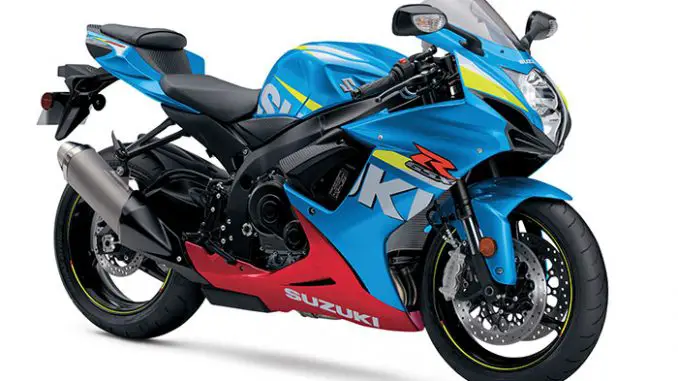

2016 Suzuki GSX-R600
2016 Suzuki GSX-R600

2016 Suzuki GSX-R600
2016 Suzuki GSX-R600

2016 Suzuki GSX-R600
2016 Suzuki GSX-R600



2016 Suzuki GSX-R600 Review

2016 Suzuki GSX-R600 on www.Totalmotorcycle.com

Designed to be The Top Performer in its class…

The Suzuki GSX-R600 is a class-leading sport bike worthy of its race-winning GSX-R heritage. Whether you’re carving through your favorite canyon or dominating the racetrack, it offers unparalleled performance. A compact, powerful 4-cylinder engine demonstrates the advanced race-proven technology of the GSX-R line when you hit the throttle and push it to redline, while supremely refined suspension systems front and rear help provide precise, responsive handling.

The Suzuki GSX-R600 continues its dominance in the AMA Pro Road Racing series, taking all 600cc championships in 2012 – including the Daytona Sportbike, Supersport West, and Supersport East. This further solidifies the GSX-R600 as part of a race-winning line of motorcycles from coast to coast.

Commemorating the 30th anniversary of the Suzuki GSX-R brand, the GSX-R family comes dressed in Suzuki’s 30th Anniversary paint scheme. These exclusive colours express Suzuki’s spirit and passion for racing, while paying tribute to the Suzuki’s GSX-R history.

In 2012, Suzuki celebrated the 1 millionth produced GSX-R motorcycle, a feat only accomplished with the support of fans, race teams, and dealers worldwide. To earn the rights as the top performer in its class, the GSX-R600 is developed with: an advanced race-proven 599cc, 4-cylinder, and liquid-cooled engine; a responsive, agile, and lightweight chassis; compact wheelbase; and race-developed suspension. In short, the GSX-R600 has once again proven to be the winning combination to Own The Racetrack.



2016 Suzuki GSX-R600 www.Totalmotorcycle.com Key Features

MotoGP Technology:
Lighter pistons and more aggressive valve lift curves enhance throttle response and produce stronger low-to-mid range torque. With a close ratio gearbox, this extra torque delivers better race starts, quicker acceleration and stronger drive out of the corners.

BREMBO Monoblock Radial Mount Calipers:
Provide more powerful and consistent braking with greater rigidity for better rider feedback. Reduced unsprung weight provides even better suspension performance.

SHOWA Big Piston Forks (BPF):
Quicker reacting with improved damping and more controlled compression under hard braking.

Race Proven Slipper Clutch:
Improves rear tyre grip and stability when approaching bends by reducing the pressure on the clutch pack under hard deceleration.

Suzuki Drive Mode Selector:
Two separate performance settings give instant control over the power delivery to suit different sections of the road or track.

3-Step Adjustable Footpegs:
Allows you to ride in the position that suits you best, providing greater comfort, control and reduces fatigue.










2016 Suzuki GSX-R600 www.Totalmotorcycle.com Features and Benefits

ENGINE FEATURES
Compact 599cc 4-cylinder engine with a race-proven over-square bore/stroke ratio that produces remarkably strong high RPM power delivery.

The energy efficient engine employs forged pistons, shot-peened connecting rods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes to reduce frictional and mechanical losses.

Camshafts with aggressive valve-lift profiles were developed using proven MotoGP racing engine technology – the first time this method has been applied to a production Suzuki.

Lightweight titanium-alloy valves are controlled by single coil valve springs to reduce valve train mass, reducing mechanical losses at high RPM.

Lightweight and durable forged pistons were designed using the same Finite Element Method (FEM) and fatigue analysis technology used for MotoGP racing engines.

Suzuki Dual Throttle Valve (SDTV) fuel injection uses eight, fine-spray 8-hole injectors for improved fuel atomization, which contributes to more complete combustion.

An Engine Control Module (ECM) provides state-of-the-art engine management and has enhanced settings to suit the intake and exhaust systems, resulting in better fuel economy and linear throttle response.

Advanced, MotoGP-developed transistorized ignition control programming helps maintain more precise spark timing across the range of engine speed and temperature range.

Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road or track conditions, and personal tastes.

4-into-1 stainless-steel exhaust system with a titanium muffler is fitted with a Suzuki Exhaust Tuning (SET) valve that maximizes torque and improves throttle response, especially in the low-to-mid RPM range.

The close-ratio six-speed transmission features a taller first-gear ratio and shorter ratios for 2nd, 3rd, 4th and 6th gear, making it easier for a racer to get a good start while improving straight-line acceleration and drive out of corners.

Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.



CHASSIS FEATURES
Lightweight and compact twin-spar aluminum-alloy frame is constructed of five cast sections to produce a balance of light weight and strength.

The frame is mated with a cast aluminum swingarm and multi-piece rear sub-frame that’s ready for race-track adaptation.

Race-developed, lightweight SHOWA Big Piston front Forks (BPF) deliver superb feedback and consistent performance. Spring preload, rebound and compression damping are all fully adjustable.

Single SHOWA rear shock features externally adjustable rebound and compression damping, along with adjustable ride height.

Electronically controlled steering damper provides lighter steering at slower speeds and more damping force at racetrack and highway speeds.

Front brakes with fully floating 310mm discs are grasped by radial-mount, four-piston BREMBO monobloc calipers.

Three-spoke cast-aluminum-alloy wheels are shod with lightweight, high-grip front and rear tires for sharp handling.

Three-way adjustable footpegs, adjustable shift lever and short fuel tank help compose a comfortable riding position that permits the positions required for performance riding.

Compact, lightweight instrument cluster with a built-in lap timer/stopwatch and programmable engine RPM indicators to alert the rider to certain shift points.

Trim, simple and lightweight bodywork creates an exciting, aerodynamic style that truly works well at speed.

Distinctive multi-reflector headlight with vertically stacked high and low-beam halogen bulbs is centered between position lights on each side.

Bright, durable LED taillight, with clear lens.

The front turn signal are integrated into the rear-view mirrors while the rear tail section houses the rear signals.

The lightweight instruments also include an analog tachometer and LCD readouts that show speed, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS and gear position indicators.

Attention to rider comfort and confidence includes a carefully shaped seat with a high-grip cover.

The wheel rims have pin stripes punctuated by “R” logos that highlight the bike’s identity.



SUSPENSION
Stylized Suzuki “S” 3-D emblems on the fuel tank and the fork upper bracket denotes the quality, sophistication and performance legacy of the brand.

Optional single seat cowl can replace the passenger seat for an even more aggressive look or for use on solo rides, or track days.

A variety of Genuine Suzuki Accessories for GSX-R owners are available including a large selection of Suzuki logo apparel.










2016 Suzuki GSX-R600 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11199 USD

ENGINE
Engine 599cc, 4-stroke, liquid-cooled, DOHC
Bore x Stroke 67.0 mm x 42.5 mm (2.638 in x 1.673 in)
Compression Ratio 12.9 : 1
Fuel System Suzuki Fuel Injection
Starter Electric
Lubrication Wet sump
DRIVE TRAIN
Transmission 6-speed constant mesh
Final Drive Chain, RK525SMOZ8, 114 links
CHASSIS
Suspension Front Inverted Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.0 L (4.5 US gallons), 16.0 L (4.2 US gallons) CA model
Color Metallic Triton Blue, Pearl Mira Red / Metallic Matte Black No. 2
ELECTRICAL
Ignition Electronic ignition (Transistorized)
DIMENSIONS AND CURB WEIGHT
Overall Length 2030 mm (79.9 in)
Overall Width 710 mm (28.0 in)
Wheelbase 1385 mm (54.5 in)
Ground Clearance 130 mm ( 5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 187 kg (412 lbs)
WARRANTY
Warranty 12 month unlimited mileage limited warranty.









2016 Suzuki GSX-R600 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $12299 CDN

ENGINE FEATURES
Type 4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement 599cc
Bore x Stroke 67.0 mm x 42.5 mm (2.638 in x 1.673 in)
Compression Ratio 12.9 : 1
Fuel System Suzuki Fuel Injection
Starter Electric
Lubrication Wet sump
Ignition Electronic ignition (Transistorized)
DRIVETRAIN FEATURES
Transmission 6-speed, constant mesh
Final Drive RK525SMOZ8, 114 links, Chain
CHASSIS FEATURES
Suspension Front Inverted Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.0 L (4.5 US gal )
DIMENSIONS
Overall Length 2030 mm (79.9 in)
Overall Width 710 mm (28.0 in)
Overall Height 1135 mm (44.7 in)
Wheelbase 1385 mm (54.5 in)
Ground Clearance 130 mm ( 5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 187 kg (412 lbs )
WARRANTY
Standard Warranty 12 Month unlimited mileage limited warranty






2016 Suzuki GSX-R600 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £8599 GBP (On The Road inc 20% Vat)

Dimensions and Weights


Overall length: 2030mm (79.9in)
Overall width: 710mm (28in)
Overall height: 1135mm (44.7in)
Wheelbase: 1385mm (54.5in)
Seat height: 810mm (31.9in)
Kerb Mass: 187.0kg (412.3lbs)
Fuel capacity: 17.0litres (3.7 UK gallons)
Ground clearance: 130mm (5.1in)

Engine Specifications


Engine capacity: 599cc
Engine: 4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore: 67.0mm x 42.5mm
Compression ratio: 12.9:1
Lubrication: Wet sump
Fuel system: Fuel Injection
Transmission: 6-speed constant mesh
Drive: Chain
MPG: 55.08*
Power: 92.50kW @ 13500rpm (124.00hp)†
Torque: 69.60N.m @ 11500rpm (51.00lb.ft)†

Chassis Specification


Front suspension: Inverted telescopic, coil spring, oil damped
Rear suspension: Link type, coil spring oil damped
Front brakes: Disc, twin
Rear brakes: Disc
Front tyres: 120/70 ZR17M/C (58W) tubeless
Rear tyres: 180/55 ZR17M/C (73W) tubeless
