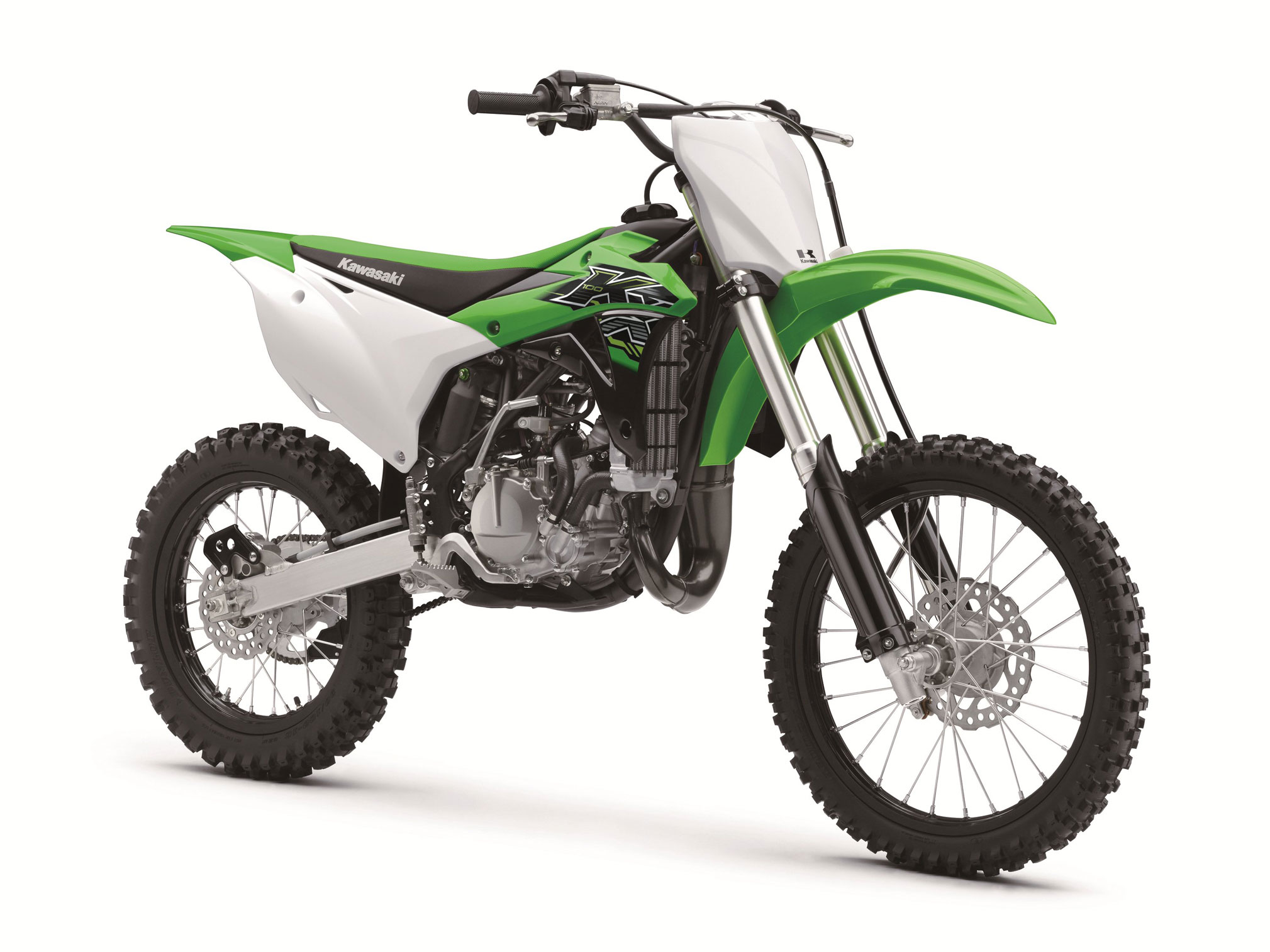

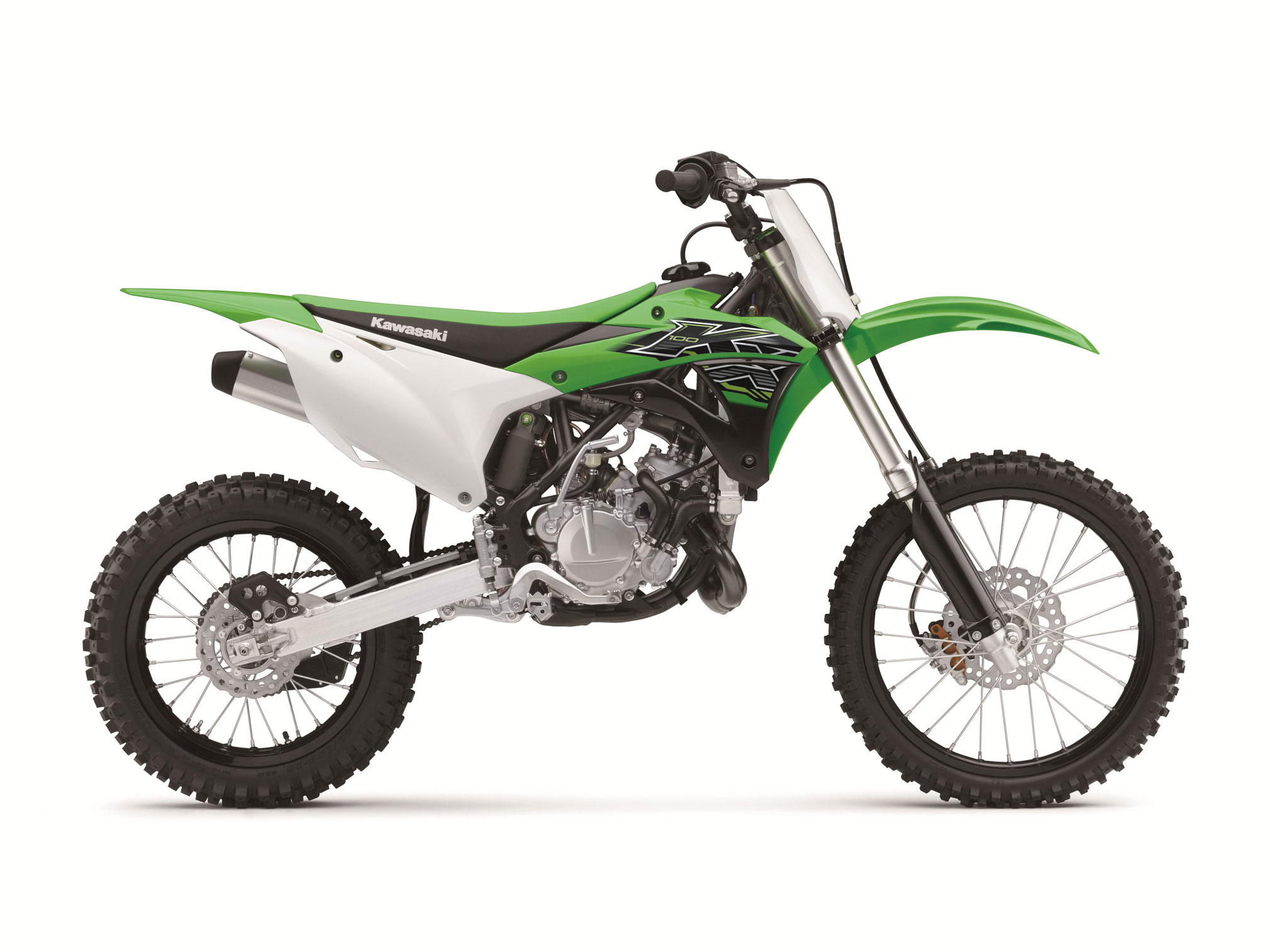

2019 Kawasaki KX100 Guide

2019 Kawasaki KX100

2019 Kawasaki KX100 2019 Kawasaki KX100 2019 Kawasaki KX100 2019 Kawasaki KX100

SMALL BUT MIGHTY.

2019 Kawasaki KX100:

Despite its smaller stature, the powerful 99cc two-stroke engine in the KX™100 motorcycle resembles the jaw dropping “big bike” look of its larger KX counterparts, while maintaining its ability to outperform the competition. Designed using the same championship winning technology as Kawasaki’s full-size motocross models, an adjustable handlebar mounting system allows for riders to place themselves in the best ride position. Backed by winning performance from Kawasaki Team Green, the KX100 has been a natural step for the riders who are looking to make the transition from the 85cc class to a full-size motocross bike.

Mold your aspiring racer the right way by bridging the gap to full-size bikes with the KX™100 motorcycle. With more power and larger wheels than the KX85, this two-stroke super-mini gives riders the perfect blend of durability and proportionate power increase with a larger chassis before transitioning to the big bikes.



THE BIKES THAT BUILD CHAMPIONS

The Kawasaki KX™ motocross lineup is ingrained with a long list of successes that has stemmed from building champions since the start. The entire lineup returns for 2019 with models to build future champions.

The Kawasaki Team Green™ racing team has been the dominant force in amateur racing for more than 35 years, providing contingency and trackside support to racers. As a result, Kawasaki has relied on the aspiring young stars to provide input and to help develop winning products across its lineup.

THE WINNING EDGE

With more supercross and pro motocross wins than all other OEMs combined, no one else comes close to the championship-winning power and race-ready technology of the Kawasaki KX™250. The tradition continues in the 2019 KX250, The Bike That Builds Champions.









2019 Kawasaki KX100 Totalmotorcycle.com Key Features

We designed the KX100 from the ground up for teenage chargers who are between the mini 85s and full-size 250s. Its 19-inch front and 16-inch rear wheels are sized just right for adolescent racers and its generous 275mm of front and rear wheel travel is widely tuneable to let your inner-race shine.





2019 Kawasaki KX100 Totalmotorcycle.com Features and Benefits

•High-performance liquid-cooled, 99cc 2-stroke engine
•6-position adjustable handlebar mount helps tailor ergonomics for a wide range of riders
•Sophisticated suspension components are adjustable
•Larger (19F, 16R) wheels than the KX85 (17F, 14R) contribute to a taller 34.3 inch seat height and higher 13.0 inch ground clearance
•Front and rear disc brakes







2019 Kawasaki KX100 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4549 USD
Canada MSRP Price: $5299 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

POWER
Engine 2-stroke, 1-cylinder, piston reed valve, water-cooled
Displacement 99cc
Bore x Stroke 52.5 x 45.8mm
Compression Ratio 10.2:1 (low speed) – 8.7:1 (high speed)
Fuel System Keihin PWK28
Ignition CDI with digital advance
Transmission 6-speed, return shift
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 36mm inverted telescopic cartridge fork with 20-way compression damping/10.8 in
Rear Suspension / Wheel Travel Uni-Trak® single shock system with 24-way compression and 21-way rebound damping plus
adjustable spring preload/10.8 in
Front Tire 70/100-19
Rear Tire 90/100-16
Front Brakes Disc
Rear Brakes Disc
DETAILS
Frame Type High-tensile steel perimeter design with subframe member
Rake / Trail 29°/4.3 in
Overall Length 75.6 in
Overall Width 30.1 in
Overall Height 45.3 in
Ground Clearance 13.0 in
Seat Height 34.3 in
Curb Weight 169.7 lb**
Fuel Capacity 1.32 gal
Wheelbase 51.6 in
Color Choices Lime Green
Warranty Not Available
Kawasaki Protection Plus™ (optional) Not Available
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).





2019 Kawasaki KX100 – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Displacement 99cc
Type 2-stroke, Single with KIPS
Bore and stroke 52.5 x 45.8 mm
Cooling Liquid, twin radiators
Compression ratio 10.2 (low speed), 8.7 (high speed)
Fuel system Keihin PWK28 carburetor
Ignition Digital-CDI
Lubrication Petrol mix (32:1), 2-stroke racing oil
Induction 2-petal carbon-fibre piston reed valve

Brakes

Front: type Single 220 mm disc
Front: calipers Dual-piston caliper
Rear: type Single 184 mm disc
Rear: calipers Single-piston caliper

Dimensions

Overall length 1,920 mm (75.2 in.)
Overall width 765 mm (28.9 in.)
Overall height 1,150 mm (43.5 in.)
Wheelbase 1,310 mm (50.8 in.)
Ground clearance 330 mm (13.0 in.)
Seat height 870 mm (34.3 in.)
Curb mass** 77 kg (157 lbs.)
Fuel capacity 5 litres (1.21 gal.)

Drivetrain

Transmission 6-speed, constant mesh, return shift
Final drive Chain
Primary reduction ratio 3.400 (68/20)
Gear ratio: 1st 2.538 (33/13)
Gear ratio: 2nd 1.875 (30/16)
Gear ratio: 3rd 1.500 (27/18)
Gear ratio: 4th 1.250 (25/20)
Gear ratio: 5th 1.090 (24/22)
Gear ratio: 6th 0.956 (22/23)
Final reduction ratio 3.923 (51/13)
Clutch Wet multi-disc

Frame

Type Tubular single cradle, high tensile steel perimeter
Wheel travel: front 275 mm (10.8 in.)
Tire: front 70/100-19
Wheel travel: rear 275 mm (10.8 in.)
Tire: rear 90/100-16
Caster (rake) 29°
Trail 108 mm (4.1 in.)
Steering angle (left/right) 45° / 45°

Suspension

Suspension, front 36 mm inverted telescopic cartridge fork with 20-way compression damping
Suspension, rear Uni-Trak single-shock system with 24-way compression and 21-way rebound damping, plus adjustable spring preload



* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.







2019 Kawasaki KX100 – Totalmotorcycle.com European Specifications/Technical Details

TBA







2019 Kawasaki KX100 – Totalmotorcycle.com Australian Specifications/Technical Details

TBA



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
