ONE GIANT LEAP FORWARD.

2019 Kawasaki Ninja H2:

The 2019 Ninja H2 has done it again with another leap forward in power and technology. The 998cc Supercharged engine puts out even more power, the next generation Brembo Stylema calipers produce unbelievable stopping power, and a full TFT dashboard with Bluetooth connectivity ensures you are connected in ways you never thought possible. It even has highly durable paint that heals itself from minor scratches in the sun. Adding these to an already awe-striking package, it’s no wonder that the H2 is Built Beyond Belief.

Since the Ninja H2 sportbike was introduced, Kawasaki engineers were able to pursue unadulterated performance while remaining street legal and
street capable.

A second model, the Ninja H2 Carbon, was developed as a special, limited edition model that features beautiful, strong and lightweight carbon fiber front bodywork and special insignia. The Ninja H2 and Ninja H2 Carbon are following in the footsteps of the unrestricted, track only Ninja H2™R motorcycle, which was truly Built Beyond Belief.

In addition to the increased performance for the Ninja H2, Kawasaki has added Brembo’s latest high-spec calipers. In the cockpit, a new TFT (thin-film transistor) color instrumentation display with four selectable display modes, as well as Smartphone Connectivity which enables riders to connect to their motorcycle wirelessly. Bringing all this power and technology to the pavement are new Bridgestone RS11 tires.

These incredible machines share technologically advanced components, including the 998cc inline four-cylinder engine, proprietary supercharger, lightweight trellis frame, compact superbike dimensions, aerodynamic bodywork, and a strong single-sided swingarm. The 2019 Ninja H2 is available in Mirror Coated Spark Black, while the 2019 Ninja H2 Carbon is offered in Mirror Coated Matte Spark Black / Golden Blazed Green with its clear coated raw carbon fiber fairing on display.

BUILT BEYOND BELIEF
An extension of the “Built Beyond Belief” concept of the original Ninja H2, the new Ninja H2 and Ninja H2 Carbon benefit from engine updates that increase maximum power to 231 PS† – making these supercharged supersport machines Kawasaki’s most powerful street models ever.
† This engine is rated in PS power units. Gross power is different from net power. Net power is generally less than gross, but varies with engine specifications. Gross power is a general measure to compare one engine to another, as to its overall capacity. Your specific engine net power rating will be different and most likely less than the rated power.

2019 Kawasaki Ninja H2 Totalmotorcycle.com Key Features

Highlights of the 2019 Kawasaki Ninja H2 and Ninja H2 hypersports:

• NEW Most powerful H2 engine to date while maintaining the same fuel efficiency
• NEW Brembo Stylema® monobloc brake calipers
• NEW Bridgestone Battlax RS11 sport tires
• NEW TFT full color instrument display with four selectable modes
• NEW Smartphone connectivity
• NEW All LED lighting
• NEW Highly Durable Paint with “self repairing” top coat on high touch areas

Bonneville Speed Week Unveil for 2019 “Power Up” Ninja H2

Still the only road going Supercharged Hyperpsort machine on the market, the latest iteration of the formidable Ninja H2 has just been unveiled as part of the annual Bonneville Speed Week.

Fully Euro4 compliant, the new model year Ninja H2 enjoys a substantial power increase from 200PS to an incredible 231PS. Pioneering the contemporary use of Supercharger technology on production motorcycles, Kawasaki is keen that power is not the only significant feature and, for 2019, there are certainly many other highlights such as the preservation of the current fuel economy figures despite the rise in horse power.

Some of this impressive power and fuel economy combination is due to a number of parts crossing over from the successful ultimate sport touring Ninja H2 SX. Items included in the new Ninja H2 spec include the air-filter, intake chamber, spark plugs and ECU but, critically, not the adoption of the balanced Supercharger.

Along with new high performance Bridgestone RS11 tyres the new spec also includes the latest Brembo “Stylema” front brake calipers. Super rigid, the Stylema has increased pad cooling ability, more instant and predictable initial actuation and better temperature characteristics for the brake fluid itself.

Visually there are also updates including a new Supercharged emblem plus highly durable paint and, for the first time on a Ninja H2, TFT colour meters with Bluetooth connectivity.

The highly durable paint is a noteworthy feature that, in suitably warm ambient temperatures, can “selfheal” minor scratches and scuffs in an impressively short time frame. Developed in-house by Kawasaki, the time between the appearance of a light scratch and “healing” is in a different league to similar automotive systems that can take weeks to fully “heal”.

The TFT meters have the same contemporary look and feel those currently fitted to the Ninja H2 SX SE but with the added innovation of smartphone connectivity via Kawasaki’s new “Rideology” App. Once paired, the smart phone can display a number of items including vehicle information such as fuel level and battery condition as well as a riding log and service interval updates.

“The visual impact and engineering prowess of the Ninja H2 will surely increase thanks to this major update”, commented Kenji Nagahara, Managing Director of Kawasaki Motors Europe. “This Supercharged machine is the physical embodiment of our corporate strength. The addition of more power, smart phone “Rideology” technology and other specification

upgrades for 2019 shows that, as a company, we are constantly pushing the boundaries of what is possible and delivering cutting edge motorcycles to the market.“

2019 Kawasaki Ninja H2 Totalmotorcycle.com Features and Benefits

NEW More Powerful Engine

With the significant improvements, the supercharged acceleration of the Ninja H2 is more exhilarating than ever. The new engine performance does not affect fuel efficiency as consumption and range stay on par with previous models thanks to feedback from the Ninja H2™` SX motorcycle’s “balanced supercharged” engine. Key components to the increase in power include a new air filter, intake chamber and spark plugs.

NEW Brembo Stylema® Calipers

New for 2019 the Ninja H2, Ninja H2 Carbon and Ninja H2R hypersport motorcycles are equipped with high-grade Brembo Stylema front calipers. The dual radial mount, opposed 4-piston Stylema calipers gripping semi-floating 330mm discs are equipped with KIBS ABS to complement the technical innovation and premium quality of the Ninja H2, Ninja H2 Carbon and Ninja H2R.

NEW Bridgestone Battlax RS11 Sport Tires

Technical innovations continue on the Ninja H2 and Ninja H2 Carbon as they come equipped with all-new Bridgestone Battlax RS11 sport tires (12/70-17 front, 200/55-17 rear) that contribute to improved handling.

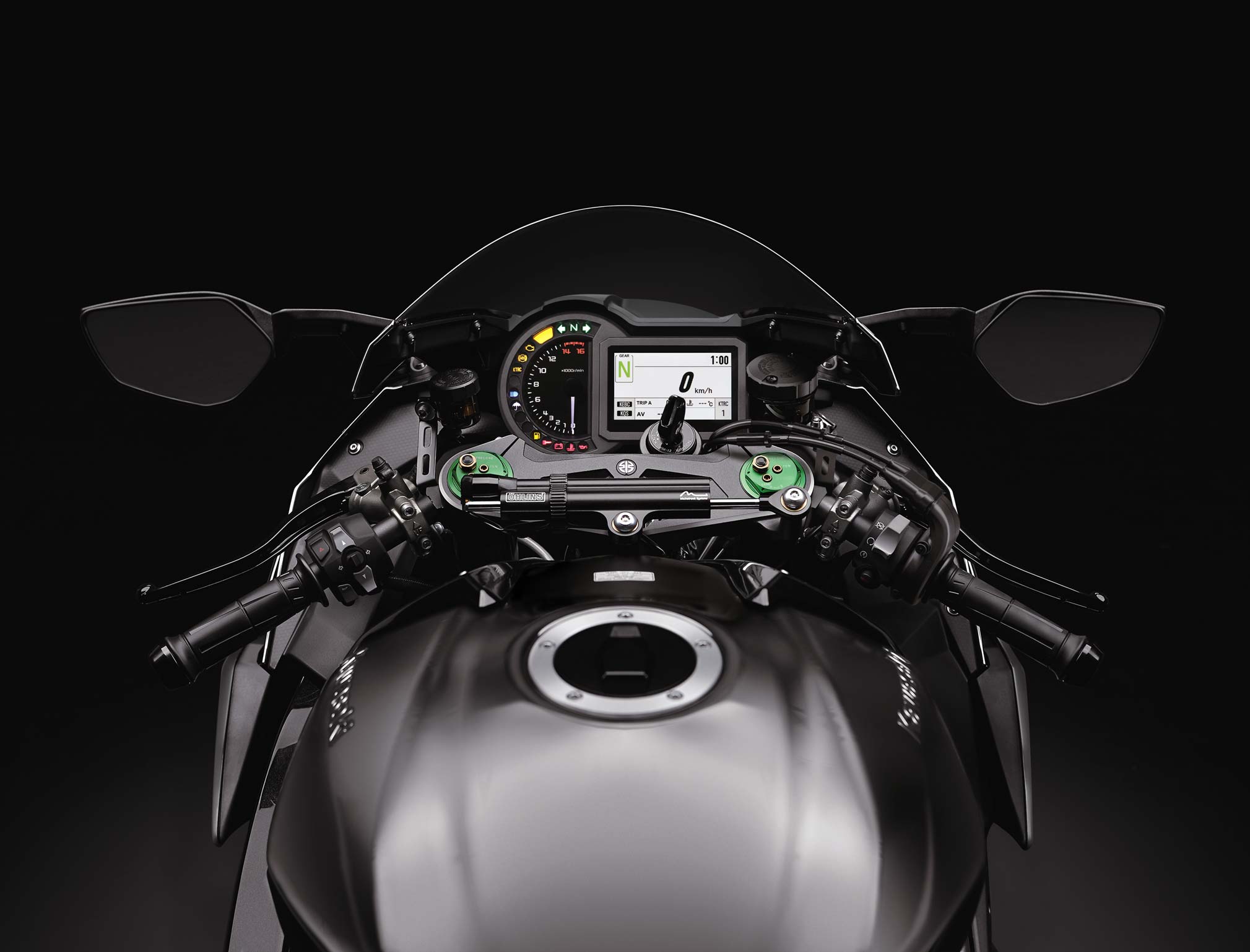

NEW TFT Color Instrumentation

Contributing to the Ninja H2 flagship-level of quality is the advanced, high-tech design of the instrumentation featuring an analogue-style tachometer complemented by a high-grade full-color TFT LCD screen that enables information to be displayed graphically. Four selectable display modes allow riders to prioritize the information they want to see depending on the kind of riding they are doing at the time.

The high-grade full-color display features TFT technology to ensure a level of visibility. The screen’s background color (black or white) is selectable at the touch of a button, and screen brightness adjusts automatically to suit available light. In addition to scrollable multi-function windows, four display modes offer riders a choice of how they want their information presented. Simple handle control switches put all mode selection and display options at the rider’s fingertips.

In addition to a digital speedometer and gear position indicator, display functions include: odometer, dual trip meters, current mileage, average mileage, fuel consumption, bank angle display and max bank angle recording function, coolant temperature, boost indicator, boost (intake air chamber) temperature, clock, and Economical Riding Indicator.

NEW Smartphone Connectivity

As Kawasaki continues along a path of innovation, the 2019 Ninja H2 model comes another first: Smartphone Connectivity to the motorcycle. A chip built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using a smartphone application, a number of instrument functions can be accessed, logged, and reviewed contributing to an enhanced motorcycling experience. The information below can be viewed on the connected smartphone through the proprietary app:

• Vehicle information including fuel level, odometer, trip meter, maintenance schedule, battery condition, etc.
• Riding record including GPS route information, speed, rpm, gear position, fuel mileage and more
• Telephone notices: when a call, text or mail is received by the smartphone, this is indicated on the vehicle’s instrument display
• Vehicle settings: general instrument display settings (such as power or riding modes and ride support aids, such as Kawasaki Quick Shifter (KQS,) can be adjusted via the smartphone as well as by manual switch

The app can also be used when away from the motorcycle. When riding (with the app ON), the bike and smartphone are always connected. Once the engine is turned off, or the smartphone is out of range of the instrument’s chip, the latest riding information is stored by the app and may be viewed on the smartphone. Any changes made via the app while the engine is off, or while out of range, will be implemented as soon as the ignition is turned on and the smartphone is in range with the app ON.

NEW All-LED Lighting

The 2019 Kawasaki Ninja H2 and Ninja H2 Carbon feature new LED turn signals and an LED license plate lamp, meaning all lighting equipment (headlamp, position lamps, taillight, turn signals, and license plate lamp) are now brighter and more efficient LED technology.

Styling

A new “Supercharged” emblem emphasizes the increase in performance offered by the supercharged engine of the Ninja H2. Red color accents express the uniqueness of this high performance engine, while graphics depicting high-velocity intake air being spun around convey a sense of speed. Also new for 2019 are wheel pinstripes, which help to convey a high-class image.

NEW Highly Durable Paint

Also new is Kawasaki’s Highly Durable Paint (used on all non-carbon bodywork parts). The new paint features a special top coat that allows certain types of scratches to repair themselves, enabling the paint to maintain its high quality finish through normal wear and tear^†. The self-healing is achieved through microscopic soft and hard segments within the top coat working like a chemical spring, creating a trampoline effect that absorbs many impacts.

^† Notes:
1. In some cases, it takes more than one week for recovery.
2. The paint will not recover in the case of scratches caused by a coin or key, or zip fasteners.

KAWASAKI NINJA H2™R

The Kawasaki Ninja H2™R hypersport motorcycle once again returns as a class leader and one of the most sought-after motorcycles on the planet. New for 2019 is the addition of the Brembo Stylema® front calipers, a redesigned supercharged emblem, and Kawasaki’s Highly Durable Paint.

2019 Kawasaki Ninja H2 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $32500 CDN
Europe/UK MSRP Price: £ 26499+ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

2019 Kawasaki Ninja H2 – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Displacement 998cc
Type 4-stroke, In-Line Four
Bore and stroke 76.0 x 55.0 mm
Cooling Liquid
Compression ratio 8.5:1
Valve system DOHC, 16 valves (4 valves per cylinder)
Fuel system 50mm x4 with dual injection
Ignition Digital
Lubrication Forced lubrication (wet sump with oil cooler)
Intake System Kawasaki Supercharger

Brakes

Front: type Dual semi-floating 330 mm Brembo discs
Front: calipers Dual radial-mount, Brembo Stylema monobloc
Rear: type Single 250 mm disc
Rear: calipers Opposed 2-piston

Dimensions

Overall length 2,085 mm
Overall width 770 mm
Overall height 1,445 mm
Wheelbase 1,450 mm
Ground clearance 130 mm
Seat height 825 mm
Curb mass** 238 kg
Fuel capacity 17 litres (3.7 gal.)

Drivetrain

Transmission 6-speed, dog-ring
Final drive Chain
Primary reduction ratio 1.551 (76/49)
Gear ratio: 1st 3.188 (51/16)
Gear ratio: 2nd 2.526 (48/19)
Gear ratio: 3rd 2.045 (45/22)
Gear ratio: 4th 1.727 (38/22)
Gear ratio: 5th 1.524 (32/21)
Gear ratio: 6th 1.348 (31/23)
Final reduction ratio 2.444 (44/18)
Clutch Wet multi-disc, manual

Frame

Type Trellis, high-tensile steel, with Swingarm Mounting Plate
Wheel travel: front 120 mm (4.7 in.)
Tire: front 120/70ZR17M/C (58W)
Wheel travel: rear 135 mm
Tire: rear 200/55ZR17M/C (78W)
Caster (rake) 24.5º
Trail 103 mm
Steering angle (left/right) 27º/27º

Performance

Maximum Torque‡ 141.7 N.m {14.4 kgf.m} / 11,000 rpm

Suspension

Suspension, front 43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Suspension, rear New Uni-Trak, Öhlins TTX36 gas charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring

* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.

2019 Kawasaki Ninja H2 – Totalmotorcycle.com European Specifications/Technical Details

ENGINE

Type

Valve system

Fuel system

Intake system

Ignition

Starting

Lubrication

Liquid-cooled, 4-stroke In-Line Four

DOHC, 16 valves

Fuel injection: ø50 mm x 4 with dual injection

Kawasaki Supercharger

Digital

Electric

Forced lubrication, wet sump with oil cooler

DRIVETRAIN

Transmission

Clutch

6-speed, return, dog-ring

Wet multi-disc, manual

SUSPENSION

Type

Trellis, high-tensile steel, with Swingarm Mounting Plate

BRAKES

Front

Rear

ø43 mm inverted fork with rebound and compression damping and spring preload adjustability, and top-out springs

New Uni Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring

BRAKES

Front: Type

Caliper

Rear: Type

Caliper

Dual semi-floating ø330 mm Brembo discs

Dual radial-mount, Brembo Stylema monobloc,

opposed 4-piston

Single ø250 mm disc

Brembo, opposed 2-piston

2019 Kawasaki Ninja H2 – Totalmotorcycle.com Australian Specifications/Technical Details

TBA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
