BORN WITH PERFORMANCE.

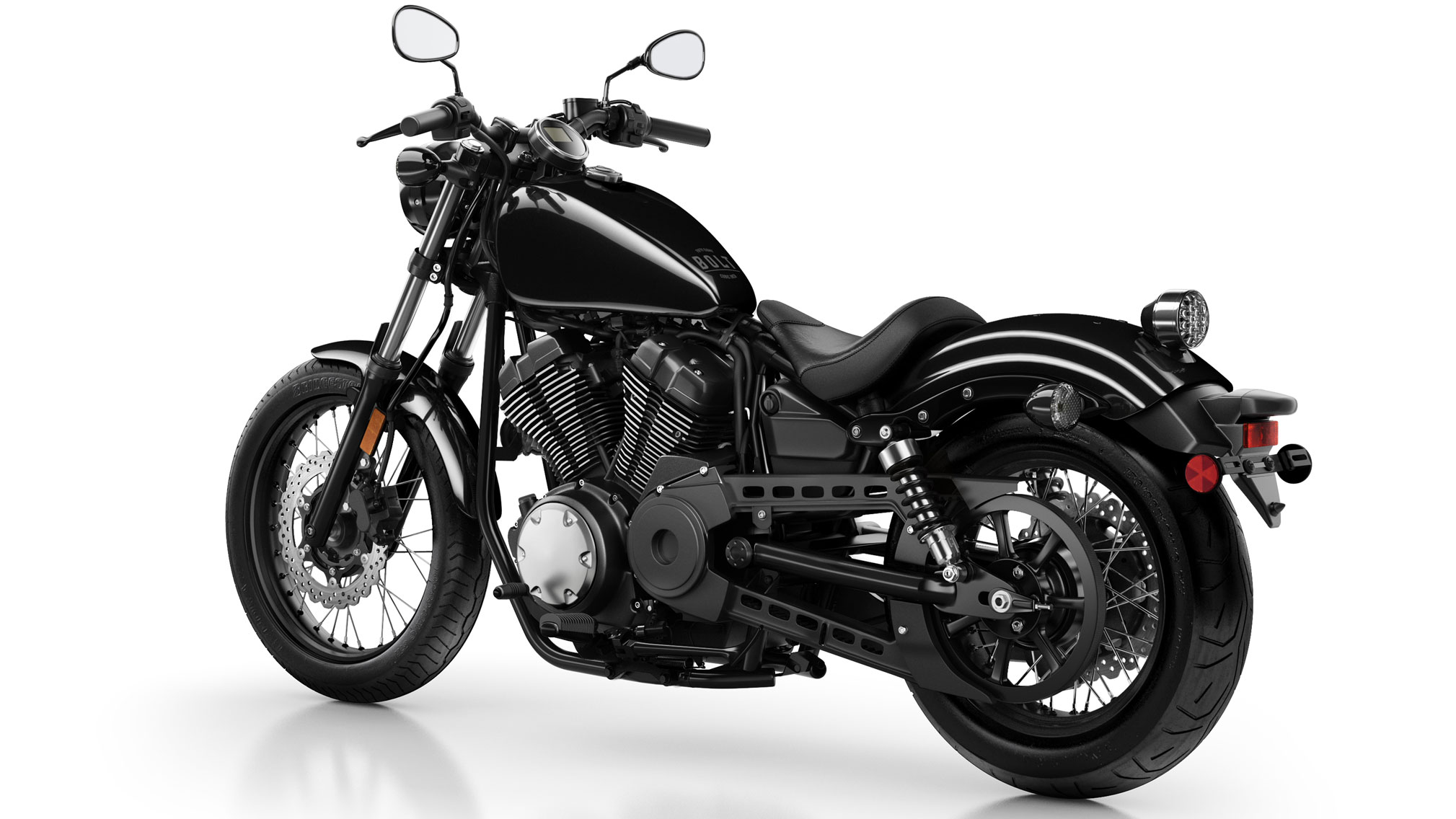

2019 Yamaha Bolt:
The perfect union of old‑school soul and modern form featuring a torquey V‑Twin and classic bobber design.
Designers and custom builders are stepping back to a time when the mechanical beauty of a motorcycle was highlighted in its styling. The Bolt’s simple styling, compact layout, V-twin power and natural riding position combine to offer an incredibly fun riding experience.
942cc, air-cooled, SOHC, 4-valves per cylinder, 60° V-twin engine produces outstanding low- and mid-range torque. Maximum torque is reached at only 3,000 rpm – for an exceptionally fun riding experience.
The Bolt is designed to be compact and slim, featuring clean, simple styling with the ability to easily personalize / customize the bike.
2019 Yamaha Bolt Totalmotorcycle.com Key Features
- Urban Performance Styling
The Bolt® is stripped down with minimal chrome, epitomizing the “Urban Performance Bobber” look. The compact chassis proudly showcases the 58 cubic inch (942cc), air-cooled, 60° V-twin sitting at the heart of the bike.
- High-Tech Engine
The Bolt uses modern technology to create a riding experience superior to other similarly sized machines. Fuel injection and ignition timing maps have been chosen specifically for this bike to deliver class-leading performance with strong low and midrange torque sure to bring a smile to every rider’s face.
- Compact, Stable Chassis
The slim body and low seat design combine to give the motorcycle light maneuverability and a stable handling feeling. The upright riding posture helps the rider feel the wind, hear the sounds and experience the pulse of the machine.
- Ready to Customize
For riders who value personalization, the options for the Bolt are limited only by the owner’s imagination. As we say with the Star® cruiser line, “We build it. You make it your own.”® And as the perfect canvas for customization, Bolt is the ultimate example of that philosophy.
- Unique Bolt Persona
Components such as the 3.4 gallon fuel tank, belt drive, front and rear wheels, digital meter and steel fenders combine to create a distinct look in the Star cruiser line-up.
2019 Yamaha Bolt Totalmotorcycle.com Features and Benefits
- Modern Air-Cooled V-Twin
The 58 cubic inch (942cc) engine is an air-cooled SOHC 60° V-twin with four valves per cylinder, a pent-roof shaped combustion chamber, and 9.0:1 compression ratio. The engine is designed to provide excellent power and superior low-end torque.
- Low Friction Internals
To keep friction loss to a minimum, increase durability and help the engine achieve the ideal performance characteristics, special roller-type rocker arms with needle bearings are used.
- Advanced Cylinder Design
The pent-roof combustion chamber shape was precisely engineered to direct the fuel/air charge to the center of the piston for more efficient combustion and maximum power. Ceramic-composite plated cylinders provide excellent heat dissipation and reduced oil consumption.
- Lightweight Performance Pistons
High-quality forged aluminum pistons have a lightweight, high-strength, compact design that contributes to reduced vibration and increased durability.
- Fuel Injection
Sophisticated twin-bore fuel injection is used on the Bolt to deliver ultimate urban riding fun with strong acceleration. 3D maps for ignition timing and fuel injection have been developed to deliver outstanding acceleration in the mid- and low-speed ranges.
- Compact Air Cleaner
The stainless steel air cleaner cover provides a “raw metal” look that accentuates the Bolt’s distinctive styling. In addition, the air cleaner design provides great intake efficiency and enhanced torque characteristics.
- Unique Bolt Exhaust System
A 2-into-1 exhaust pipe layout on the right side of the engine contributes to the lively performance and styling of the machine. The minimalist-style exhaust system delivers a throaty and pleasing exhaust note.
- Handling-Focused Frame
A double-cradle frame enhances city riding enjoyment thanks to an engine mounted to the frame with a rigid mount system that provides precise handling.
- Low Seat Height
The low-set seat is a mere 27.2 inches off the pavement, so most riders can easily put both feet firmly on the ground at a stop, as well as enjoy the great riding position the seat provides.
- Agile Wheelbase
Bolt’s short, 61.8-inch wheelbase contributes to the bike’s great handling, providing precise, tight turns in city riding and solid handling on the open road.
- Advanced Suspension
The beefy front 41mm fork tubes offer excellent suspension performance and the twin rear shocks have been tuned to provide great comfort and handling while contributing to the machine’s low profile.
- Low Maintenance Belt Drive
At just 21mm wide, the drive belt contributes to the slim and clean look of the rear end. The belt has a carbon-fiber core which adds strength and durability for longevity.
- Custom Wheels and Tires
Newly designed spoke wheels with black anodized aluminum rims combine lightweight strength with timeless style. Bridgestone® 100/90-19 front and 150/80-16 rear tires help provide excellent road grip.
- Powerful Braking
The 298mm front disc brake and 298mm rear disc brake both use wave rotors, the style usually found on sport bikes. The front brake uses a floating mount for great heat-distortion resistance, contributing to excellent braking performance.
- Slim, Stylish Fuel Tank
The 3.4 gallon fuel tank is a traditional teardrop style, with a slim shape that includes flattened top and side surfaces to enhance Bolt styling. The tank features a flangeless design for even cleaner lines.
- Modern Lighting
LED rear taillight looks cool and adds to the modern bobber appeal.
- Slick Instruments
Compact digital LCD meter assembly provides clean styling with excellent visibility.
- Real Steel Fenders
Steel front and rear fenders are ideal for personalization, including paint and customization.
- Bobber-Style Seat
Solo rider saddle adds to the minimalist bobber look while providing good support for longer rides.
2019 Yamaha Bolt – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7999 USD
Canada MSRP Price: $8999 CDN
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU
Engine Type 58-cubic-inch (942cc) air-cooled SOHC V-twin; 4 valves
Bore x Stroke 85.0mm x 83.0mm
Compression Ratio 9.0:1
Fuel Delivery Fuel injection
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Belt
Suspension / Front Telescopic fork, 4.7-in travel
Suspension / Rear Dual shocks, 2.8-in travel
Brakes / Front Wave-type disc, 298mm
Brakes / Rear Wave-type disc, 298mm
Tires / Front 100/90-19
Tires / Rear 150/80-16
L x W x H 90.2 in x 37.2 in x 44.1 in
Seat Height 27.2 in
Wheelbase 61.8 in
Rake (Caster Angle) 29.0°
Trail 5.1 in
Ground Clearance 5.1 in
Fuel Capacity 3.4 gal
Fuel Economy** 51 mpg
Wet Weight*** 542 lb
Warranty 1 Year (Limited Factory Warranty)
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.
2019 Yamaha Bolt – Totalmotorcycle.com Canada Specifications/Technical Details
|Air-cooled, SOHC, 8-valves (4 per cylinder), 60 degree, V-twin|
|Bore and Stroke|
|85 x 83mm|
|8.2 kg-m (59.3 ft-lb) @ 3,000rpm|
|35mm dual bore throttle body fuel injection|
|Estimated Fuel Consumption±|
|21.6 kpl / 61 mpg (imp.)|
|Ignition / Starting|
|TCI / Electric|
|41mm fork / 120mm (4.7″) wheel travel|
|Preload adjustable dual shocks / 70mm (2.8″) wheel travel|
|298mm disc / twin piston caliper|
|298mm disc / single piston caliper|
|100/90 x 19 (tube type)|
|150/80 x 16 (tube type)|
|Rake / Trail|
|29 degrees / 130mm (5.1″)|
|13 litres (2.9 Imp. gal.)|
|248kg (547 lb.)|
2019 Yamaha Bolt – Totalmotorcycle.com European Specifications/Technical Details
2019 Yamaha Bolt – Totalmotorcycle.com Australian Specifications/Technical Details
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
