2023 Harley-Davidson Breakout 117: EVERY NIGHT IS BIKE NIGHT.

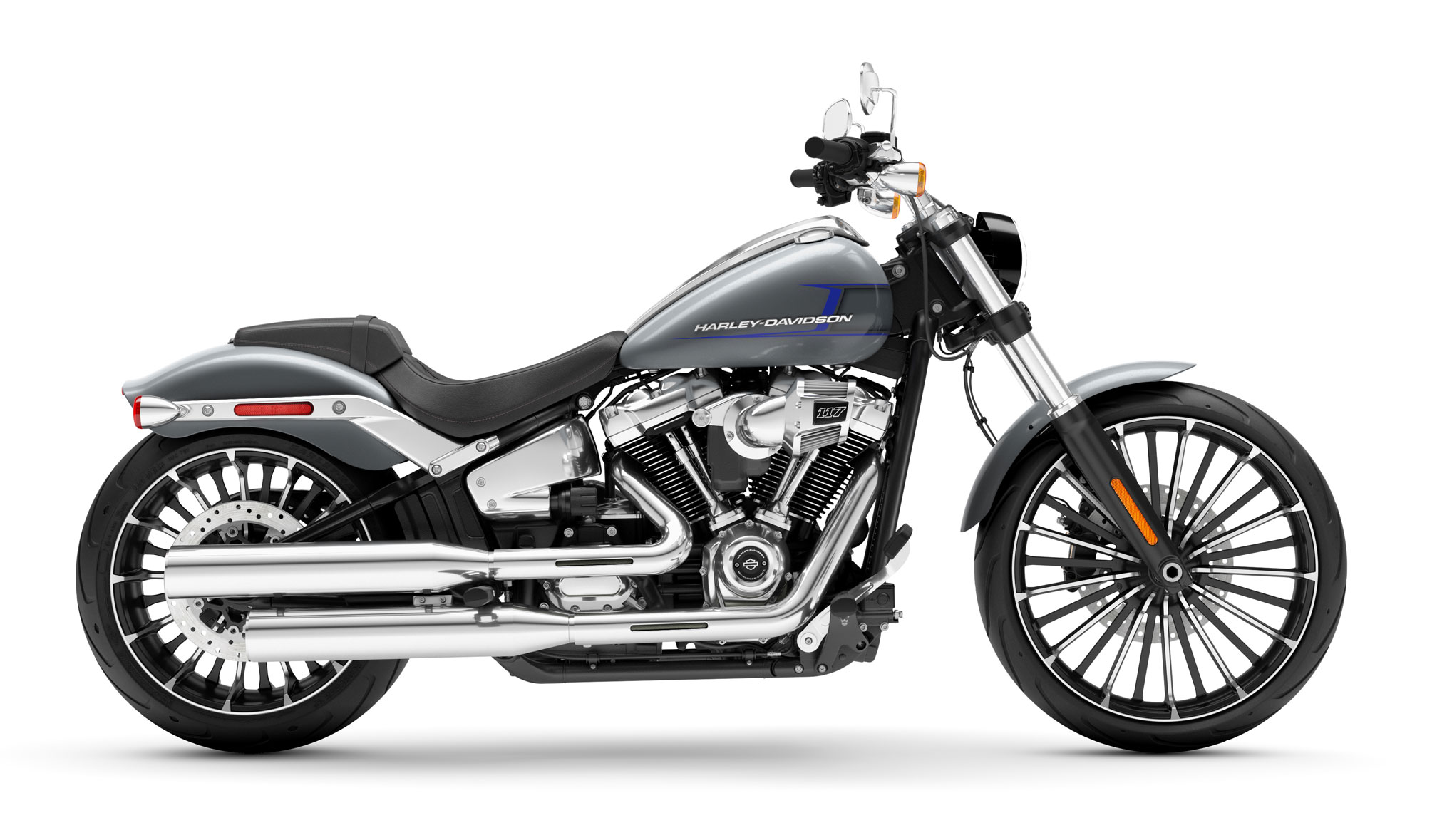

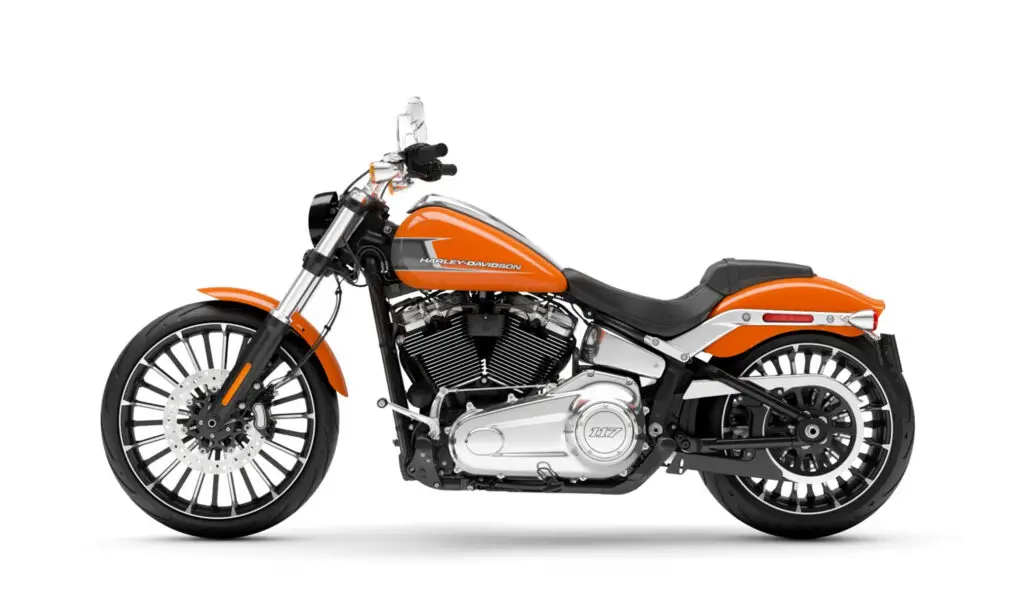

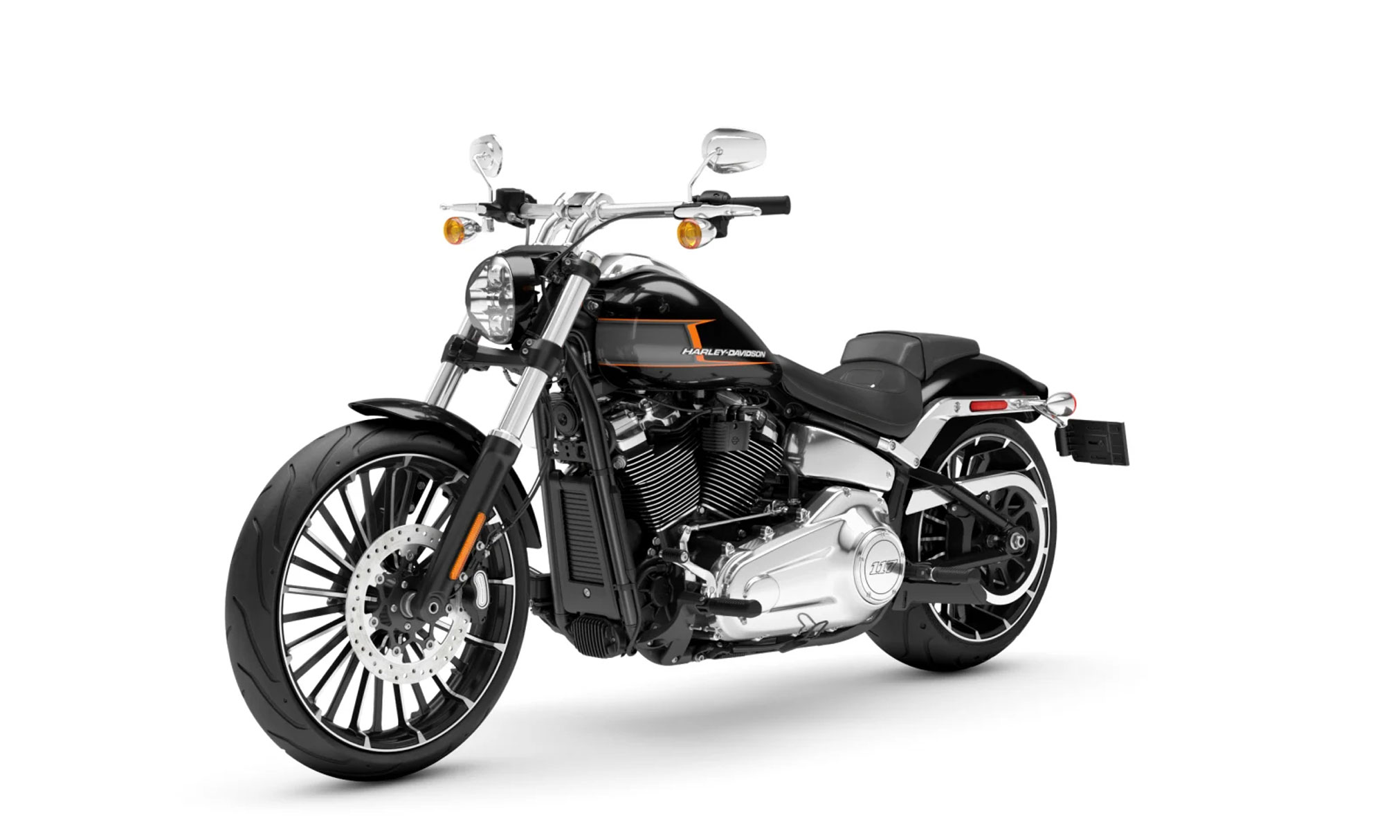

Introducing the 2023 Harley-Davidson Breakout 117…

The Breakout model returns to the North America model line, flexing more muscle and flashing bright new styling over its long-and-lean chopper profile. The muscle is provided by the Milwaukee-Eight 117 V-Twin engine, the pinnacle of torque and displacement in a factory-installed, regular-production Harley-Davidson powertrain that gives the Breakout rider instant bragging rights on the street. New for 2023, the bike has a five-gallon fuel tank topped with a low-profile chrome console shaped to lengthen the motorcycle profile and extend riding range. Also, a new handlebar riser and polished stainless steel handlebar is ¾-inch taller for improved rider reach to controls.

Styling and power that lets you be seen, then be gone. Wake up your senses while stealing glances. The 2023 Breakout 117 is a raked out cruiser dripping in chrome.

2023 Harley-Davidson Breakout 117 Totalmotorcycle.com Key Features

• Stretched riding position
• Forward foot controls
• Passenger seat
• Low
• Milwaukee-Eight 117 V-Twin Powertrain
• Muscular style and performance
• New chrome finishes

2023 Harley-Davidson Breakout 117 Totalmotorcycle.com Features and Benefits

BRIGHT NEW LOOK
Chrome Finishes: Fender supports, side covers, muffler shields, turn signals, mirrors, Heavy Breather intake.

CHASSIS
An improvised Harley-Davidson Softail chassis reduces weight without sacrificing stiffness while maintaining the classic look of a hard tail.

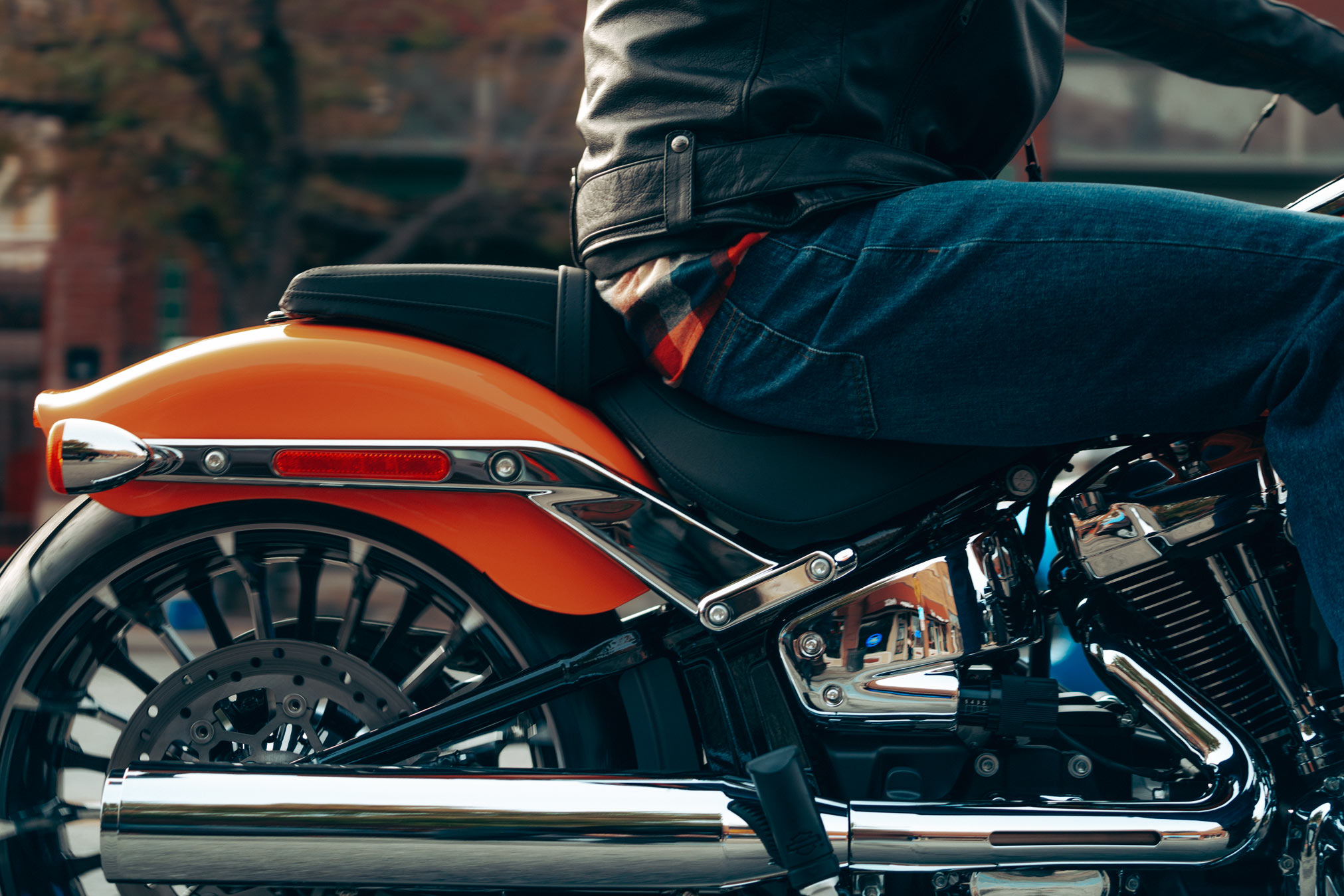

RESHAPED SEAT
A new shape to the seat helps accommodate the 5-gallon fuel tank.

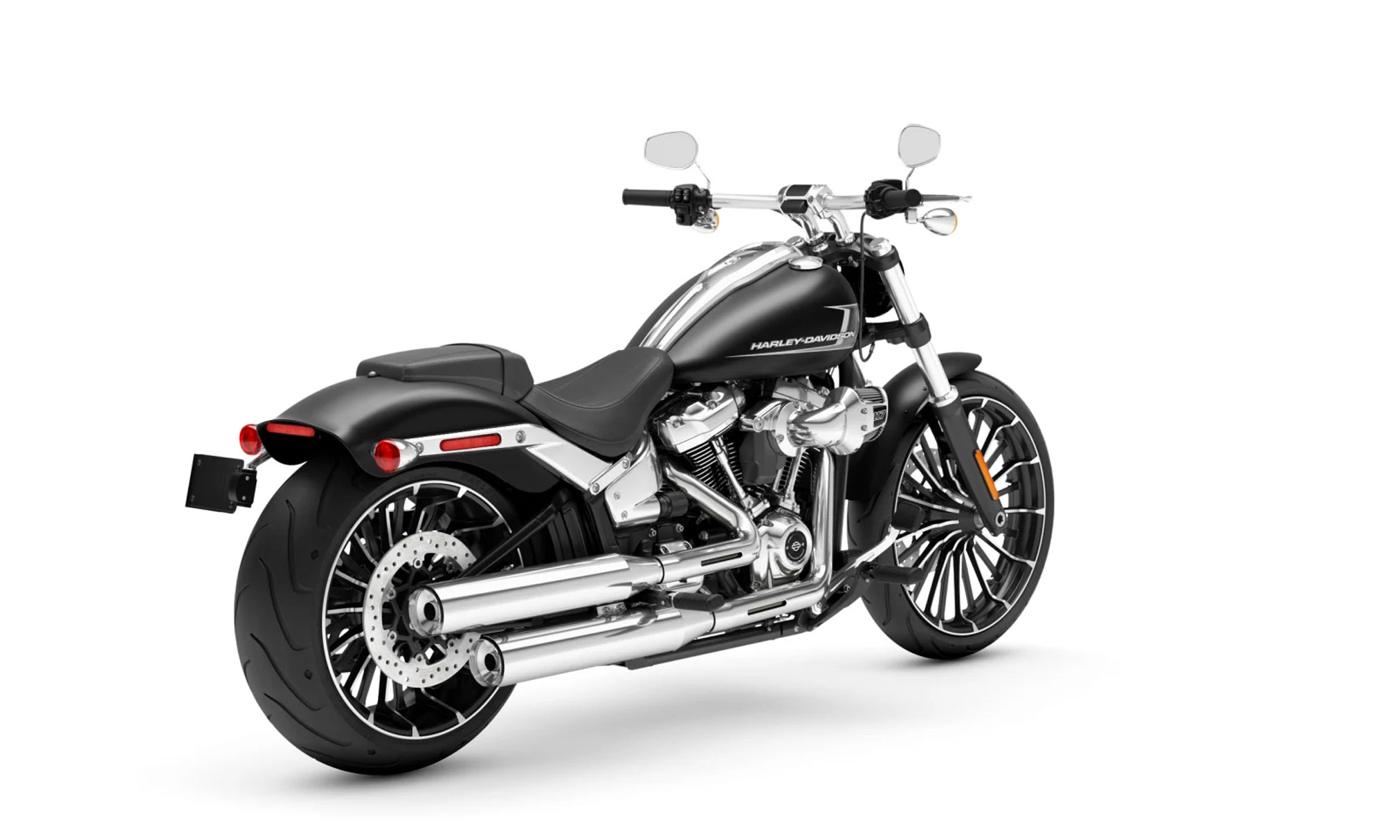

2-INTO-2 EXHAUST
High-performance 2-into-2 offset shotgun exhaust for smooth and broad exciting mid-range torque with a stirring tone.

WHEELS
26-spoke cast aluminum wheels; Gloss Black finish with machined details; 21-inch front/18-inch rear diameter.

2023 Harley-Davidson Breakout 117 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $20,999 to $21,524 USD
Canada MSRP Price: $26,549 to $27,199 CDN
Europe/UK MSRP Price: £24,195 to £24,635 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

93.3 in.

SEAT HEIGHT, LADEN ⁷

25.6 in.

GROUND CLEARANCE

4.5 in.

RAKE

34

TRAIL

5.7 in.

WHEELBASE

66.7 in.

TIRES, FRONT SPECIFICATION

130/60B21,63H,BW

TIRES, REAR SPECIFICATION

240/40R18,79V,BW

TIRE, TYPE

Michelin Scorcher “11” front and rear

FUEL CAPACITY

5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

653 lb.

WEIGHT, IN RUNNING ORDER

683 lb.

ENGINE

ENGINE ¹

Milwaukee-Eight 117

BORE

4.075 in.

STROKE

4.5 in.

DISPLACEMENT

117 cu in

COMPRESSION RATIO

10.2:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 staggered; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

123 ft-lb

ENGINE TORQUE (RPM)

3500

HORSEPOWER

101 HP / 75 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

26.8

LEAN ANGLE, LEFT (DEG.)

26.8

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁹

Gloss black, 26-spoke cast aluminum

WHEELS, REAR TYPE ⁹

Gloss black, 26-spoke cast aluminum

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED, low beam, high beam and signature position lamp; Incandescent bullets

GAUGES

2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Optional

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Breakout 117 – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,370 mm

SEAT HEIGHT, UNLADEN

665 mm

GROUND CLEARANCE

115 mm

RAKE

34

TRAIL

145 mm

WHEELBASE

1,695 mm

TIRES, FRONT SPECIFICATION

130/60B21,63H,BW

TIRES, REAR SPECIFICATION

240/40R18,79V,BW

TIRE, TYPE

Michelin Scorcher “11” front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

296 kg

WEIGHT, IN RUNNING ORDER

310 kg

ENGINE

ENGINE ²

Milwaukee-Eight 117

BORE

103.5 mm

STROKE

114 mm

DISPLACEMENT

1,923 cc

COMPRESSION RATIO

10.2:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 staggered; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

167 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

101 HP / 75 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

26.8

LEAN ANGLE, LEFT (DEG.)

26.8

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Gloss black, 26-spoke cast aluminum

WHEELS, REAR TYPE ⁴

Gloss black, 26-spoke cast aluminum

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED, low beam, high beam and signature position lamp; Incandescent bullets

GAUGES

2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Breakout 117 – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,370 mm

SEAT HEIGHT, UNLADEN

665 mm

GROUND CLEARANCE

115 mm

RAKE

34

TRAIL

145 mm

WHEELBASE

1,695 mm

TYRES, FRONT SPECIFICATION

130/60B21,63H,BW

TYRES, REAR SPECIFICATION

240/40R18,79V,BW

TYRE, TYPE

Michelin Scorcher “11” front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

296 kg

WEIGHT, IN RUNNING ORDER

310 kg

ENGINE

ENGINE ²

Milwaukee-Eight117

BORE

103.5 mm

STROKE

114.3 mm

DISPLACEMENT

1,923 cc

COMPRESSION RATIO

10.2:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 staggered; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

168 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

102 HP / 76 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

26.8

LEAN ANGLE, LEFT (DEG.)

26.8

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.6 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

135 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Gloss black, 26-spoke cast aluminum

WHEELS, REAR TYPE ⁴

Gloss black, 26-spoke cast aluminum

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets

GAUGES

2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Optional

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
