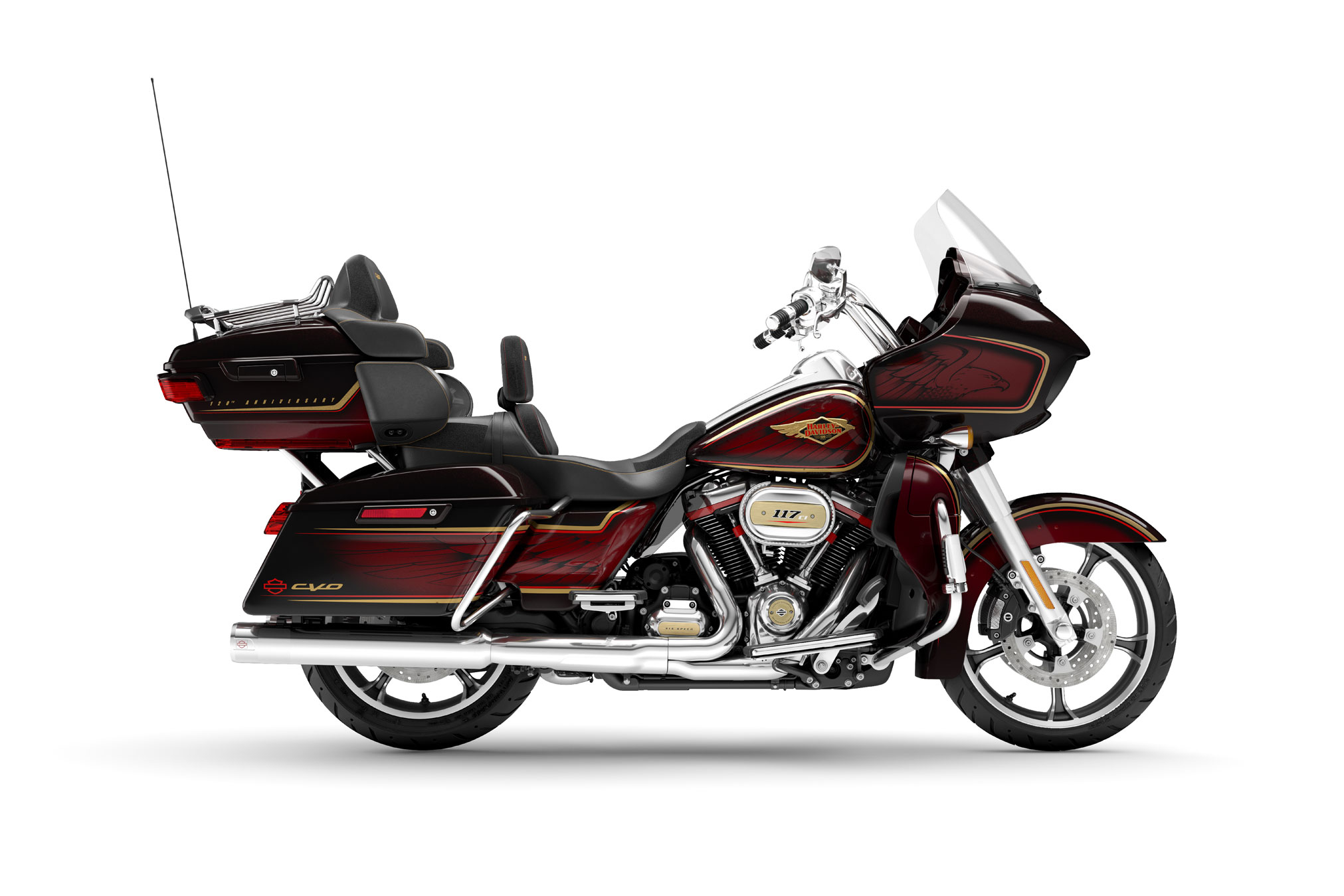

2023 Harley-Davidson CVO Road Glide LTD Anniversary
Contents: ReviewKey FeaturesFeatures & BenefitsSpecifications

2023 Harley-Davidson CVO Road Glide LTD Anniversary 2023 Harley-Davidson CVO Road Glide LTD Anniversary 2023 Harley-Davidson CVO Road Glide LTD Anniversary 2023 Harley-Davidson CVO Road Glide LTD Anniversary 2023 Harley-Davidson CVO Road Glide LTD Anniversary 2023 Harley-Davidson Anniversary

Contents: ReviewKey FeaturesFeatures & BenefitsSpecifications

2023 Harley-Davidson CVO Road Glide LTD Anniversary: HAVE IT ALL.

Introducing the 2023 Harley-Davidson CVO Road Glide LTD Anniversary…

A CVO 120 years in the making. The very limited-edition, super-premium CVO Road Glide Limited Anniversary model celebrates 120 years of craftsmanship with one of the most intricate paint schemes ever offered by Harley-Davidson. The 2023 CVO Road Glide Limited Anniversary model is an extremely limited, serialized custom bagger loaded with exclusive details, power and styling that celebrate 120 years of Harley-Davidson motorcycles. It’s the ultimate ride to the H-D Homecoming event.

Once-in-a-lifetime celebration. One-of-a-kind motorcycle. A CVO 120 years in the making.

The 2023 CVO Road Glide Limited Anniversary model is an extremely limited, serialized custom bagger loaded with exclusive details, power and styling that celebrate 120 years of Harley-Davidson motorcycles. It’s the ultimate ride to the H-D Homecoming event.





2023 Harley-Davidson CVO Road Glide LTD Anniversary Totalmotorcycle.com Key Features

  • Upright riding position
  • Floorboards
  • Passenger seat with backrest
  • Saddlebags
  • Frame mounted fairing
  • Infotainment
  • Rider safety enhancements available
  • Limited Anniversary Edition
  • Bold 120th anniversary themed paint
  • Heated seats and grips
  • Twin-Cooled Milwaukee-Eight 117 V-Twin Powertrain



2023 Harley-Davidson CVO Road Glide LTD Anniversary Totalmotorcycle.com Features and Benefits

Grand American Touring
The category we’ve created from the ground up. Go the distance, in style. Discover the wide open world and freedom for the soul on bikes only Harley-Davidson could build.

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

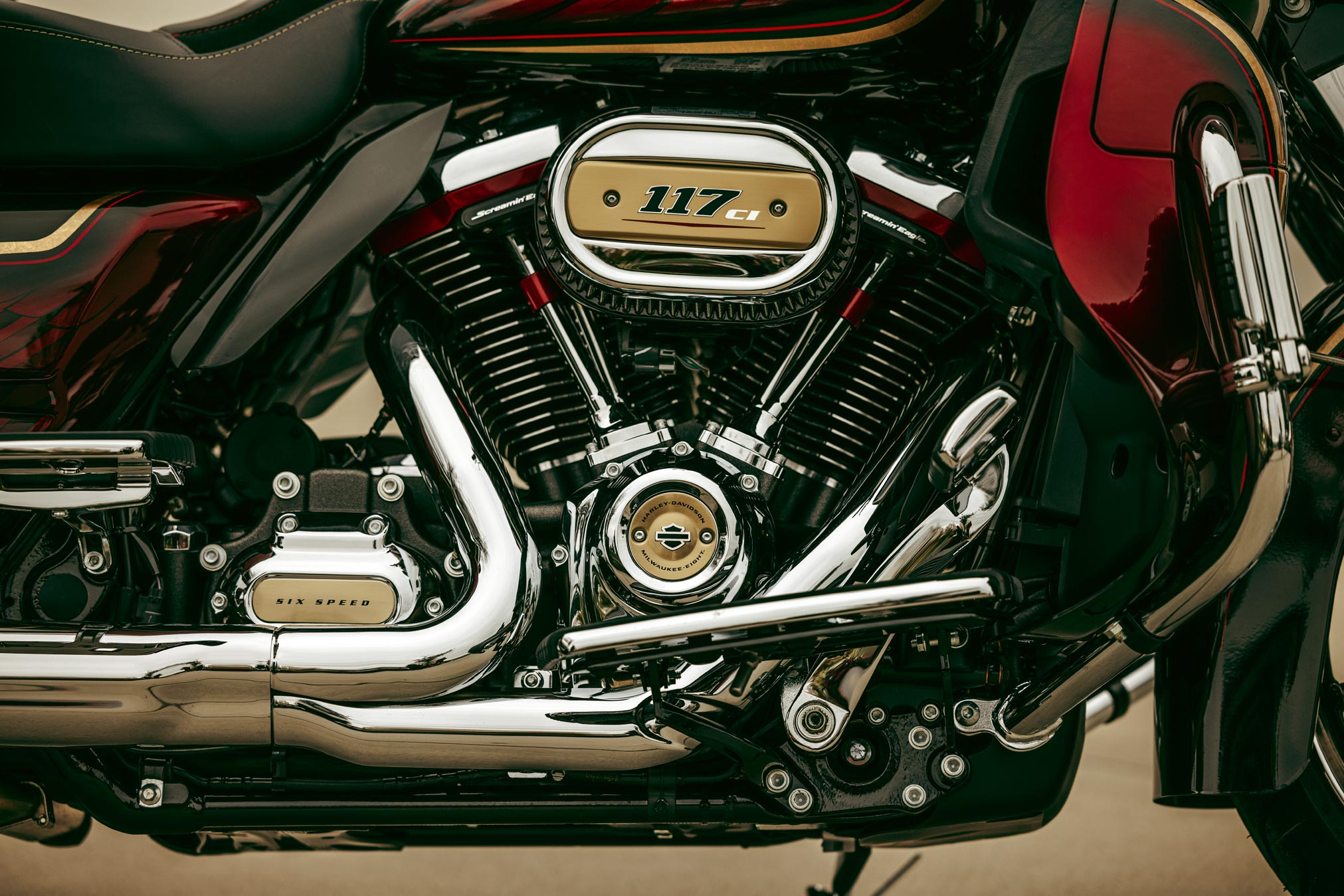

MILWAUKEE-EIGHT 117 V-TWIN
The pinnacle of torque and displacement with precision oil/air cooling producing 125 ft. lbs. of torque at 3500 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.

CORNERING RIDER SAFETY ENHANCEMENTS
Experience enhanced control with Cornering Electronically Linked Brakes, Cornering-ABS, Cornering-Traction Control with modes, Drag Torque Slip Control, Hill Hold Control (HHC), Tire Pressure Monitoring (TPMS).

EXCLUSIVE COMMEMORATIVE PAINT
Anniversary Black and Heirloom Red paneled paint scheme hand-laid details.

SIT IN HIGH STYLE
Luxurious Alcantara surfaces with gold and red contrast stitching accents and an embroidered CVO logo.

SERIALIZED STYLE
To commemorate the 120th anniversary, each motorcycle features a laser etched serialization on console insert.

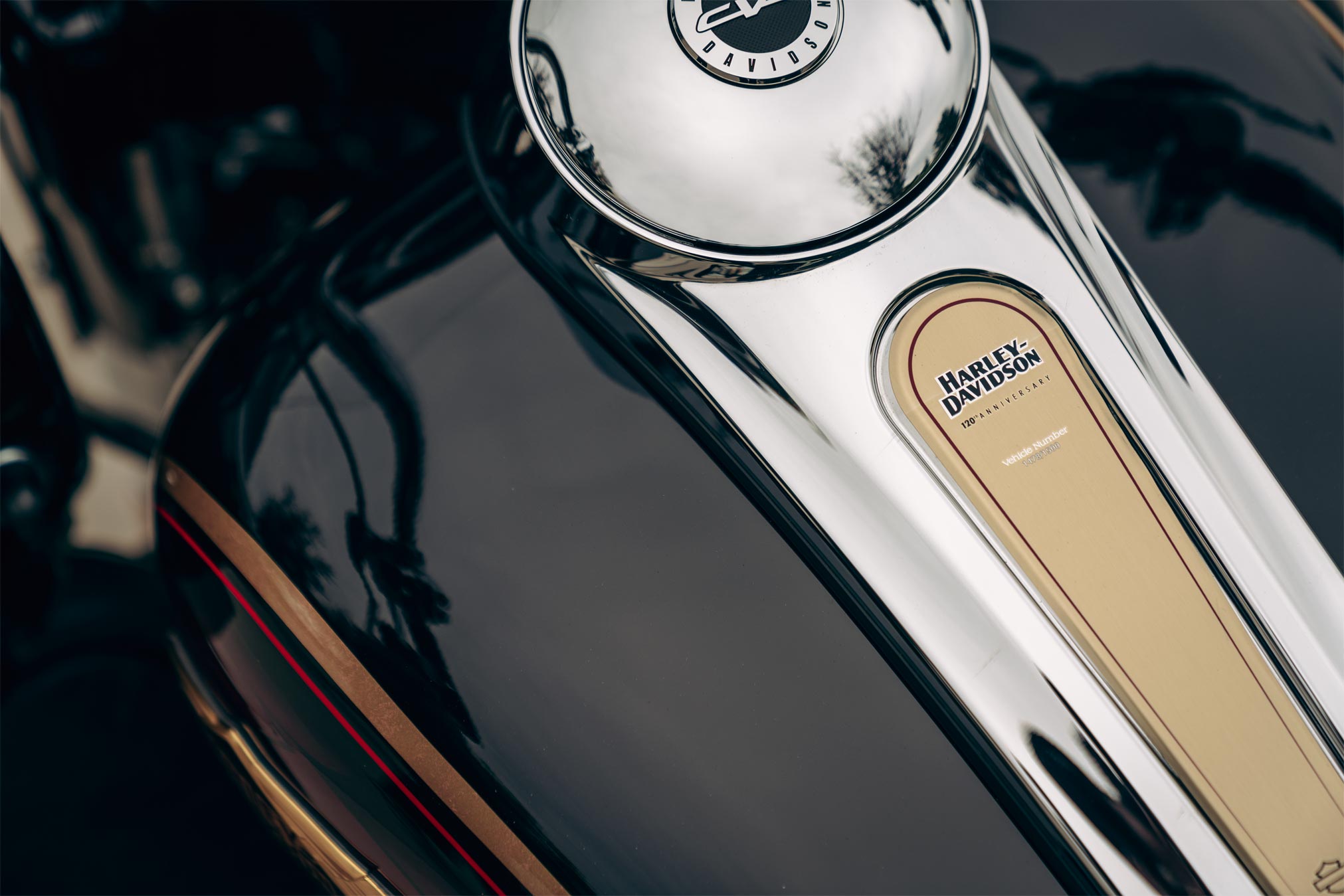

“SPEEDBIRD” TANK MEDALLION
Glass-filled Art Deco rendition of a flying eagle–iconic symbolism of Harley-Davidson, adorns each side of the tank.









2023 Harley-Davidson CVO Road Glide LTD Anniversary – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $51,999 USD
Canada MSRP Price: $65,699 CDN
Europe/UK MSRP Price: £50,395 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

101.2 in.

SEAT HEIGHT, LADEN 7

28.2 in

GROUND CLEARANCE

5.1 in.

RAKE

26

TRAIL

6.7 in.

WHEELBASE

64 in.

TIRES, FRONT SPECIFICATION

BW 130/60B19 61H

TIRES, REAR SPECIFICATION

BW 180/55B18 80H

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

6 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

927 lb.

WEIGHT, IN RUNNING ORDER

963 lb.

LUGGAGE CAPACITY -VOLUME

4.7 cu ft

ENGINE

ENGINE 1

Twin-Cooled Milwaukee-Eight 117

BORE

4.075 in.

STROKE

4.5 in.

DISPLACEMENT

117 cu in

COMPRESSION RATIO

10.2:1

FUEL SYSTEM 3

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

Dual, with crossover

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE 2

125 ft-lb

ENGINE TORQUE (RPM)

3500

HORSEPOWER

102 HP / 76 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

34.3

LEAN ANGLE, LEFT (DEG.)

33.4

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY 5

41 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.593

GEAR RATIOS (OVERALL) 2ND

6.65

GEAR RATIOS (OVERALL) 3RD

4.938

GEAR RATIOS (OVERALL) 4TH

4

GEAR RATIOS (OVERALL) 5TH

3.407

GEAR RATIOS (OVERALL) 6TH

2.875

CHASSIS

FRONT FORK

49mm Dual Bending Valve

REAR SHOCKS

Premium standard height hand-adjustable rear suspension

WHEELS, FRONT TYPE 9

Gloss Black and Contrast Chrome Tomahawk

WHEELS, REAR TYPE 9

Gloss Black and Contrast Chrome Tomahawk

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

32 mm, 4-piston fixed front and rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; LED

GAUGES

Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

6.5 in.

WATTS PER CHANNEL

100

SPEAKERS

4

SPEAKER SIZE

Harley-Davidson Audio by Rockford Fosgate Stage I

HEADSET SPECIFICATIONS (IF EQUIPPED)

Boom! Audio 30K Wireless Headset

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard (Passenger Headset Sold Separately)

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

HILL HOLD CONTROL (HHC)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included



  1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  2. Values shown are nominal. Performance may vary by country and region.
  3. Standard and optional fuel systems may vary by country.
  4. See motorcycle owner’s manual for complete details.
  5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
  6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
  7. Measurement reflects 180 lb. (81.7 kg) operator weight.
  8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
  9. Standard and optional wheels may vary by country and region.



2023 Harley-Davidson CVO Road Glide LTD Anniversary – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,570 mm

SEAT HEIGHT, UNLADEN

760 mm

GROUND CLEARANCE

130 mm

RAKE

26

TRAIL

170 mm

WHEELBASE

1,625 mm

TIRES, FRONT SPECIFICATION

BW 130/60B19 61H

TIRES, REAR SPECIFICATION

BW 180/55B18 80H

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

420 kg

WEIGHT, IN RUNNING ORDER

437 kg

LUGGAGE CAPACITY -VOLUME

0.132 m3

ENGINE

ENGINE 2

Twin-Cooled Milwaukee-Eight 117

BORE

103.5 mm

STROKE

114.3 mm

DISPLACEMENT

1,923 cc

COMPRESSION RATIO

10.2:1

FUEL SYSTEM 3

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

Dual, with crossover

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE 3

169 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

102 HP / 76 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

34.3

LEAN ANGLE, LEFT (DEG.)

33.4

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY 7

5.7 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.593

GEAR RATIOS (OVERALL) 2ND

6.65

GEAR RATIOS (OVERALL) 3RD

4.938

GEAR RATIOS (OVERALL) 4TH

4

GEAR RATIOS (OVERALL) 5TH

3.407

GEAR RATIOS (OVERALL) 6TH

2.875

CHASSIS

FRONT FORK

49mm Dual Bending Valve

REAR SHOCKS

Premium standard height hand-adjustable rear suspension

WHEELS, FRONT TYPE 4

Gloss Black and Contrast Chrome Tomahawk

WHEELS, REAR TYPE 4

Gloss Black and Contrast Chrome Tomahawk

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

32 mm, 4-piston fixed front and rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; LED

GAUGES

Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

165 mm

WATTS PER CHANNEL

100

SPEAKERS

4

SPEAKER SIZE

Harley-Davidson Audio by Rockford Fosgate Stage I

HEADSET SPECIFICATIONS (IF EQUIPPED)

Boom! Audio 30K Wireless Headset

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard (Passenger Headset Sold Separately)

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

HILL HOLD CONTROL (HHC)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included



  1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
  2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  3. Values shown are nominal. Performance may vary by country and region.
  4. Standard and optional wheels may vary by country and region.
  5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
  6. As measured using the MIC City and MIC Combined (115 km/h) tests.
  7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.





2023 Harley-Davidson CVO Road Glide LTD Anniversary – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,570 mm

SEAT HEIGHT, UNLADEN

760 mm

GROUND CLEARANCE

130 mm

RAKE

26

TRAIL

170 mm

WHEELBASE

1,625 mm

TYRES, FRONT SPECIFICATION

BW 130/60B19 61H

TYRES, REAR SPECIFICATION

BW 180/55B18 80H

TYRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

420 kg

WEIGHT, IN RUNNING ORDER

437 kg

LUGGAGE CAPACITY -VOLUME

0.132 m3

ENGINE

ENGINE 2

Twin-Cooled Milwaukee-Eightsup> 117

BORE

103.5 mm

STROKE

114.3 mm

DISPLACEMENT

1,923 cc

COMPRESSION RATIO

10.2:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

Dual, with crossover

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE 3

166 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

105 HP / 78 kW @ 5450 rpm

LEAN ANGLE, RIGHT (DEG.)

34.3

LEAN ANGLE, LEFT (DEG.)

33.4

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

6.3 l/100 km

CO2 EMISSIONS TESTING METHOD

EU 134/2014

CO2 EMISSIONS

146 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.593

GEAR RATIOS (OVERALL) 2ND

6.65

GEAR RATIOS (OVERALL) 3RD

4.938

GEAR RATIOS (OVERALL) 4TH

4

GEAR RATIOS (OVERALL) 5TH

3.407

GEAR RATIOS (OVERALL) 6TH

2.875

CHASSIS

FRONT FORK

49mm Dual Bending Valve

REAR SHOCKS

Premium standard height hand-adjustable rear suspension

WHEELS, FRONT TYPE 4

Gloss Black and Contrast Chrome Tomahawk

WHEELS, REAR TYPE 4

Gloss Black and Contrast Chrome Tomahawk

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

32 mm, 4-piston fixed front and rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; LED

GAUGES

Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

165 mm

WATTS PER CHANNEL

100

SPEAKERS

4

SPEAKER SIZE

Harley-Davidson Audio by Rockford Fosgate Stage I

HEADSET SPECIFICATIONS (IF EQUIPPED)

Boom! Audio 30K Wireless Headset

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard (Passenger Headset Sold Separately)

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

HILL HOLD CONTROL (HHC)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included



  1. All prices shown are suggested retail prices only.

    Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

    Please speak with the dealership team for further details and to obtain a final on the road price.

  2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  3. Values shown are nominal. Performance may vary by country and region.
  4. Standard and optional wheels may vary by country and region.
  5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10046 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
