2009 Victory Kingpin Tour

You are here: Index2009 Models — 2009 Victory Motorcycle Models

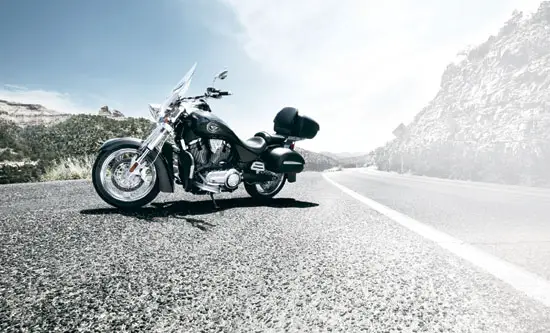

2009 Victory Kingpin Tour
Back to 2009 Victory Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2009 Victory Kingpin Tour
2009 Victory Kingpin Tour

2009 Victory Kingpin Tour
2009 Victory Kingpin Tour

2009 Victory Kingpin Tour
2009 Victory Kingpin Tour

2009 Victory Kingpin Tour
2009 Victory Kingpin Tour

2009 Victory Kingpin Tour
2009 Victory Kingpin Tour

• 2009 Victory Kingpin Tour

2009 Victory Kingpin Tour

When the open road calls, answer it on one of these incredible Touring models. Great power, great comfort and great times await, so saddle up today and answer the call.


New for 2009

New Stingray cast wheels that are 13.8 lbs lighter
New LED tail light is twice as bright
New Headlight lighter and better pattern


Key Features

Classic Tour Style introduced in 2007 heavy styling with overnight storage
Reassuring, stabile, and comfortable – visual mass is a plus


Features & Benefits

• Freedom 100 Cubic Inch V-Twin Engine

• Spacious trunk and leather saddlebags

• Classic flared fenders

• Stretched out riding position, full passenger backrest

• Driver full floorboards

• Inverted forks

• Heel-toe-shifter

• Ultra comfortable passenger seat

• Mutli LED Tail light

• Windshield

• Custom-inspired headlight

• Stingray billet wheels






2009 Victory Kingpin Tour – USA Specifications

MSRP $18,399.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 100 ci (1,634 cc)

Bore x Stroke 101 x 102 mm

Compression Ratio 8.7:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Staggered slash-cut dual exhaust with crossover


DIMENSIONS
Length 102.9 in. (2,614 mm)

Weight Dry: 728 lbs. (330 kg)

GVWR: 1,234 lbs. (560 kg)

Ground Clearance 5.8 in. (148 mm)

Wheelbase 65.6 in. (1,666 mm)

Fuel Capacity 4.5 gal. (17 l)

Oil Capacity 5 qt. (4.75 l)

Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Primary Drive Gear drive with torque compensator

Final Drive Carbon fiber reinforced belt

Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel

Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper

Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 130/70 B18 Dunlop 491 Elite II

Rear: 180 55-B18 Dunlop D417

Rake 32.8°

Trail 5.4 in. (138 mm)

Colors Black, Blue Ice, Super Graphite, Two-tone Blue Ice / Pearl White with Carbon stripe, Two-tone Midnight Cherry / Pearl White with Carbon stripe





2009 Victory Kingpin Tour – Canada Specifications
MSRP C$20,515.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 100 ci (1,634 cc)

Bore x Stroke 101 x 102 mm

Compression Ratio 8.7:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 102.9 in. (2,614 mm)

Weight Dry: 728 lbs. (330 kg)

GVWR: 1,234 lbs. (560 kg)

Ground Clearance 5.8 in. (148 mm)

Wheelbase 65.6 in. (1,666 mm)

Fuel Capacity 4.5 gal. (17 l)

Oil Capacity 5 qt. (4.75 l)

Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Primary Drive Gear drive with torque compensator

Final Drive Carbon fiber reinforced belt

Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel

Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel


BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper

Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 130/70 B18 Dunlop 491 Elite II

Rear: 180 55-B18 Dunlop D417

Rake 32.8°

Trail 5.4 in. (138 mm)

Colors Black, Blue Ice, Super Graphite, Two-tone Blue Ice / Pearl White with Carbon stripe, Two-tone Midnight Cherry / Pearl White with Carbon stripe
