2010 Aprilia Mana 850 GT ABS

Back to 2010 Aprilia Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

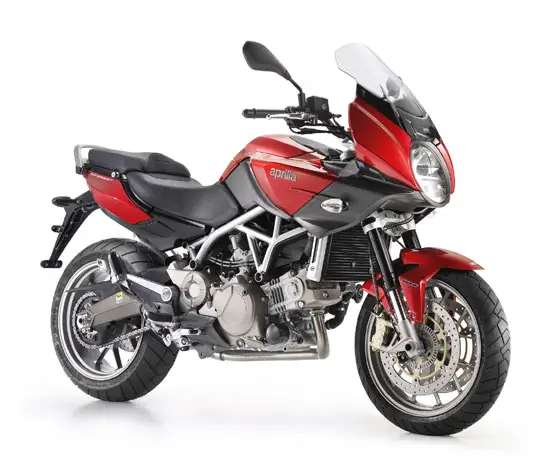

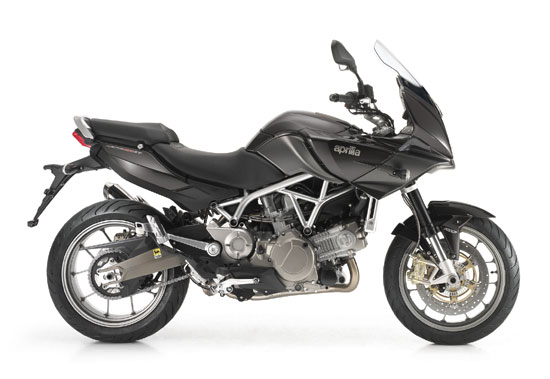

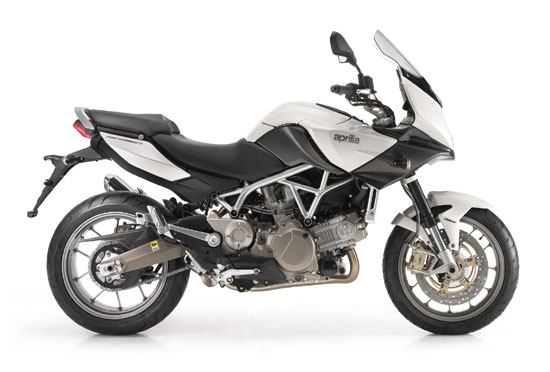

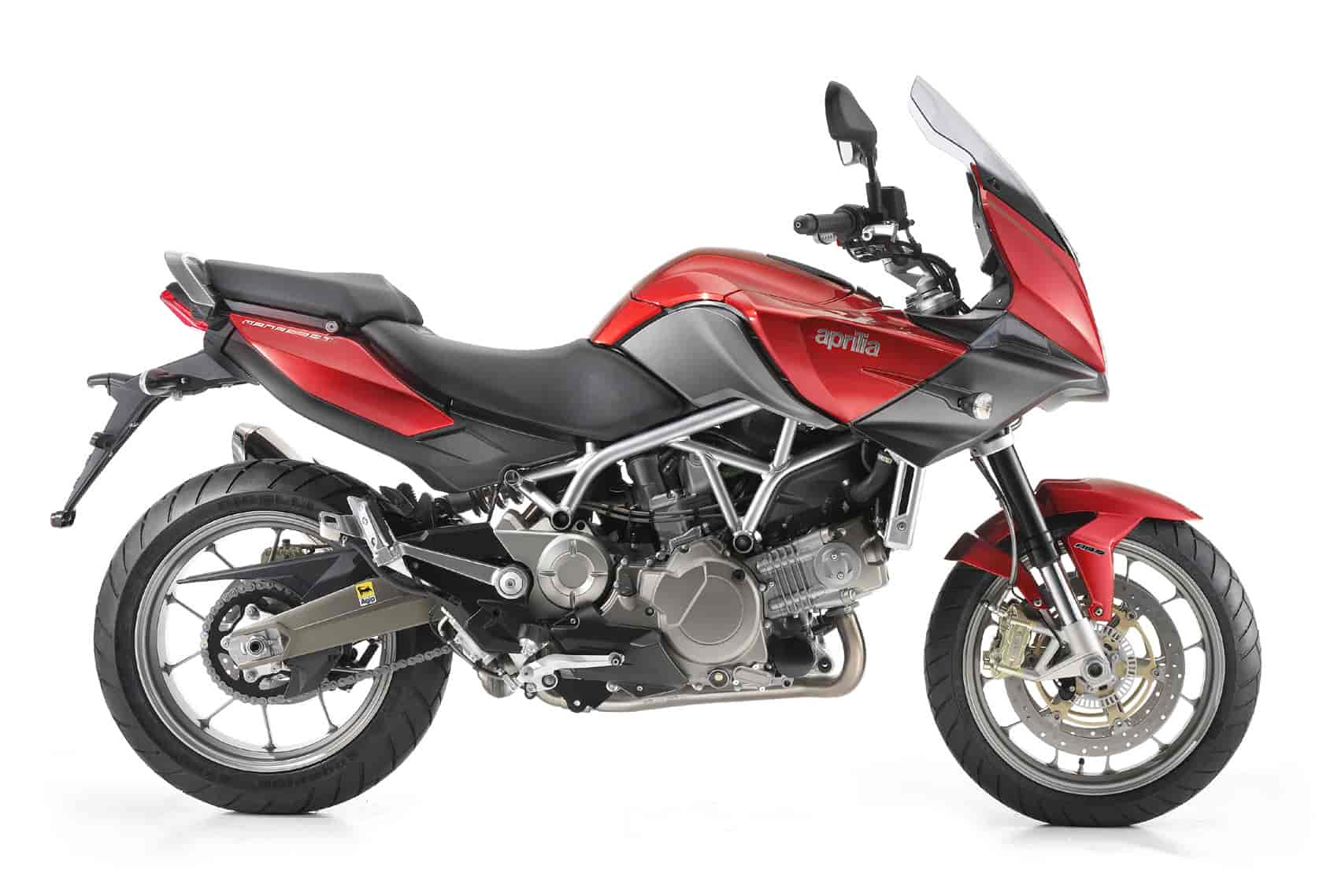

2010 Aprilia Mana 850 GT ABS

– 2010 Aprilia Mana 850 GT ABS

2010 Aprilia Mana 850 GT ABS

VERSATILE AND MULTIFORM, THE APRILIA Mana 850 GT ABS GT IS THE MOST COMPLETE MOTORCYCLE ON THE MARKET. INTELLIGENT, INNOVATIVE, COMFORTABLE WITH A UNIQUE ON-THE-ROAD FEEL THANKS TO ITS SPORTGEAR TRANSMISSION, IT OFFERS ALL THE ADVANTAGES OF THE MANA WITH AN EXTENDED RANGE OF USE.

A completely new motorcycling concept, the result of technological expertise, the courage to believe in innovation and be daring which is Aprilia’s hallmark together with attention paid to motorcyclists’ needs and a tendency to look to the future: Mana 850 GT ABS is a complete motorcycle, the new frontier, the missing link in an evolution that makes the world of motorcycling and its emotions accessible to all types of user.

Sportgear sequential/automatic transmission, radial brake callipers, helmet compartment, upside down forks, Aprilia Mana combines the potential of the motorbike with an unmatched functional nature and flexibility of use. A unique bike in the motorcycling world with a potentially endless number of variations: this is the Aprilia Mana GT 850, the version that extends the proverbial versatility of the 850 cc produced in Noale even further.

Mana GT 850 is Aprilia’s response to a constantly evolving market which is increasingly aware of mobility needs, impatient to try out vehicles that satisfy in daily use as well as on long trips.

The Mana GT version is designed to do just that: an elegant half-fairing perfectly integrated in the lines of the bike protects both rider and passenger on long journeys as well as in daily commuting making the bike ideal for touring. The adjustable windshield means that the level of protection can be adjusted to suit your own needs with a unique level of customisation.

Here are some of the Aprilia Mana GT 850’s special features:

” half-fairing with adjustable windshield;
” sportgear transmission: electronically controlled sequential gearshift with two shift modes: seven speed manual or Autodrive with three different mappings: Sport/Touring/Rain;
” helmet compartment with non-scratch lining for a flip up helmet, with mobile phone holder, toolkit/glove-box and 12V power socket;
” new latest generation 2-channel Continental ABS system (as standard)
” lateral shock absorber easily adjustable with the hand grip in preload and extension;
” twin cylinder 90° V engine with four valves per cylinder, Euro 3 homologated.
” brakes with radial callipers;
” 43 mm upside down fork;
” steel trellis frame with single piece aluminium swingarm;
” under-seat fuel tank.

With these characteristics, the Mana 850 GT ABS GT is the most functional and complete bike on the market.

Innovative motor and transmission

The half-fairing makes the GT version even more unique and lets you get the very best out of the V2 850-engine performance with Sportgear transmission. A twin cylinder engine that with its 76 HP and exceptionally flat torque curve gives excellent performance already at low revs, in acceleration, pick-up and at speed, and is the perfect match for the touring soul of the Mana 850 GT ABS GT and the motorcyclist’s need for responsiveness.

Intelligent transmission

The primary drive is the focal point of the entire Mana range. The Sportgear transmission offers the rider a choice of different driving modes:

” Sequential mode: The rider decides when to change gear by using the conventional control on the pedal or by pressing a switch on the handlebars as desired. An electronically-controlled servo mechanism acts on the main pulley which changes the gearshift mode with seven gear ratios amazingly quickly. Only during deceleration, if the rider does not manually change gear, the engine automatically changes down gear using the Semi-Sequential function and preventing the minimum RPM threshold from going below the set limit. Another valuable aid to safe riding.
” Fully automatic mode (Autodrive): the sophisticated electronics control everything and the CVT transmission keeps the engine running at maximum torque speed for optimum pick-up and acceleration. The rider can choose from three different mappings:
1. Touring: for those who want a softer power delivery and minimum fuel consumption;
2. Sport: for maximum performance and quick acceleration;
3. Rain: on wet or slippery roads in maximum safety;
Semi-Autodrive mode only allows the rider to change down gear. This is useful for overtaking at maximum torque revs or when riding down a hill when engine braking is required.

You can switch from Autodrive to Sequential mode and vice versa at any time and in any riding conditions. The handlebar gearshift control can be disabled from the instrument panel.

With this technical solution, the Mana GT 850 adapts perfectly to any type of road and offers relaxed cruising or exhilarating sports riding depending on the rider’s needs or wishes.

Elegant design and ingenious solutions

Mana GT 850 uses the same technical base as the Mana and shares the same exclusive and unmistakable Italian design. The original fairing with adjustable windshield that surrounds the characteristic round headlamp, a distinctive feature of the Mana range, is practical and elegant.
The 16-litre tank is located under the saddle, in a lower position, to distribute weight more evenly and lower the bike’s centre of gravity, making it incredibly light and easy to ride. Its usual place is taken by an illuminated compartment – lined with slip-proof, scratch-proof material – that can not only house a flip up helmet, but also contains a housing for your mobile phone and a 12V socket. To offer a load capacity unheard of in the motorcycling world.
Like its Naked sister bike, the compartment is opened electrically by a switch on the handlebar. Opening is controlled by a hydropneumatic damper that is designed to prevent accidental opening while the bike is in motion. A manually operated lever under the passenger seat is provided to release the compartment lid in the event of a flat battery.

Special chassis

The refined chassis on the Aprilia Mana GT 850 guarantees relaxed, safe handling on all road surfaces. The robust steel tube trellis frame has a single piece aluminium swingarm that directly controls a laterally-offset shock absorber that frees precious space for the exhaust pipe in the delicate area behind the engine which makes the motorcycle very compact and manageable when changing direction both in town traffic and when out riding in the hills during the weekend.
On the Mana GT 850 the spring preload and damper rebound can be adjusted with a knob and has been moved to the outside. It can be easily accessed for quick and precise adjustments to adapt to your own particular riding needs and bike load (passenger, luggage, etc.).

The 43-mm upside down fork slides easily and has an optimised set-up that suits the new weight distribution and the touring nature of this bike. Its 120-mm front wheel travel allows you to effortlessly tackle all sorts of road surface and offers the right support even under sport riding conditions.

Safety first

The Mana GT 850 is the most versatile motorcycle on the market with the most complete range of technical equipment that focuses on the concept of safety.
The only one in its category, the efficient braking system, which has a front system with 320 mm discs and radial callipers, combined with a latest generation two-channel Continental ABS system – fitted as standard – that increases active and passive riding safety even when braking on difficult road surfaces, avoiding locking up the brakes as well as improving braking performance. In fact, on the Mana 850 GT ABS GT ABS all riders can fully use the bike’s generous braking power in perfect safety on any road surface.

APRILIA MANA – MANA ABS

Aprilia MANA represents the utmost technological evolution applied to a bike. A daring challenge that only the immense technological skills of Aprilia could face and win. Aprilia 850 MANA is a bike without equals on the world market, a unique, highly advanced project. A bike that eliminates the stress but at the same time knows how to provide great satisfaction and fun in all riding conditions, from the city slalom to those roads that allow a sportier style. Just press a button on the handlebar to enter a whole new world.

Its revolutionary and electronically managed Sportgear transmission offers unique riding pleasure: MANA satisfies every riding style and every type of need.

Three mappings for “Autodrive” transmission management, or Sequential 7-speed gears; with Aprilia MANA it’s literally impossible not to find the configuration best suited to the specific traffic and/or riding conditions, or to your own needs. Whether you’re travelling in the city or on a winding road, MANA always offers the right degree of exuberance and the same handling pleasure. In any situation, every rider – even the most demanding – will find the right solution for his own riding style, always obtaining the maximum power and discovering a previously unimagined potential.

The Euro 3 90° V twin engine is the ideal partner for this type of transmission. Compact, sparkling, clean. The power and torque ensure excellent performance levels, especially in acceleration (the Mana really takes off at the traffic lights). And all this with the utmost riding simplicity, bringing the Mana performance within everyone’s reach. The technology on the Aprilia 850 MANA is user-friendly, to make life easier. There’s no clutch lever because everything is electronically managed, leaving the rider to fully enjoy the riding experience. The sequential transmission is activated with the classic pedal command or, alternatively, via the command on the handlebar.

Like with all Aprilia vehicles, the painstaking chassis design guarantees top class handling. The tubular frame of the chassis ensures great sturdiness and torsional rigidity. The single piece aluminium swingarm and advanced suspension system mean that Mana is a bike to satisfy even the most demanding rider. The high quality braking system increases the active safety level, thanks to excellent stopping distances.

The special features of the Aprilia Mana:

– twin cylinder 90° V engine with four valves per cylinder, Euro 3 homologated;
– Sportgear transmission: electronically controlled sequential gearshift with two shift modes: seven speed manual or Autodrive with three different mappings: Touring-Sport-Rain;
– helmet compartment with non-scratch lining for a flip up helmet, with mobile phone holder, toolkit/glove-box and 12V power socket;
– fuel tank under saddle
– brakes with radial callipers;
– 43 mm upside down fork;
– lateral shock absorber with adjustable preload and rebound damper;
– steel trellis frame with single piece aluminium swingarm;
– dual spark plug ignition;
– electronic fuel injection system with a single throttle body;
new latest generation 2-channel ABS system (ABS version only).

2010 Aprilia Mana 850 GT ABS – North America Specifications
MSRP: $10,599 USD

Engine: Aprilia longitudinal 90° V-twin engine, 4 stroke, liquid cooled, single overhead cam with chain drive, four valves per cylinder.

Fuel: Unleaded fuel

Bore x Stroke: 88 x 69 mm

Total displacement: 839,3 cc

Compression ratio: 10:1

Maximum power at the crank: 56 kW (76.1 cv) a 8.000 rpm.

Maximum torque at the crank: 7,45 kgm (73 Nm) a 5.000 rpm.

Fuel system: Integrated electronic engine management system. Weber Marelli electronic injection with 38-mm throttle body.

Ignition: Digital electronic, with two spark plugs per cylinder, integrated with fuel injection system.

Starting: Electric.

Exhaust: 2 into 1 exhaust system in 100% stainless steel with three-way catalytic converter and lambda probe.

Generator: 450 W a 6000 rpm.

Lubrification: Dry sump system with separate oil tank.

Gear box: Sequential with manual or automatic mode selectable by the user. 7 ratios in manual mode. 3 mappings (Touring – Sport – Rain) in Autodrive mode. Gear change by pedal or handlebar control. The user can switch from automatic to sequential mode and vice versa at any time.

Clutch: Automatic.

Primary drive: Belt.

Final drive: Chain.

Frame: High-strength steel trellis.

Front suspension: Upside-down fork, ? 43 mm stanchions. Wheel travel 120 mm.

Rear suspension: Single- piece aluminium alloy swingarm.

Shock absorbers: shock absorber with adjustable spring preload and rebound damping. Wheel travel 125 mm.

Brakes: Front: dual ? 320 mm diam. stainless steel floating discs. Radial calipers with four pistons. Rear: ? 260 mm stainless steel disc. Single piston caliper. 2-channel Continental ABS system.

Wheels: Aluminium alloy Front: 3.50 X 17″ Rear: 6.00 x 17″

Tyres: Radials tubeless front: 120/70 ZR 17 rear: 180/55 ZR 17

Dimensions: Max. length 2,080 mm Max. width 800 mm (at handlebar) Max. height 1,270 mm (1,320 mm at rear-view mirrors) Saddle height 800 mm Wheelbase 1,463 mm Trail 101 mm Steering angle 24°

Fuel tank capacity: 16 litres.

2010 Aprilia Mana 850 GT ABS – Intermational Specifications
MSRP: £NA
