2012 Yamaha Grizzly 125 Automatic
Back to 2012 Yamaha ATV Quad Models Index Page
Click photos to enlarge.
They make great desktop images.

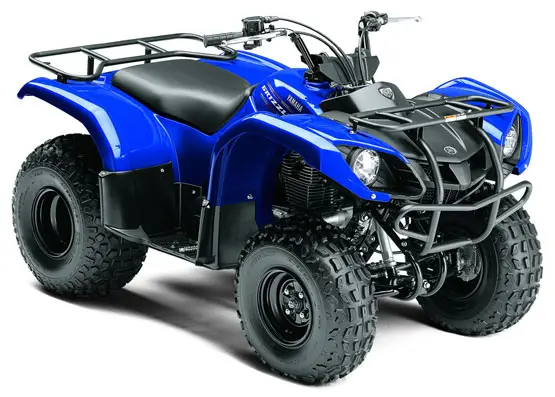

2012 Yamaha Grizzly 125 Automatic

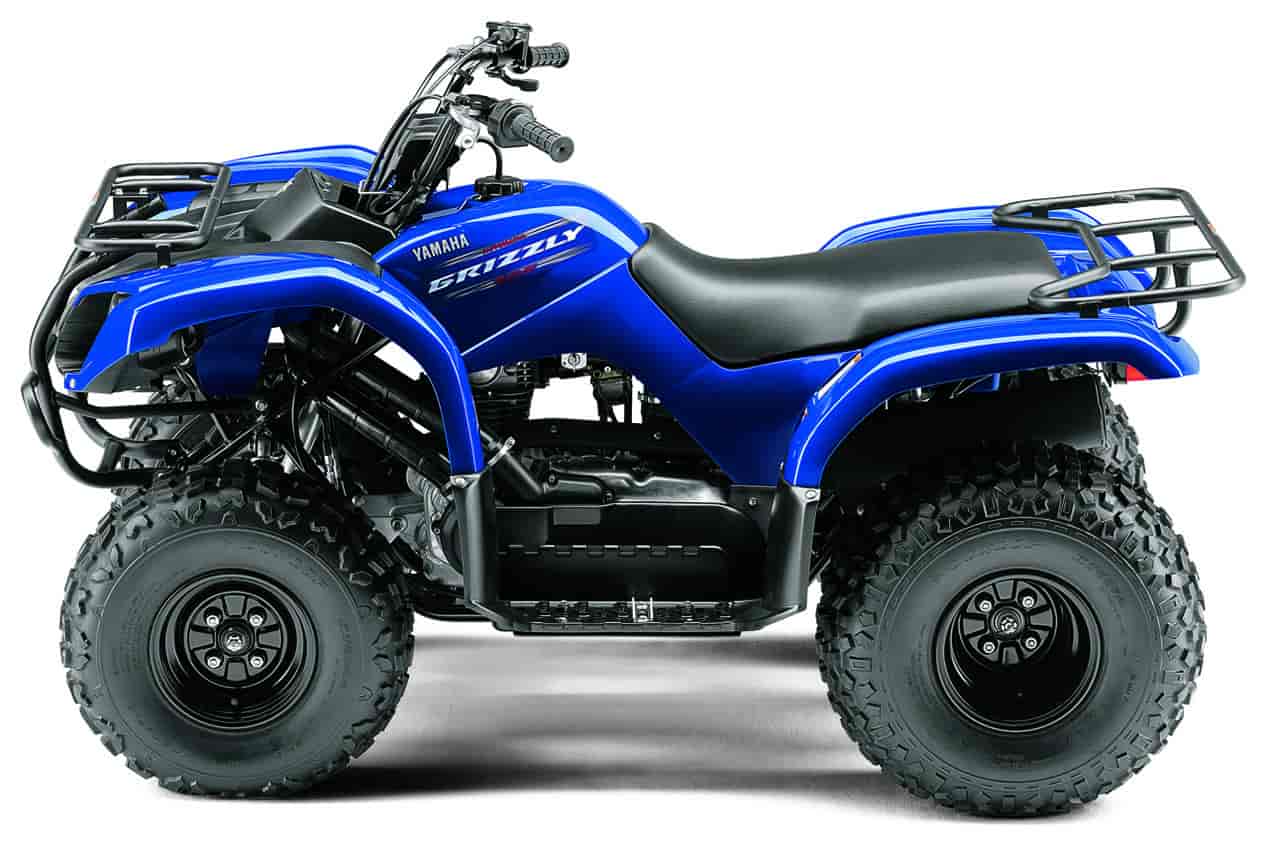

2012 Yamaha Grizzly 125 Automatic

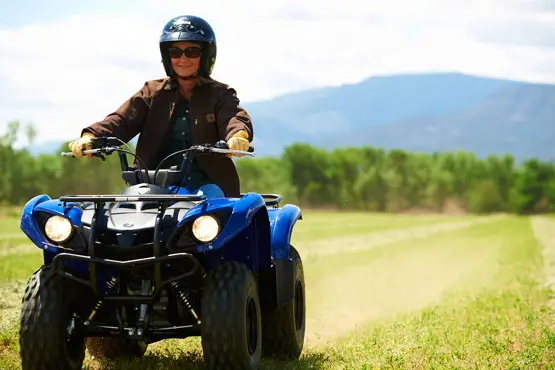

2012 Yamaha Grizzly 125 Automatic

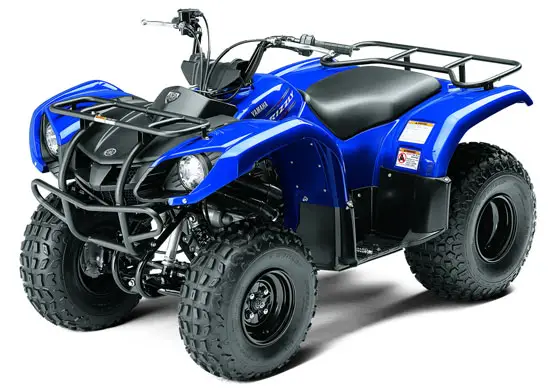

2012 Yamaha Grizzly 125 Automatic

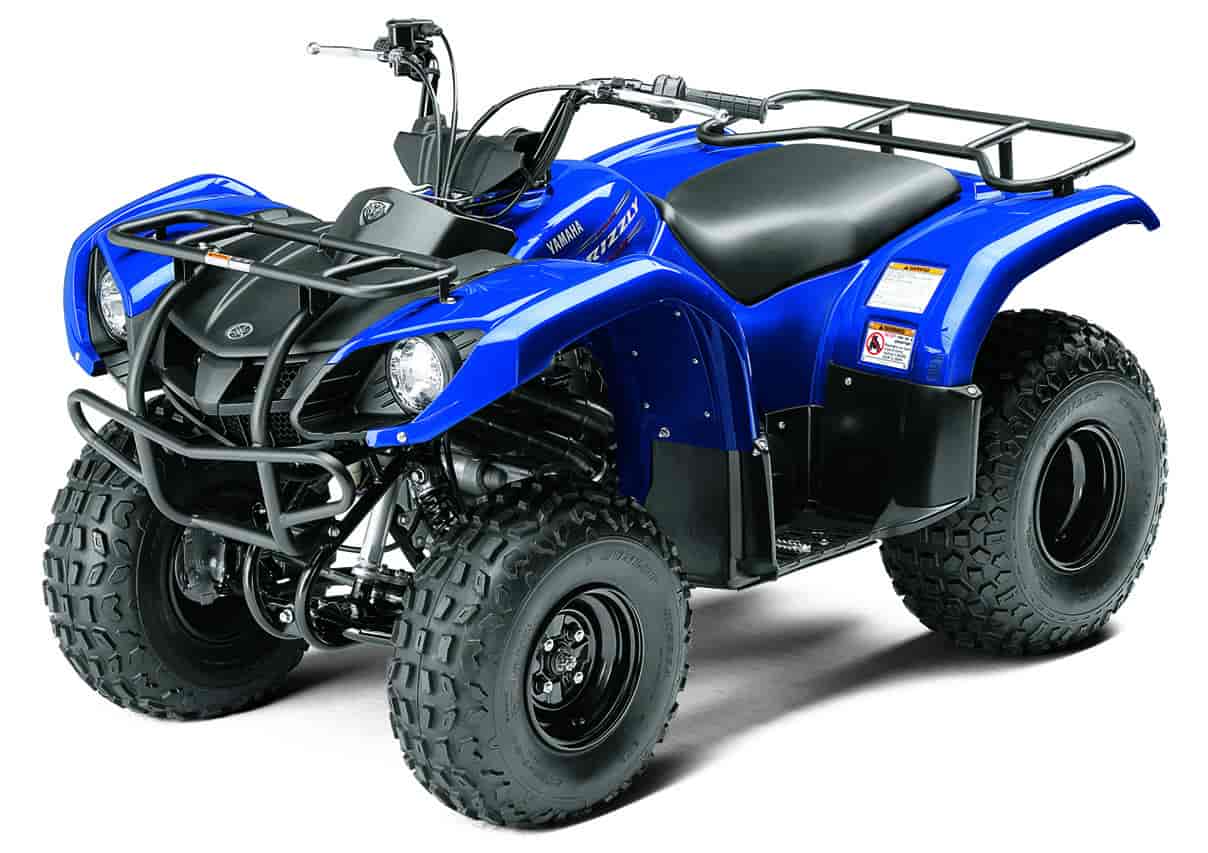

2012 Yamaha Grizzly 125 Automatic
– 2012 Yamaha Grizzly 125 Automatic
2012 Yamaha Grizzly 125 Automatic Review
Far more than bear necessities…
Automatic transmission, racks and full floorboards are among the list of big-Grizzly features found on the entry-level Grizzly.
Rugged good looks paired with a fully automatic transmission and electric start 4 stroke engine makes the 2012 Yamaha Grizzly 125 an off-road force to be reckoned with.
The 2012 Yamaha Grizzly 125 is the most user friendly of all ATV’s. For freatures and styling, it takes its lead from the 2012 Grizzly 700, but offers the convenience of automatic transmission and the fuel efficiency of 2WD.
The family resemblance in the Grizzly clan is more than skin deep.
You’ll find the same superior engineering standards and materials in our Grizzly 125. Nearly bullet-proof, torquey four-stroke engines, chain drive, maximum durability and go-anywhere terrainability are what they’re all about. Grizzly 125, for riders 16 and older, makes the connection with a fully automatic transmission with reverse, front and rear racks and sealed-drum brakes.
2012 Yamaha Grizzly 125 Automatic Highlights:
Light, small easy to ride
Fully automatic transmission
Adjustable throttle limiter
Key selling points:
1
Grizzly styling provides industry-leading good looks
and durability, and a big Grizzly-style seat provides
maximum rider comfort.
2
Fully automatic V-belt transmission with forward,
neutral and reverse is simple to operate and
eliminates the need for shifting.
3
Tough, powerful 124cc SOHC, four-stroke single
cranks out plenty of smooth broadband propulsion.
4
Robust midsize steel frame fits a wide range
of riders.
5
Rugged steel cargo racks can pack a total of
33 pounds of combined cargo-11 pounds up front
and 22 on the rear.
6
Simple-to-use handlebar-mounted parking brake
and choke lever for added convenience.
7
Wide front and rear fenders with integrated full
floorboards provide mud and splash protection for a
dry, comfortable ride.
2012 Yamaha Grizzly 125 Automatic Key Features:
Engine:
o Powerful 124cc air-cooled four-stroke single delivers reliable,
smooth engine performance for all riders.
o Simple-to-operate selector knob lets you effortlessly select
forward, neutral or reverse.
o Adjustable throttle limiter lets adult supervisor add power
gradually as beginning riders 16 years and older gain experience.
o Reliable, pushbutton electric start in any gear adds extra
convenience and dependability.
o Rugged muffler with USFS-approved spark arrestor provides
quiet operation.
o Automatic cam chain tensioner reduces engine maintenance and
extends engine life.
Chassis/Suspension:
o Independent A-arm front suspension with 2.8 inches of travel
delivers a smooth, plush ride and responsive steering.
o Rugged swingarm packing a single rear shock with 3.2 inches of
travel smoothes out the bumps for a comfortable ride.
o Class-leading low 27-inch seat height enhances rider comfort
and allows for great handling.
o 5.7-inch ground clearance allows smooth riding in a wide variety
of terrain.
o Fully sealed front and rear drum brakes provide strong, reliable
stopping power.
o Brawny 20×7-8 front and 22×10-8 rear knobby tires offer
excellent traction and boost ground clearance.
Additional Featu res:
o Dual 30-watt multireflector Krypton headlights, set back in the
front cowl, add the perfect menacing appearance.
o Taillight has an incorporated brakelight.
o Large 2-gallon fuel tank provides excellent range.
Availa ble Acc essories:
Please refer to the 2011 Spring Big Book or go to yamahaoutdoors.
com.
* Wet weight includes the vehicle with all standard equipment and all
fluids, including oil, coolant (as applicable) and a full tank of fuel.
It does not include the weight of options or accessories. Wet weight
is useful in making real-world comparisons with other models.
ATVs with engine sizes over 90cc are recommended for use only by riders age
16 years and older.
2012 Yamaha Grizzly 125 Automatic – USA Specifications
US MSRP* $3,599 (Steel Blue) Available from June, 2011
ENGINE
Type 124cc, 4-stroke, air-cooled single; SOHC
Bore x Stroke 49.0mm x 66.0mm
Compression Ratio 9.0:1
Fuel Delivery Mikuni® 18mm
Ignition DC – CDI
Starting System Electric
Transmission V-belt automatic/F, N, R
Drive Train 2WD; O-ring chain
CHASSIS
Suspension / Front Independent wishbone, 2.8-in travel
Suspension / Rear Swingarm, 3.2-in travel
Brakes / Front Dual sealed drum
Brakes / Rear Sealed drum
Tires / Front AT20x7-8
Tires / Rear AT22x10-8
DIMENSIONS
L x W x H 66.9 x 39.0 x 38.6 in
Seat Height 27.0 in
Wheelbase 42.5 in
Turning Radius 114 in
Ground Clearance 5.7 in
Fuel Capacity 2.0 gal
Wet Weight 335 lb
Rack Capacity 11 lb Fr./ 22 lb Rr.
OTHER
Instrumentation N/A
Lighting Dual 30W Krypton multireflector headlights; 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
2012 Yamaha Grizzly 125 Automatic – Canadian Specifications
Canadian MSRP* $4,699 CDN
Engine
Engine 4-stroke, SOHC, air-cooled, single
Displacement 124cc
Bore and Stroke 49 x 66mm
Compression Ratio 9:1
Carburetion Mikuni VM18SH
Ignition CDI
Starting electric
Lubrication wet sump
Oil Capacity 1.5 litres
Transmission V-belt, automatic/F,N,R
Final Drive O” ring chain
Chassis
Suspension (Front) Independent wishbone, 2.8-in travel
Suspension (Rear) Swing-arm, 3.2-in travel
Brakes (Front) Dual sealed drum
Brakes (Rear) Sealed drum
Tires (Front) 20 x 7-8
Tires (Rear) 22 x 10-8
Dimensions
Length 1,700mm (66.9”)
Width 990mm (39.0”)
Height 980mm (38.6”)
Wheelbase 1,080mm (42.5”)
Ground Clearance 145mm (5.7”)
Seat Height 685mm (27.0”)
Wet Weight 152 kg (335 lb) – ready to ride full of fuel and oil
Fuel Capacity 7 litres
Colour(s) Dark Blue
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
