2012 Yamaha Grizzly 450 Auto 4×4 EPS
Back to 2012 Yamaha ATV Quad Models Index Page

Click photos to enlarge.
They make great desktop images.

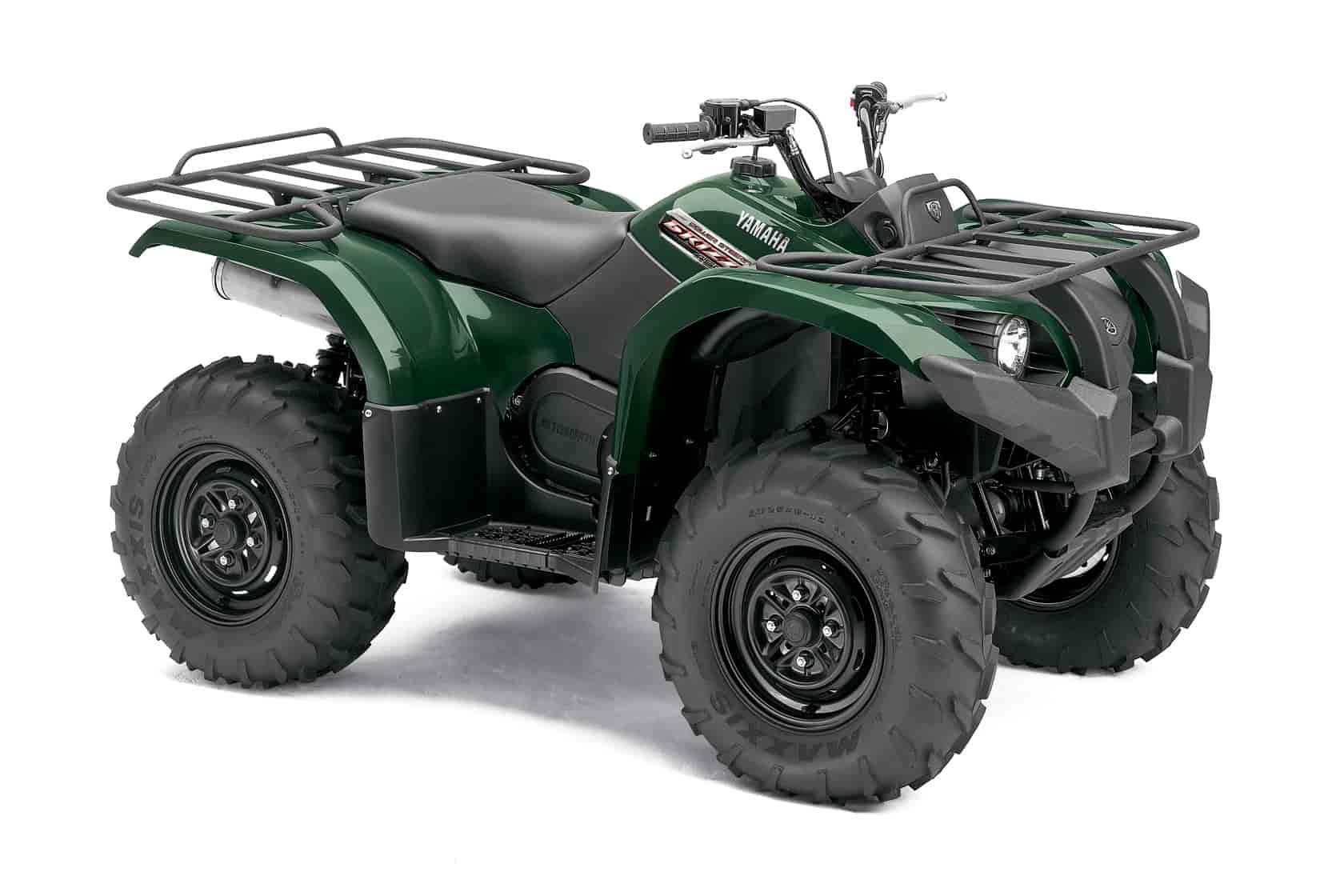

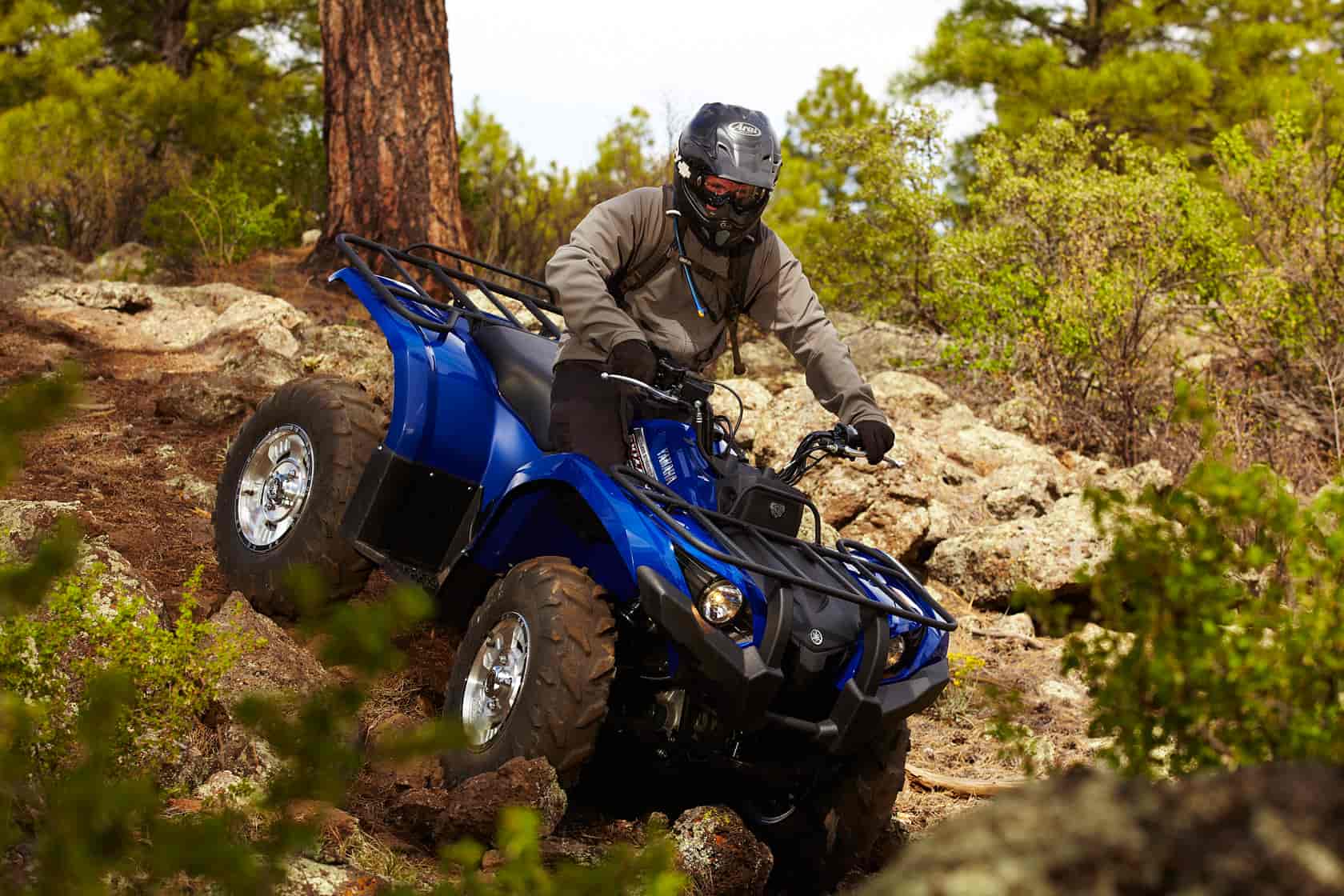

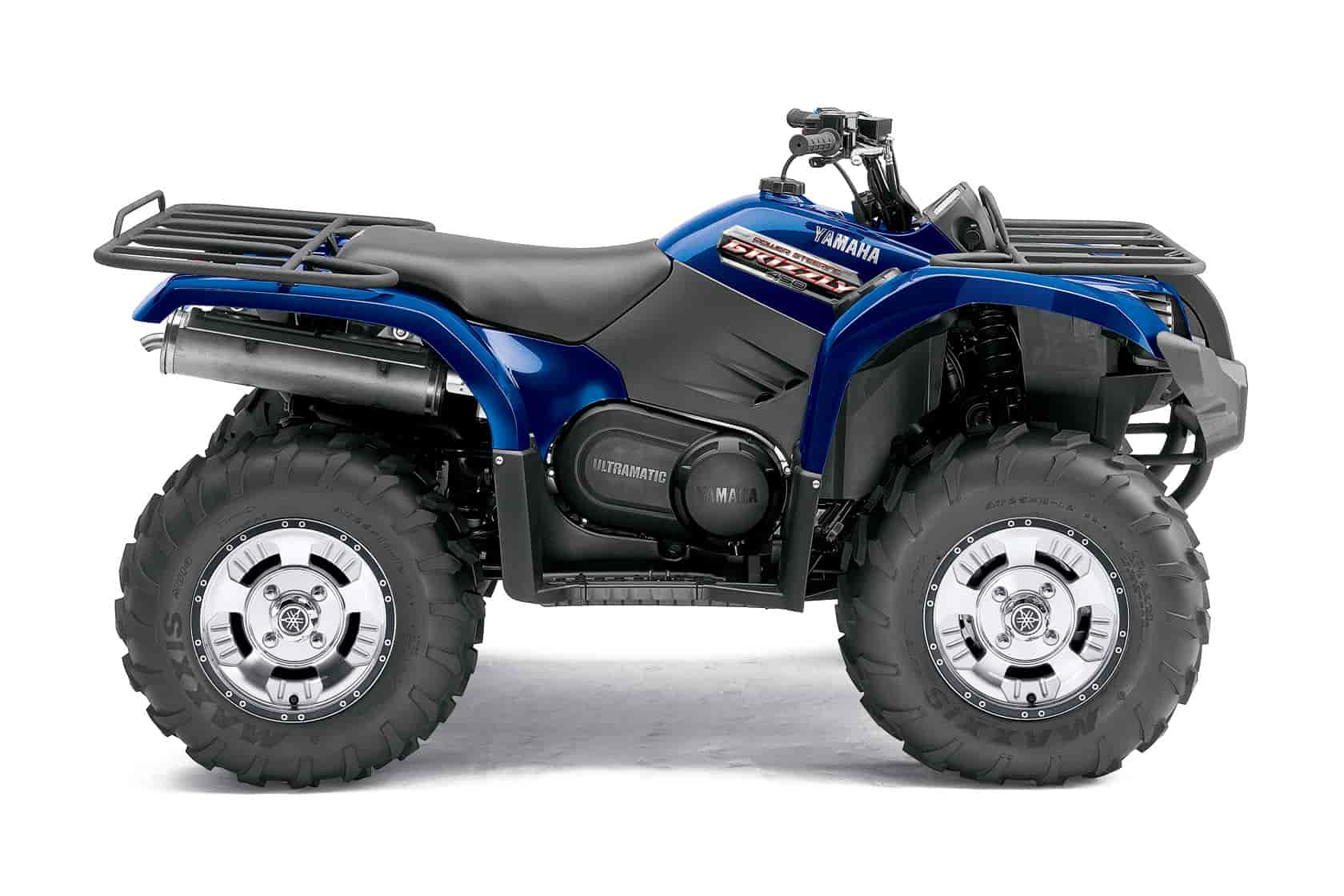

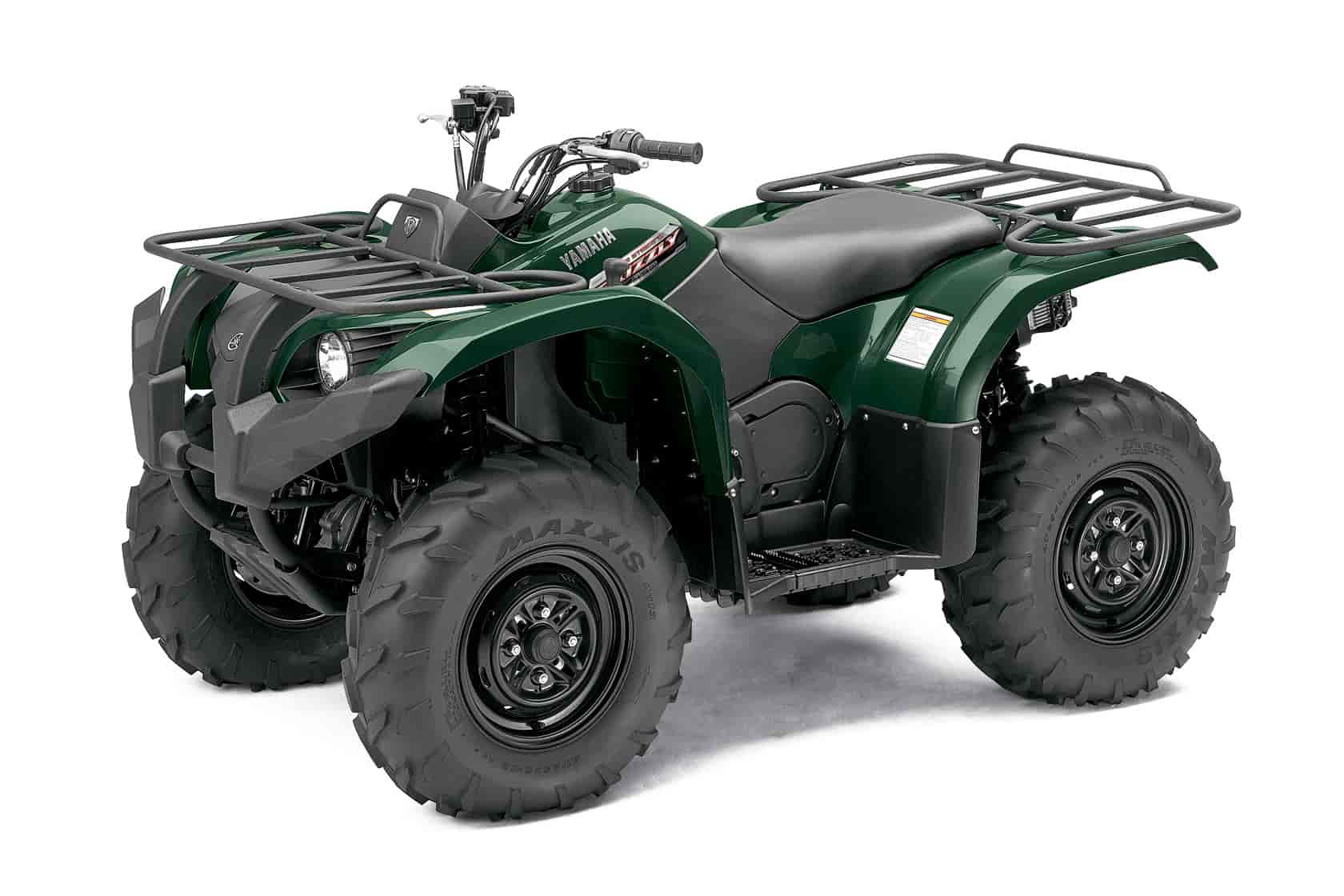

2012 Yamaha Grizzly 450 Auto 4x4 EPS
2012 Yamaha Grizzly 450 Auto 4×4 EPS

2012 Yamaha Grizzly 450 Auto 4x4 EPS
2012 Yamaha Grizzly 450 Auto 4×4 EPS

2012 Yamaha Grizzly 450 Auto 4x4 EPS
2012 Yamaha Grizzly 450 Auto 4×4 EPS

2012 Yamaha Grizzly 450 Auto 4x4 EPS
2012 Yamaha Grizzly 450 Auto 4×4 EPS

2012 Yamaha Grizzly 450 Auto 4x4 EPS
2012 Yamaha Grizzly 450 Auto 4×4 EPS

2012 Yamaha Grizzly 450 Auto 4x4 EPS
2012 Yamaha Grizzly 450 Auto 4×4 EPS

– 2012 Yamaha Grizzly 450 Auto 4×4 EPS

2012 Yamaha Grizzly 450 Auto 4×4 EPS Review

The world middleweight champ…

A mid-class, full-featured chart-topper, this Grizzly 450 also gets EPS and a rear sealed wet brake.

Featuring nearly everything our top of the line 2012 Grizzly 700 EPS has but in a more nimble package, the 2012 Yamaha Grizzly 450 truly is the ultimate middleweight ATV.




2012 Yamaha Grizzly 450 Auto 4×4 EPS Highlights:

Key selling points:

Grizzly 450 Automatic 4×4 EPS has many of the same
great features as big brothers Grizzly 700 and 550,
including electric power steering, four-wheel
independent suspension, and powered by a
fuel-efficient, liquid-cooled engine.

Steel Blue model includes cast aluminum wheels.

Electric Power Steering system lightens steering for
superior comfort and terrainability.

Almost 10 pounds lighter than previous Grizzly 450
models, even with the addition of Electric Power
Steering, providing awesome power-to-weight ratio.

Industry-exclusive, fully automatic Ultramatic®
transmission is the most advanced drive system in
ATVs. An automatic centrifugal clutch maintains
constant belt tension for reduced belt wear and uses
a sprag clutch for all-wheel downhill engine braking
in 4WD mode.

Three-position On-Command® In/Out 4WD feature
lets you switch between 2WD, limited-slip 4WD and
a fully locked differential 4WD-all with the simple
push of a button. Override button allows engine to
make maximum rpm in full Diff. Lock mode.

Fully independent long-travel four-wheel suspension
features double-wishbone suspension front and rear.

Ground clearance of 10.8 and a high-impact
plastic skidplate provide terrainability and
undercarriage protection.

Trick digital instrument panel boasts a
multifunction LCD display with speedometer,
odometer, dual tripmeter, hour meter, 4WD status,
transmission position and clock.

Rear wet brake is a multi-disc system running in
hydraulic fluid inside a sealed unit. This keeps out
the elements (such as mud and water) while
providing powerful, consistent stopping power and
greatly reduced maintenance.


2012 Yamaha Grizzly 450 Auto 4×4 EPS Key Features:

o 421cc liquid-cooled, SOHC four-stroke single is rugged
and powerful.
o Electric Power Steering system lightens steering for superior
comfort and less rider fatigue.
o Semi-oval slide 33mm BSR Mikuni® carburetor and high-output
DC-CDI ignition deliver fantastic throttle response and engine
performance at all rpm.
o Pushbutton electric starting.
o Stainless steel muffler and header design provides superior
power characteristics, exhaust sound and durability.
o Left-side-mounted (Hi/Lo/N/R/P) shift lever is easily accessible.
o Large-capacity aluminum radiator provides maximum cooling
efficiency and is positioned high in frame for optimal protection.
o Compact engine design features a 45-degree cylinder angle for
maximum ground clearance and lower seat height for quick,
responsive steering and agility.
o Gear-driven crankshaft balancer and rubber-damper engine
mounts reduce vibration.
o Specially designed drive system air intake vent helps prevent
overheating and keeps water and mud from entering drive case.
o Tool-free air filter box for easy access and quick maintenance.

o Lightweight chassis features outstanding durability with superior
rigidity for class-leading agility and handling.
o Light steering and a class-leading turning radius combine for
increased comfort and incredible maneuverability-even in 4WD.
o Fully independent four-wheel suspension features a doublewishbone
suspension front and rear delivering 6.3 inches and
7.1 inches of travel.
o Using a newly-designed multi-disc system running in gear oil,
the sealed rear wet brake combines strong, consistent stopping
power and greatly reduced maintenance requirements.
o Large-diameter ventilated hydraulic front disc brakes deliver
tremendous stopping power in a variety of conditions.
o Direct front shaft drive eliminates U-joint for greater durability
and more efficient power transfer when engaged in 4WD.
o Heavy-duty composite front carry bar and CV joint guards help
prevent damage to boot covers and won’t dent or rust.

Additional Features:
o Grizzly 700-inspired front-end styling boasts convenient
water-resistant storage compartment on the front fender.
o The water-resistant DC outlet is located to the side of the
multifunction instrument panel for convenient access;
automotive style receptacle handles a wide range of accessories.
o Steel cargo racks with special, extra-durable wrinkle paint
finish feature a combined cargo capacity of 264 pounds (88 front,
176 rear).
o Available in Realtree® AP™ camouflage with a water-dipped
process for durability.
o Large-capacity, 4-gallon fuel tank has a built-in gauge and easyto-
reach petcock valve.
o Water-resistant, large-capacity underseat storage box provides
added convenience.
o Wide, fully integrated floorboards keep rider’s feet dry and
feature serrated footpegs for extra grip in wet conditions.
o Large front and rear fenders with inner guards offer excellent
mud/splash protection.
o Easy-access, underseat marine-spec electrical components
ensure maximum protection from the elements.
o Dual, bright multireflector 30-watt Krypton bulb headlights with
high and low beams; rear brake light.
o Assembled in Newnan, GA, U.S.A.

Available Accessories:
Please refer to the 2011 Spring Big Book

* Wet weight includes the vehicle with all standard equipment and all
fluids, including oil, coolant (as applicable) and a full tank of fuel.
It does not include the weight of options or accessories. Wet weight
is useful in making real-world comparisons with other models.
ATVs with engine sizes over 90cc are recommended for use only by riders age
16 years and older.



2012 Yamaha Grizzly 450 Auto 4×4 EPS – USA Specifications
US MSRP* $7,499 (Hunter Green) Available from July, 2011
$7,799 (Steel Blue) Available from July, 2011
$7,849 (Realtree® AP™ Camouflage) Available from July, 2011

Type 421cc, 4-stroke, liquid-cooled single; SOHC
Bore x Stroke 84.5 x 75.0mm
Compression Ratio 10.0:1
Fuel Delivery Mikuni® 33mm BSR
Ignition DC-CDI
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Suspension / Front Independent double wishbone; 6.3-in travel
Suspension / Rear Independent double wishbone; 7.1-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Sealed oil bathed, multi disc
Tires / Front AT25 x 8-12
Tires / Rear AT25 x 10-12

L x W x H 78.5 x 43.0 x 44.1 in
Seat Height 33.1 in
Wheelbase 48.5 in
Turning Radius 118 in
Ground Clearance 10.8 in
Fuel Capacity 4.0 gal
Wet Weight 620 lb
Rack Capacity 88 lb Fr./176 lb Rr.
Towing Capacity 1322 lb

Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, gear position and fuel gauge
Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)



2012 Yamaha Grizzly 450 Auto 4×4 EPS – Canadian Specifications
Canadian MSRP* $NA CDN

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
