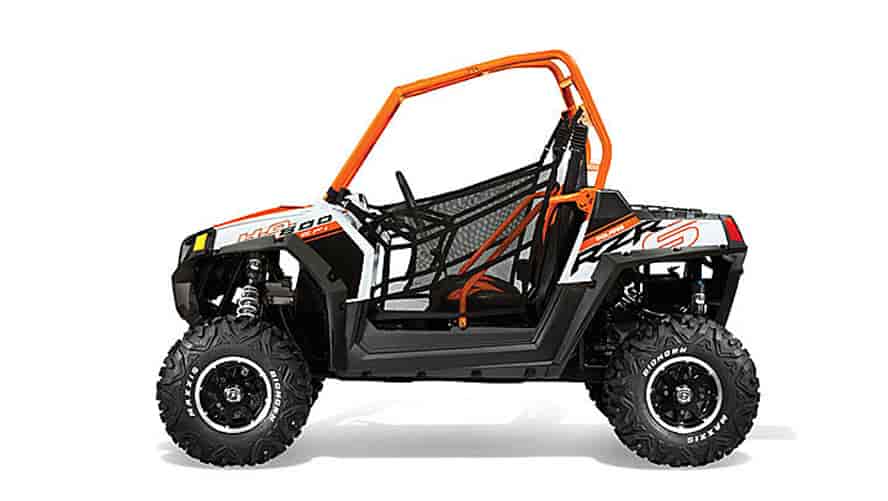

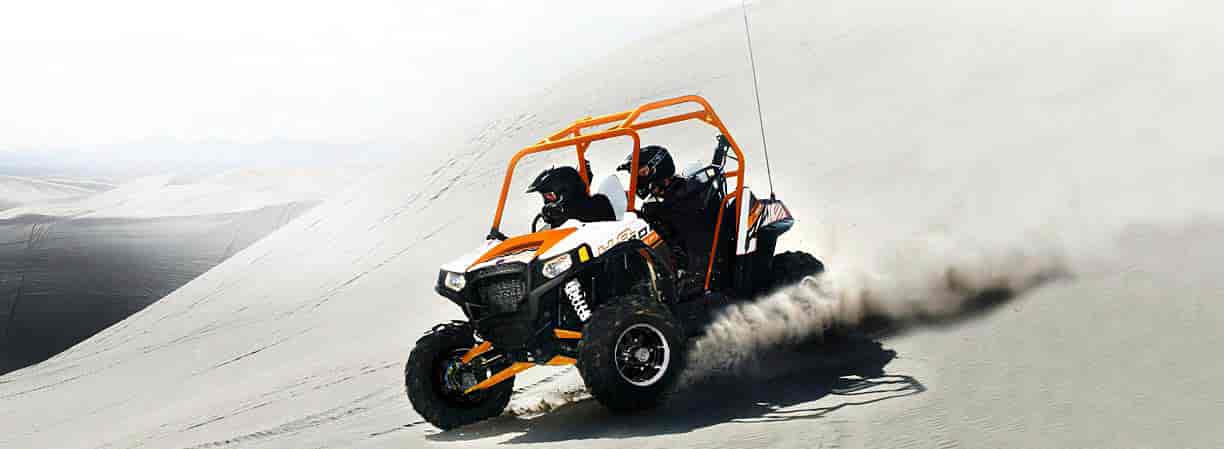

2013 Polaris RZRS 800 Orange / White LE
2013 Polaris RZRS 800 Orange / White LE
– 2013 Polaris RZRS 800 Orange / White LE Review
2013 Polaris RZRS 800 Orange / White LE
TRUE SPORT ACCELERATION- The 800 EFI high-output engine combined with a low vehicle weight delivers fast acceleration at 0 to 35 mph in 3.8 seconds.
Limited Edition Features
•Maxxis Bighorn tires on 12″ Black Crusher aluminum rims
•White Lightning painted dash and rear panels with Orange Madness painted hood
•Premium Fox Podium® X shocks
•Orange Madness painted cab frame and control arms
•Custom Graphics Package
•Color matched painted front and rear suspension springs
•Custom three-color cut & sew Black, Orange Madness, and White seats with RZR emblem
•Low center of gravity for true sport agility
•Wide stance with long travel suspension
•True sport acceleration – 0 to 35 mph in 3.8 seconds
2013 Polaris RZRS 800 Orange / White LE Key Features
•The RZR S is the first vehicle to feature the ITP 900 XCT sport-performance tires as standard equipment. They feature an aggressive lug pattern for superior traction on varying terrain, plus better, faster mud clean-out.
•Driver and passenger ride in comfort, thanks to adjustable and interchangeable bucket seats, plus adjustable passenger handrail. Comfortable driver operation is enhanced by tilt steering with a wide range of motion (10″).
•Passenger grab bar tube with anti-rattle bushing for reduced noise.
•Passenger-side glove box has 3 gallons of space for convenient, water-resistant storage.
•Rear Cargo Box With 300-lb. Capacity With Lock & Ride Accessory System
•Front drive cage made from zinc, for added durability.
•Durable dual clutch inlet draws air in for low and high speed cooling.
•Side Nets designed for easy in-and-out access
•Certified Roll-Over Protective Structure (ROPS).
2013 Polaris RZRS 800 Orange / White LE Features and Benefits
Power
INCREDIBLE HORSEPOWER TO WEIGHT FOR SPORT PERFORMANCE – Due to the RANGER RZR S’s low total vehicle weight and 800 EFI high-output engine, it has an impressive HP-to-Weight ratio giving it unbelievable power.
TRUE SPORT ACCELERATION- The 800 EFI high-output engine combined with a low vehicle weight delivers fast acceleration at 0 to 35 mph in 3.8 seconds.
Suspension
PERFORMANCE BASED LONG TRAVEL SUSPENSION AND SHOCKS – A proven true-sport long-travel suspension package straight from the factory. The 12″ of front and rear travel soak-up the rough terrain. Also features 2″ body, high pressure, monotube shocks for better cooling and less fade, along with pre-load adjustability
SPORT PERFORMANCE WHEELBASE AND HIGH GROUND CLEARANCE – The RZR® S features a 77″ long wheelbase combined with a wide stance for a smooth, precise ride. Add on an obstacle-clearing 12.5″ of ground clearance, and you’ve got off-road riding at its best.
DUAL A-ARMS AND ROLLED IRSFeatures front and rear Dual A-Arm suspension and Rolled Independent Rear Suspension (IRS) to smooth out the whoops and washboard in the dunes, desert and wide open spaces.
Agility
LOW CENTER OF GRAVITY FOR TRUE SPORT AGILITY – Only RZR features the Polaris-exclusive Optimized Mass Design. The engine and other components are strategically placed to create the absolute lowest center of gravity, for the ultimate in razor-sharp performance.
WIDE STANCE WITH LONG TRAVEL SUSPENSION – A wide stance coupled with its Optimized Mass Design, engine-behind-the-seat and rear weight bias, the RZR S delivers unmatched agility and confidence for true sport performance in wide open spaces.
ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD) – True AWD gives you superior grip to put the 12″ of suspension travel to work in the dunes and desert. It’s the easiest to use and fastest responding on-demand system, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. This means less wear and tear, easier steering, and maximizes power when you need it most.
2013 Polaris RZRS 800 Orange / White LE – United States of America Specifications / Technical Details
USA MSRP: $13,999 USD
Engine
Engine Type4-Stroke Twin Cylinder
Displacement760cc High Output (H.O.)
Fuel SystemElectronic Fuel Injection
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlNot Equipped
Suspension
Front SuspensionDual A-Arm 12″ (30.5 cm) Travel
Rear SuspensionDual A-Arm, Rolled with Anti-Sway Bar 12″ (30.5 cm) Travel
Brakes
Front/Rear Brakes4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking BrakePark in Transmission
Tires / Wheels
Front Tires26 x 9-12; Maxxis Bighorn
Rear Tires26 x 12-12; Maxxis Bighorn
WheelsBlack Crusher aluminum rims
Dimensions / Capacities
Wheelbase77″ (196 cm)
Dry Weight1,022 lb (464 kg)
Overall Vehicle Size (L x W x H)104 x 60.5 x 70.5″ (264.2 x 153.7 x 179 cm)
Ground Clearance12.5″ (32 cm)
Seat HeightN.A.
Fuel Capacity7.25 gal (27.4 L)
Bed Box Dimensions (L x W x H)22 x 42 x 6.5″ (56 x 107 x 16.5 cm)
Front/Rear Rack or Box CapacityN.A./300 lb (136.1 kg)
Payload Capacity740 lb (335.6 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing CapacityN.A.
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingHalogen, 55W low/ 60W high
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet
2013 Polaris RZRS 800 Orange / White LE – Canada Specifications / Technical Details
Canadian MSRP: $15,899 CDN
Engine
Engine Type4-Stroke Twin Cylinder
Displacement760cc High Output (H.O.)
Fuel SystemElectronic Fuel Injection
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlNot Equipped
Suspension
Front SuspensionDual A-Arm 12″ (30.5 cm) Travel
Rear SuspensionDual A-Arm, Rolled with Anti-Sway Bar 12″ (30.5 cm) Travel
Brakes
Front/Rear Brakes4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking BrakePark in Transmission
Tires / Wheels
Front Tires26 x 9-12; Maxxis Bighorn
Rear Tires26 x 12-12; Maxxis Bighorn
WheelsBlack Crusher aluminum rims
Dimensions / Capacities
Wheelbase77″ (196 cm)
Dry Weight1,022 lb (464 kg)
Overall Vehicle Size (L x W x H)104 x 60.5 x 70.5″ (264.2 x 153.7 x 179 cm)
Ground Clearance12.5″ (32 cm)
Seat HeightN.A.
Fuel Capacity7.25 gal (27.4 L)
Bed Box Dimensions (L x W x H)22 x 42 x 6.5″ (56 x 107 x 16.5 cm)
Front/Rear Rack or Box CapacityN.A./300 lb (136.1 kg)
Payload Capacity740 lb (335.6 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing CapacityN.A.
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingHalogen, 55W low/ 60W high
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet
Specifications, appearance, and price of product are subject to change without notice.
