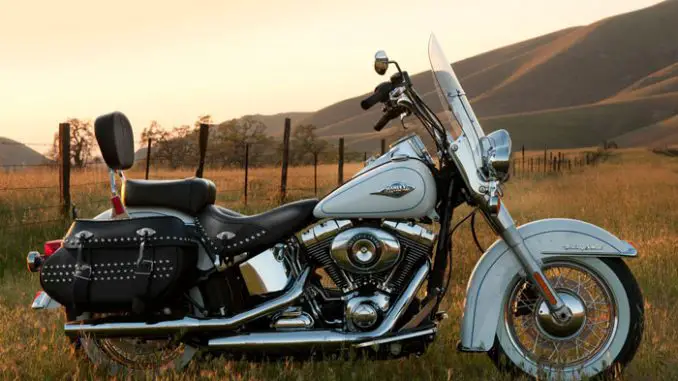

– 2012 Harley-Davidson FLSTC Heritage Softail Classic
2012 Harley-Davidson FLSTC Heritage Softail Classic Review
Blazing from the past with original dresser spirit and modern touring capabilities
With its smooth performance, comfortable riding position, low seat height, ample luggage space, wind protection and passenger accommodations, the Heritage Softail® Classic is a true custom-touring bike. The quick-release Lexan® windshield allows for quick conversion to custom cruising. Few bikes capture the spirit of the original dressers more authentically than this beautiful motorcycle. 1940s-style leather saddlebags with quick-detach buckles, full FL front fender, chrome laced wheels and hub cover all pay homage to the past, while the counter-balanced Twin Cam 96™ engine, hidden rear suspension and new optional Anti-lock Braking System all reside at the forefront of modern technology.
NOSTALGIC CUSTOM STYLE
Do laced wheels, whitewalls and studded leather add to the way a bike feels on the road? Of course they do. It’s these extras that make the Heritage Softail® Classic model the quintessential boulevard cruiser. As rallies were gaining grassroots traction in the ’40s, you’d roll into Daytona Bike Week expecting new stories and new styles. There was really something going on, and it’s still alive and well in this bike.
Take the saddlebags, studded with style straight from that golden era, with hidden quick-detach buckles. Or the fenders—full and fluid, with chrome highlights and matching paint. Or that big, commanding 7-inch ball headlamp, chromed and classy. And let’s talk wheels. You can go with the standard steel-laced wheels on blackwalls with a chrome hub. Or turn the clock all the way back with the optional chrome laces and wide whitewalls.
HIDDEN REAR SHOCKS
If you want a comfortable bike but love that rigid-suspension look, you’ve come to the right bike. We’ve kept all the modern comforts where they belong—below the surface of a rad, vintage-looking bike. You get the classic lines of a vintage ‘hardtail’ frame with the horizontal rear shocks hidden in the guts. It’s a signature rigid look, and you’ll only find it on a Softail® model.
OLD-SCHOOL TANK AND 3-D MEDALLION
The unique medallion on the Heritage Softail® Classic motorcycle is glass-inlayed, cloisonnÃ©-and-chrome style and shows that Harley-Davidson® Softail® model heritage that runs in your blood. With a five-gallon capacity for long weekend cruising, we top off this tank with a nostalgic chrome ‘cats-eye’ console, paint for days and style to spare.
Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects. Skimping simply is not in our vocabulary.
HAND FINISHED FUEL TANK
All Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.
The speedometer face boasts a big, bold display for the odometer, along withan ancillary display for gear and rpm, offering up the information you need on the fly.
SIX-SPEED CRUISE DRIVE®
You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.
TWIN CAM 103™ ENGINE POWER
New for 2012: live your ride to the power of 103. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch that you’ll appreciate when passing, climbing hills, or rolling with luggage packed or a passenger in back—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.
TWIN CAM 103™ ENGINE HERITAGE
The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™; engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88®; and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.
TWIN CAM 103™ ENGINE INNOVATION
Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.
PURE HARLEY-DAVIDSON STYLING
Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by machined cooling fin tips and chrome rocker covers. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 103™ engine makes an ironclad statement about holding on to what’s right and staying true to what satisfies.
ANTI-LOCK BRAKES (OPTIONAL)
When it comes to the Heritage Softail® Classic model with optional ABS, ‘stopping power’ has a double meaning. The components of our ABS are tastefully hidden within the wheel hub, so you’ll still turn heads with clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to behave when you need it. Offered as a part of the ‘Security Package’ (which includes the H-D® Smart Security System).
H-D® SMART SECURITY SYSTEM (OPTIONAL)
The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique. Offered as a part of the ‘Security Package’ (which includes Anti-Lock Brakes).
ARTFULLY HIDDEN TECHNOLOGY
Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.
Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.
Whether you’re crossing state lines or staying within city limits, you want a confident feeling of sure contact with the road. The front end holds a premium touring tire with a three-ply polyester casing and two fiberglass belts. The back cruiser tire has an advanced tread pattern. Made from a specifically formulated compound, it delivers outstanding grip in wet or dry weather. And since they’re from Dunlop®, you know you’re wrapping your premium rollers in quality rubber.
TUNED TO BE RIDDEN
Harley-Davidson® motorcycles are different from any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.
Go from touring to cruising in a heartbeat. Leave the screen on for a clean envelope of air over the long haul. Or detach it in seconds for a completely new look and ride. The Lexan® windshield is tough as they come—durable, scratch resistant, low maintenance. And whether you choose to cruise or keep the shield on, your Heritage Softail® Classic model rules with a nostalgic style and versatility you can make your own.
Classic style and maximum comfort. That’s the perfect balance of the tall handlebars that come standard on the Heritage Softail® Classic model. They’re designed to keep you comfortably propped in a commanding position while making sure your neck muscles stay calm and relaxed mile after mile, state after state. Durable stainless steel insures the structural rigidity you expect from Harley-Davidson with the deep, lustrous finish you demand.
FULL-LENGTH RIDER FOOTBOARDS
Your boots were made for riding, in any way you see fit. Our full-length footboards boast a tried and true design that’s stood the test of time. Plenty of foot positions for your taste and comfort. Rubber vibration isolation for a comfortable ride. And heel-toe shifting for confident shifting every time. It takes a few rides, but once you’ve gotten used to the smooth heel-toe rhythm, you’ll never give it up. The toes of your boots won’t take the same beating, either.
CONVERTIBLE TWO-UP SEAT
Hit the boulevard in style with the classic Softail® two-up seat. It’s comfort for you or two. A bigger passenger seat and contour backrest to keep your passenger as comfortable as you. The classic, old-school styling includes a studded seat valance that matches your bags, and the seat pillion is detachable. Just ditch it for stripped-back, solo profiling. Or leave it on and bring your better half along for the ride.
ENGINE IDLE TEMPERATURE MANAGEMENT STRATEGY
Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. This feature can easily be turned on by your dealer.
SEAT ENGINEERING AND DESIGN
The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.
2012 Harley-Davidson FLSTC Heritage Softail Classic Model Highlights
NEW Rigid-mounted, counter-balanced Twin Cam 103B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
NEW Tubeless Chrome Aluminum Profile Laced wheel option
NEW Paint color options
– Fuel tank sender for accurate fuel-level readings
– Black powder-coated powertrain with chrome covers
– Chrome exhaust with dual staggered shorty mufflers
– Chrome, Laced Steel wheels with chrome hub covers
– 150 mm rear tire
– Chrome nostalgic seven-inch ball headlamp
– Chrome directional light bar and passing lamps
– Chrome oil tank
– Chrome nostalgic “cats-eye” tank console with a retro speedometer face
– Two-tone leather tank panel with matching sissy-bar backrest trim
– Ergonomic stainless steel, classic touring handlebar
– Half-round footboards and oval brake pedal pad
– Two-piece, two-up Softail® seat with removable pillion
– Studded, nostalgic leather saddlebags with hidden quick-detach buckles
– Detachable king-size Lexan® clear windshield
– Full-coverage front and rear fenders with chrome accents
2012 Harley-Davidson FLSTC Heritage Softail Classic Key Features and Benefits
– 6-Speed Cruise Drive® Transmission
– Horseshoe oil tank
– Five-gallon fuel tank
– Optional Tubeless Chrome Aluminum Profile Laced wheels
– Optional Original Equipment Custom Color Paint Program
2012 Harley-Davidson FLSTC Heritage Softail Classic – USA Specifications/Technical Details
US MSRP Price: Vivid Black $17,349, Solids $17,734, Two-Tones $18,054, Custom Colors $18,224 USD
Length 94.5 in. (2400 mm)
Overall Width 37.6 in. (955 mm)
Overall Height 55.2 in. (1402 mm)
– Laden2 25.5 in. (648 mm)
– Unladen 27.1 in. (688 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 31°
Fork Angle 31°
Trail 5.8 in. (147 mm)
Wheelbase 64.5 in. (1638 mm)
Tires (Dunlop® Harley-Davidson® Series, bias blackwall front and rear):
– Front – D402F MT90B16 72H
– Rear – D401 150/80B16 71H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qt. (.95 L)
Case Capacity 1.0 qt. (.95 L)
– As Shipped 730 lbs. (331.0 kg)
– In Running Order 761 lbs. (345.0 kg)
– Gross Vehicle Weight Rating 1160 lbs. (526.0 kg)
– Gross Axle Weight Rating:
– Front 430 lbs. (195.0 kg)
– Rear 730 lbs. (331.0 kg)
Engine Air-cooled, Twin Cam 103BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.1 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
– 1st 9.311
– 2nd 6.454
– 3rd 4.793
– 4th 3.882
– 5th 3.307
– 6th 2.79
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3 mm telescopic, “beer can” covers
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels4 (Tubeless Chrome Aluminum Profile Laced option):
– Front 16 in. x 3 in. (406 mm x 76 mm)
– Rear 16 in. x 3 in. (406 mm x 76 mm)
– Caliper Type 4-piston front and 2-piston rear
– Rotor Type (diameter x width): Patented, uniform expansion rotors
– Front 11.5 in. x .2 in. (292 mm x 5.1 mm)
– Rear 11.5 in. x .23 in. (292 mm x 5.8 mm)
– Anti-lock Braking System: Available
– Front Wheel 5.1 in. (130 mm)
– Rear Wheel 4.3 in. (109 mm)
Engine Torque5 (per J1349):
– North America 96.9 ft. lbs. @ 3000 RPM (131 Nm @ 3000 RPM)
Lean Angle (per J1168):
– Right 24.4°
– Left 25.9°
Fuel Economy6 (EPA urban/highway test) 42 mpg (5.6 L/100 km)
– Vivid Black
– Big Blue Pearl
– White Hot Pearl
– Ember Red Sunglo/Merlot Sunglo
– Midnight Pearl/Brilliant Silver Pearl
– Tequila Sunrise/H-D Orange
Vivid Black $17,349
Custom Colors $18,224
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Tail/Stop Lights 8W/28W (5W/21W)
– Turn Signal Lights 28W (21W) self-canceling
– Indicator Lamps: High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system7
(optional), 6-speed, low fuel warnings
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.
2012 Harley-Davidson FLSTC Heritage Softail Classic – Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $19,039, Color Option $19,459, Two-Tone Option $19,809, Custom Color Option $19,999, Wheel Option $560, Security Package (Security and ABS) $1,310 CDN
Length: 2,405 mm
Seat Height, Laden: 648 mm
Seat Height, Unladen: 690 mm
Ground Clearance: 131 mm
Rake (steering head) (deg): 31
Trail: 147 mm
Wheelbase: 1,635 mm
Tires, Front Specification: MT90B16 72H
Tires, Rear Specification: 150/80B16 71H
Fuel Capacity 3: 18.9 l
Oil Capacity (w/filter): 3.3 l
Weight, As Shipped: 326 kg
Weight, In Running Order: 341 kg
Luggage Capacity -Volume: N/A
Luggage Capacity -Weight: N/A
Engine 1: Air-cooled, Twin Cam 103B™
Bore: 98.4 mm
Stroke: 111.1 mm
Displacement: 1,690 cc
Compression Ratio: 9.6:1
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
Primary Drive: Chain, 34/46 ratio
Gear Ratios (overall) 1st: 9.311
Gear Ratios (overall) 2nd: 6.454
Gear Ratios (overall) 3rd: 4.793
Gear Ratios (overall) 4th: 3.882
Gear Ratios (overall) 5th: 3.307
Gear Ratios (overall) 6th: 2.79
Exhaust: Chrome, staggered shorty exhaust with dual mufflers
Wheels, Optional Style Type: Chrome, Tubeless Profile Laced Aluminum
Wheels, Front Type: Steel Laced
Wheels, Rear Type: Steel Laced
Brakes, Caliper Type: 4-piston front and 2-piston rear
Parking Brake: N/A
Engine Torque Testing Method: J1349
Engine Torque 2: 131 Nm
Engine Torque (rpm): 3,000
Lean Angle, Right (deg.): 24.4
Lean Angle, Left (deg.): 25.9
Fuel Economy: Combined City/Hwy: 5.6 l/100 km
Lights (as per country regulation), Indicator LampsHigh beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
1: Measurement reflects 180 lb. (81.7 kg) operator weight.
2: Recommended 91 octane or higher fuel (R+M)/2.
3: Values shown are nominal. Performance may vary by country and region.
4: Standard and optional fuel systems may vary by country.
5: Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6: Standard and optional wheels may vary by country and region.
7: North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8: See motorcycle owner’s manual for complete details.
2012 Harley-Davidson FLSTC Heritage Softail Classic – Press Release 1
MORE HARLEY-DAVIDSON MODELS WITH TWIN CAM 103™ POWER IN 2012
V-Rod® 10th Anniversary Edition and Dyna® Switchback Bagger Join the Model Line
MILWAUKEE (July 20, 2011) – Harley-Davidson offers more Big Twin performance for 2012 as its Twin Cam 103™ powertrain is standard equipment on Softail® and Touring motorcycle models and most Dyna® motorcycle models. Harley-Davidson will offer two new models for 2012. The V-Rod® 10th Anniversary Edition celebrates a decade of power-cruiser performance, while the new Dyna® Switchback is a convertible custom-touring motorcycle with detachable hard saddlebags and windshield. In addition, the Night Rod Special has significant updates for 2012 with refreshed bodywork and optimized rider ergonomics. Harley-Davidson Custom Vehicle Operations (CVO)TM rolls out the gleaming new CVO Road Glide® Custom, a limited-production, high-performance touring masterpiece.
Harley-Davidson believes every motorcycle it sells can be a custom of one. Harley-Davidson H-D1™ is a comprehensive offering of customization tools for the Harley-Davidson motorcycle owner. H-D1 tools include Harley-Davidson Genuine Motor Accessories listings in print and on-line catalogs, Fit Shop and consultation services at Harley-Davidson dealerships, and factory customization and Bike Builder tools on www.harley-davidson.com. H-D1 offers almost unlimited opportunities to optimize fit, function, style and performance and turn a Harley into a motorcycle that is truly personalized to its owner.
Harley- Davidson heads into 2012 with 32 models, each born of experience that spans generations and a passion for riding that will never diminish.
Highlights of the 2012 Harley-Davidson line include:
The Twin Cam 103™ engine powers all 2012 Dyna®, Softail® and Touring models with the exception of the Dyna Street Bob® and Dyna Super Glide® Custom. This engine produces up to 100 ft lbs. peak torque, an increase of approximately 6 percent over the Twin Cam 96 engine it replaces as standard power for many of these models. The Twin Cam 103 is equipped with automatic compression release. It features identifying badges on the derby cover, timer cover and air cleaner trim ring.
A Security Package that pairs Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free security fob is available for all 2012 V-Rod®, Dyna®, Softail®, Touring and CVO™ models. The Security Package is standard equipment on CVO™ models and on the Road Glide® Ultra, the Electra Glide® Ultra Limited, and the Road King® Classic. The Security Package is a factory-installed option for all other models.
The Night Rod® Special is updated with new tapered tail section, lighter-weight wheels, an inverted front fork and improved ergonomics. Harley-Davidson celebrates a decade of power cruising with the V-Rod® 10th Anniversary Edition motorcycle, finished in Brilliant Silver Pearl bodywork that evokes the anodized aluminum bodywork of the original V-Rod model that introduced the liquid-cooled Revolution V-Twin engine in 2002. All V-Rod models will carry V-Rod 10th Anniversary badges.
The new Dyna Switchback combines hard saddlebags and a windshield with the eager handling and Twin Cam 103 performance of the Dyna chassis. It’s a custom-touring bike ready for a long weekend trip, until the detachable bags and windshield are removed. Then in seconds the Switchback becomes a custom street cruiser with a gleaming headlamp nacelle, five-spoke cast-aluminum wheels and a mini-ape handlebar. This convertible concept makes the versatile Switchback two motorcycles in one.
All Harley-Davidson Softail models get the performance boost of the Twin Cam 103 engine for 2012. The Fat Boy and Fat Boy Lo have a new reduced-reach handlebar for more-comfortable ergonomics. A lower, narrower seat shape places the Fat Boy rider in a new “in the bike” position. The Softail Deluxe and Heritage Softail Classic will be available with a new optional “tubeless” Chrome Aluminum Profile Laced wheel option for ease of tire replacement and repair.
The Twin Cam 103 powertrain gives all Harley-Davidson Touring models assertive power for passing. On Touring models, the Twin Cam 103 is equipped with an oil cooler. All Touring models except the Ultra Limited will offer a new “tubeless” Chrome Aluminum Profile Laced wheel option.
The Harley-Davidson Sportster® line appeals to a broad range of riders with six 2012 models ranging from the race-inspired XR1200X™ to the accessible SuperLow® to Dark Custom roadsters like the Iron 883™, Nightster® and Forty-Eight®. The Sportster® 1200 Custom can be personalized for fit, function and style with H-D1 factory customization, a process that allows customers to use the Bike Builder tool on harley-davidson.com to build the motorcycle from a selection of options that are installed as the bike is assembled by Harley-Davidson Motor Company or are installed by a dealer after the motorcycle is delivered. New 1200 Custom color options have been added to Bike Builder for 2012.
The new CVO Road Glide Custom is one of four limited-production 2012 models from Harley-Davidson Custom Vehicle Operations (CVO)TM, each turned out with bold paint, gleaming chrome, and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles. CVO Road Glide Custom is a hot-rod bagger with a frame-mounted fairing topped with a smoked Wind Splitter windshield, a high-output, amplified Harman/Kardon® Advanced Audio system, and a color-matched, low-profile fuel tank console.
