2014 BMW F800GS Review

Back to 2014 BMW Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

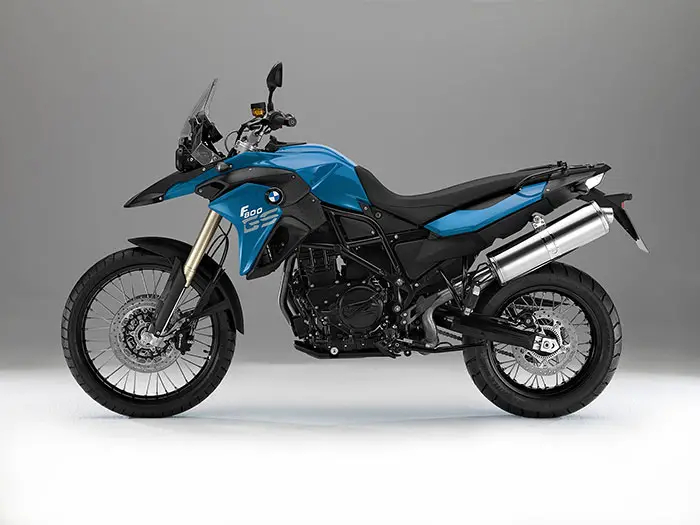

2014 BMW F800GS
2014 BMW F800GS

2014 BMW F800GS
2014 BMW F800GS

2014 BMW F800GS
2014 BMW F800GS

2014 BMW F800GS
2014 BMW F800GS

2014 BMW F800GS
2014 BMW F800GS



2014 BMW F800GS Review

2014 BMW F800GS on Totalmotorcycle.com

F 800 GS: on and off-road have never been so close together…

This is the motto of the revised F 800 GS – the sportiest member of the big GS family. The motorcycle continues its longstanding success story, providing impressive versatility both on and off the road: the ultimate versatile enduro machine with sporty genes.

The front section of the body in particular has undergone significant transformation: the new side trim, intake snorkel, upper mudguard and a new windshield give the bike that extra dash of dynamic performance, reflecting the off-road side of the F 800 GS.

Low suspension is now available as an option for the F 800 GS, too. So in conjunction with the low seat, this means it is possible to create a seat height of 32.3 inches – perfect for riders preferring a lower seat height.

Meanwhile, ABS as standard*, ESA and the optional ASC (Automatic Stability Control, can be turned off) ensure the familiar degree of comfort and the necessary safety.





2014 BMW F800GS Totalmotorcycle.com Key Features

Special Features
BMW Motorrad ABS as standard.
Engine/Driveline
2 cylinder 4 stroke parallel twin engine
4 Valve cylinder heads
6 Speed gearbox
Chain drive
Complete stainless steel exhaust system
Digital engine management
Closed loop 3 way catalytic converter with oxygen sensor
Running Gear
BMW Motorrad ABS (Disengageable)
Side stand with starter inhibit
Twin disk front brake and single disk rear brake
Hydraulic rear spring preload adjuster
Continuously adjustable rear rebound damping
Rear suspension strut with travel dependent damping (WAD)
Spoke wheels
Double sided aluminium swinging arm
Armoured steel brake hoses
Electronics
Multi function display (digital clock, total and 2 trip odometers, cruising range indicator, service interval indicator, fuel level, engine temperature display)
Single wire system (Can-Bus)
Diagnostic Interface
Smoked glass turn indicator
Speedometer and engine revolution counter
Permanent headlamp beam
Hazard warning flashers
Electric immobiliser
LED rear light
Power socket
Equipment
Cockpit fairing fixed to frame
One key system for ignition, steering, fuel filler cap and duel seat lock
Adjustable hand brake and clutch lever
Integral ignition switch and steering lock
One piece seat bench
Pillion rider footrest and grab handles
Windshield
Toolkit




2014 BMW F800GS Totalmotorcycle.com Features and Benefits

Challenges? Yes! Compromises? No!

Everything about this bike is Unstoppable. Its state-of-the-art twin-cylinder engine delivers awesome off-road power and incredible responsiveness. Its weight-optimized construction makes it unbelievably agile and easy to handle. And its outstanding c­hassis performs superbly both on and off-road.

The F 800 GS is an Enduro bike like no other BMW Motorrad has made before; an 800cc machine with a full 85hp and torque of 83 Nm; all this while having a fully fuelled, road-ready weight of only 207 kg. There is also an extensive range of special accessories available for the F 800 GS, so that you can make your BMW even more individual.

The perfectly balanced suspension is extremely sturdy, yet sensitive enough to absorb every last bump. So on or off-road, on tarmac, gravel or dirt, on the F 800 GS you’re always in control of the situation.











2014 BMW F800GS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12,090 USD



Engine

Type
Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke
82 mm x 75.6 mm

Capacity
798 cc

Rated output
63 kW (85 hp) at 7,500 rpm

Max. torque
61 lb/ft (83 Nm) at 5,750 rpm

Compression ratio
12.0 : 1

Mixture control / engine management
Electroinc intake pipe injection, digital engine management (BMS-K+)

Emission control
Closed-loop 3-way catalytic converter, emission standard EU-3


Performance / fuel consumption

Maximum speed
Over 125 mph

Fuel consumption per 100 km at constant 90 km/h
59 mpg, at a constant 55 mph

Fuel consumption per 100 km at constant 120 km/h

Fuel type
Unleaded super


Electrical system

Alternator
three-phase alternator 400 W

Battery
12 V / 14 Ah, maintenance-free


Power transmission

Clutch
Multiple-disc clutch in oil bath, mechanically operated

Gearbox
Constant mesh 6-speed gearbox integrated into crankcase

Drive
Endless O-ring chain with shock damping in rear wheel hub


Chassis / brakes

Frame
Tubular steel space frame, load-bearing engine

Front wheel location / suspension
Upside-down telescopic fork, Ø 45 mm

Rear wheel location / suspension
Cast aluminium dual swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable

Suspension travel front / rear
9.1/8.5 inches (230 mm/215 mm)

Wheelbase
62.1 inches (1,578 mm)

Castor
4.6 inches (117 mm)

Steering head angle
64°

Wheels
Wire spoke wheels

Rim, front
2.15 x 21″

Rim, rear
4.25 x 17″

Tyres, front
90/90 – 21

Tyres, rear
150/70 – 17

Brake, front
Dual disc, floating brake discs, diameter 300 mm, double-piston floating calipers, ABS

Brake, rear
Single disc, diameter 265 mm, single-piston floating caliper, ABS

ABS
STANDARD (can be switched off)


Dimensions / weights

Length
91.3 inches (2,320 mm)

Width (incl. mirrors)
37.2 inches (945 mm)

Height (excl. mirrors)
53.1 inches (1,350 mm)

Seat height, unladen weight
34.6 inches Standard; variable seat heights available between 32.3 inches and 36.2 inches (available as accessories and/or factory options, see an authorized BMW Motorrad dealer)

Inner leg curve, unladen weight
76.0 inches Standard; variable inner leg curve (inseam) between 71.7 and 78.3 inches (seats available as accessories and/or factory options, see an authorized BMW Motorrad dealer)

Unladen weight, road ready, fully fuelled 1)
472 lbs (214 kg)

Dry weight 2)
421 lbs (191 kg)

Permitted total weight
979 lbs (444 kg)

Payload (with standard equipment)
507 lbs (230 kg)

Usable tank volume
4.2 gallons (16 liters)

Reserve
Approx. 1 gallon (4.0 liters)









2014 BMW F800GS – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $13,600 CDN



Engine

Type
Water-cooled 4-stroke in-line two-cylinder engine, two valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke
82 mm x 75.6 mm

Capacity
798 cc

Rated output
63 kW (85 hp) at 7,500 rpm (possible 35 kW (48 hp) at 7,000 rpm

Max. torque
83 Nm at 5,750 rpm (derating 63 Nm at 6,000 rpm)

Compression ratio
12.0 : 1

Mixture control / engine management
Electroinc intake pipe injection, digital engine management (BMS-K+)

Emission control
Closed-loop 3-way catalytic converter, emission standard EU-3


Performance / fuel consumption

Maximum speed
Over 200 km/h

Fuel consumption per 100 km at constant 90 km/h
3.8 l

Fuel consumption per 100 km at constant 120 km/h
5.2 l

Fuel type
Unleaded super, minimum octane rating 95 (RON); optional extra 91 (RON) available


Electrical system

Alternator
three-phase alternator 400 W

Battery
12 V / 14 Ah, maintenance-free


Power transmission

Clutch
Multiple-disc clutch in oil bath, mechanically operated

Gearbox
Constant mesh 6-speed gearbox integrated into crankcase

Drive
Endless O-ring chain with shock damping in rear wheel hub


Chassis / brakes

Frame
Tubular steel space frame, load-bearing engine

Front wheel location / suspension
Upside-down telescopic fork, Ø 43 mm

Rear wheel location / suspension
Cast aluminium dual swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable

Suspension travel front / rear
230 mm / 215 mm

Wheelbase
1,578 mm

Castor
117 mm

Steering head angle
64°

Wheels
Wire spoke wheels

Rim, front
2.15 x 21″

Rim, rear
4.25 x 17″

Tyres, front
90/90 – 21 54V

Tyres, rear
150/70 – 17 69V

Brake, front
Dual disc, floating brake discs, diameter 300 mm, double-piston floating calipers, ABS

Brake, rear
Single disc, diameter 265 mm, single-piston floating caliper, ABS

ABS
Standard


Dimensions / weights

Length
2,320 mm

Width (incl. mirrors)
945 mm

Height (excl. mirrors)
1,350 mm

Seat height, unladen weight
880 mm (low seat: 850 mm, with lowering: 820 mm, Rallye seat: 920 mm, comfort seat: 895 mm)

Inner leg curve, unladen weight
1,930 mm (low seat: 1,880 mm, with lowering: 1,820 mm, Rallye seat: 1,990 mm, comfort seat: 1,960 mm)

Unladen weight, road ready, fully fuelled 1)
214 kg

Dry weight 2)
191 kg

Permitted total weight
443 kg

Payload (with standard equipment)
229 kg

Usable tank volume
16 l

Reserve
approx. 4 l








2014 BMW F800GS – Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: £8,685.00 GBP (On The Road).

Engine
Type Water-cooled 4-stroke in-line two-cylinder engine, two valves per cylinder, two overhead camshafts, dry sump lubrication
Bore x stroke 82 mm x 75.6 mm
Capacity 798 cc
Rated output 63 kW (85 hp) at 7,500 rpm (possible 35 kW (48 hp) at 7,000 rpm
Max. torque 83 Nm at 5,750 rpm (derating 63 Nm at 6,000 rpm)
Compression ratio 12.0 : 1
Mixture control / engine management Electroinc intake pipe injection, digital engine management (BMS-K+)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 200 km/h
Fuel consumption per 100 km at constant 90 km/h 3.8 l
Fuel consumption per 100 km at constant 120 km/h 5.2 l
Fuel type Unleaded super, minimum octane rating 95 (RON); optional extra 91 (RON) available
Electrical System
Alternator three-phase alternator 400 W
Battery 12 V / 14 Ah, maintenance-free
Power transmission
Clutch Multiple-disc clutch in oil bath, mechanically operated
Gearbox Constant mesh 6-speed gearbox integrated into crankcase
Drive Endless O-ring chain with shock damping in rear wheel hub
Chassis / brakes
Frame Tubular steel space frame, load-bearing engine
Front wheel location / suspension Upside-down telescopic fork, Ø 43 mm
Rear wheel location / suspension Cast aluminium dual swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Suspension travel front / rear 230 mm / 215 mm
Wheelbase 1,578 mm
Castor 117 mm
Steering head angle 64 degrees
Wheels Wire spoke wheels
Rim, Front 2.15 x 21″
Rim, rear 4.25 x 17″
Tyre, front 90/90 – 21 54V
Tyre, rear 150/70 – 17 69V
Brake, front Dual disc, floating brake discs, diameter 300 mm, double-piston floating calipers, ABS
Brake, rear Single disc, diameter 265 mm, single-piston floating caliper, ABS
ABS As standard
Dimensions / weights
Length 2,320 mm
Width (incl. mirrors) 945 mm
Height (excl. mirrors) 1.350 mm
Seat height, unladen weight 880 mm (low seat: 850 mm, with lowering: 820 mm, Rallye seat: 920 mm, comfort seat: 895 mm)
Inner leg curve, unladen weight 1,930 mm (low seat: 1,880 mm, with lowering: 1,820 mm, Rallye seat: 1,990 mm, comfort seat: 1,960 mm)
Unladen weight, road ready, fully fueled 214 kg
Dry weight 191 kg
Permitted total weight 443 kg
Payload (with standard equipment) 229 kg
Usable tank volume 16.0 Litres
Reserve 4.0 Litres

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
Technical data relate to the unladen weight (DIN)
1) According to Directive 93/93/EEC with all fluids, fuelled to at least 90% of usable fuel tank
2) Unladen weight without fluids
