2014 Cleveland CycleWerks Misfit

Back to 2014 Cleveland CycleWerks Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

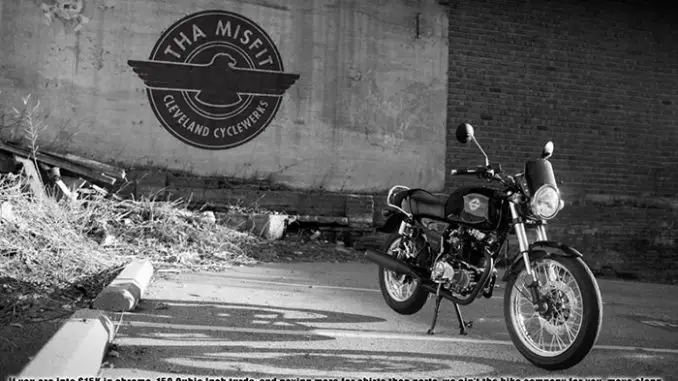

2014 Cleveland CycleWerks Misfit
2014 Cleveland CycleWerks Misfit

2014 Cleveland CycleWerks Misfit
2014 Cleveland CycleWerks Misfit

2014 Cleveland CycleWerks Misfit
2014 Cleveland CycleWerks Misfit

2014 Cleveland CycleWerks Misfit
2014 Cleveland CycleWerks Misfit



2014 Cleveland CycleWerks Misfit Review

2014 Cleveland CycleWerks Misfit on Totalmotorcycle.com

Open Cafe Style…

Tha Misfit is an extremely affordable Cafe style motorcycle. The bike has a DOM main tube that mates up to a boxed section that supports the counter-balanced motor. The large front boxed section adds a great deal of rigidity to the frame and the motor acts as a stressed member. The rear swing arm is a boxed section swing arm for rigidity. The rear shocks have remote reservoir, and the rear springs come with pre-load adjuster to adjust for proper sag. The inverted forks do a nice job of absorbing the bumps, while still keeping the ride sporty. The rear cowl removes for 2 up riding when needed. There is a center stand for those times when parking is tight, or the bike needs some maintenance. The large front and rear slide style brakes stop this light bike (under 300lbs) very quickly.

CCW’s Misfit is just that. A classically styled Cafe’ bike with a hint of GP bikes from the past. The Misfit mixes classic styling cues with modern bits to improve the ride and visual appeal. From the front and rear wave rotors, to the dual piston calipers, the braided and bonded stainless brake lines, inverted forks, air assist remote reservoir rear shocks (with pre-load adjustment). The Misfit is packed with features that you would not normally find on a classic sled. Hidden underneath the rear cowl is a flat seat for 2 up duty.





2014 Cleveland CycleWerks Misfit Totalmotorcycle.com Key Features

250cc thumper motor
Removable rear seat cowl for 2nd passenger option
Tank knee indents for more aggressive riding
Inverted forks valved with slightly aggressive dampening
Dual piston callipers for excellent stopping power
pattern and piping on seat give classic cafe look and feel
Small windscreen for increased comfort and style




2014 Cleveland CycleWerks Misfit Totalmotorcycle.com Features and Benefits

With over 80MPG and 70MPH+ cruising, priced under $3300 (in the USA) and a beautiful classic look. The Misfit is ready for duty, from cafe’ to cafe’ you will ride in style.

As we currently sell in 12+ countries, please check with your local distributor if you want to know all detailed specifications.








2014 Cleveland CycleWerks Misfit – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $3,300 USD

Canada MSRP Price: $3,499 CDN

Engine

Engine Type Four-stroke single cylinder, counterbalanced
Displacement 229cc
Cooling System Air Cooled
Bore x Stroke 67× 65 mm (2.64” x 2.55”)
Compression Ratio 9.2:1
Ignition System CDI
Starting Electric with kick backup
Drive

Transmission Constant mesh, five-speed
Clutch Wet multi-plate
Brakes

Front Brakes 280 mm (11”) hydraulic disc
Rear Brakes 240 mm (9.45”) hydraulic disc
Tires And Suspension

Tires Front 90 / 90 – 18”
Tires Rear 110 / 70 – 16”
Suspension Front Inverted fork
Suspension Rear Dual reservoir shocks
Chassis

Dry Weight 134kg (296lbs)
Frame 1020 DOM
Width 710 mm (27.9”)
Height 1050 mm (41.3”)
Wheelbase 1230 mm (48.4”)
Ground Clearance 273 mm (10.7”)
Seat Height TBD
Max Capacity 251kg (552 lbs)
Fuel Capacity 18.3L (4.8g)
Colours Gloss black


*PDI, freight and administration fees may apply. Product specifications, features and colours are subjects to change without notice.
Please read your owners manual carefully and always wear a helmet and protective gear when riding any motorized product.
Please respect all safety regulations and take a rider training course.
