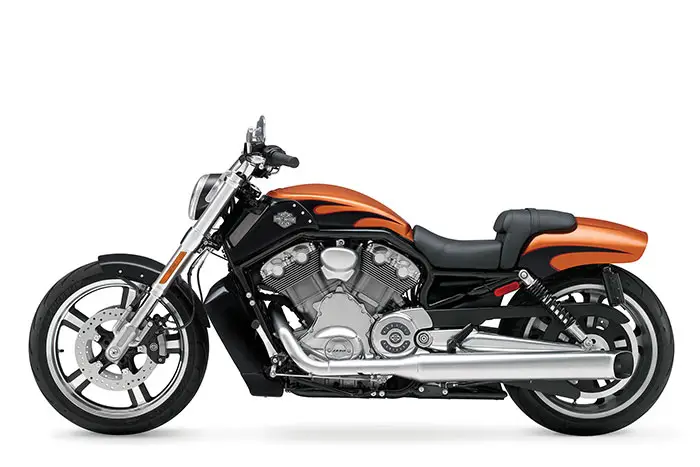

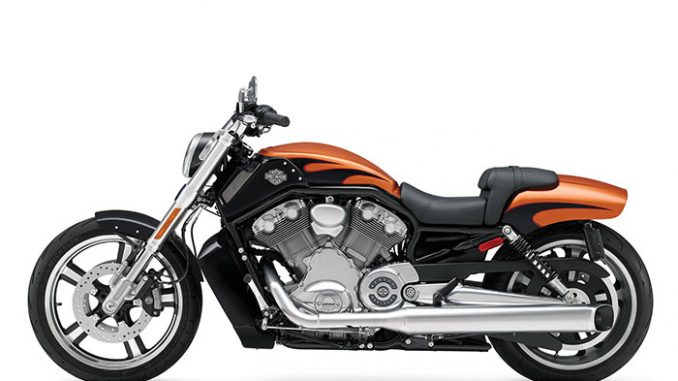

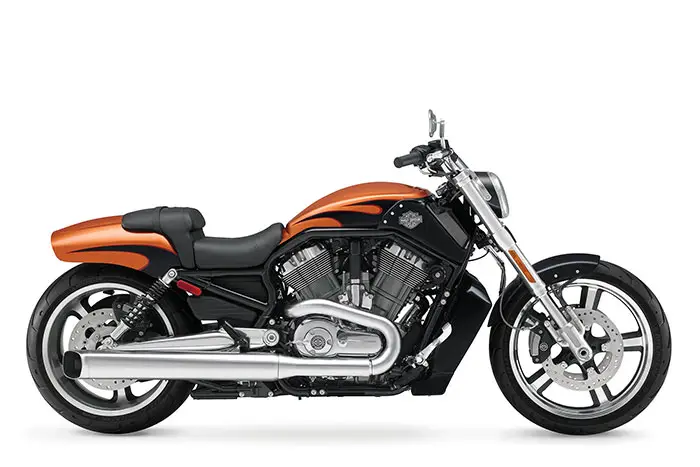

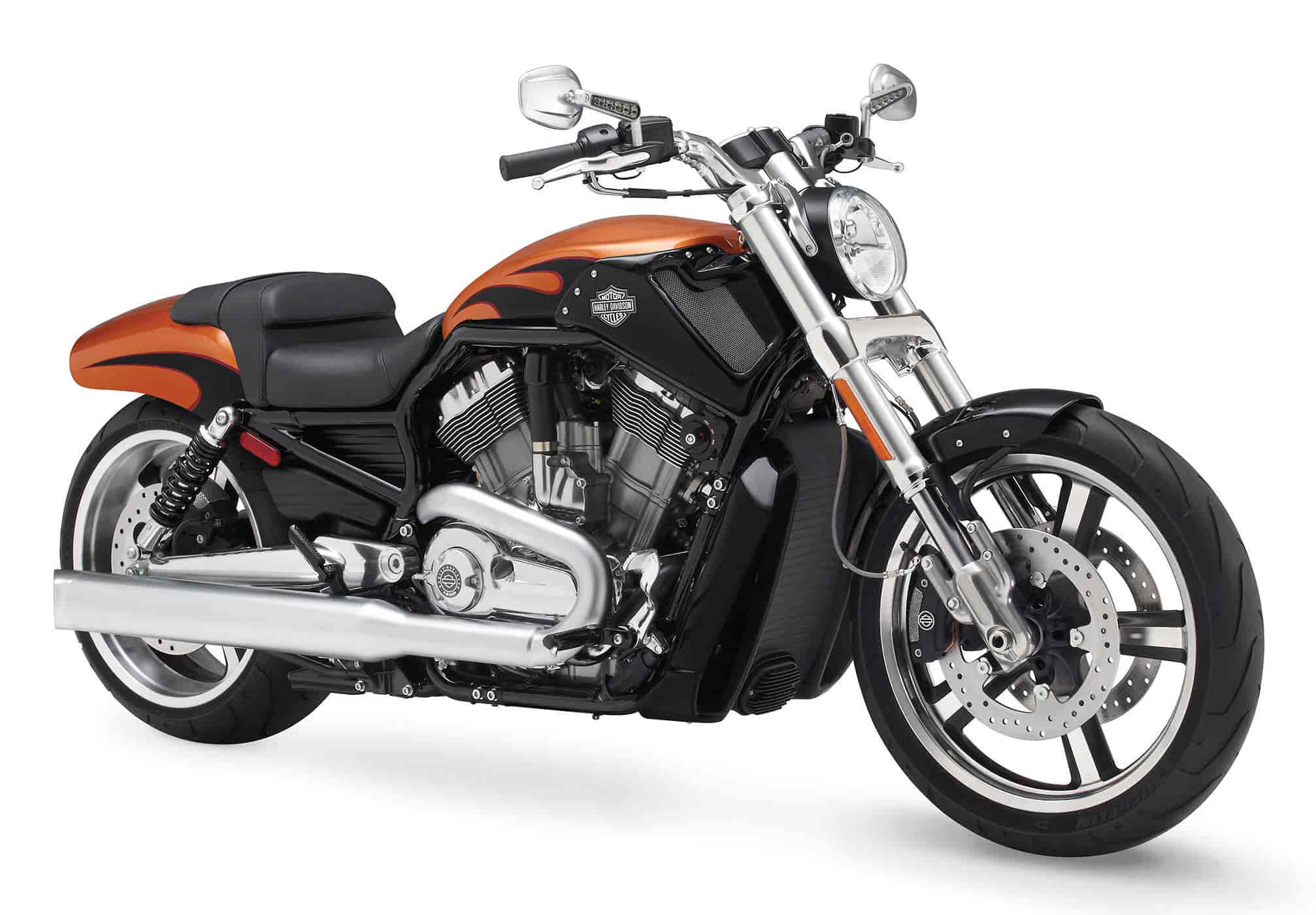

2014 Harley-Davidson VRSCF V-Rod Muscle

2014 Harley-Davidson VRSCF V-Rod Muscle

2014 Harley-Davidson VRSCF V-Rod Muscle

2014 Harley-Davidson VRSCF V-Rod Muscle

2014 Harley-Davidson VRSCF V-Rod Muscle Review

2014 Harley-Davidson VRSCF V-Rod Muscle

The menacing look of a raging bull with the brute power of 122 thoroughbreds…

The fast, powerful and aggressive V-Rod Muscle™ motorcycle is built for riders who want a little extra beef with their horsepower.

Big meaty air scoops, muscle-bound mufflers, 240mm rear tire, fastback-style tail section and massive airbox compliment the power of the 1250 cc liquid-cooled Revolution® engine. Ride the V-Rod Muscle™ and you’ll learn the true definition of “power cruiser.” This brawny beast is for performance enthusiasts who crave power and control, with a dash of intimidation, in a package that is all Harley-Davidson.







2014 Harley-Davidson VRSCF V-Rod Muscle Totalmotorcycle.com Key Features

NEW Standard Anti-lock Braking System (ABS)

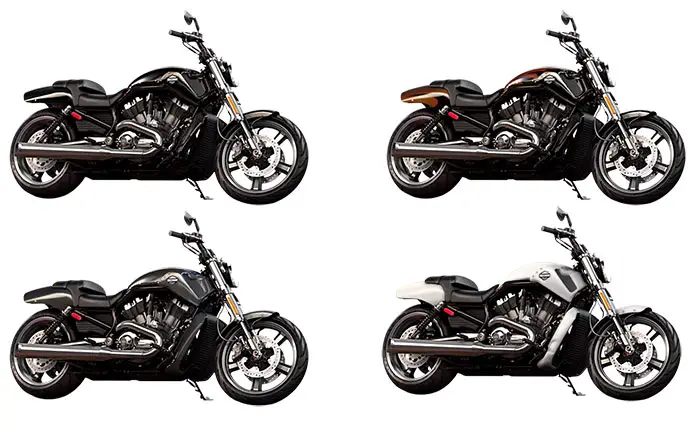

NEW Paint color
• Michelin® Scorcher® tires
• Platinum powder-coated powertrain with polished covers
• Satin chrome dual exhaust with turn-out mufflers
• Silver, 5-spoke Cast Aluminum wheels
• Sport front fender with black brace supports and blacked-out rear section
• Polished aluminum handlebar with integrated riser
• Polished forged aluminum triple clamps
• Chopped rear fender
• Angular airbox with side covers
• Color-matched radiator shrouds
• Satin black headlamp bucket
• LED front turn signals integrated in mirror stems
• LED combined stop/tail/turn light integrated within rear fender
• Side-mounted license plate
• 43 mm inverted forks
• Stylized rear shocks with black springs
• Black frame
• Deep, drag-style two-up seat
• High-performance Brembo® triple-disc brakes with available ABS
• Race-bred slip and assist clutch helps ease drive train effort during downshifting
• 240 mm wide rear tire
• Forward-mounted footpegs and controls
• Teardrop reflector-optic headlight
• Electric power accessory connector under seat





2014 Harley-Davidson VRSCF V-Rod Muscle Totalmotorcycle.com Features and Benefits

Fat Rear Tire

Behold an ultra-fat, 240mm rear tire for a powerful, no-nonsense look and added grip. Harnessing explosive, off-the-line power, the rear tire on the V-Rod Muscle® motorcycle enhances the pure dragster look with the sticky, high-performance tread you need for staying glued to the pavement.

Drag-style Handle Bars with Instrument Cluster

Take to the streets in an aggressive power cruising position. With its aluminum shell cast over steel 1-inch tubing and internally-routed wiring, this angular drag-inspired bar comes on with a clean, mean and meaty attitude. The attached triple gauge cluster—bold, sleek and easy-to-read mph, rpm and fuel gauges—is our distinct take on custom performance.

Inverted Forks

Race-inspired, 43mm inverted forks help reduce unsprung weight and increase strength and rigidity of the assembly. They add to the wide look that flows all the way through to the tail of the V-Rod Muscle® motorcycle. Strong and sporty—the front end is a testament to the dominating look of a modern muscle car.

LED Stop-Turn-Tail Lights

Bright, highly visible LED lights in combined stop-tail-turn signals are integrated into the rear fender of the V-Rod Muscle® model. Hugging and accentuating the massive rear tire, the design of the combination lights match other angular shapes of the bodywork for an impressive, consistent look from wheel to wheel.

Mirror Turn Signals

Adding to the clean, streamlined design of the V-Rod Muscle® model are the front LED turn signals. Integrated into the stems of the mirrors, these bright functional indicators are smartly combined with the mirrors to help shore up the front end for a clean, custom look.

Air Box Cover

Matching the color and angular design of the V-Rod Muscle® model bodywork, the air box cover incorporates side scoops covered with woven wire mesh for a meaty, powerful race bike look. You can’t help but think about the Detroit muscle cars from back in the day.

Radiator Design

Every inch of a Harley-Davidson® motorcycle is created to sync up with the bike’s overall look and performance. The V-Rod Muscle® model is no exception. As the very first water-cooled Harley-Davidson, we turned to styling to make sure the radiator on the V-Rod models became part of the design instead of an interruption to the flow of the eye.

Side-Mounted License Plate

True to the clean, fast lines of the bike, the side-mounted license plate leaves the rear fender surface smooth and uncluttered. Minimal and modern—every inch of the V-Rod Muscle® motorcycle is styled to perfection to achieve an aggressive, custom look.

Dual Exhaust with Satin Chrome Finish

The V-Rod Muscle® motorcycle proves that a performance exhaust can still be a beautiful set of pipes. Satin chrome, dual side exhaust with fat turnout mufflers combines the style of a muscle car with top-of-the-line Harley-Davidson performance at every twist of the throttle. Jetting out past the rear axle, these dominating pipes add to the fierce, beefy look of the bike.

High Marks for Durability

The Harley-Davidson Revolution® engine is an extremely durable motorcycle engine. It survived the most brutal and aggressive durability test in the industry: the Dusseldorf Test. Simulating a grueling trip along Germany’s notorious Autobahn, the engine endured a wide range of performance tests. From idle states to city speeds, to wide-open throttle and mountain climbing torque, the Revolution engine surpassed the goal of 500 hours of non-stop performance.

Pure Harley-Davidson Styling

Feast your eyes on the Revolution® engine and there’s no mistaking its roots. This is authentic Harley-Davidson® style through and through with an attention to detail you won’t find from any other motorcycle company. The unique, platinum finished Revolution® engine features polished cylinder heads and rocker covers for a one-of-a-kind look, while the machined cooling fin tips give it a stripped down metal finish. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Revolution® engine makes an ironclad statement to holding on to what’s right and staying true to what satisfies the rider.

Revolution® Engine Heritage

From the Strip to the Street. Harley-Davidson has a passion for performance that is rooted in decades of racing and winning championships. So when The Motor Company set out to produce a high-powered, liquid-cooled engine, it began with the VR1000 superbike engine. Its performance is inspired by American-style, big, powerful torque coupled with high-end horsepower. The Revolution® engine is the heart of a machine that attracts a new breed of riders who are fascinated by the heritage and mystique of Harley-Davidson and the power of a high-end street performance motorcycle.

Revolution® Engine Innovation

Through a partnership with legendary automaker, Porsche, and their world-renowned team of engineers, Harley-Davidson created a revolutionary engine. The final result was something uniquely Harley-Davidson, the industry’s most perfect blend of torque and horsepower in the high revving V-Twin Revolution® engine. Fuel injection. Dual overhead cams. Liquid cooled. 122 horses. Massive, brute power behind pure Harley-Davidson innovation.

Custom Power and Performance

Tuned to produce 122 horsepower, the 1250cc Revolution® engine on the V-Rod Muscle® model is one of Harley-Davidson’s highest horsepower engine to this day. With dual overhead cams and four valves per cylinder, it provides 86 ft. lbs. of torque at 6500 rpm, while feeling refined and velvety smooth all the way up to the redline.

H-D® Smart Security System (Optional)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique.

Michelin® Scorcher™ Tires

The Michelin® Scorcher™ tires provide the superior performance, sensational grip, impressive durability and excellent handling expected on a race-bred bike. The exclusive deep-cut tread design improves grip and water evacuation capability. Grip performance and durability is also enhanced by the tire’s rubber compounds, which use the latest generation of Michelin synthetic polymers. Under the rear rubber, aramid belts are used to stabilize your ride, which helps inspire confidence in handling.

“Slipper” Clutch

Taken from the racetrack to the world of custom. The V-Rod Muscle® motorcycle features a “slipper,” (or “slip and assist”) clutch that provides smoother, high-power handling in turns or whenever you downshift. By reducing clutch friction, the slipper clutch helps keep your rear wheel at a controlled clip.

Brembo® Brakes with ABS

Increased confidence. Control. High-performance Brembo® dual-disk brakes offer consistent stopping power at every leg of your journey. Plus, the Anti-Lock Braking System (ABS) helps reduce the chance of wheel lock-up if you need to brake suddenly. And since we hid the speed sensor, the bike maintains its clean, slick look. Performance without sacrificing style. That’s what The Motor Company is all about.

Forward-Mounted Controls

With the custom forward-mounted controls on the V-Rod Muscle® model, you can kick back a little and stretch your legs for the ultimate power cruise through town or across the state line. It’s time to take in the open road the way you were meant to—on a two-wheeled machine that’s built to outmuscle the rest.





---



2014 Harley-Davidson VRSCF V-Rod Muscle – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: Vivid Black$15,849; Color Option$16,174; Two-Tone Option$16,384 USD

DIMENSIONS

Length – 94.9 in.

Seat Height, Laden 7 – 25.6 in.

Seat Height, Unladen 7 – 27.8 in.

Ground Clearance – 4.1 in.

Rake (steering head) (deg) – 34

Trail – 5.6 in.

Wheelbase – 66.9 in.

Tires, Front Specification – 120/70ZR-19 60W

Tires, Rear Specification – 240/40R-18 79V

Fuel Capacity – 5 gal.

Oil Capacity (w/filter) – 5 qt.

Weight, As Shipped – 640 lb.

Weight, In Running Order – 673 lb.

Luggage Capacity -Volume – N/A

ENGINE

Engine 1 – Liquid-cooled, Revolution®, 60° V-Twin

Bore – 4.13 in.

Stroke – 2.835 in.

Displacement – 76.1 cu in

Compression Ratio – 11.5:1

Fuel System 3 – Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN

Primary Drive – Gear, 64/117 ratio

Gear Ratios (overall) 1st – 11.752

Gear Ratios (overall) 2nd – 7.897

Gear Ratios (overall) 3rd – 6.322

Gear Ratios (overall) 4th – 5.459

Gear Ratios (overall) 5th – 4.899

Gear Ratios (overall) 6th – N/A

CHASSIS

Exhaust – Satin chrome, dual side exhaust system with turnouts

Wheels, Optional Style Type 9 – N/A

Wheels, Front Type 9 – Black, 5-Spoke Cast Aluminum

Wheels, Rear Type – Black, 5-Spoke Cast Aluminum

Brakes, Caliper Type – 4-piston front and rear

Parking Brake – N/A

PERFORMANCE

Engine Torque Testing Method – J1349

Engine Torque 2 – 87 ft-lb

Engine Torque (rpm) – 6,750

Lean Angle, Right (deg.) – 32

Lean Angle, Left (deg.) – 32

Fuel Economy: Combined City/Hwy 5 – 37 mpg



PRICING 6

Vivid Black$15,849

Color Option$16,174

Two-Tone Option$16,384

Custom Color OptionN/A

Hard Candy Color OptionN/A

Security Option$395

Wheel OptionN/A

ABS OptionSTD

Cruise Control OptionN/A

Freight$390

Security Package (Security and ABS)N/A



ELECTRIC

Lights (as per country regulation), Indicator Lamps 8High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

Gauges – Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer

1Recommended 91 octane or higher fuel (R+M)/2.

2Values shown are nominal. Performance may vary by country and region.

3Standard and optional fuel systems may vary by country.

4See motorcycle owner’s manual for complete details.

5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

6Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

7Measurement reflects 180 lb. (81.7 kg) operator weight.

8North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

9Standard and optional wheels may vary by country and region.





---



2014 Harley-Davidson VRSCF V-Rod Muscle – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $ 18,119; Color Option $ 18,489; Two-Tone Option $ 18,729 CDN

DIMENSIONS

Length – 2,410 mm

Seat Height, Laden 6 – 650 mm

Seat Height, Unladen 6 – 705 mm

Ground Clearance – 105 mm

Rake (steering head) (deg) – 34

Trail – 142 mm

Wheelbase – 1,700 mm

Tires, Front Specification – 120/70ZR-19 60W

Tires, Rear Specification – 240/40R-18 79V

Fuel Capacity – 18.9 l

Oil Capacity (w/filter) – 4.7 l

Weight, As Shipped – 292 kg

Weight, In Running Order – 307 kg

Luggage Capacity -Volume – N/A

ENGINE

Engine 1 – Liquid-cooled, Revolution®, 60° V-Twin

Bore – 105 mm

Stroke – 72 mm

Displacement – 1,247 cc

Compression Ratio – 11.5:1

Fuel System 3 – Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN

Primary Drive – Gear, 64/117 ratio

Gear Ratios (overall) 1st – 11.752

Gear Ratios (overall) 2nd – 7.897

Gear Ratios (overall) 3rd – 6.322

Gear Ratios (overall) 4th – 5.459

Gear Ratios (overall) 5th – 4.899

Gear Ratios (overall) 6th – N/A

CHASSIS

Exhaust – Satin chrome, dual side exhaust system with black end caps

Wheels, Optional Style Type 8 – N/A

Wheels, Front Type 8 – Black, 5-Spoke Cast Aluminum

Wheels, Rear Type – Black, 5-Spoke Cast Aluminum

Brakes, Caliper Type – 4-piston front and rear

Parking Brake – N/A

PERFORMANCE

Engine Torque Testing Method – J1349

Engine Torque 2 – 118 Nm

Engine Torque (rpm) – 6,750

Lean Angle, Right (deg.) – 32

Lean Angle, Left (deg.) – 32

Fuel Economy: Combined City/Hwy 5 – 6.3 l/100 km



PRICING

Vivid Black$ 18,119

Color Option$ 18,489

Two-Tone Option$ 18,729

Security Option$ 450

ABS OptionStandard



ELECTRIC

Lights (as per country regulation), Indicator Lamps 7High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

Gauges – Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer

1Recommended 91 octane or higher fuel (R+M)/2.

2Values shown are nominal. Performance may vary by country and region.

3Standard and optional fuel systems may vary by country.

4See motorcycle owner’s manual for complete details.

5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

6Measurement reflects 180 lb. (81.7 kg) operator weight.

7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

8Standard and optional wheels may vary by country and region.



Specifications, features and prices to change by manufacturer without notice. Information from Total Motorcycle.com; All information correct as of posted date.
