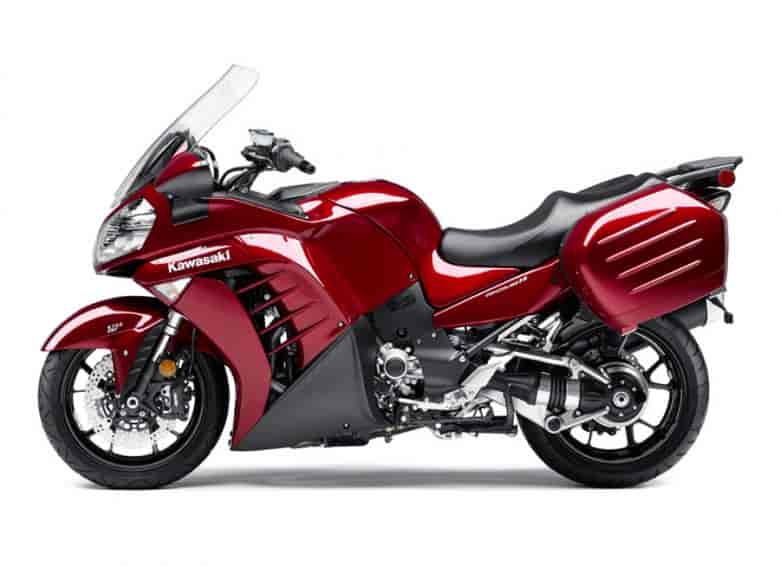

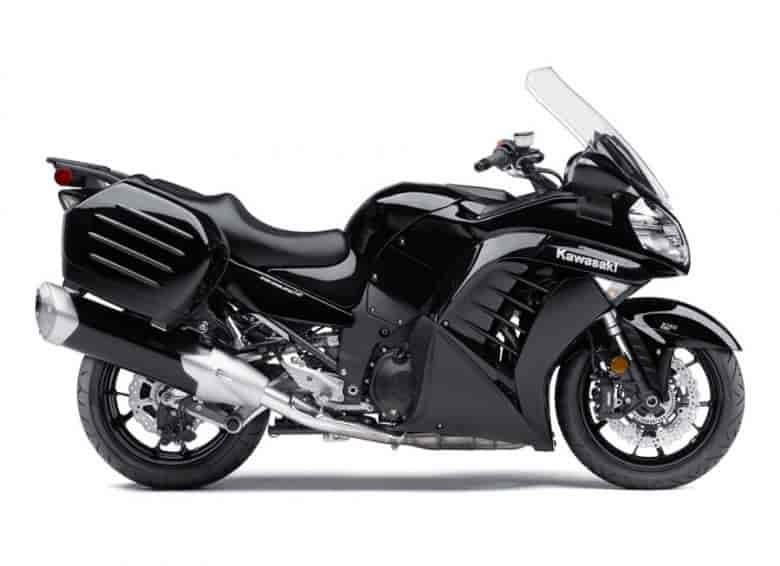

2014 Kawasaki Concours 14 ABS

2014 Kawasaki Concours 14 ABS

2014 Kawasaki Concours 14 ABS

2014 Kawasaki Concours 14 ABS Review

2014 Kawasaki Concours 14 ABS

Delivering both awesome supersport performance and comfortable long distance touring potential, the Concours 14 ABS stands apart from its rivals. Including Kawasaki’s flagship and rider support technology, the Concourse 14 ABS offers enhanced comfort and continent-crossing performance…





2014 Kawasaki Concours 14 ABS Totalmotorcycle.com Key Features





2014 Kawasaki Concours 14 ABS Totalmotorcycle.com Features and Benefits





---



2014 Kawasaki Concours 14 ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $NA USD

Model Not Available.





---



2014 Kawasaki Concours 14 ABS – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing in CDN

Engine

Type 4-stroke, In-Line Four with WT (Variable Valve Timing)
Displacement 1,352cc
Bore and stroke 84.0 x 61.0 mm
Compression ratio 10.7:1
Valve system DOHC, 16 valves (4 valves per cylinder)
Fuel system Digital Fuel Injection with four 40 mm Keihin with oval sub-throttles
Ignition TCBI with digital advance
Cooling Liquid
Lubrication Forced lubrication (wet sump with cooler)

Brakes

Front: type Dual semi-floating 310 mm petal discs
Front: calipers 4-piston calipers
Rear: type Single 270 mm petal disc
Rear: calipers Opposed 2-piston calipers

Dimensions

Overall length 2,230 mm (87.8 in.)
Overall width 790 mm (31.1 in.) – (Without saddlebags)
Overall height 1,345 mm (52.95 in.) / 1,465 mm (57.68 in.) – (Overall height calculated with windshield in high position)
Wheelbase 1,520 mm (59.8 in.)
Ground clearance 125 mm (4.92 in.)
Seat height 815 mm (32.1 in.)
Curb mass** 304 kg (670 lbs.) – (Without saddlebags)
Fuel capacity 22 litres (4.8 gal.)

Drivetrain

Transmission 6-speed, with positive neutral finder
Final drive Tetra-Lever shaft drive
Primary reduction ratio 1.556 (84/54)
Gear ratio: 1st 3.333 (50/15)
Gear ratio: 2nd 2.412 (41/17)
Gear ratio: 3rd 1.900 (38/20)
Gear ratio: 4th 1.545 (34/22)
Gear ratio: 5th 1.292 (31/24)
Gear ratio: 6th 1.074 (29/27)
Final reduction ratio 2.036 (14/22 x 32/10)
Clutch Wet multi-disc, manual

Frame

Type Monocoque, aluminium
Wheel travel: front 113 mm (4.4 in.)
Wheel travel: rear 136 mm (5.4 in.)
Tire: front 120/70-ZR17
Tire: rear 190/50-ZR17
Caster (rake) 26.1º
Trail 112 mm (4.4 in.)
Steering angle (left/right) 31º / 31º

Performance

Maximum Power‡ 115 kW {156 PS} @ 8,800 rpm
Maximum Power with Ram Air‡ 118.4 kW {161 PS} @ 8,800 rpm
Maximum Torque‡ 139 N.m {14.2 kgf.m} @ 6,200 rpm

Suspension

Suspension, front 43 mm inverted, telescopic fork with adjustable rebound damping and spring preload
Suspension, rear Tetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster

* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.
