2016 Can-Am Spyder F3S Review

2016 Can-Am Spyder F3S on www.Totalmotorcycle.com

A THRILLING RIDE WITH A HIGHER DOSE OF STYLE

Unique “S” signature trim, machined wheels, premium fenders and suede seat take the muscular design to another level.

While you’re enjoying the thrilling and confident ride of the Spyder F3-S, onlookers will be admiring its special machined deep black high gloss front wheels, suede seat and added fender lighting.



2016 Can-Am Spyder F3S www.Totalmotorcycle.com Key Features

SPYDER F3 STANDARD FEATURES

Rotax 1330 ACE in-line 3 cylinders, high torque engine
Vehicle Stability System with ABS, traction control and stability control
High-performance Brembo† braking system
Gas-charged, aluminum, FOX† PODIUM† front shocks
ECO™ mode smart assist
UFit custom fitting system (rider footpegs and handlebars)
6-spoke, Metallic Silver front wheels
Anti-theft system
Dynamic Power Steering

TRANSMISSIONS AND COLOR AVAILABLE:
6-speed manual with reverse (SM6)
6-speed semi-automatic with reverse (SE6)

STEEL BLACK METALLIC

SPYDER F3-S

ALL SPYDER F3 FEATURES PLUS:
Cruise control
6-spoke, machined Deep Black high gloss front wheels
Refined front fenders with integrated LED lights
Black embossed suede seat with Red stitching and “S” tab
Deep Black high gloss rear wheel
Distinctive “S” trim signature

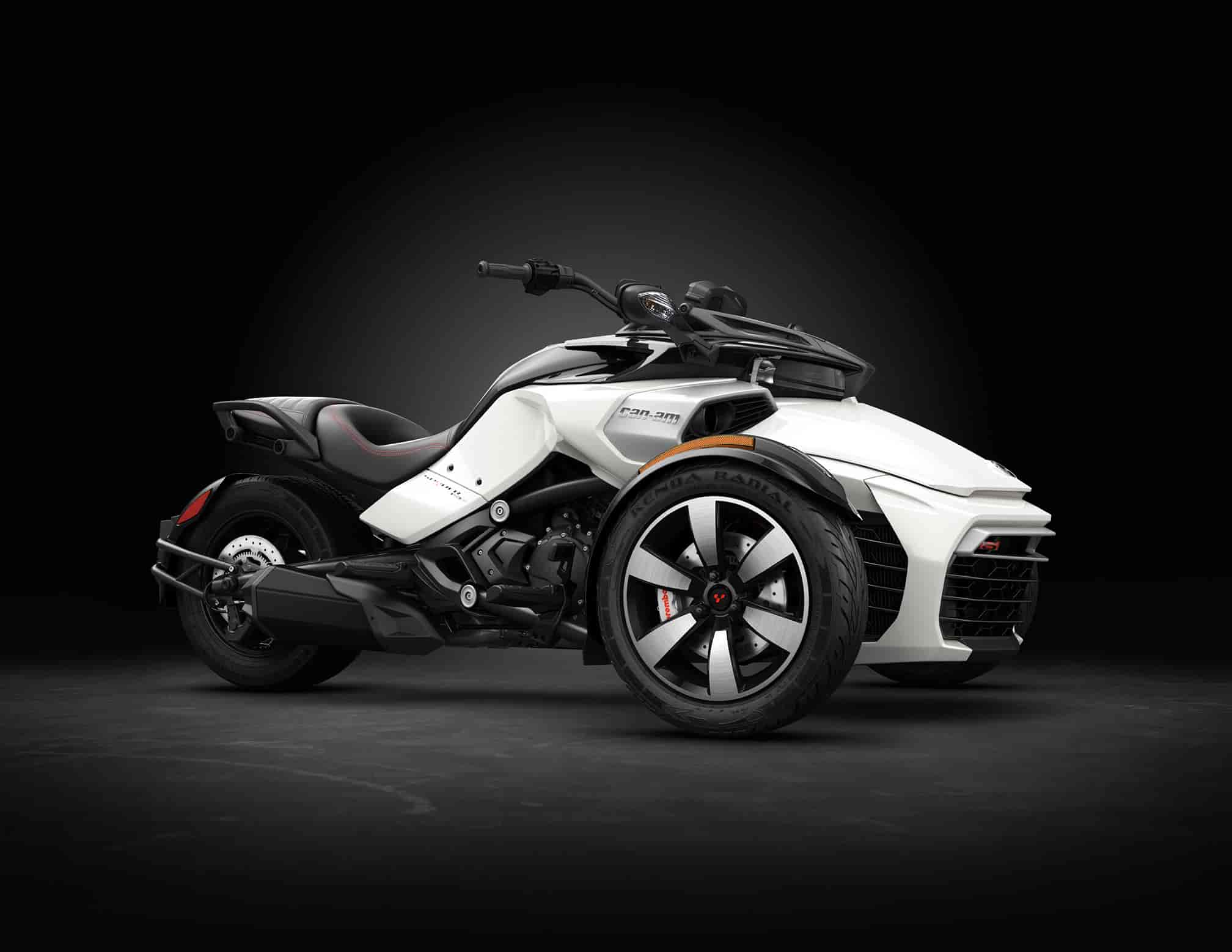

PEARL WHITE

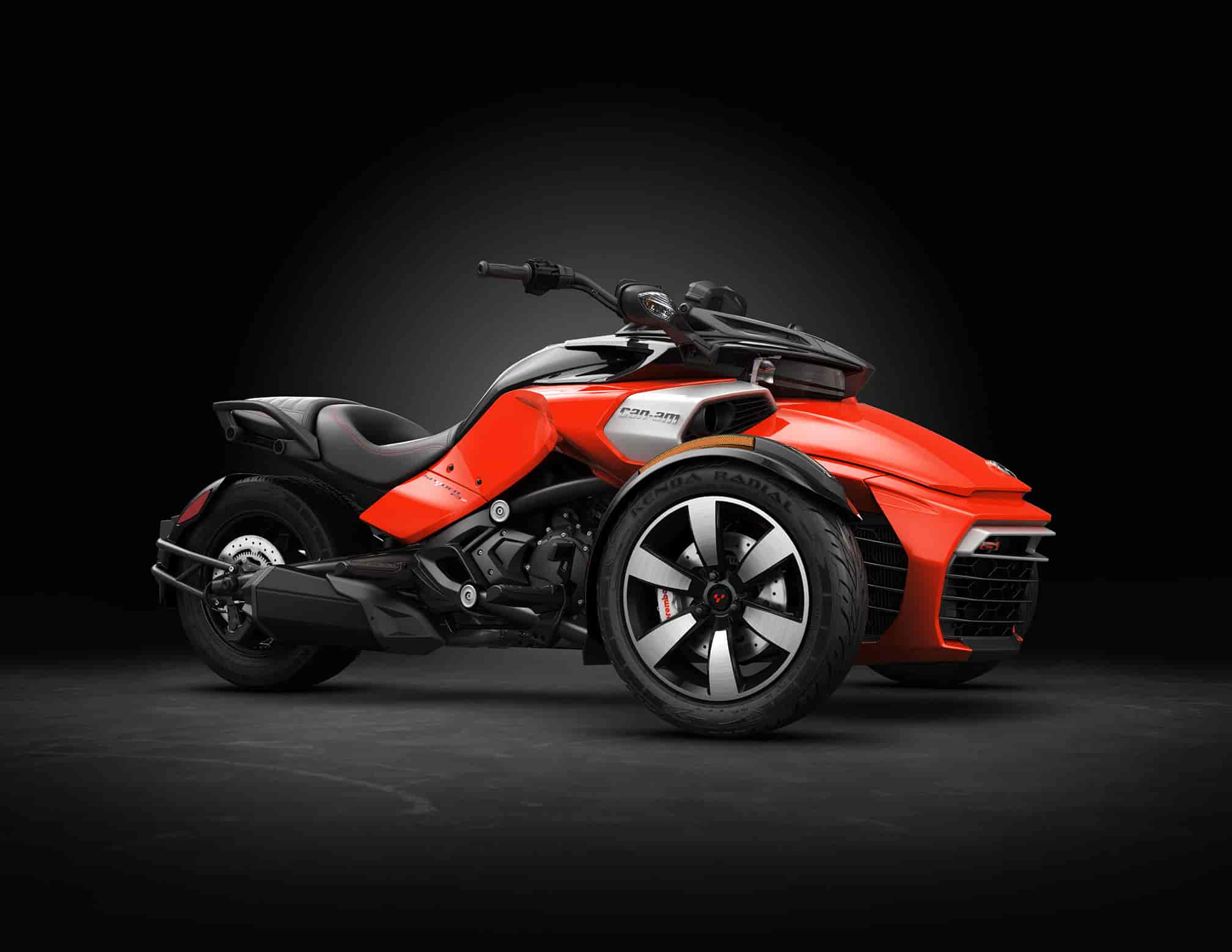

CAN-AM RED
SOLID GLOSS

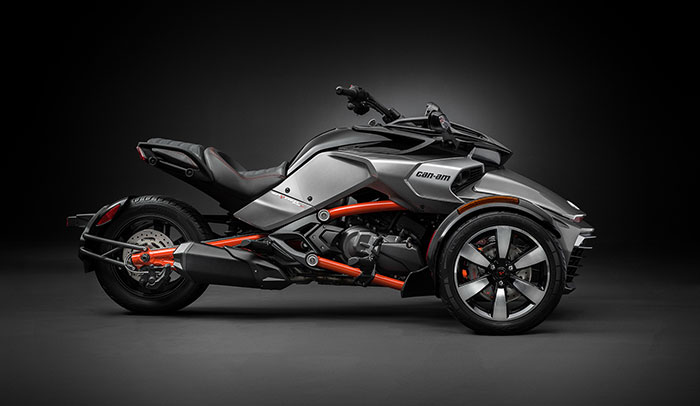

PURE MAGNESIUM METALLIC WITH CAN-AM RED FRAME

SPYDER F3-S SPECIAL SERIES

ALL SPYDER F3-S FEATURES PLUS:
6-spoke, Black Chrome front wheels
Black perforated seat with Black stitching
Exclusive Triple Black coloration and graphics
Unique Special Series signature trims
*Shown with optional Urban Rack

TRANSMISSIONS AND COLOR AVAILABLE:
ONLY 6-speed semi-automatic with reverse (SE6)

MONOLITH BLACK SATIN



2016 Can-Am Spyder F3S www.Totalmotorcycle.com Features and Benefits

ROTAX 1330 ACE ENGINE



POWERFUL AND EFFICIENT



The Rotax 1330 ACE engine is an in-line triple-cylinder configuration for maximum torque in every gear, to deliver excellent roll-on acceleration and throttle response. It’s also efficient, with the ability to ride up to 252 miles (406 km) on a single tank*. Plus, it’s extremely low maintenance.

*Tested at constant speed. Fuel mileage may vary depending personal riding habits, weather conditions, trip length, vehicle condition, vehicle configuration and other conditions. Break-in mileage may vary.





6-SPEED TRANSMISSION



SMOOTH OPERATOR



This 6-speed transmission offers the perfect balance of comfort and fuel economy thanks to a sophisticated hydraulic clutch system. Cruise comfortably at low RPMs with your choice of manual or semi-automatic transmission. Both include reverse. The semi-automatic version uses thumb and index finger paddle shifting.





VEHICLE STABILITY SYSTEM



OPTIMUM CONTROL



Developed in partnership with BOSCH and inspired by automotive technologies, the Vehicle Stability System integrates anti-lock brakes, traction control, and stability control for confidence taking on the open road.





DYNAMIC POWER STEERING



EASY TO
MANEUVER



The electronically-controlled power steering system provides a varying amount of assistance depending on the speed of the vehicle – so it’s always easy to maneuver and steer.





FOX PODIUM SHOCKS



PERFORMANCE, COMFORT AND CONTROL



Sport-tuned gas-charged front shocks feature anodized-aluminum bodies and threaded preload adjustments.





BREMBO BRAKING SYSTEM



SERIOUS STOPPING POWER



Higher-performance brakes specifically designed for Can-Am Spyder from the world leader in braking technology ensure excellent stopping power and consistent performance every time.





CRUISE CONTROL



RELAX AND
ENJOY



Automatically set a comfortable pace so you can just sit back and enjoy the scenery.





CARGO SPACE



BRING IT
ALONG



Keep your gear safe and protected. The trademark lockable front cargo space features 6.5 gallons (24.4 L) gallons of watertight space.




UFIT SYSTEM



TAILOR YOUR BIKE



The exclusive Spyder F3 UFit system lets you
easily position the footpegs according to your
height and choose the handlebar based on
your preferred riding style — ensuring a truly
customized riding experience.
*Custom handlebar sold as an accessory.





ECO MODE SMART ASSIST



SHIFT TO SAVE



Optimize your shifting behaviour with the ECO Mode Smart Assist. A gauge light
indicates the best time to shift to reduce your fuel consumption on long trips.





PREMIUM WHEELS



TWO-TONE PERFECTION



Designed specifically for the Spyder F3, these wheels evoke boldness and confidence. They’re machined, deep black high gloss, for a super-premium look. You also get the front fenders with integrated LED light pipes for greater visibility and a striking look.





ANTI-THEFT SYSTEM



STANDARD THEFT PROTECTION



The Digitally Encoded Security System (D.E.S.S.) helps protect the Can-Am Spyder from theft or other unauthorized use. The vehicle will not start unless the rider uses the correctly coded electronic key.





SEATING



CLASSIC STYLE WITH MODERN COMFORT



All-black saddle features embossed quilting and red stitching for a sleek, modern look. Delivers-all-day comfort and excellent lumbar support.




2016 Can-Am Spyder F3S – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $21149 USD

/ ENGINE /
Type Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke 3.31 x 3.14 in. (84 x 80 mm)
Power 115 hp (86 kW) @ 7250 RPM
Torque 96 lb-ft. (130 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension Double A-arms with anti-roll bar
Front shocks type / Travel Gas-charged FOX† PODIUM† shocks / 5.1 in. (129 mm)
Rear suspension Swing-arm with basic monoshock
Rear shock type / Travel SACHS† shock absorber / 5.2 in. (132 mm)
Electronic brake Foot-operated, hydraulic 3-wheel brake
distribution system
Front brakes 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake ……………270 mm disc, 1-piston floating caliper
with integrated parking brake
Parking brake Electrically actuated
Front tires MC165 / 55R15 55H
Rear tire MC225 / 50R15 76H
Aluminum front rims 6-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim Metallic Silver, 15 x 7 in. (381 mm x 178 mm)
/ FEATURES /
Instrumentation ………………Multi-function LCD segment / analog gauge, tachometer,
odometer, trip & hour meters, gear position, temperature,
engine lights, electronic fuel gauge, clock
Running lights 2 halogen headlamps (55 / 60-W)
Trims and parts Metallic Silver: Rear sprocket wheel, front and rear
shocks springs, exhaust tip and heat shield
/ SAFETY & SECURITY /
SCS Stability Control System
TCS Traction Control System
ABS Anti-lock Braking System
DPS™ Dynamic Power Steering
Anti-theft system Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H 104 x 58.9 x 43.3 in. .(2,642 x 1,497 x 1,099 mm)
Wheelbase 67.3 in. (1,709 mm)
Seat height 26.6 in. (675 mm)
Ground clearance 4.5 in. (115 mm)
Dry weight 850 lb (386 kg)
Storage capacity 6.5 gal (24.4 L)
Maximum vehicle load 439 lb (199kg)
Fuel capacity 7.1 gal (27 L)
Reserve 1.2 gal (4.5 L) approx.
Fuel type Premium unleaded
/ WARRANTY /
Factory 2-year BRP Limited Warranty
with 2-year roadside assistance
Extended B.E.S.T. available from
12 to 36 months









2016 Can-Am Spyder F3S – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $23799 CDN

/ ENGINE /
Type Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke 3.31 x 3.14 in. (84 x 80 mm)
Power 115 hp (86 kW) @ 7250 RPM
Torque 96 lb-ft. (130 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension Double A-arms with anti-roll bar
Front shocks type / Travel Gas-charged FOX† PODIUM† shocks / 5.1 in. (129 mm)
Rear suspension Swing-arm with basic monoshock
Rear shock type / Travel SACHS† shock absorber / 5.2 in. (132 mm)
Electronic brake Foot-operated, hydraulic 3-wheel brake
distribution system
Front brakes 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake ……………270 mm disc, 1-piston floating caliper
with integrated parking brake
Parking brake Electrically actuated
Front tires MC165 / 55R15 55H
Rear tire MC225 / 50R15 76H
Aluminum front rims 6-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim Metallic Silver, 15 x 7 in. (381 mm x 178 mm)
/ FEATURES /
Instrumentation ………………Multi-function LCD segment / analog gauge, tachometer,
odometer, trip & hour meters, gear position, temperature,
engine lights, electronic fuel gauge, clock
Running lights 2 halogen headlamps (55 / 60-W)
Trims and parts Metallic Silver: Rear sprocket wheel, front and rear
shocks springs, exhaust tip and heat shield
/ SAFETY & SECURITY /
SCS Stability Control System
TCS Traction Control System
ABS Anti-lock Braking System
DPS™ Dynamic Power Steering
Anti-theft system Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H 104 x 58.9 x 43.3 in. .(2,642 x 1,497 x 1,099 mm)
Wheelbase 67.3 in. (1,709 mm)
Seat height 26.6 in. (675 mm)
Ground clearance 4.5 in. (115 mm)
Dry weight 850 lb (386 kg)
Storage capacity 6.5 gal (24.4 L)
Maximum vehicle load 439 lb (199kg)
Fuel capacity 7.1 gal (27 L)
Reserve 1.2 gal (4.5 L) approx.
Fuel type Premium unleaded
/ WARRANTY /
Factory 2-year BRP Limited Warranty
with 2-year roadside assistance
Extended B.E.S.T. available from
12 to 36 months








2016 Can-Am Spyder F3S – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: Starting from £17199 GBP (On The Road inc 20% Vat)

/ Engine /
Type . Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke . 3.31 x 3.14 in. (84 x 80 mm)
Power 115 hp (86 kW) @ 7250 RPM
Torque 96 lb-ft. (130 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension Double A-arms with anti-roll bar
Front shocks type / Travel Gas-charged FOX† PODIUM† shocks / 5.1 in. (129 mm)
Rear suspension . Swing-arm with basic monoshock
Rear shock type / Travel SACHS† shock absorber / 5.2 in. (132 mm)
Electronic brake Foot-operated, hydraulic 3-wheel brake distribution system
Front brakes . 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake . 270 mm disc, 1-piston floating caliper
with integrated parking brake
Parking brake . Electrically actuated
Front tyres MC165 / 55R15 55H
Rear tyre MC225 / 50R15 76H
Aluminium front rims 6-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminium rear rim Metallic Silver, 15 x 7 in. (381 mm x 178 mm)
/ FEATURES /
Instrumentation ………………Multi-function LCD segment / analogue gauge, tachometer,
odometer, trip & hour meters, gear position, temperature,
engine lights, electronic fuel gauge, clock
Running lights 2 halogen headlamps (55 / 60-W)
Trims and parts . Metallic Silver: Rear sprocket wheel, front and rear
shocks springs, exhaust tip and heat shield
/ SAFETY & SECURITY /
SCS Stability Control System
TCS Traction Control System
ABS Anti-lock Braking System
DPS™ Dynamic Power Steering
Anti-theft system . Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H 104 x 58.9 x 43.3 in.
(2,642 x 1,497 x 1,099 mm)
Wheelbase 67.3 in. (1,709 mm)
Seat height 26.6 in. (675 mm)
Ground clearance 4.5 in. (115 mm)
Dry weight 850 lb (386 kg)
Storage capacity 6.5 US gal (24.4 L)
Maximum vehicle load 439 lb (199 kg)
Fuel capacity 7.1 US gal (27 L)
Reserve 1.2 US gal (4.5 L) approx.
Fuel type Premium unleaded
/ Warra nty /
Factory . 2-year BRP Limited Warranty
with 2-year roadside assistance

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
