2016 Harley-Davidson Softail Fat Boy Review

2016 Harley-Davidson Softail Fat Boy on www.Totalmotorcycle.com

Sometimes something comes along that changes everything…

When Willie G. Davidson rode the Fat Boy® model into Bike Week the first time, let’s just say it stopped traffic. No one had ever seen a factory custom motorcycle with this much visual impact before. The look was pure Harley, yet totally new. In the years since, the Fat Boy hasn’t let up. From the chrome of the solid disc wheels, to the muscular lines of the new High Output Twin Cam™ 103B™ engine to the curve of its distinctive rear fender, this machine is built to make an impact. Ride one and you’ll understand.

The original fat custom icon matches unmistakable style with a High Output Twin Cam 103B™ engine.

The classic look of a hardtail and the comfort, handing and rideability of a modern motorcycle combine seamlessly in Harley-Davidson Softail models to deliver a smooth ride. The entire Softail® family is reinvigorated with exciting performance upgrades and updates for 2016, including the High Output Twin Cam 103B engine, electronic throttle, and standard or available electronic cruise control. Limited-edition Fat Boy® S and Softail Fat Boy® S models combine rich finishes with the Screamin’ Eagle® Twin Cam 110™ engine to deliver a complete package of big power and cutting-edge style to riders who want to stand out.



2016 Harley-Davidson Softail Fat Boy www.Totalmotorcycle.com Key Features

The original fat custom and the very definition of a heavyweight bike, the Fat Boy® model is big, beefy, and rolls with a stature that’s second to none. This original turns heads wherever it rolls with its fat forks, fat tire, a fat fender, and fat bars. The legendary bike keeps the hardtail chopper spirit alive and stronger than ever.

NEW IN 2016
High Output Twin Cam 103B™ engine
Newly designed air cleaner cover with High Output 103 badging
Electronic throttle control system for enabled cruise control
Paint color options including Custom colors






2016 Harley-Davidson Softail Fat Boy www.Totalmotorcycle.com Features and Benefits

Authentic Styling

Get an eyeful of a Softail motorcycle and you see more than some weepy-eyed exercise in nostalgia. You’re looking at the kind of style that has the power to defy time. Honest. Uncluttered. Unaffected by the fad of the moment. There’s a good reason for this. We’ve used our long decades on the road, riding, wrenching, talking to other custom bike fanatics, to discover what works. Then we stick with it, and use it to push the boundaries of motorcycle design ever further. Take a look at the horseshoe oil tank adorning our Softail models. It’s the same one you’d see on a restored dresser from the ‘50s, or a radical Panhead chopper from the ‘70s. And you’ll find it right now on future Harley-Davidson models that still on the drawing board. Other companies may be content to imitate bits and pieces from our long history. On a Softail motorcycle every part down to the axle nut cover comes from an authentic tradition. With a genuine reason for looking the way it looks.


Iconic Engine

The air-cooled 45° V-Twin engine at the heart of every Softail model is a prime example of what makes a Harley-Davidson motorcycle more satisfying than anything else. Its clean, uncluttered shape fits perfectly in the downtubes of the frame. Twist the throttle and the surge of torque hits you exactly where it counts. The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it’s been put to particular good use to power the Softail family. We counterbalance the engine, which means we can bolt it directly to the frame. It keeps the styling tight at the center of the bike. It lets the rider feel the pulse of the V-Twin. Yet there aren’t any vibrations rattling the fillings out of your teeth. What’s good gets even better for 2016. The Softail family gets a power upgrade to the new High Output Twin Cam 103B™ engine. More power is always a Harley-Davidson tradition.


Technology

The beauty of the technology on a Softail motorcycle is that it never looks technological. That didn’t happen by accident and it doesn’t come easy, particularly when you consider that the inspiration for the family is the clean, wide-open lines of a vintage hardtail. Clutter it up with too many high tech doo-dads and you have a different machine entirely. Take a look at the anti-lock brakes now standard on many Softail models and available across the line. ABS gives you the control you want on a modern motorcycle. But our teams of industrial designers and engineers weren’t finished until the whole system had a streamlined design. The same goes for the clean look to the handlebars, thanks to a new electronic throttle system on every Softail model. With each passing year, adding a little technology to the ride looks better and better.


Handling

If you’ve never experienced a Harley-Davidson Softail motorcycle, it’s time to find out what you’ve been missing. The venerable Softail frame has logged untold millions of miles, and we’ve put every one of them to good use. The result: one of the most fun rides in all of motorcycling. We’ve spent the years making the frame stiffer, the geometry more balanced and the braking more precise. The dazzling wheels are wrapped in premium Dunlop rubber. The low seats give you a confident feeling of being a part of the motorcycle. Get out on a rolling stretch of backcountry highway and it all comes together. The crisp and responsive ride. The killer looks. As long as we build motorcycles like this having a good time will never go out of style.


Comfort

The authentic look of a Softail motorcycle comes from the days before anyone knew much about building a suspension. The rigid hardtail frames of yesteryear had a pure, uncluttered look that riders still love. But the bone-rattling ride meant your grandpa needed to strap on a kidney belt to keep his internals intact. The Softail family uses modern technology to consign the kidney belt to the museum. We’ve kept all the modern comforts where they belong—below the surface of a rad bike loaded with authentic style. You get the classic lines of a vintage “hardtail” frame with the horizontal rear shocks hidden in the guts. It’s a signature rigid look, and you’ll only find it on a Softail model.




Fat Features

Big in all the right places. The 17-inch wheels of silver, bullet-hole, disc-cast aluminum definitely make an impression—especially with rubber 140mm wide in front and a beefy 200mm in back. And check out the chopsticks up front—fat front fork behind the huge, gorgeous headlamp. The handlebars are wide, giant stainless steel with bare-knuckle chrome risers. Plus, the fuel tank medallion boasts a generous slab of mirror chrome finish—noticeable on any stretch of road. It’s a lot of fat in one tight bike. Definitely meaty. Wide. Big-boned. A bruiser. Call it what you want. Just admit that you want it.



Mirror Chrome Wheels


These Mirror Chrome Bullet Hole Disc wheels speak for themselves. So this is the iconic look for the Fat Boy® model. You can roll with gleaming eye-appeal that’s thick with legendary Fat attitude, right off the lot.



Fat Custom Style

Recalling the “hardtail” choppers of the ’60s and ’70s, the Fat Boy® motorcycle keeps that heritage alive more than forty years later. This is the original “fat custom” bike—laid-back and luxurious with an unmistakable profile on the road. But the nostalgic style isn’t just about the confident stance, chrome and old-school detail. It’s how you look riding it. It’s how it feels. It’s the classic, relaxed riding position. You’re not just cruising. You’re in charge—kicked back on a throne of machined metal surveying your domain.

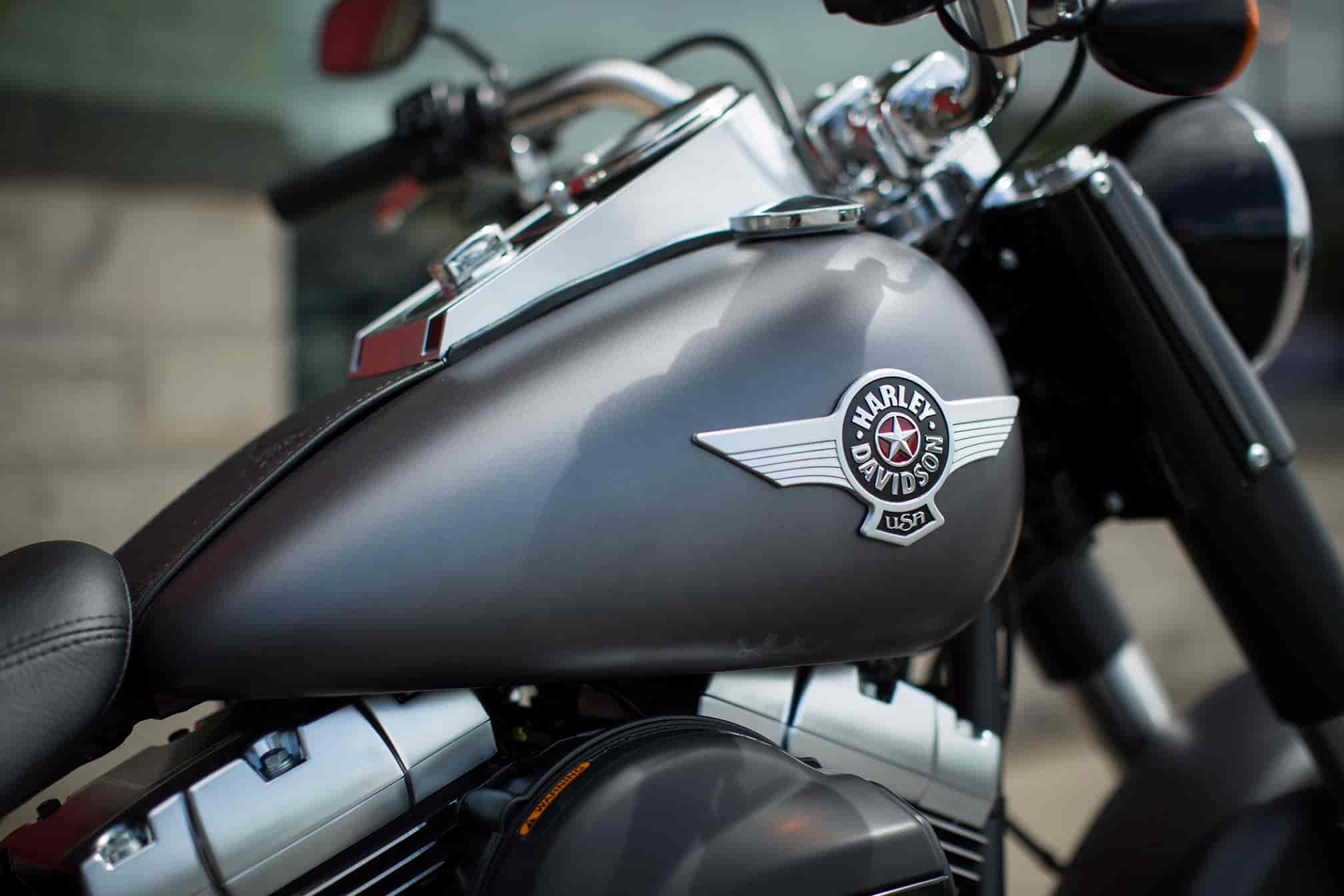

Fat Custom Tank Details

This tank makes a statement with its leather tank strap, chrome side badges, and chrome speedometer and ignition switch console. The Fat Boy® model speedometer face boasts a big, bold display for the odometer and an ancillary display for gear and rpm, so all the info you need on the fly is yours at a glance.



Hidden Rear Shocks

If you want a comfortable bike but love that rigid-suspension look, you’ve come to the right bike. We’ve kept all the modern comforts where they belong—below the surface of a rad, vintage-looking bike. You get the classic lines of a vintage “hardtail” frame with the horizontal rear shocks hidden in the guts. It’s a signature rigid look, and you’ll only find it on a Softail® model.




Pure Harley-Davidson Styling

Feast your eyes on the High Output Twin Cam 103B™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by machined cooling fin tips and chrome rocker covers. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the High Output Twin Cam 103B™ engine makes an ironclad statement about holding on to what’s right and staying true to what satisfies.



Six-Speed Cruise Drive® Transmission

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.



New High Output Twin Cam 103B™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the High Output Twin Cam 103B™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® and Twin Cam 96® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909 and the proud heritage that comes from a century’s worth of commitment to life on two wheels.



New High Output Twin Cam 103B™ Engine Innovation

Fire up the High Output Twin Cam 103B™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm that couldn’t feel better.



New High Output Twin Cam 103B™ Engine Power

Asking riders if they’d like more power is like asking them “Would you like more beer in the pitcher?” when they’ve reached the end of a long day tearing up the roads. Everybody wants it, and the High Output Twin Cam 103B™ engine is 103 cubic inches of Harley-Davidson V-Twin you can rely on to deliver it. The airbox increases intake airflow and the cam optimizes phase and duration. The result: better low-end torque and faster 60 to 80 mph 5th gear roll-on to get you around that 18-wheeler. In other words, it gets you motivated in a hurry. In the tradition of the legendary Harley iron that came before it, the High Output Twin Cam 103B™ engine is once again raising the bar for the feeling an engine delivers to the rider. There’s a reason we’re called the Harley-Davidson Motor Company. Once you send some fuel to this engine, you’ll have no doubt whose it is.




H-D® Smart Security System (Optional)

The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle’s electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to detail and security that make Harley-Davidson® motorcycles unique.



Anti-Lock Brakes


You may be cruising with swagger, but you know safety counts.




Fat Dunlop® Tires

Fatter is better. Rubber 140mm wide up front mitigates feedback from the street for a smoother ride. And the beefy 200mm rear tire provides a confident feeling of sure contact with the road and excellent traction under braking. And since they’re from Dunlop®, you know you’re wrapping your premium rollers in quality rubber.



Front Brake System

The front brake system on the Softail® models this year delivers a 40 percent reduction in the amount of lever force required at peak braking. The handlebar master and front cylinders have been restyled. There’s a new 4-piston fixed caliper with 32 and 34 mm pistons, premium caliper piston coating to minimize initial displacement and a larger 300 mm rotor. It all adds up to more stopping power with less effort.



New Ergonomically Designed Hand Controls

When you’ve put as many miles as we have in the saddle, you get a strong feel for what’s right and wrong on a motorcycle. Even the smallest annoyances start to add up with each passing mile, and that’s especially true of the way the handlebar feels in your grip. So we worked over the hand controls with as much passion as we worked over the engine powering the Fat Boy® motorcycle. The shapes feel good, and are angled to fall right under your thumbs. It’s just one more way each new mile feels even better than the ones that came before.



New Electronic Throttle Control

The pure heavyweight style of the Fat Boy® motorcycle gets even cleaner with the addition of electronic throttle control. Take a look. There’s no cable cluttering up the handlebars. Plus, the electronic set-up makes it a simple no-fuss-no-muss procedure to install Harley-Davidson® cruise control.




Low Profile Chrome Handlebars

These beefy 1-1/4-inch bars not only add to the overall Fat styling, with internally-routed wiring for a bold clean look, their ergonomic design and reduced-reach positioning provide comfort and confidence as you guide your ride whether you’re heading across town or onward to the horizon.



Convertible Two-Piece Seat

Cruise the boulevard in style with the classic Softail® two-piece seat. It’s comfort for you or two. The classic, old-school styling includes a chrome bullet-studded seat valance, and the seat pillion is removeable. Just ditch it for stripped-back, solo profiling. Or leave it on and bring your better half along for the ride.



Narrow Seat

To go along with the low seat height, we’ve added some ergos to make sure every inch of low pays off in pleasurable riding. We’ve slimmed up the seat itself. With the seat shape, lowdown frame and rigid powertrain, you can be sure you’ll feel a solid, comfortable connection with the bike and road.



Full-Length Rider Footboards

Your boots were made for riding, in any way you see fit. Our full-length footboards boast a tried and true design that’s stood the test of time. Plenty of foot positions for your taste and comfort. Rubber vibration isolation for a comfortable ride. And heel-toe shifting for confident shifting every time. It takes a few rides, but once you’ve gotten used to the smooth heel-toe rhythm, you’ll never give it up. The toes of your boots won’t take the same beating, either.












2016 Harley-Davidson Softail Fat Boy – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: Starting from $16699 USD

PRICING 6
Vivid Black $16,699
Color Option $17,099
Two-Tone Option $17,449
Custom Color Option $17,649
Security Option $395
ABS Option Standard
California Emissions $200
Freight $390
DIMENSIONS
Length 93.9 in.
Seat Height, Laden 7 25 in.
Seat Height, Unladen 7 26.4 in.
Ground Clearance 5.1 in.
Rake (steering head) (deg) 31
Trail 5.8 in.
Wheelbase 64.4 in.
Tires, Front Specification 140/75R17 67V
Tires, Rear Specification 200/55R17 78V
Fuel Capacity 5 gal.
Oil Capacity (w/filter) 3.5 qt.
Weight, As Shipped 700 lb.
Weight, In Running Order 730 lb.
ENGINE
Engine 1 Air-Cooled, High Output Twin Cam 103B™
Bore 3.87 in.
Stroke 4.374 in.
Displacement 103.1 cu in
Compression Ratio 9.6:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Chrome, over/under shotgun exhaust with dual mufflers
Wheels, Front Type 9 Mirror Chrome Aluminum Bullet Hole Disc
Wheels, Rear Type Mirror Chrome Aluminum Bullet Hole Disc
Brakes, Caliper Type 4-piston front and 2-piston rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 100.3 ft-lb
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 26.2
Lean Angle, Left (deg.) 27
Fuel Economy: Combined City/Hwy 5 42 mpg
ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings, low battery, ABS
Gauges Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region









2016 Harley-Davidson Softail Fat Boy – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $19499 CDN

PRICING
Vivid Black $ 19,499
Color Option $ 19,949
Two-Tone Option $ 20,349
Custom Color Option $ 20,599
Security Option $ 455
ABS Option Standard
DIMENSIONS
Length 2,385 mm
Seat Height, Laden 6 635 mm
Seat Height, Unladen 6 670 mm
Ground Clearance 130 mm
Rake (steering head) (deg) 31
Trail 147 mm
Wheelbase 1,635 mm
Tires, Front Specification 140/75R17 67V
Tires, Rear Specification 200/55R17 78V
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 3.3 l
Weight, As Shipped 318 kg
Weight, In Running Order 331 kg
ENGINE
Engine 1 Air-Cooled, High Output Twin Cam 103B™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 9.6:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Chrome, over/under shotgun exhaust with dual mufflers
Wheels, Front Type Silver, Bullet Hole Disc Cast Aluminum
Wheels, Rear Type 8 Silver, Bullet Hole Disc Cast Aluminum
Brakes, Caliper Type 4-piston front and 2-piston rear
Wheels, Optional Style Type Mirror Polished Chrome, Bullet Hole Disc Cast Aluminum (front and rear)
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 132 Nm
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 26.2
Lean Angle, Left (deg.) 27
Fuel Economy: Combined City/Hwy 5 5.6 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Gauges Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Measurement reflects 180 lb. (81.7 kg) operator weight.
7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8. Standard and optional wheels may vary by country and region.







2016 Harley-Davidson Softail Fat Boy – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: Starting from £16275 GBP (On The Road inc 20% Vat)

PRICING 5
Vivid Black £ 16,275
Color Option £ 16,575
Two-Tone Option £ 16,925
Custom Color Option £ 17,275
DIMENSIONS
Length 2,396 mm
Seat Height, Unladen 690 mm
Ground Clearance 130 mm
Rake (steering head) (deg) 31
Trail 147 mm
Wheelbase 1,635 mm
Tyres, Front Specification 140/75R17 67V
Tyres, Rear Specification 200/55R17 78V
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 3.3 l
Weight, As Shipped 320 kg
Weight, In Running Order 331 kg
ENGINE
Engine Air-Cooled, High Output Twin Cam 103B™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 9.6:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Chrome, over/under shotgun exhaust with dual mufflers
Wheels, Front Type Mirror Chrome Aluminum Bullet Hole Disc
Wheels, Rear Type Mirror Chrome Aluminum Bullet Hole Disc
Brakes, Caliper Type 4-piston front and 2-piston rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 132 Nm
Engine Torque (rpm) 3,250
Lean Angle, Right (deg.) 26.2
Lean Angle, Left (deg.) 27
Fuel Economy: Combined City/Hwy 5.6 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system, 6-speed, low fuel warnings, ABS
Gauges Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2. Recommended 95 octane or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. See motorcycle owner’s manual for complete details.
5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
6. Measurement reflects 81.7 kg operator weight.
7. Security system includes immobiliser and siren.
8. Standard and optional wheels may vary by country and region.



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
