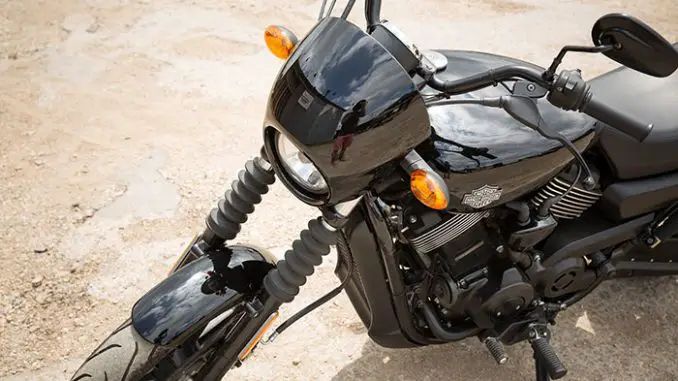

2016 Harley-Davidson Street 750 Review

2016 Harley-Davidson Street 750 on www.Totalmotorcycle.com

Traffic has never been beaten harder…

Last year, we unleashed a new form of rebellion on the urban grid. The Harley-Davidson Street® 750 motorcycle. This is a machine built to let you shred traffic in plenty of infinitely customizable Harley-Davidson® Dark Custom™ style. Liquid-cooled engine. Quick handling. A suspension tuned for rough pavement. Fire up the blacked out engine, send some sound out the blacked out pipes, and get behind the café racer windscreen and go. Consider the traffic whipped.

For 2016, Harley-Davidson Street® models receive several functional improvements to enhance the riding experience of these nimble urban machines. New front and rear brake systems with larger rotors and calipers, an ergonomically improved rear brake pedal position, and new brake and clutch levers combine to provide improved confidence and control. The horn bracket has been tucked behind the radiator, and improved wire harness routing provides a cleaner appearance. Finally, a hot coolant indicator light has been added to the speedo.

2016 Harley-Davidson Street 750 www.Totalmotorcycle.com Key Features

Narrow and agile, with an aggressive Dark Custom™ attitude, the Harley-Davidson Street® 750 is premium and pure rebellion down to the last detail. It boasts the 750 cc Revolution X™ liquid-cooled powertrain and instant throttle response to master the urban jungle.

NEW IN 2016
Foundational brake system and new brake rotors
Ergonomic rear brake pedal position
Wider, ergonomic brake and clutch lever
Horn bracket relocated behind radiator
Improved wire harness routing
Hot coolant indicator light
Paint color option

2016 Harley-Davidson Street 750 www.Totalmotorcycle.com Features and Benefits

Urban Mobility

We were all warned as kids about playing in the street. If you’re the sort who never listened to a word of it, we’ve got your motorcycle. The street is where the action is. The Harley-Davidson Street® series is a line of bikes built with one purpose in mind: to make the most of it. Every inch of the motorcycle has been thought through to meet the demands of navigating the urban landscape. A narrow and nimble profile with a tight 60.4-inch wheelbase keeps the handling razor sharp. Quick moves and turns come easy when you’re threading through whatever modern civilization decides to throw in your path. You have liquid cooling. You have loads of power in the Revolution X™ engine, for when you need to be somewhere else in a hurry. We’re talking about a whole different kind of two-wheeled animal here. One born to take on the traffic-snarled urban jungle.

We built the Harley-Davidson Street® series to be affordable machines for those who’ve gotta work to put gas in the tank and pay the meter maid when you find a place to park. But we did it our own way. That means we did it right. The beautifully formed teardrop fuel tank is Milwaukee steel, just like the fenders. Then we painstakingly finish it with one of our premium paintjobs, and top it with a 3-D chrome badge. Not a decal. Fire up the engine and you hear the pure signature rumble of a Harley-Davidson V-Twin, tuned to perfection in our state-of-the-art sound facility in Wauwatosa, Wisconsin USA. In other words, from the rock-solid belt final drive all the way forward to the Café-racer speed screen derived from deep in our factory custom heritage, there is no mistaking what the bikes in our newest family are. 100% pure Harley-Davidson motorcycle.

Custom Soul

Fact: get yourself to a part of town where interesting things are happening and you’ll see some rad custom bikes loaded with dark, aggressive style. Chances are they started life as a Harley-Davidson Street® model. We built our newest line of bikes from the no-nonsense blacked-out wheels up to be the ultimate blank canvas for customizing. Of course, each one is also first and foremost a Harley-Davidson motorcycle, so even fresh off the line it’s a lean, mean and eye-popping machine. Every inch of the up-swept two-into-one exhaust is black. The first time we’ve done that since the ‘70s, when it was a signature part of the famous XLCR Café Racer. You also see a shout-out to renegade ‘70s street bike culture in the minimalist speed screen adorning the blacked out front end. In short, you’ve got a machine loaded with Dark Custom™ attitude.

2016 Harley-Davidson Street 750 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7,549 – $7,899 USD

PRICING 6
Vivid Black $7,549
Color Option $7,844
California Emissions $50
Freight $330
DIMENSIONS
Length 87.6 in.
Seat Height, Laden 7 25.7 in.
Seat Height, Unladen 7 28 in.
Ground Clearance 5.7 in.
Rake (steering head) (deg) 32
Trail 4.5 in.
Wheelbase 60.4 in.
Tires, Front Specification 100/80 R17
Tires, Rear Specification 140/75 R15
Fuel Capacity 3.5 gal.
Oil Capacity (w/filter) 3.3 qt.
Weight, As Shipped 455 lb.
Weight, In Running Order 489 lb.
ENGINE
Engine 1 Liquid-cooled, Revolution X™ V-Twin
Bore 3.35 in.
Stroke 2.6 in.
Displacement 46 cu in
Compression Ratio 11:01
Fuel System 3 Mikuni Single Port Fuel Injection, 38 mm bore
DRIVETRAIN
Primary Drive Gear, 36/68 ratio
Gear Ratios (overall) 1st 14.272
Gear Ratios (overall) 2nd 10.074
Gear Ratios (overall) 3rd 7.446
Gear Ratios (overall) 4th 6.006
Gear Ratios (overall) 5th 5.037
Gear Ratios (overall) 6th 4.533
CHASSIS
Exhaust Black Two- into-one exhaust
Wheels, Front Type 9 Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Wheels, Rear Type Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Brakes, Caliper Type 2-piston floated front and rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 44.5 ft-lb
Engine Torque (rpm) 4,000
Lean Angle, Right (deg.) 28.5
Lean Angle, Left (deg.) 28.5
Fuel Economy: Combined City/Hwy 5 41 mpg
ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2016 Harley-Davidson Street 750 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $8899 – $9249 CDN

PRICING
Vivid Black $ 8,899
Color Option $ 9,249
DIMENSIONS
Length 2,225 mm
Seat Height, Unladen 6 710 mm
Ground Clearance 145 mm
Rake (steering head) (deg) 32
Trail 115 mm
Wheelbase 1,535 mm
Tires, Front Specification 100/80 R17
Tires, Rear Specification 140/75 R15
Fuel Capacity 13.1 l
Oil Capacity (w/filter) 3.1 l
Weight, As Shipped 206 kg
Weight, In Running Order 222 kg
ENGINE
Engine 1 Liquid-cooled, Revolution X™ V-Twin
Bore 85 mm
Stroke 66 mm
Displacement 749 cc
Compression Ratio 11:01
Fuel System 3 Mikuni Single Port Fuel Injection, 38 mm bore
DRIVETRAIN
Primary Drive Gear, 36/68 ratio
Gear Ratios (overall) 1st 14.25
Gear Ratios (overall) 2nd 10.07
Gear Ratios (overall) 3rd 7.45
Gear Ratios (overall) 4th 5.99
Gear Ratios (overall) 5th 5.04
Gear Ratios (overall) 6th 4.53
CHASSIS
Exhaust Black Two- into-one exhaust
Wheels, Front Type Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Wheels, Rear Type 8 Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Brakes, Caliper Type 2-piston floated front and rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 59 Nm
Engine Torque (rpm) 4,000
Lean Angle, Right (deg.) 28.5
Lean Angle, Left (deg.) 28.5
Fuel Economy: Combined City/Hwy 5 5.74 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Measurement reflects 180 lb. (81.7 kg) operator weight.
7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8. Standard and optional wheels may vary by country and region.

2016 Harley-Davidson Street 750 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £5795 – 5995 GBP (On The Road inc 20% Vat)

PRICING 5
Vivid Black £ 5,795
Color Option £ 5,995
DIMENSIONS
Length 2,225 mm
Seat Height, Unladen 710 mm
Ground Clearance 145 mm
Rake (steering head) (deg) 32
Trail 115 mm
Wheelbase 1,535 mm
Tyres, Front Specification 100/80 R17
Tyres, Rear Specification 140/75 R15
Fuel Capacity 13.1 l
Oil Capacity (w/filter) 3.1 l
Weight, As Shipped 223 kg
Weight, In Running Order 229 kg
ENGINE
Engine Liquid-cooled, Revolution X™ V-Twin
Bore 85 mm
Stroke 66 mm
Displacement 749 cc
Compression Ratio 11:01
Fuel System Mikuni Single Port Fuel Injection, 38 mm bore
DRIVETRAIN
Primary Drive Gear, 36/68 ratio
Gear Ratios (overall) 1st 14.272
Gear Ratios (overall) 2nd 10.074
Gear Ratios (overall) 3rd 7.446
Gear Ratios (overall) 4th 6.006
Gear Ratios (overall) 5th 5.037
Gear Ratios (overall) 6th 4.533
CHASSIS
Exhaust Black Two- into-one exhaust
Wheels, Front Type Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Wheels, Rear Type Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Brakes, Caliper Type 2-piston floated front and rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 59 Nm
Engine Torque (rpm) 4,000
Lean Angle, Right (deg.) 28.5
Lean Angle, Left (deg.) 28.5
Fuel Economy: Combined City/Hwy 5.74 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking fuel cap
1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2. Recommended 95 octane or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. See motorcycle owner’s manual for complete details.
5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
6. Measurement reflects 81.7 kg operator weight.
7. Security system includes immobiliser and siren.
8. Standard and optional wheels may vary by country and region.

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
