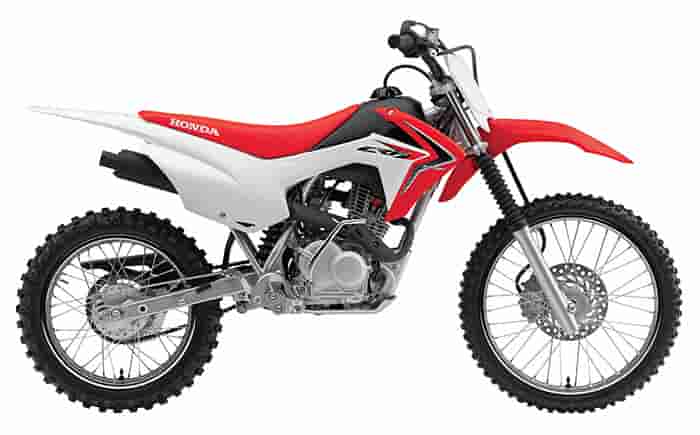

2016 Honda CRF125F Big Wheel
2016 Honda CRF125F Big Wheel

2016 Honda CRF125F Big Wheel
2016 Honda CRF125F Big Wheel



2016 Honda CRF125F Big Wheel Review

2016 Honda CRF125F Big Wheel on www.Totalmotorcycle.com

Bigger Riders Need Bigger Bikes…

Riders aren’t all the same size at the same age, and that’s why Honda offers so many choices when it comes to dirtbikes. You need to carefully consider both your rider’s skill level and overall size when choosing a bike. But when it comes to the 2016 Honda CRF125F Big Wheel, you’re in luck—basically, it’s the same great machine as our CRF125F, but with bigger wheels and a two-inch taller seat height. That combination means it will be perfect for thousands of teens and smaller adults who just want to get out on the trails and have fun. It’s loaded with features, and since it’s a Honda, it’s also famously reliable—a big plus, because riding is a lot more fun than wrenching or dealing with a poor-quality bike. Like the CRF125F, the Big Wheel version offers an electric starter makes it easy to get underway, and its four-speed transmission gives you all the control of a full-sized bike.

Be A Responsible Rider: All parents need to consider their youngsters’ age, size, ability and maturity before allowing them to ride. Obtain a copy of “Off-Road Safety Tips” from your local Honda Dealer.


Electric Starter

Turn a key, push a button—that’s all it takes to get the CRF125F Big Wheel going. Add in a generous dose of Honda reliability and you’ll find the CRF125F Big Wheel is super easy to own.


Sized Right For Fun

With its 125cc single-overhead-cam engine and air-cooled four-speed transmission, the CRF125F Big Wheel will fit a wide range riders. It has enough power for teens and small adults without being intimidating for younger riders.


Stopping Power

Just because it’s a small bike doesn’t mean we scrimped on the details—just the opposite, in fact: The front disc brake is a perfect example. It’s a big-bike feature that’s pure Honda.




2016 Honda CRF125F Big Wheel www.Totalmotorcycle.com Key Features

A step up before we step out.

Pure Honda Through And Through.

Sure, the 2016 Honda CRF125F Big Wheel is loaded with features, especially for such a fun bike: electric start, front disc brake, Pro-Link® rear suspension, powerful 125cc engine with a broad powerband. But there’s something more, and it’s important: Nobody else can touch Honda’s reputation for build quality, reliability and long-term value. After all, a fun bike is only fun if it’s reliable, and you can bet that’s one feature your CRF125F Big Wheel will offer in spades.





2016 Honda CRF125F Big Wheel www.Totalmotorcycle.com Features and Benefits

Engine / Drivetrain

Easy to start

Convenient electric starter makes starting a breeze.



Smooth – from stand-still to start

Heavy-duty manual clutch with light, smooth, progressive engagement.



Smooth-shifting transmission

Durable, smooth-shifting four-speed transmission



Designed to compete

Lightweight, upswept, competition-type exhaust system utilizes a quiet muffler/spark arrester.



Easy starts in any gear

Primary kickstarting for easy starts in any gear.



No engine oil contamination

Closed crankcase vent system safeguards against engine oil contamination.



Light throttle action

20 mm carb with light throttle action.



Simplified maintenance

Ultra-reliable electronic ignition simplifies maintenance.



Ideal for beginners

Durable, simple, low-maintenance, 124.9 cc air-cooled single-cylinder 4-stroke engine develops the smooth, tractable power that’s ideal for beginners.




Chassis / Suspension

Easy-to-modulate brakes

Powerful front disc and lightweight rear drum brakes are easy to modulate.



Simplified maintenance

Lightweight, screw-type drive chain adjusters simplify maintenance.



Remarkable grip & longevity

Knobby tires fitted to 19-inch front and 16-inch rear rims offer excellent grip and long life.



Excellent wheel travel

Pro-Link, single-shock rear suspension with box-section swingarm offers 150 mm (5.9 in.) of wheel travel.



Compliant suspension travel

31 mm leading-axle front fork offers 150 mm (5.9 in.) of compliant suspension travel.



Ridgid & durable for off-roading

Lightweight, high-tensile steel frame is rigid, durable and offers ideal geometry for recreational off-road riding.




Additional Features

Durable

Durable steel sprockets.



Protection of fork seals

Fork boots help protect stanchion tubes and fork seals.



High-quality controls

High-quality controls feature comfortable grips, and adjustable front brake lever.



Generous ground clearance

Generous ground clearance and rugged skidplate for undercarriage protection.



Extended range

Large-capacity fuel tank and thrifty 4-stroke engine for extended range.



Long-life body

Durable body components.



Inspired graphics

CRF-R-inspired graphics.









2016 Honda CRF125F Big Wheel – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3199 USD

ENGINE
Engine Type 124.9cc air-cooled single-cylinder four-stroke
Bore And Stroke 52.4mm x 57.9mm
Compression Ratio 9.0:1
Valve Train SOHC; two-valve
Induction 20mm piston-valve carburetor
Ignition DC-CDI

DRIVE TRAIN
Transmission Four-speed
Final Drive 13T/49T

CHASSIS / SUSPENSION / BRAKES
Front Suspension 31mm telescopic fork; 5.9 inches of travel
Rear Suspension Pro-Link single-shock; 5.9 inches of travel
Front Brake 220mm hydraulic disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSIONS
Rake 27°30′ (Caster Angle)
Trail 94mm (3.7 inches)
Wheelbase 49.4 inches
Seat Height 30.9 inches
Curb Weight 194 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
Fuel Capacity 1.1 gallons, including 0.2-gallon reserve
Ground Clearance 10.4 Inches

OTHER
Emissions Meets current California Air Resource Board (CARB) and EPA off-road emissions standards.
Available Colors Red
Model Id CRF125FB

FACTORY WARRANTY INFORMATION
Duration Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.









2016 Honda CRF125F Big Wheel – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $3499 CDN


Engine & Drivetrain


Engine Type

Air-cooled, single-cylinder, four stroke


Displacement

124.9 cc


Bore & Stroke

52.4 mm x 57.9 mm


Compression Ratio

9.0:1


Valve Train

SOHC; two-valve


Fuel Delivery

20 mm piston-valve carburetor


Transmission

Four-speed


Final Drive

Chain, 13T/49T


Chassis & Suspension


Front Suspension

31 mm leading-axle fork; 150 mm (5.9 in.) travel


Rear Suspension

Pro-Link single shock; 150 mm (5.9 in.) travel


Dimensions & Additional Information


Tires

Front: 70/100-19, Rear: 70/100-16


Brakes

Front: 220 mm hydraulic disc, Rear: Drum


Ground Clearance

264 mm (10.4 in.)


Seat Height

785 mm (30.9 in.)


Wheelbase

1,255 mm (49.4 in.)


Curb Weight

88 kg (194 lbs.)


Fuel Capacity

4.2 litres


Colour

Red







2016 Honda CRF125F Big Wheel – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

NA

Specifications, features, illustrations and equipment shown are believed to be correct – however, accuracy cannot be guaranteed. Honda Inc. reserves the right to make changes at any time, without notice or obligation, in colours, specifications, accessories, materials and models. Some vehicles are shown with optional equipment. Some vehicles shown are U.S., European and/or Canadian models.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
